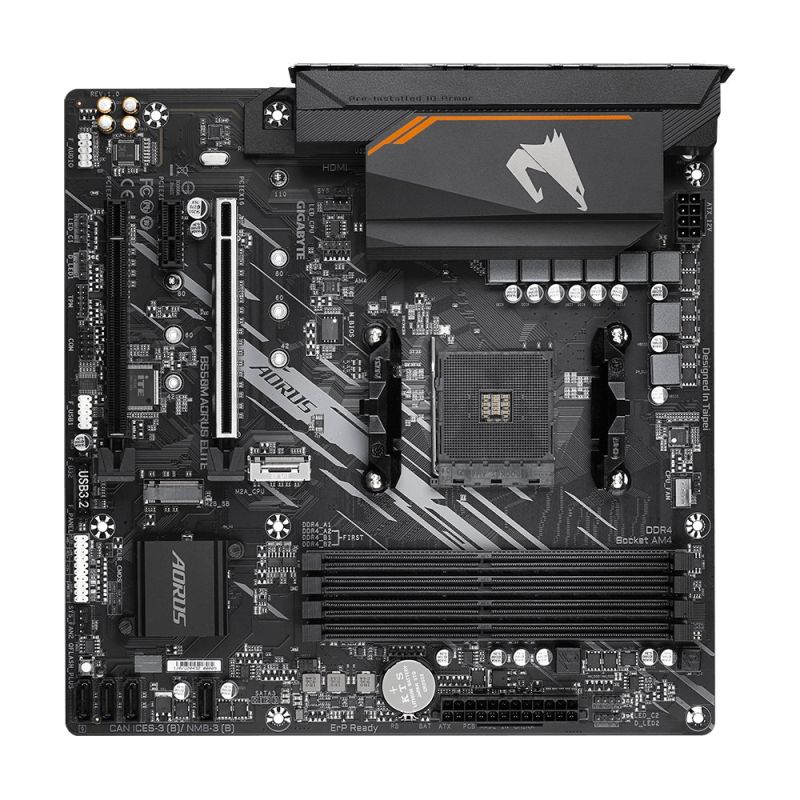

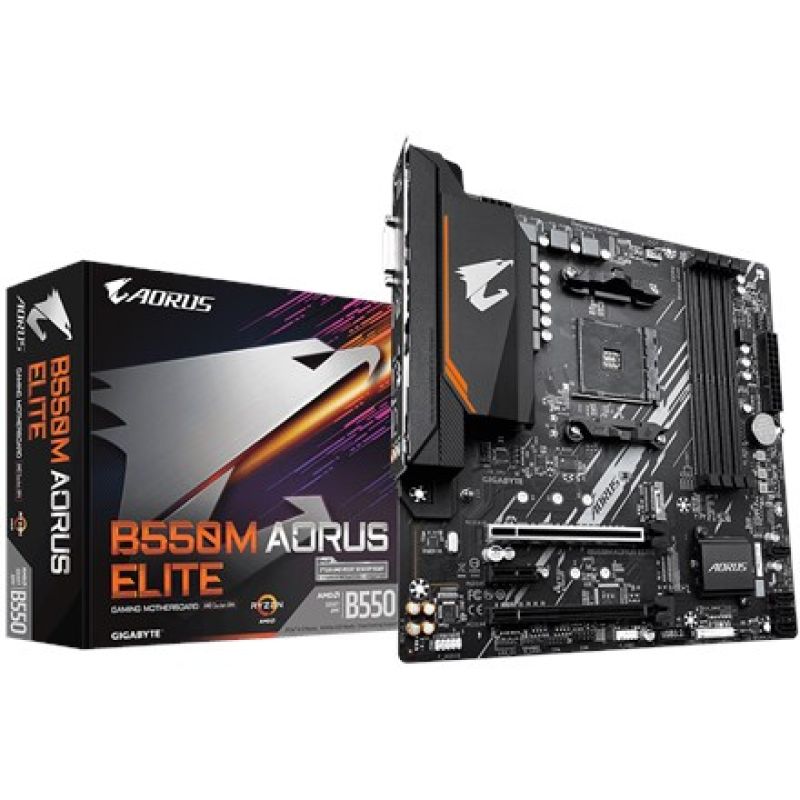

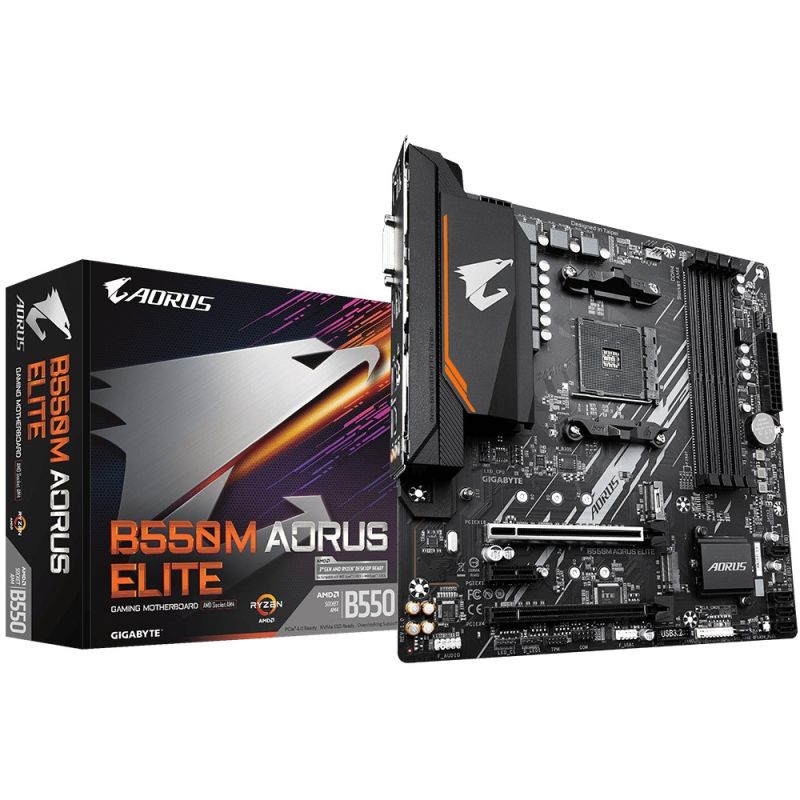

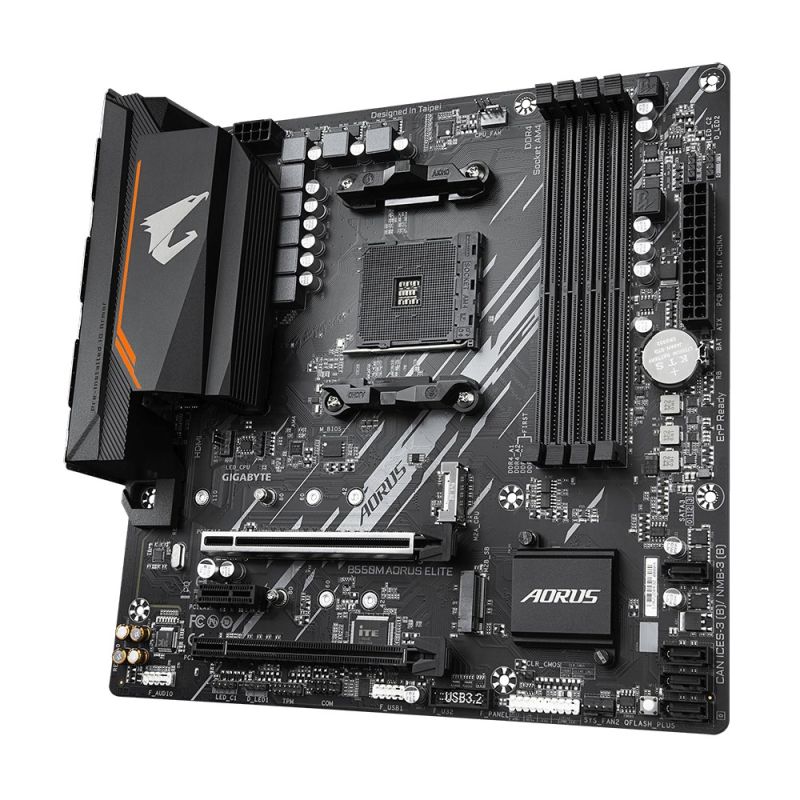

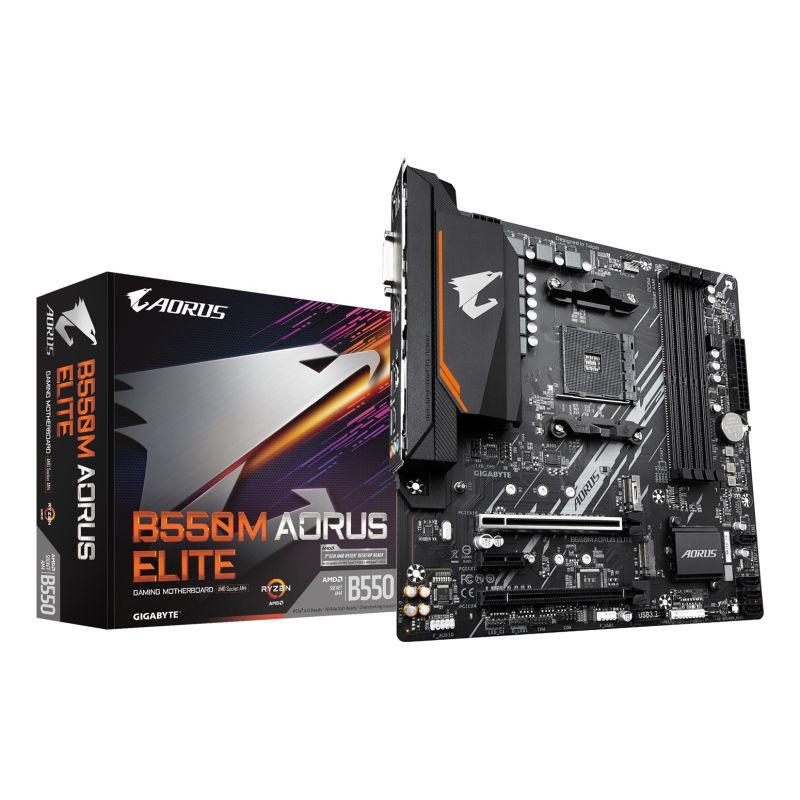

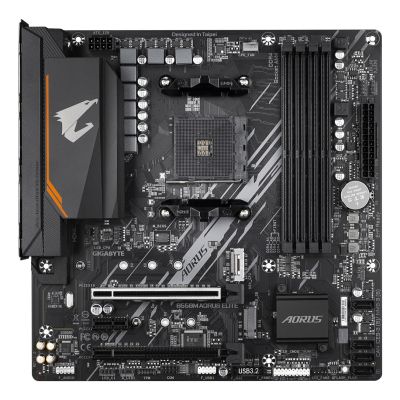

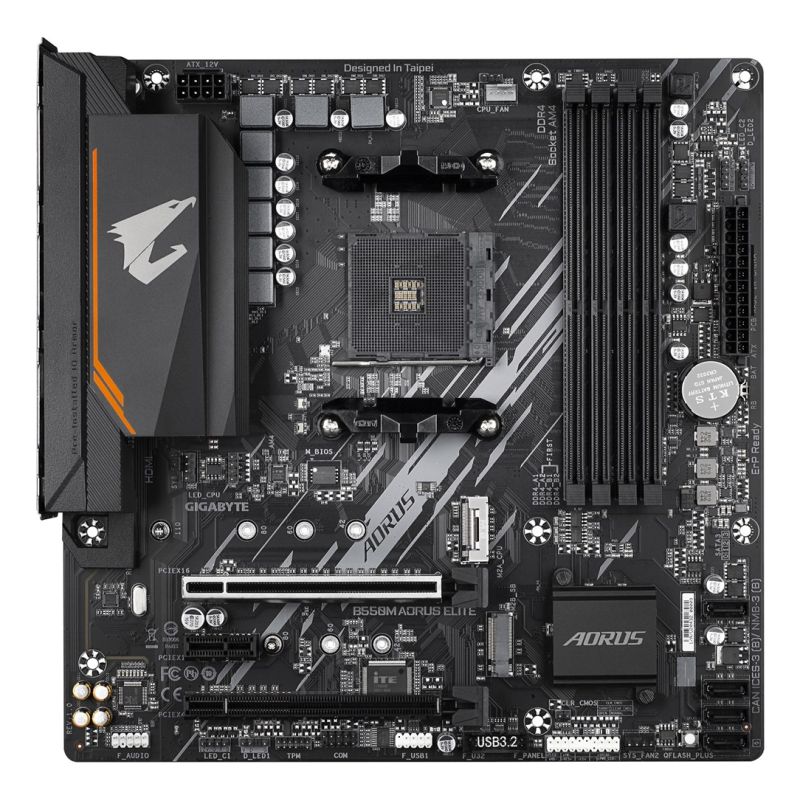

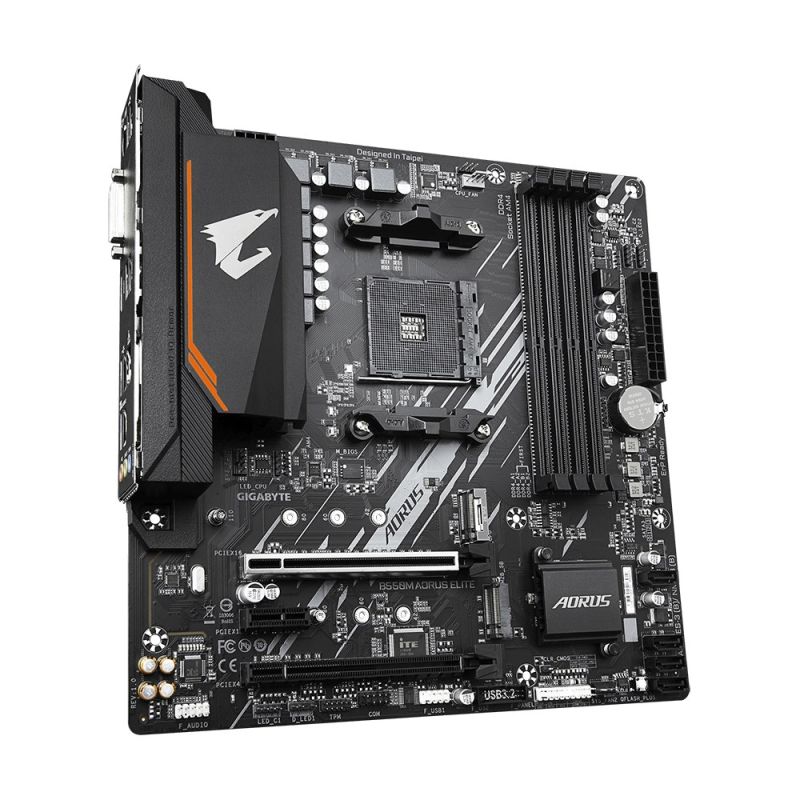

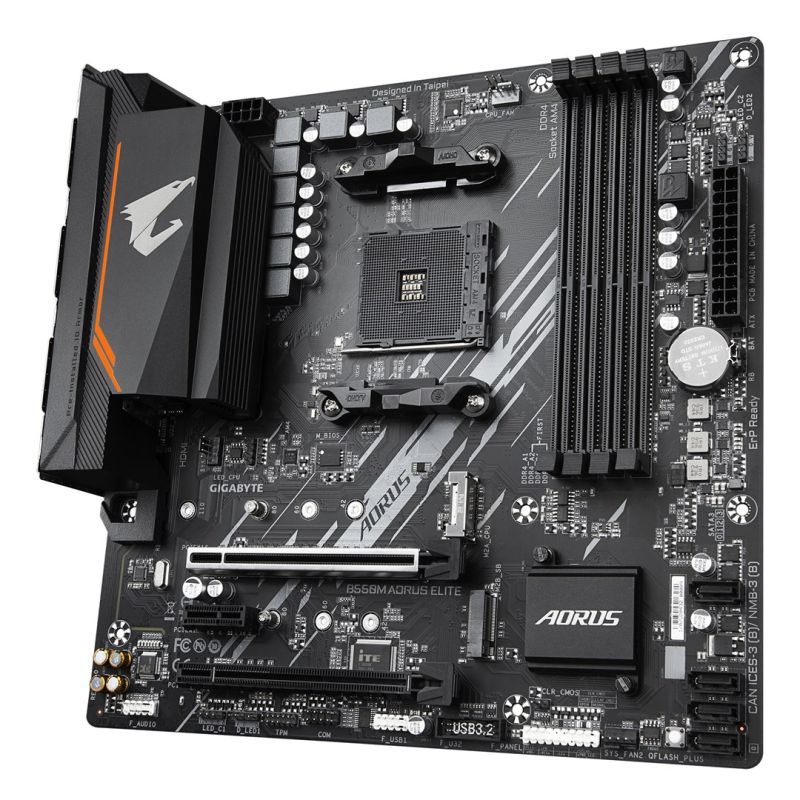

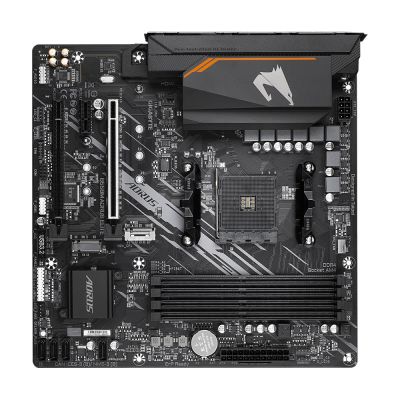

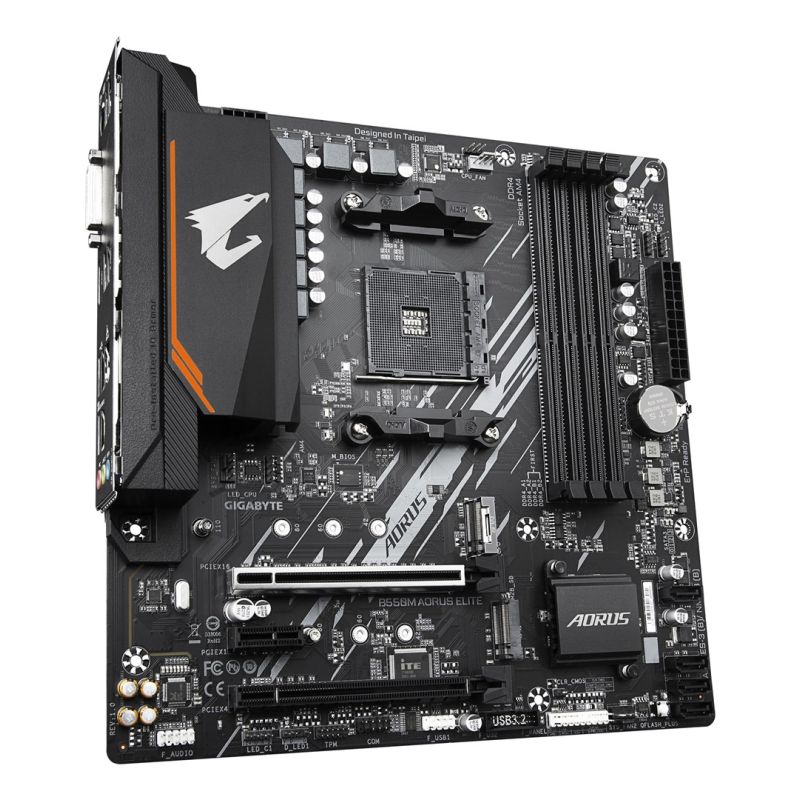

Gigabyte B550M AORUS ELITE Socket AM4 micro ATX AMD B550 motherboard
Gigabyte B550M AORUS ELITE Socket AM4 micro ATX AMD B550 motherboard
Gigabyte B550M AORUS ELITE Socket AM4 micro ATX AMD B550 motherboard
PRICE:
148,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Maximum number of SMP processors: 1
- Supported processor sockets: Socket AM4
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 4000 Series
- AMD Ryzen 3000 Series
- AMD Ryzen 5000 Series
- Processor socket: Socket AM4
- Graphics
- HDCP: Yes
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory clock speeds
- 3733 MHz
- 4266 MHz
- 2133 MHz
- 3200 MHz
- 2667 MHz
- 2933 MHz
- 4733 MHz
- 4400 MHz
- 4133 MHz
- 3400 MHz
- 3866 MHz
- 4600 MHz
- 3466 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- Maximum internal memory per slot: 32 GB
- Maximum memory capacity: 128 GB
- ECC Compatibility: ECC or Non-ECC
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- Supported memory clock speed (max): 4733 MHz
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Supported memory clock speeds
- Characteristics
- Audio chip: Realtek ALC897
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Power supply type: ATX
- Monitoring computer status
- Fan
- Temperature
- Tension
- Chipset Board Family: AMD
- Intended use: PC
- Audio output channels: 7.1 ch.
- Cooling type: Passive
- Motherboard format: Micro ATX
- Product color: Brown
- Motherboard Layout: AMD B550
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Product height: 35 mm
- Internal I/O
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED connectors: 5
- Number of CPU fan connectors: 1
- TPM Connector: Yes
- Number of case fan connectors: 2
- Number of water pump connections: 2
- Number of USB 2.0 ports: 1
- CPU fan connector: Yes
- Serial port connector: 1
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- 12V power connector: Yes
- RGB LED: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- LAN Controller: Realtek RTL8111H
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package depth: 265 mm
- Package height: 65 mm
- Package width: 265 mm
- Weight with packaging: 1.27 kg
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 1
- 0
- 10
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4

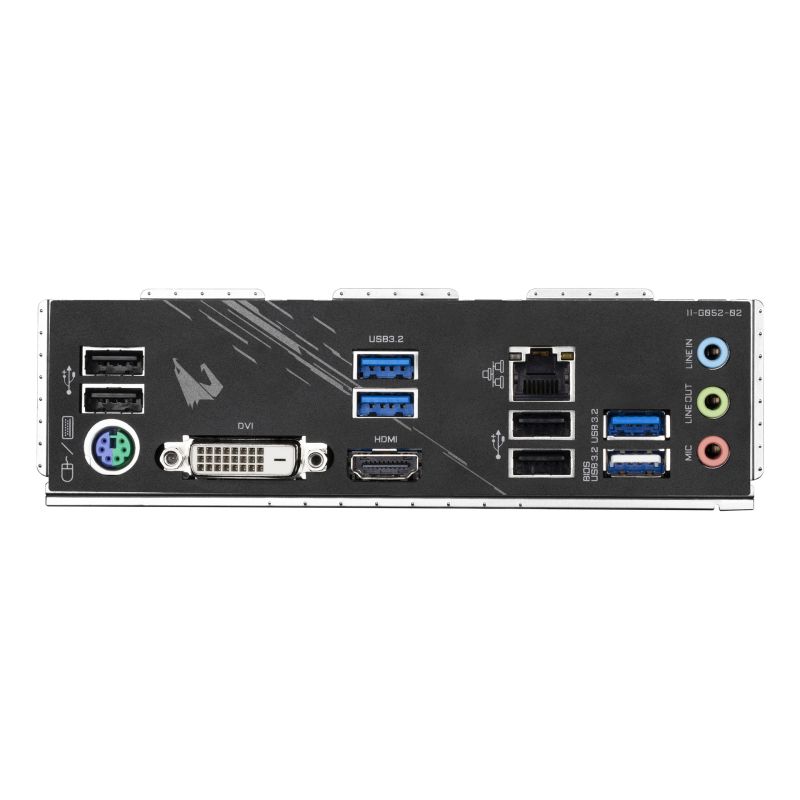

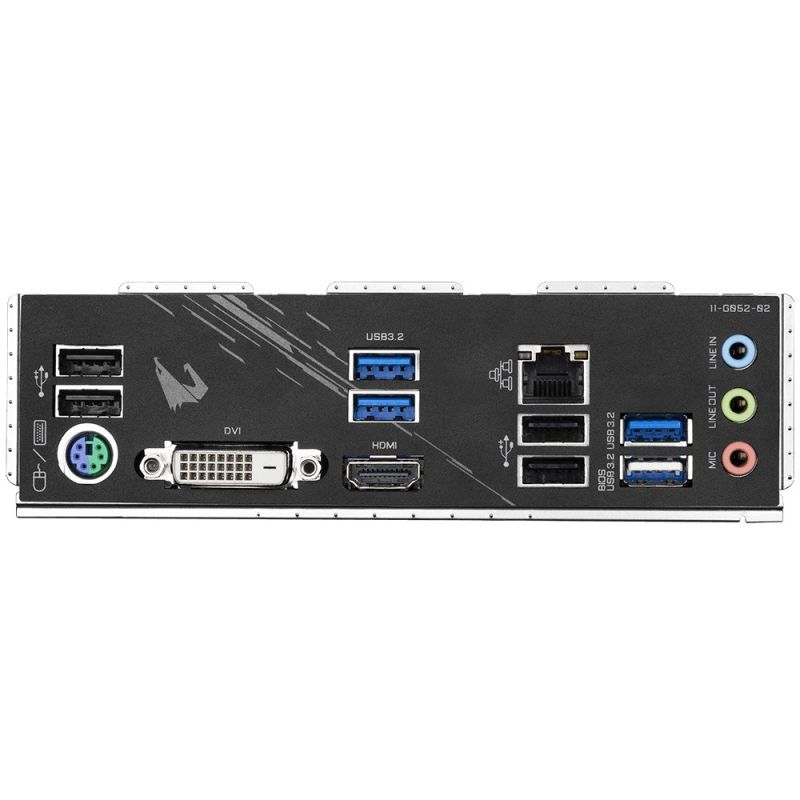

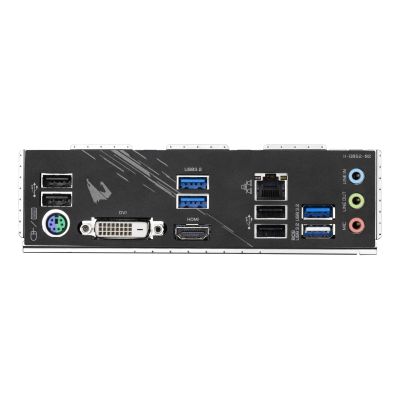

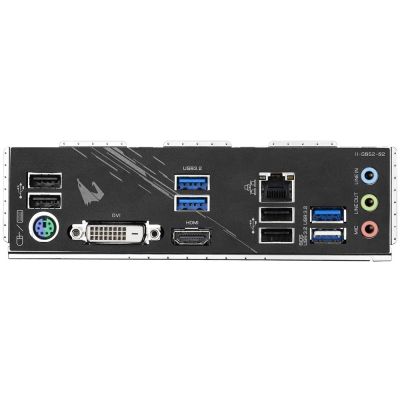

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 4
- Number of PS/2 ports: 1
- Headphone outputs: 1
- Number of DVI-D ports: 1
- Line Input: Yes
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- 2nd largest M.2 key size: 2280
- 1. largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 3.0
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 4.x) slots: 1
- Battery
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Battery weight: 3 g
- Logistics data
- Country of origin: China
- Harmonized System (HS) code: 84733020
- Products per shipping crate (inner): 1 pc.
- Safety warning
- Warnings
- Store away from water and sources of moisture.
- Avoid direct contact with sensitive electronic components.
- Dispose of in accordance with local regulations regarding electronic waste.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
