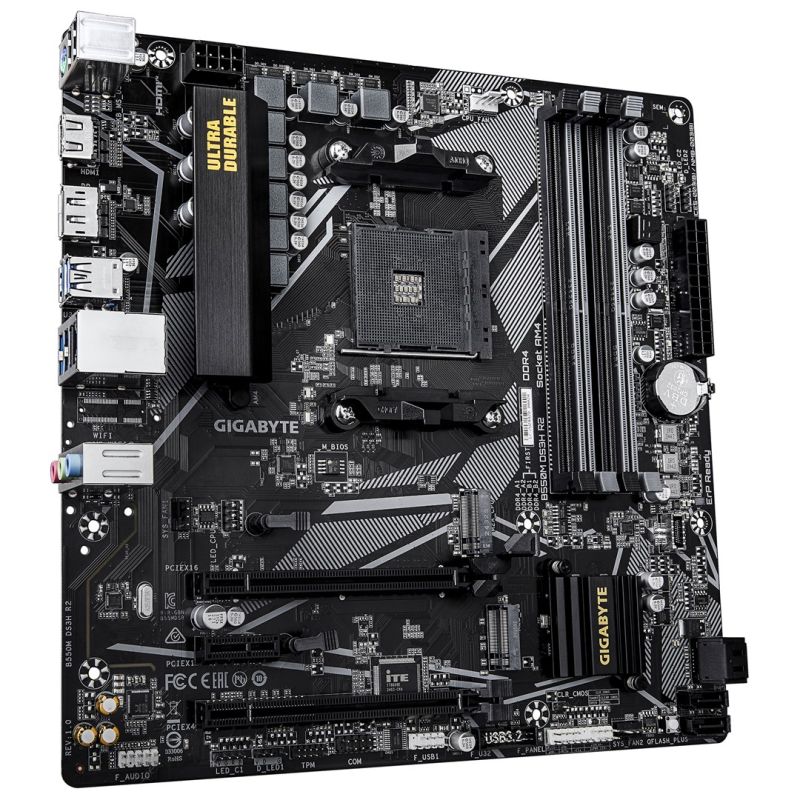

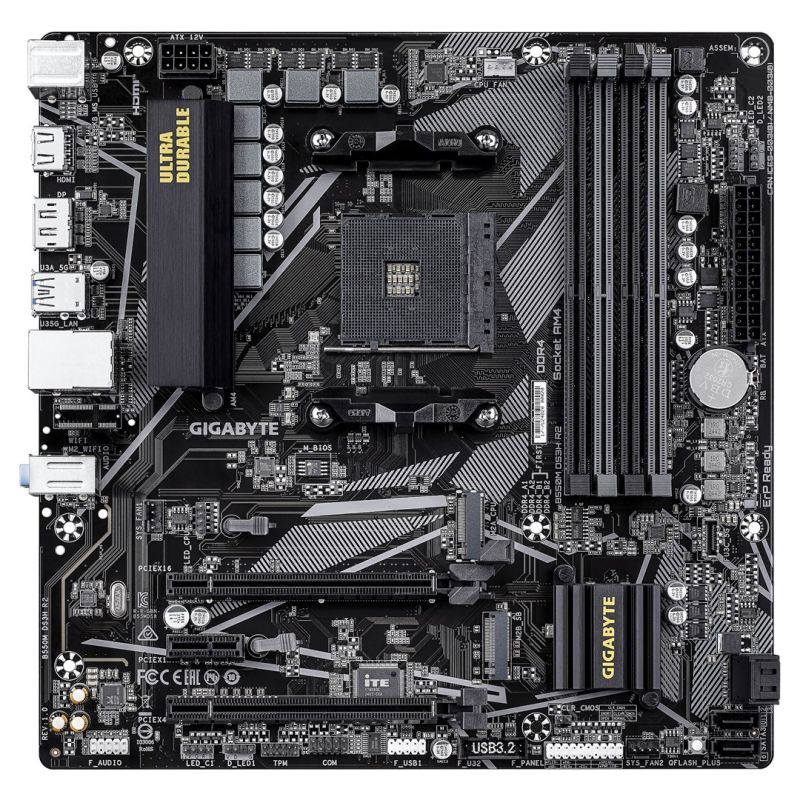

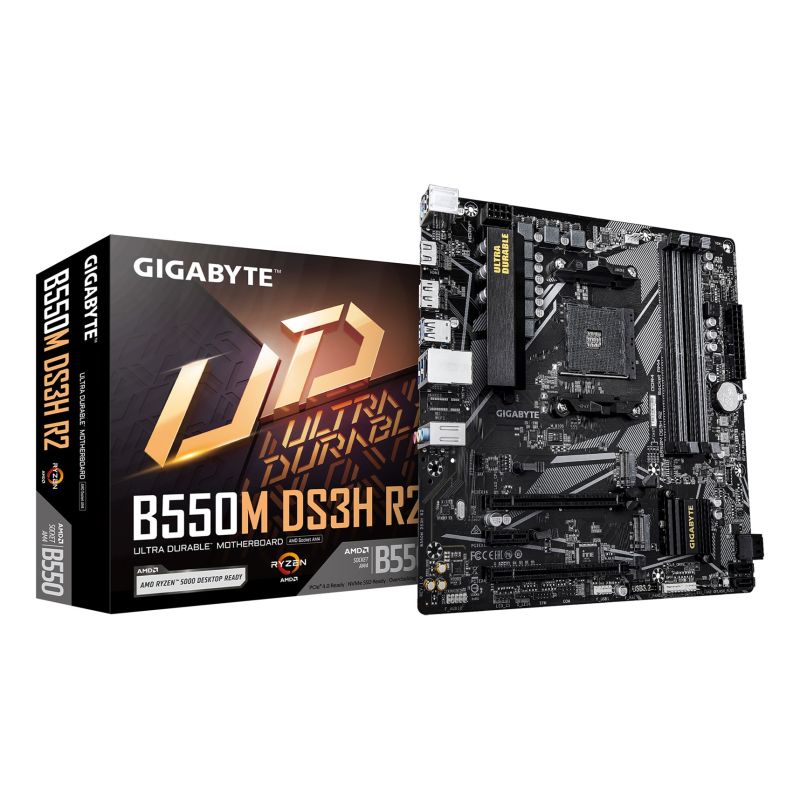

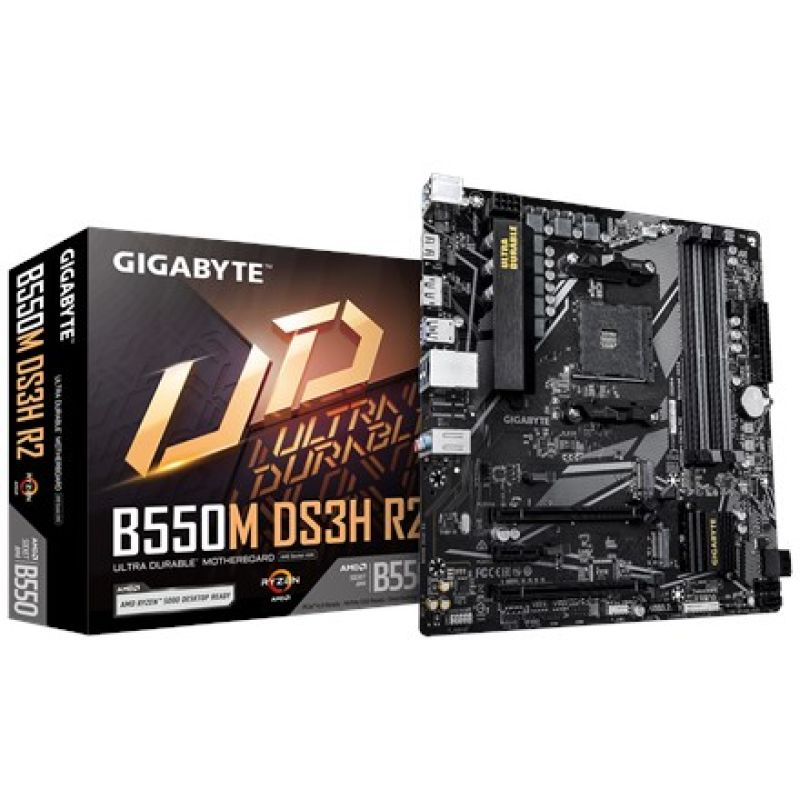

Gigabyte B550M DS3H R2 motherboard, AMD B550, AM4, 4xDDR4, mATX
Gigabyte B550M DS3H R2 motherboard, AMD B550, AM4, 4xDDR4, mATX
Gigabyte B550M DS3H R2 motherboard, AMD B550, AM4, 4xDDR4, mATX
PRICE:
140,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor socket: Socket AM4
- Processor
- AMD Ryzen 4000 Series
- AMD Ryzen 5000 Series
- AMD Ryzen 3000 Series
- Supported processor sockets: Socket AM4
- Processor manufacturer: AMD
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Maximum resolution: 5120 x 2880 px
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 4400 MHz
- 3733 MHz
- 3200 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 4266 MHz
- 2667 MHz
- 2133 MHz
- 4133 MHz
- 3400 MHz
- 3866 MHz
- 4600 MHz
- 2933 MHz
- 4733 MHz
- 3466 MHz
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Supported memory types: DDR4-SDRAM
- Supported memory clock speed (max): 4733 MHz
- Number of memory slots: 4
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Maximum internal memory per slot: 32 GB
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speeds
- Characteristics
- Motherboard Layout: AMD B550
- Product color: Dark brown
- Audio chip: Realtek ALC1220-VB
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Intended use: PC
- Monitoring computer status
- Tension
- Temperature
- Fan
- Motherboard format: Micro ATX
- Cooling type: Passive
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Power supply type: ATX
- Weight and dimensions
- Product height: 35 mm
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- Number of case fan connectors: 2
- TPM Connector: Yes
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- ATX power socket (24-pin): Yes
- Front panel audio connector: Yes
- Serial port connector: 1
- CPU fan connector: Yes
- Number of EPS power connectors (8-pin): 1
- RGB LED: Yes
- Number of RGB LED connectors: 5
- Number of CPU fan connectors: 1
- Network
- LAN Controller: Realtek RTL8111H
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- BIOS
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- BIOS memory size: 128 Mbit
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package depth: 265 mm
- Package width: 265 mm
- Package height: 54 mm
- Weight with packaging: 947 g
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6
- Supported hard drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- RAID levels
- 1
- 10
- 0

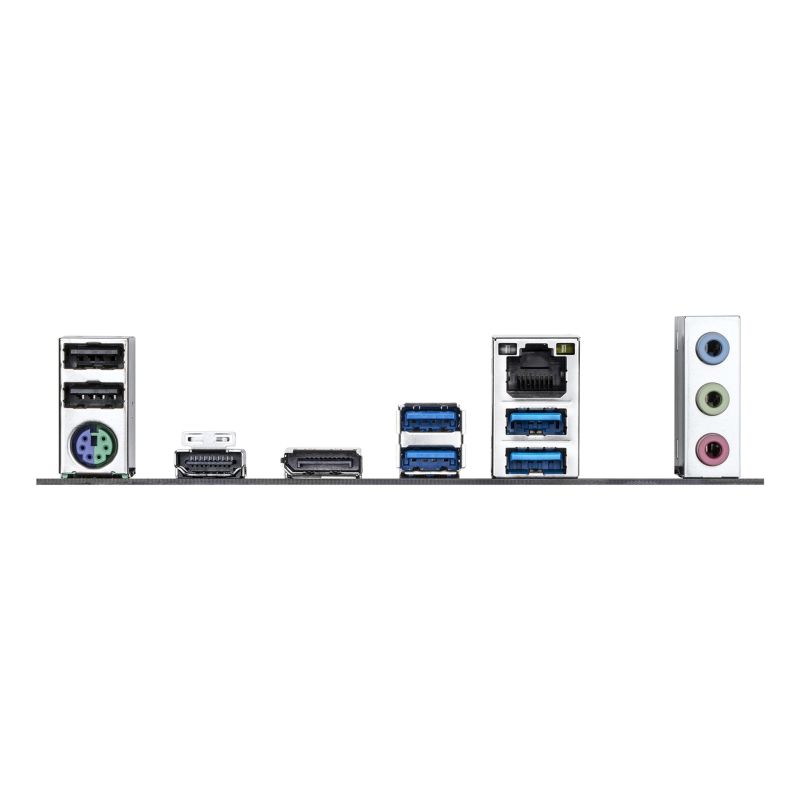

- Rear Panel I/O Ports
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Headphone outputs: 1
- Line Input: Yes
- HDMI version: 2.1
- Microphone: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.4
- Number of USB 2.0 ports: 2
- DisplayPort Quantity: 1
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- 1. largest M.2 key size: 2280
- 2nd largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- 2. M.2 highest generation PCI Express: 3.0
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Battery weight: 3 g
- Number of battery compartments: 1
- Other functions
- Product weight: 870 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
