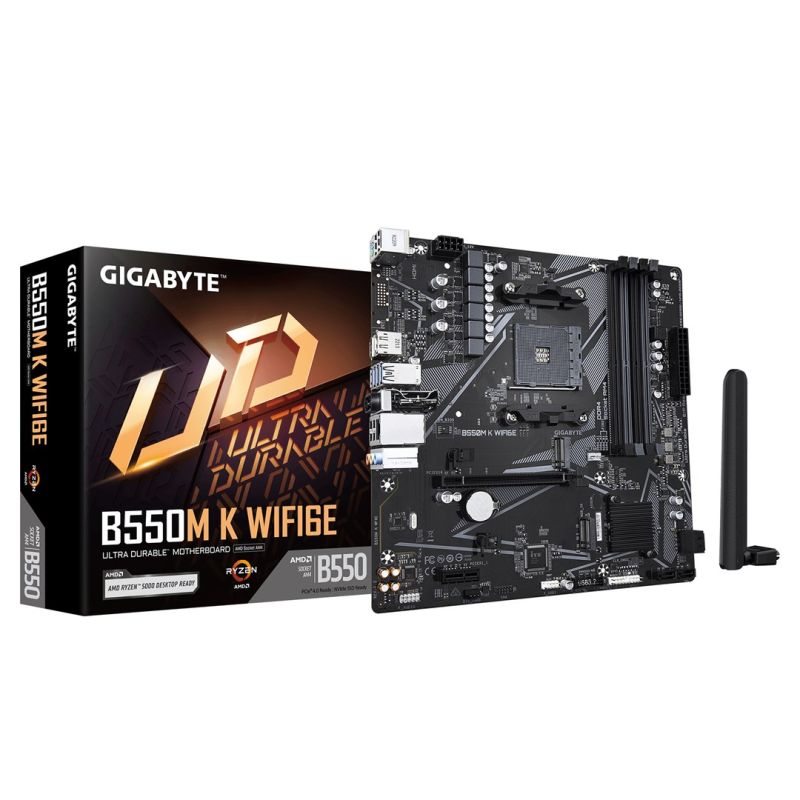

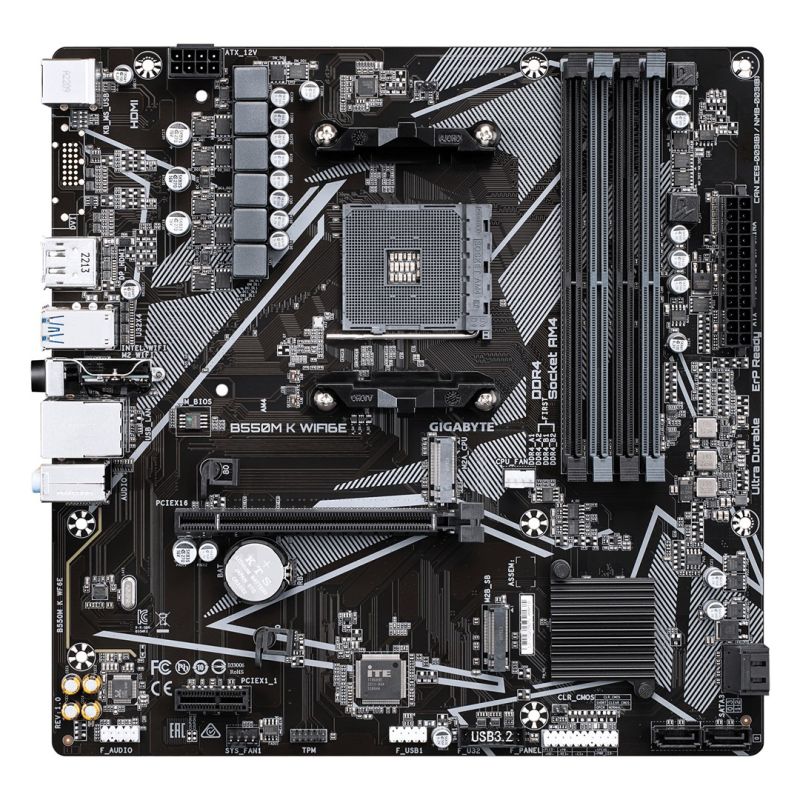

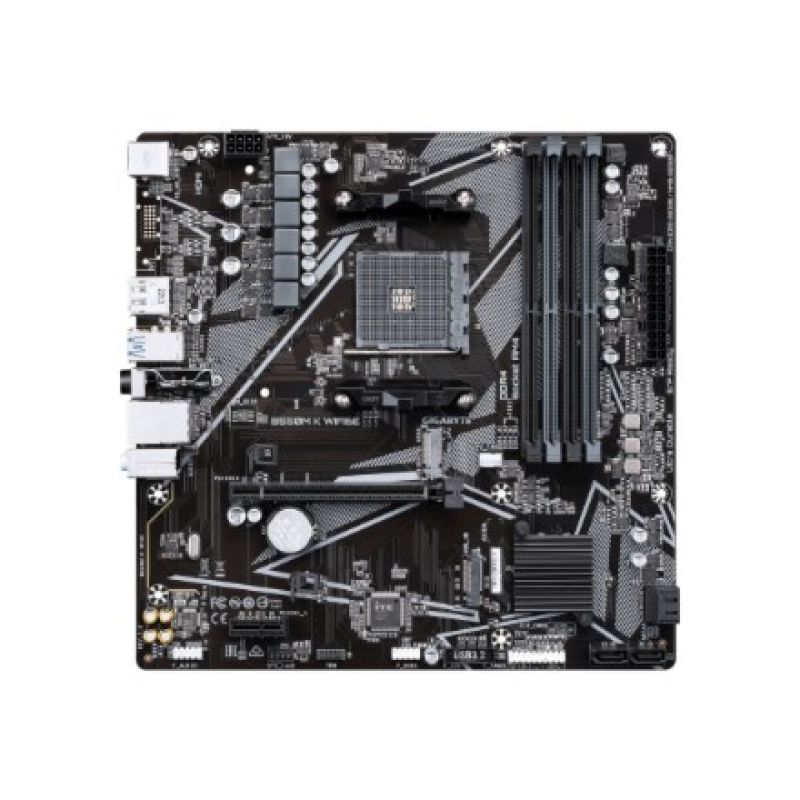

GIGABYTE B550M K WIFI6E AMD B550 Socket AM4 Micro ATX
GIGABYTE B550M K WIFI6E AMD B550 Socket AM4 Micro ATX
GIGABYTE B550M K WIFI6E AMD B550 Socket AM4 Micro ATX
PRICE:
180,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 year(s)
- Processor
- Processor
- AMD Ryzen 4000 Series
- AMD Ryzen 3000 Series
- AMD Ryzen 5000 Series
- Processor socket: Socket AM4
- Processor manufacturer: AMD
- Supported processor sockets: Socket AM4
- Processor
- Graphics
- Maximum resolution: 5120 x 2880 px
- Parallel processing support: Not supported
- DirectX version: 12.0
- HDCP: Yes
- HDCP version: 2.3
- Memory
- Supported memory clock speeds
- 3466 MHz
- 2133 MHz
- 2667 MHz
- 4733 MHz
- 2400 MHz
- 4000 MHz
- 4266 MHz
- 4400 MHz
- 3733 MHz
- 3400 MHz
- 3866 MHz
- 4600 MHz
- 3600 MHz
- 3200 MHz
- 2933 MHz
- 4133 MHz
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Number of memory slots: 4
- Supported memory types: DDR4-SDRAM
- Memory slot type: DIMM
- Maximum internal memory per slot: 32 GB
- ECC compatibility: ECC or Non-ECC
- Supported memory clock speed (max.): 4733 MHz
- Memory channel support: Dodeca channel
- Supported memory clock speeds
- Features
- Product colour: Dark brown
- Audio chip: Realtek ALC897
- Motherboard chipset: AMD B550
- Audio output channels: 7.1 channels
- Motherboard chipset family: AMD
- Computer health monitoring
- Voltage
- Fan
- Temperature
- Motherboard form factor: Micro ATX
- Power supply: ATX
- Purpose: PC
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Cooling type: Passive
- Weight and dimensions
- Product height: 35 mm
- Product width: 244 mm
- Product depth: 244 mm
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) headers: 1
- Number of SATA III connectors: 4
- ATX power connector (24-pin): Yes
- Front panel audio connector: Yes
- Number of USB 2.0 headers: 1
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 1
- 12V power connector: Yes
- Front panel connector: Yes
- TPM connector: Yes
- Number of chassis fan connectors: 1
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Network
- Ethernet interface type
- Gigabit Ethernet
- Fast Ethernet
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 4 (802.11n)
- 802.11g
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wired LAN: Yes
- Wi-Fi: Yes
- Bluetooth version: 5.3
- WLAN controller model: MediaTek MT7902
- Bluetooth: Yes
- LAN controller: Realtek RTL8111H
- Primary Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Ethernet interface type
- BIOS
- Desktop Management Interface (DMI) version: 2.7
- BIOS system version (SMBIOS): 2.7
- Clear CMOS jumper: Yes
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Packaging data
- Weight including packaging: 1.02 kg
- Package depth: 268 mm
- Package height: 68 mm
- Package width: 270 mm
- Packaging contents
- Screws included: Yes
- Batteries included: Yes
- Antenna included: Yes
- Storage controllers
- RAID support: Yes
- RAID levels
- 10
- 1
- 0
- Supported hard drive interfaces: M.2, SATA
- Supported drive types: HDD & SSD
- Number of supported HDDs: 2
- Number of supported storage drive sizes: 6

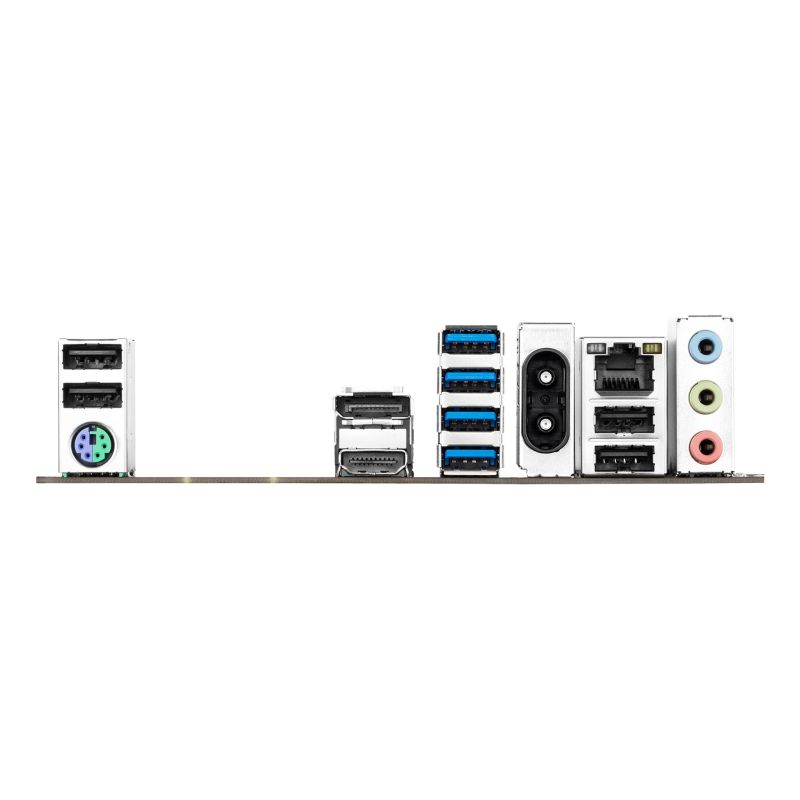

- Rear panel I/O ports
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN (RJ-45) ports: 1
- Number of DisplayPorts: 1
- Number of PS/2 ports: 1
- Line-in: Yes
- Microphone: Yes
- DisplayPort version: 1.4
- Headphone outputs: 1
- WiFi AP antenna jacks: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- HDMI version: 2.1
- Number of HDMI ports: 1
- Expansion slots
- PCI Express x1 slots (Gen 3.x): 1
- Number of M.2 (M) slots: 2
- 2nd M.2 maximum PCI Express generation: 3.0
- 2nd M.2 maximum key size: 2280
- 1st M.2 maximum key size: 2280
- 1st M.2 maximum PCI Express generation: 4.0
- PCI Express x16 slots (Gen 4.x): 1
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Lithium battery weight: 0.07 g
- Battery/accumulator weight: 3 g
- Supported battery type: CR2032
- Other features
- Product weight: 940 g
- Logistics data
- Country of origin: China
- Products per shipping case (inner): 1 pc
