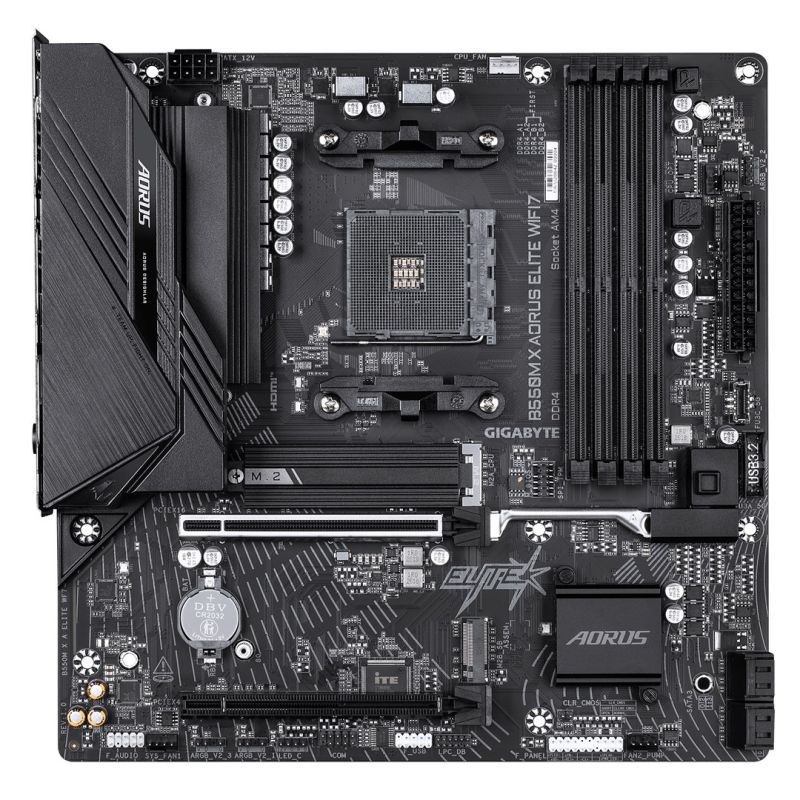

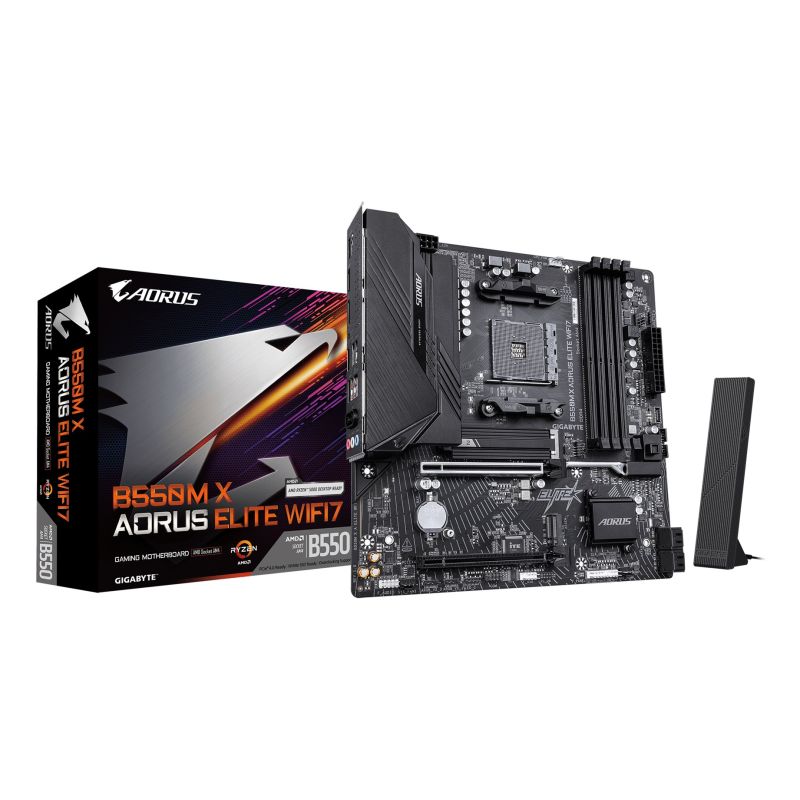

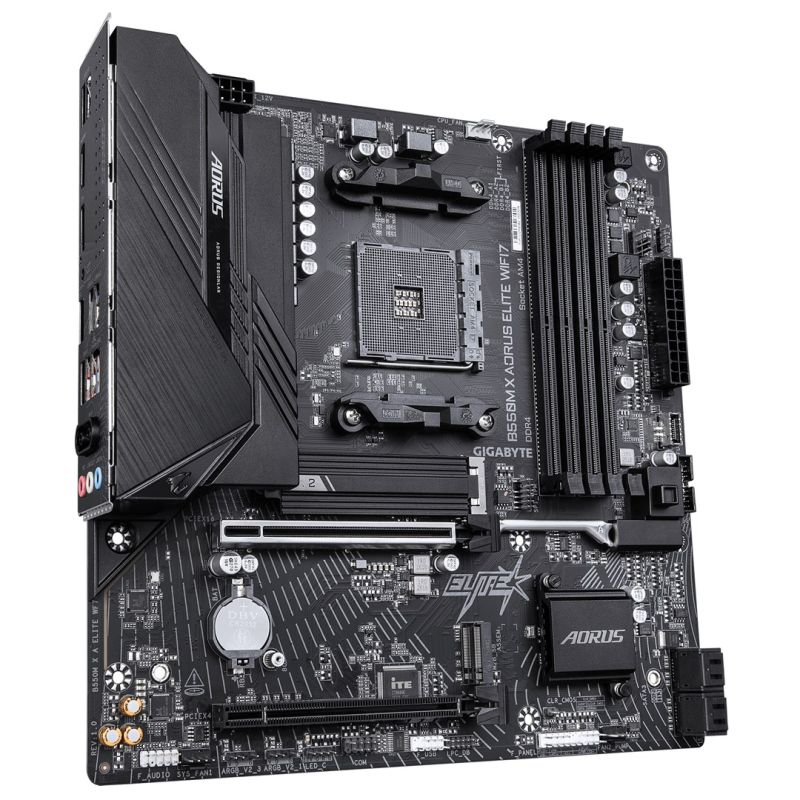

GIGABYTE B550M X AORUS ELITE WIFI7 AMD B550 Socket AM4 micro ATX
GIGABYTE B550M X AORUS ELITE WIFI7 AMD B550 Socket AM4 micro ATX
GIGABYTE B550M X AORUS ELITE WIFI7 AMD B550 Socket AM4 micro ATX
PRICE:
241,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported processor sockets: Socket AM4
- Processor
- AMD Ryzen 4000 Series
- AMD Ryzen 3000 Series
- AMD Ryzen 5000 Series
- Processor socket: Socket AM4
- Processor manufacturer: AMD
- Graphics
- HDCP: Yes
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- HDCP version: 2.3
- Maximum resolution: 5120 x 2880 px
- Memory
- Supported memory clock speeds
- 2133 MHz
- 2667 MHz
- 2933 MHz
- 3200 MHz
- 2400 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- ECC Compatibility: ECC or Non-ECC
- Maximum internal memory per slot: 32 GB
- Supported memory clock speed (max): 3200 MHz
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- Characteristics
- Motherboard Layout: AMD B550
- Product color: Black
- Monitoring computer status
- Fan
- Tension
- Temperature
- Water cooling
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC1220
- Power supply type: ATX
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Supported Windows operating systems: Windows 11
- Cooling type: Passive
- Intended use: PC
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- CPU fan connector: Yes
- RGB LED: Yes
- Number of case fan connectors: 2
- 12V power connector: Yes
- Serial port connector: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 1
- ATX power socket (24-pin): Yes
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Number of EPS power connectors (8-pin): 1
- TPM Connector: Yes
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- Number of water pump connections: 2
- Network
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- WLAN controller model: Realtek RTL8922AE
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Bluetooth version: 5.4
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 4 (802.11n)
- BIOS
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.3
- BIOS memory size: 128 Mbit
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- Clear CMOS Jumper: Yes
- Packaging data
- Weight with packaging: 1.3 kg
- Package height: 68 mm
- Package depth: 268 mm
- Package width: 270 mm
- Package contents
- Antenna Included: Yes
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 3.0, SATA III
- RAID Service: Yes
- RAID levels
- 0
- 1
- 10
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6

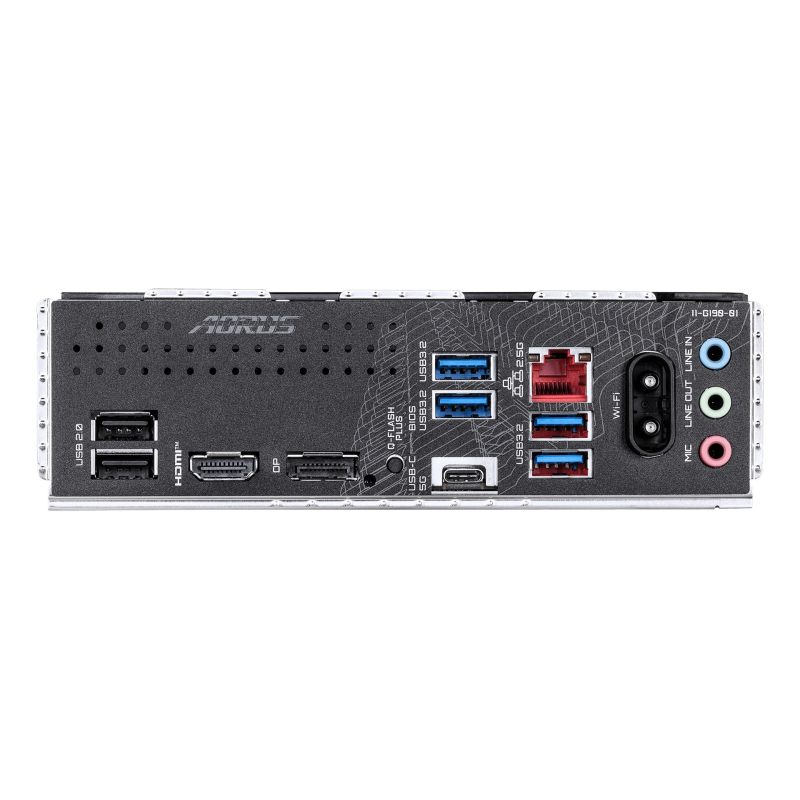

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 2.0 ports: 2
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Line Input: Yes
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Number of HDMI ports: 1
- Microphone: Yes
- Headphone outputs: 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
- 2nd largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 3.0
- 1. largest M.2 key size: 2580
- 1. M.2 highest generation PCI Express: 4.0
- Battery
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery capacity: 220 mAh
- Number of battery compartments: 1
- Other functions
- Product weight: 1.14 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Gigabyte |
| Department | Electronics |
