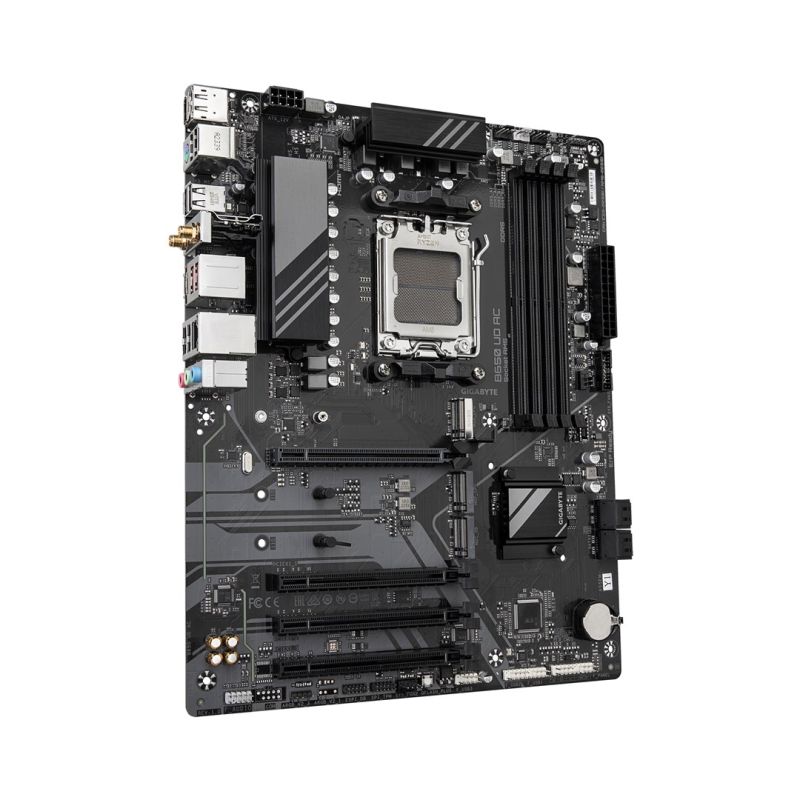

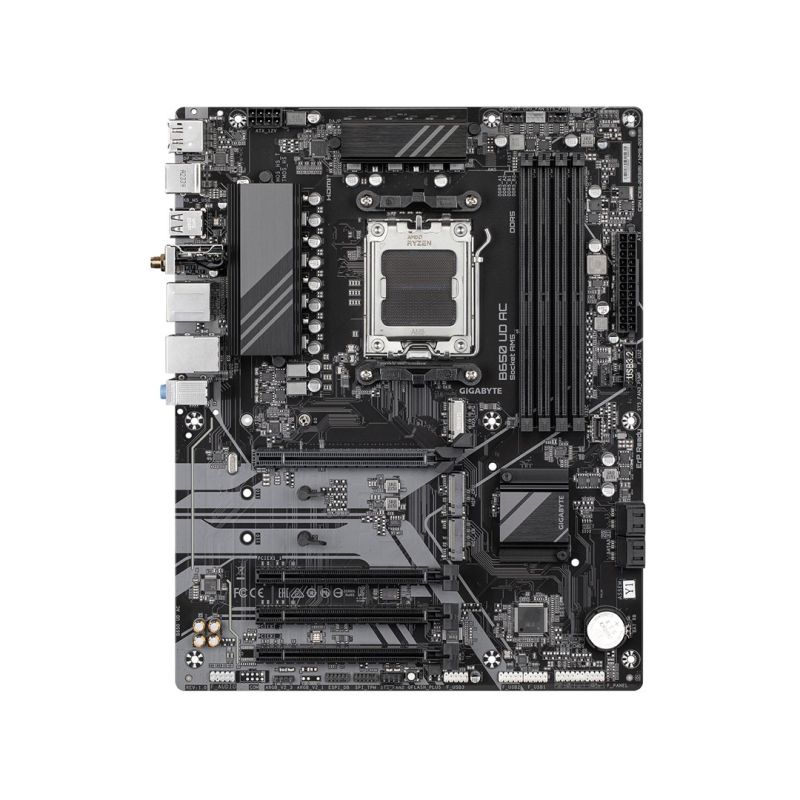

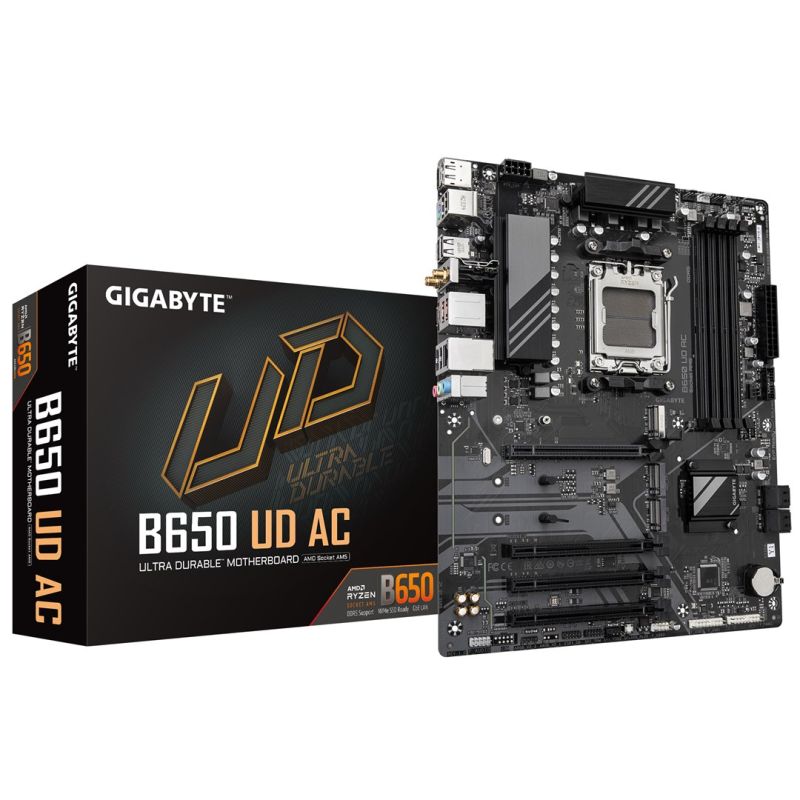

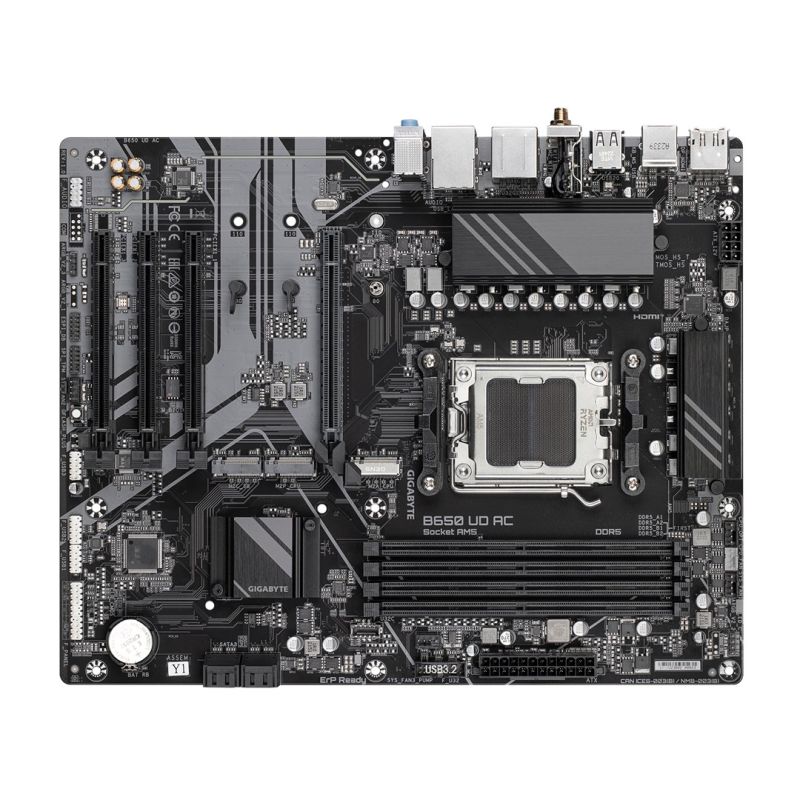

GIGABYTE B650 UD AC Motherboard AMD B650 Socket AM5 ATX
GIGABYTE B650 UD AC Motherboard AMD B650 Socket AM5 ATX
GIGABYTE B650 UD AC Motherboard AMD B650 Socket AM5 ATX
PRICE:
271,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- Graphics
- Discrete graphics support: Yes
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- DirectX Version: 12.0
- Memory
- Supported memory clock speeds
- 4800 MHz
- 7000
- 7600 MHz
- 7800
- 7200
- 8000
- 6600
- 6800
- 5200 MHz
- 6000 MHz
- 5600 MHz
- 6400 MHz
- 6200 MHz
- Maximum memory capacity: 256 GB
- Supported memory clock speed (max): 8000 MHz
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Supported memory clock speeds
- Characteristics
- Product color: Brown
- Motherboard Layout: AMD B650
- Power supply type: ATX
- Audio chip: Realtek ALC897
- Motherboard format: ATX
- Intended use: PC
- Monitoring computer status
- Fan
- Tension
- Temperature
- Water cooling
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 305 mm
- Internal I/O
- Number of case fan connectors: 3
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- CPU fan connector: Yes
- Front panel connector: Yes
- Front panel audio connector: Yes
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Serial port connector: 1
- Number of USB 2.0 ports: 3
- 12V power connector: Yes
- Number of RGB LED connectors: 4
- Number of water pump connections: 2
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 2
- Network
- Bluetooth: Yes
- LAN Controller: Realtek RTL8111H
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- 802.11b
- Bluetooth version: 5.0
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi: Yes
- WLAN controller model: Realtek RTL8821CE
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- ACPI version: 5.0
- BIOS memory size: 256 Mbit
- Desktop Management Interface (DMI) Version: 2.7
- Packaging data
- Weight with packaging: 1.56 kg
- Package width: 335 mm
- Package height: 80 mm
- Package depth: 270 mm
- Package contents
- Screws Included: Yes
- Batteries included: Yes
- Antenna Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 7
- RAID Service: Yes
- RAID levels
- 0
- 1
- 10
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- Number of supported HDDs: 4

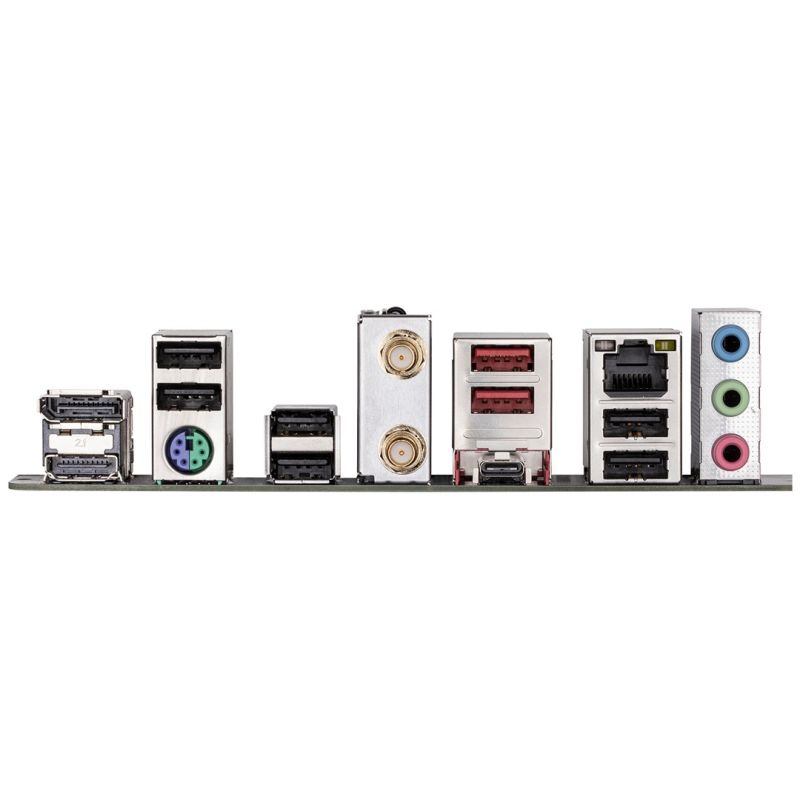

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- WiFi-AP Antenna Jack Plug: 2
- HDMI version: 2.1
- Headphone outputs: 1
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- DisplayPort Quantity: 1
- Number of USB 2.0 ports: 6
- Microphone: Yes
- Expansion slots
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 3
- 1. M.2 highest generation PCI Express: 5.0
- 3. largest M.2 key size: 22110
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 25110
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 22110
- Battery
- Supported battery type: CR2032
- Battery weight: 3 g
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
- Safety warning
- Warnings
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Avoid contact with liquids to prevent electronic damage.
- Dispose of in accordance with local regulations for electronic waste.
- Warnings
