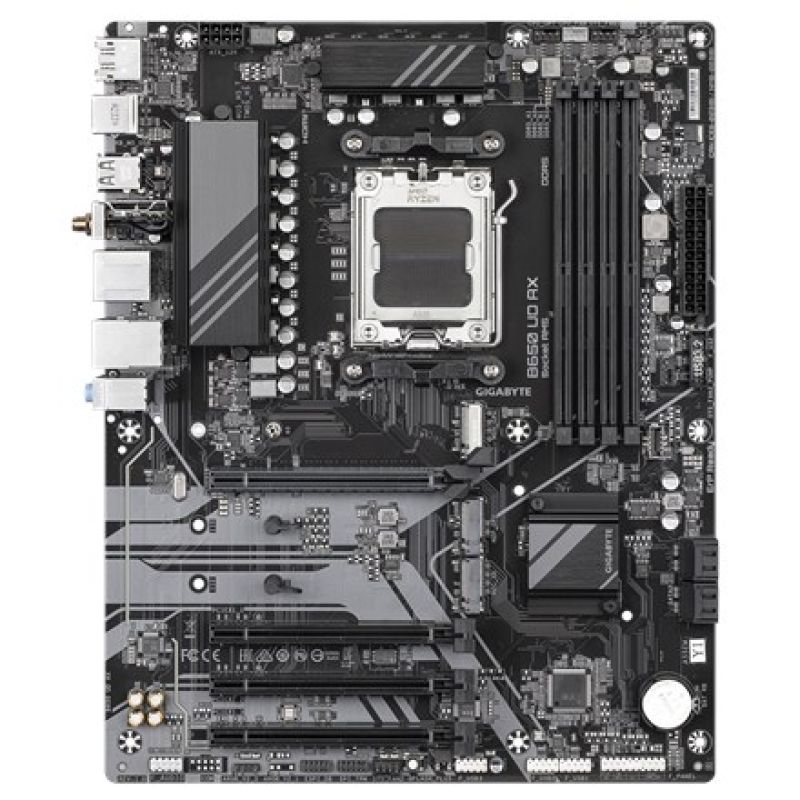

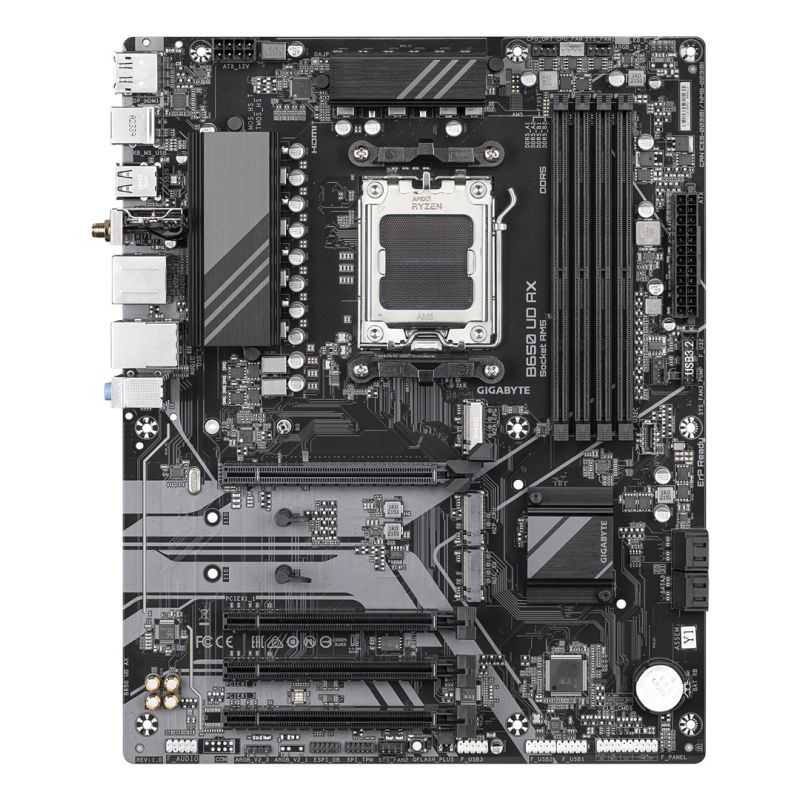

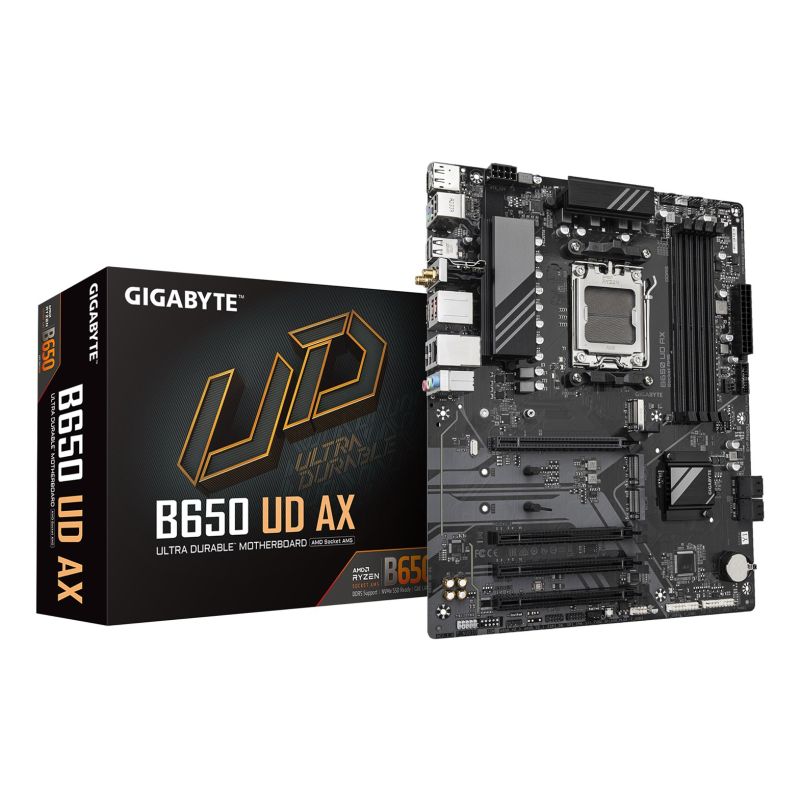

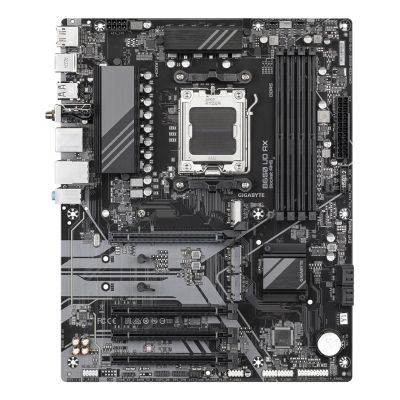

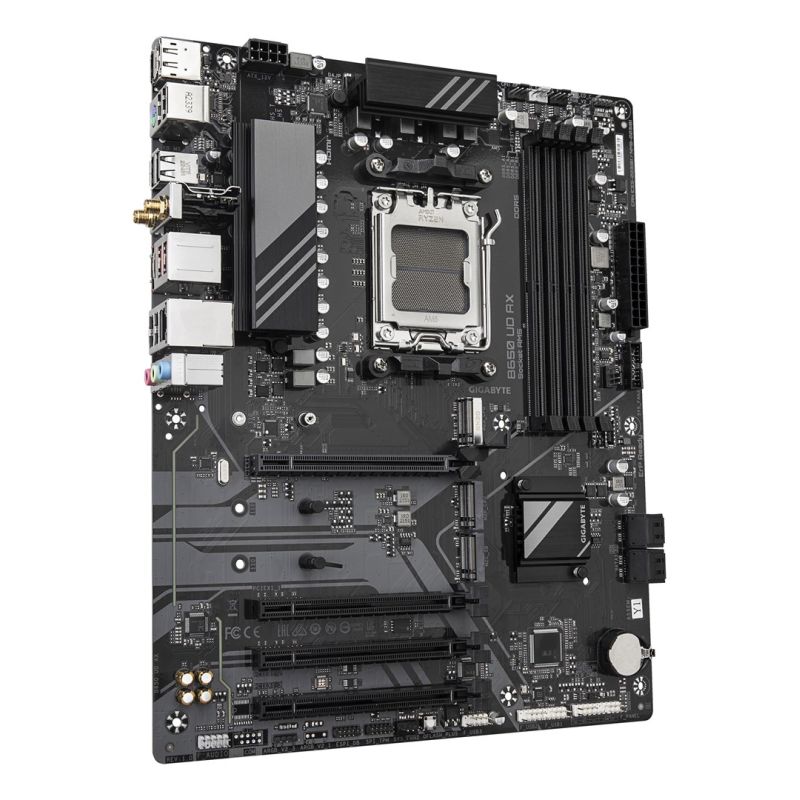

GIGABYTE B650 UD AX AMD B650 Motherboard Socket AM5 ATX
GIGABYTE B650 UD AX AMD B650 Motherboard Socket AM5 ATX
GIGABYTE B650 UD AX AMD B650 Motherboard Socket AM5 ATX
PRICE:
197,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- DirectX Version: 12.0
- HDCP: Yes
- Memory
- Supported memory clock speeds
- 7600
- 7200
- 6600
- 6800
- 6200 MHz
- 4800 MHz
- 7000
- 5200 MHz
- 5600 MHz
- 6400 MHz
- 6000 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory clock speed (max): 7600 MHz
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- Characteristics
- Product color: Brown
- Power supply type: ATX
- Motherboard Layout: AMD B650
- Monitoring computer status
- Water cooling
- Fan
- Temperature
- Tension
- Audio output channels: 7.1 ch.
- Motherboard format: ATX
- Audio chip: Realtek ALC897
- Intended use: PC
- Chipset Board Family: AMD
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- Number of case fan connectors: 3
- Serial port connector: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- CPU fan connector: Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 3
- Front panel audio connector: Yes
- EPS power supply connector (8-pin): Yes
- 12V power connector: Yes
- TPM Connector: Yes
- RGB LED: Yes
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 2
- Number of water pump connections: 2
- Number of RGB LED connectors: 4
- Network
- LAN Controller: Realtek RTL8111H
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- WLAN controller model: Realtek RTL8851BE
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Button: Yes
- Packaging data
- Weight with packaging: 2.2 kg
- Package width: 335 mm
- Package height: 80 mm
- Package depth: 270 mm
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 0
- 10
- 1
- RAID Service: Yes
- Number of supported storage drive sizes: 7
- Number of supported HDDs: 4

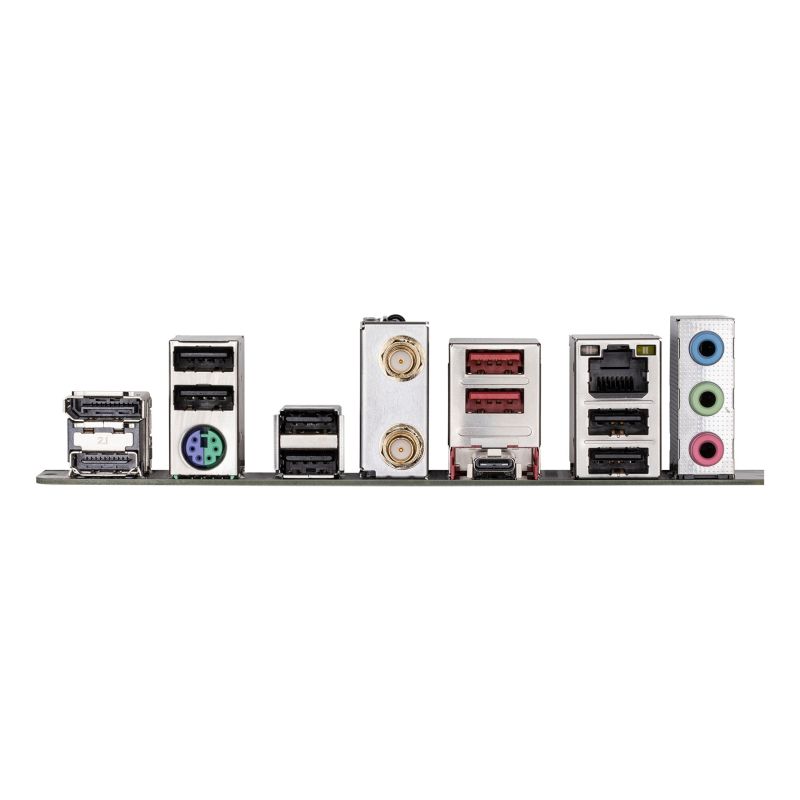

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of USB 2.0 ports: 6
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- Headphone outputs: 1
- Microphone: Yes
- HDMI version: 2.1
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 4.x) slots: 1
- 3. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 25110
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Number of battery compartments: 1
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.95 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
- Safety warning
- Warnings
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Avoid contact with liquids to prevent electronic damage.
- Dispose of in accordance with local regulations for electronic waste.
