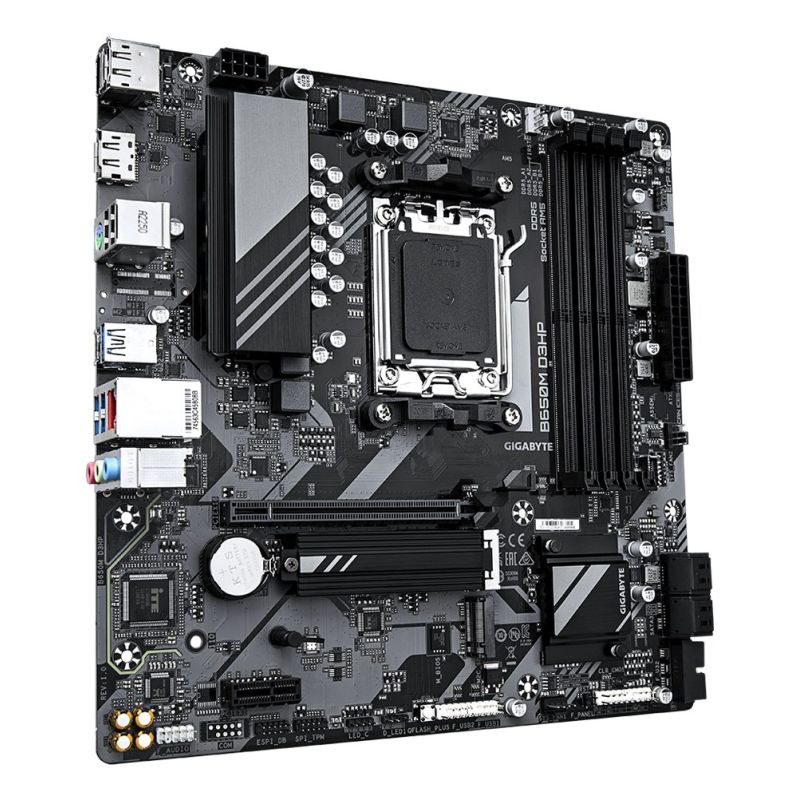

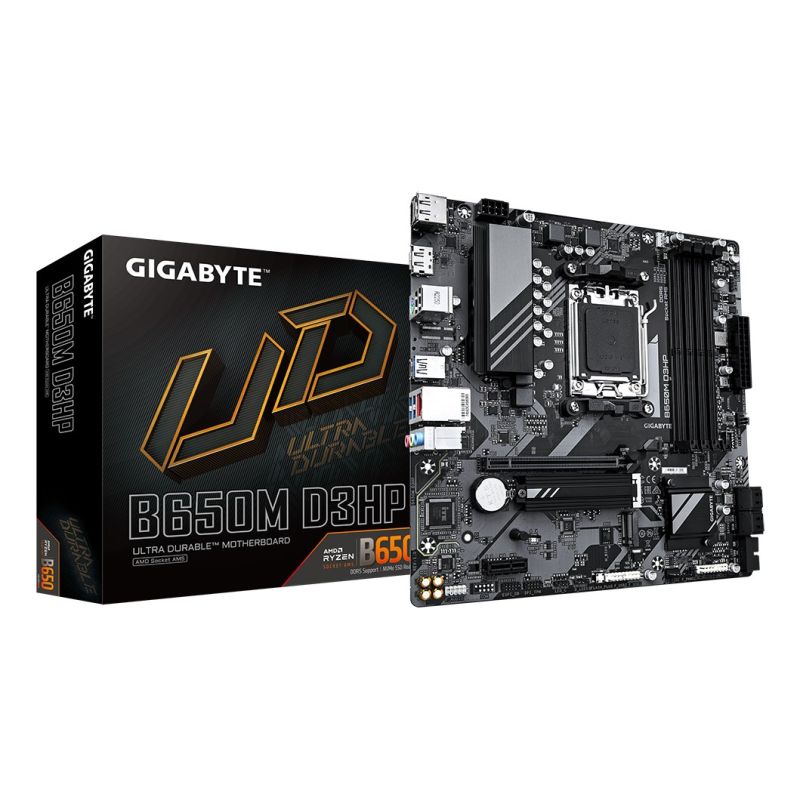

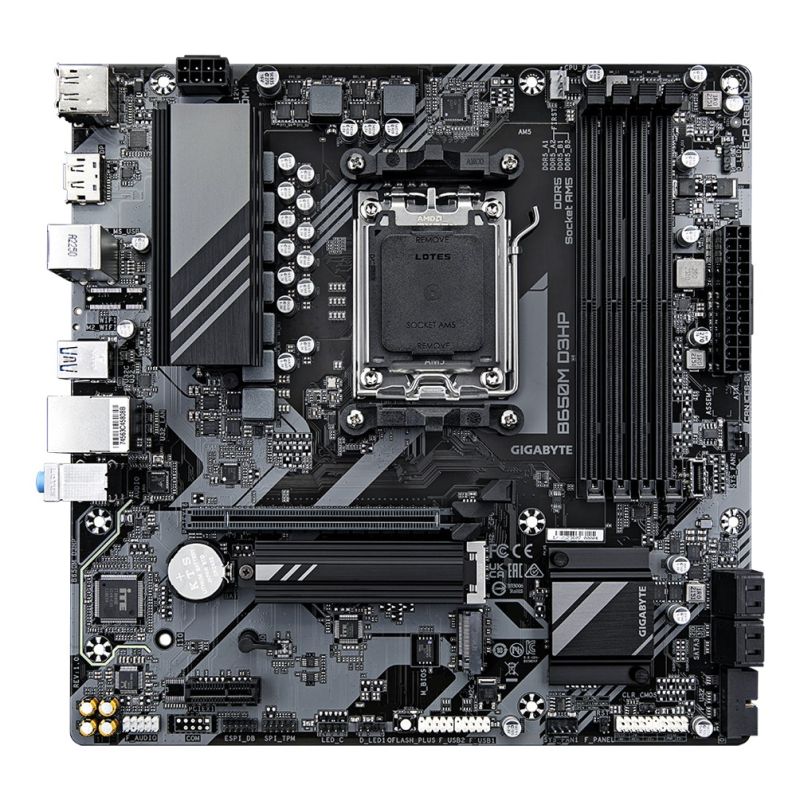

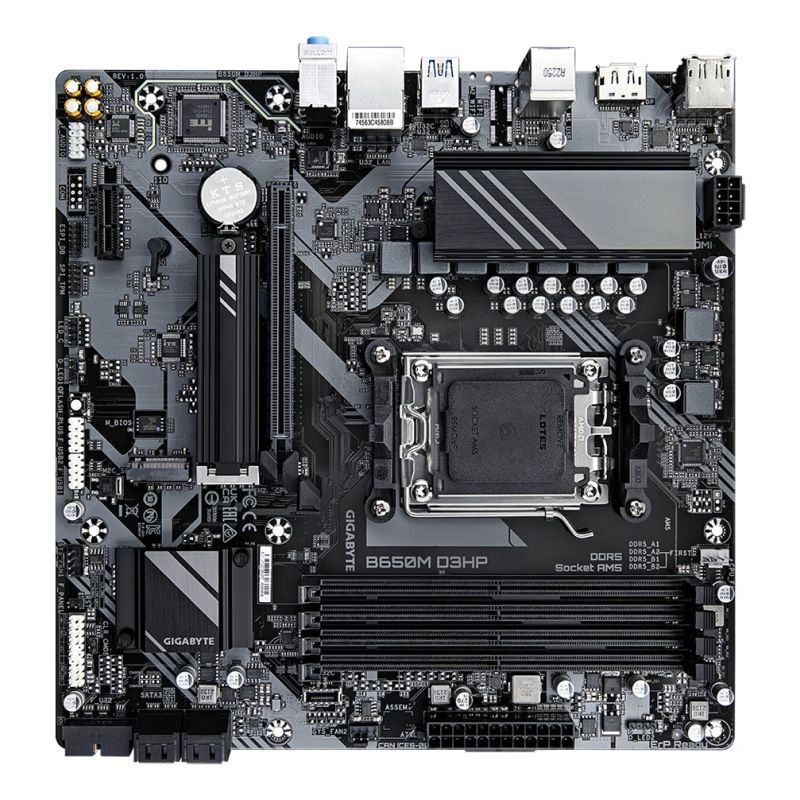

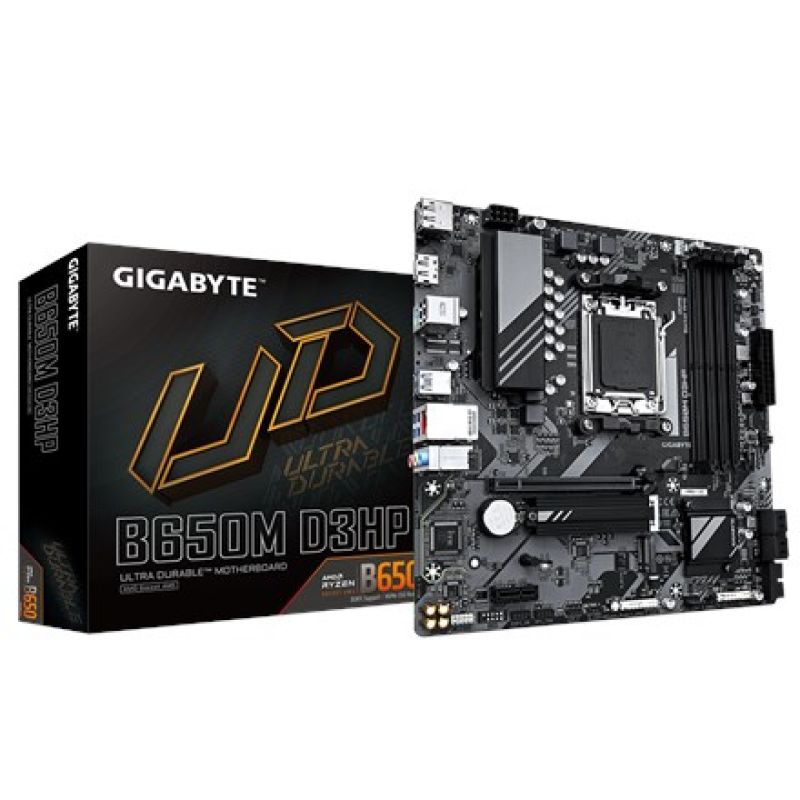

GIGABYTE B650M D3HP AMD B650 Motherboard Socket AM5 Micro ATX
GIGABYTE B650M D3HP AMD B650 Motherboard Socket AM5 Micro ATX
GIGABYTE B650M D3HP AMD B650 Motherboard Socket AM5 Micro ATX
PRICE:
172,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor socket: Socket AM5
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Discrete graphics support: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory clock speeds
- 7200
- 6200 MHz
- 7600
- 5600 MHz
- 6400 MHz
- 6000 MHz
- 5200 MHz
- 4800 MHz
- 7000
- 6600
- 6800
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory clock speed (max): 7600 MHz
- Memory slot type: DIMM
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- Characteristics
- Motherboard Layout: AMD B650
- Product color: Brown
- Audio chip: Realtek ALC897
- Power supply type: ATX
- Intended use: PC
- Monitoring computer status
- Fan
- Tension
- Temperature
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Weight and dimensions
- Product width: 244 mm
- Product height: 35 mm
- Product depth: 244 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- 12V power connector: Yes
- Front panel audio connector: Yes
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Number of case fan connectors: 2
- TPM Connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Number of RGB LED connectors: 3
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 1
- Network
- LAN controller: Realtek RTL8125
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package depth: 265 mm
- Package height: 54 mm
- Weight with packaging: 1.02 kg
- Package width: 265 mm
- Package contents
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4
- RAID levels
- 0
- 10
- 1
- RAID Service: Yes

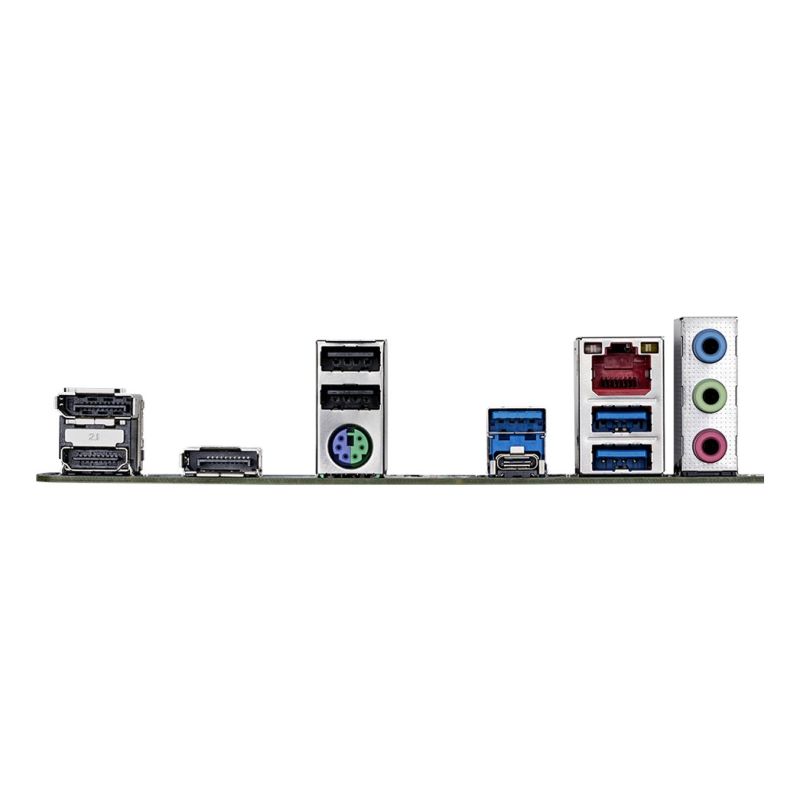

- Rear Panel I/O Ports
- HDMI version: 2.1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Line Input: Yes
- Number of USB 2.0 ports: 2
- Headphone outputs: 1
- Number of DisplayPorts: 2
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of HDMI ports: 1
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2580
- Battery
- Supported battery type: CR2032
- Battery weight: 3 g
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
