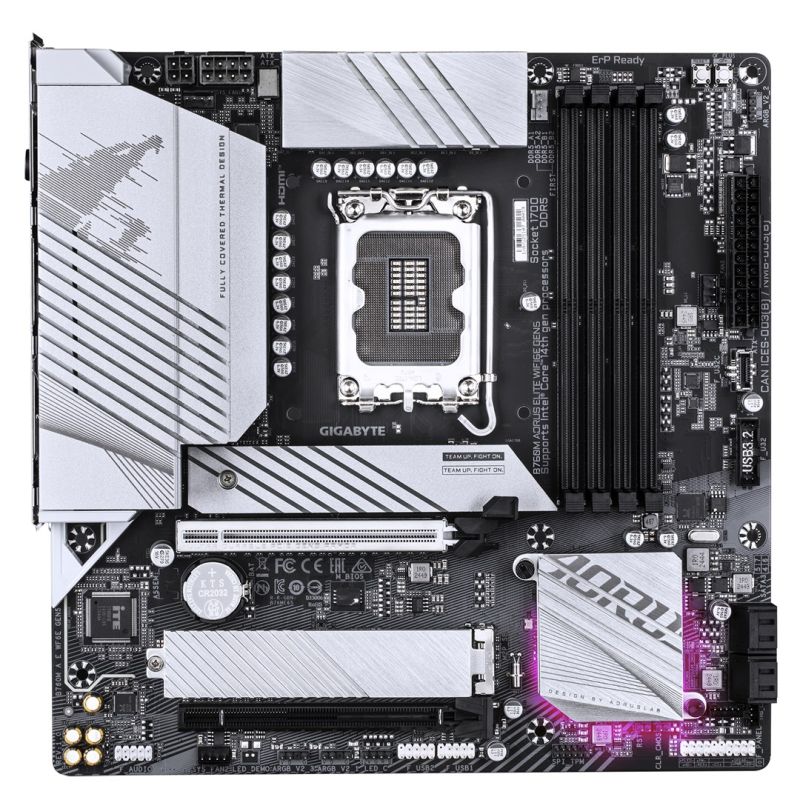

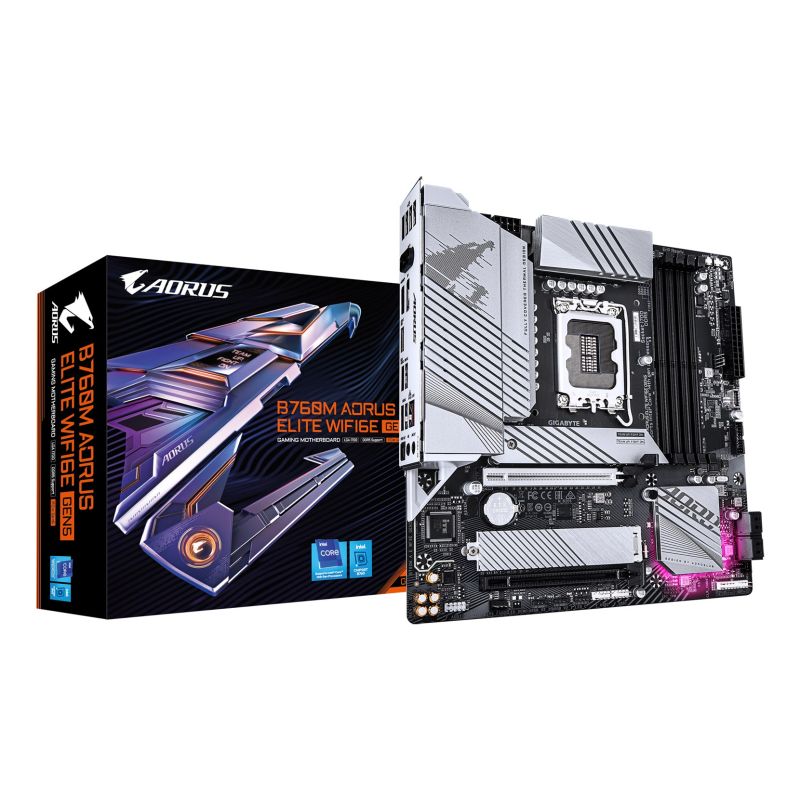

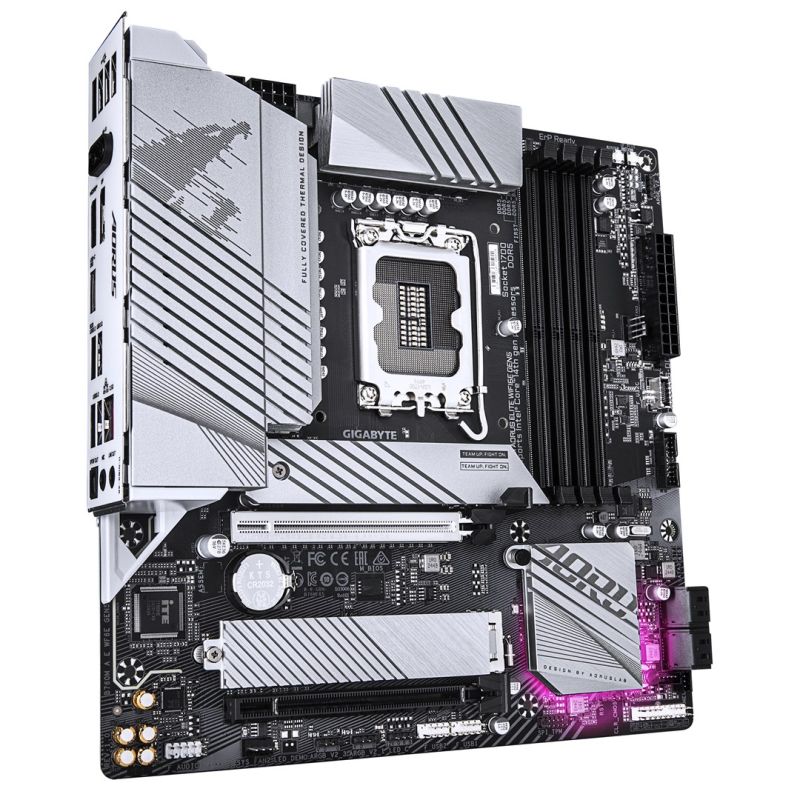

GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Intel B760 LGA 1700 micro ATX
GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Intel B760 LGA 1700 micro ATX
GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Intel B760 LGA 1700 micro ATX
PRICE:
239,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor socket: LGA 1700
- Supported CPU sockets: LGA 1700
- Processor manufacturer: Intel
- Processor
- Intel Core i7 14th Gen
- Intel Core i9 13th Gen
- Intel Core i7 13th Gen
- Intel Core i3 13th Gen
- Intel Core i7 12th Gen
- Intel Core i5 14th Gen
- Intel® Celeron®
- Intel Core i5 12th Gen
- Intel Core i3 12th Gen
- Intel Core i9 12th Gen
- Intel Core i3 14th Gen
- Intel Core i9 14th Gen
- Intel® Pentium®
- Intel Core i5 13th Gen
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2304 px
- Memory
- Supported memory clock speeds
- 5600 MHz
- 4800 MHz
- 4400 MHz
- 5200 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Maximum internal memory per slot: 64 GB
- Memory slot type: DIMM
- ECC Compatibility: ECC or Non-ECC
- Number of memory slots: 4
- Supported memory clock speed (max): 5600 MHz
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- Characteristics
- Monitoring computer status
- Fan
- Tension
- Water cooling
- Temperature
- Audio chip: Realtek ALC1220-VB
- Product color: Black
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel B760
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Power supply type: ATX
- Chipset Board Family: Intel
- Motherboard format: Micro ATX
- Cooling type: Passive
- Intended use: PC
- Monitoring computer status
- Weight and dimensions
- Product height: 35 mm
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- Thunderbolt Ends: 2
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 1
- 12V power connector: Yes
- RGB LED: Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of case fan connectors: 3
- CPU fan connector: Yes
- TPM Connector: Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- EPS power supply connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Network
- Bluetooth: Yes
- LAN controller: Realtek RTL8125
- Ethernet interface type: 2.5 Gigabit Ethernet
- WLAN controller model: Intel Wi-Fi 6E AX210
- Wired LAN: Yes
- Bluetooth version: 5.3
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wi-Fi 4 (802.11n)
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Packaging data
- Package depth: 268 mm
- Package height: 68 mm
- Package width: 270 mm
- Weight with packaging: 1.75 kg
- Package contents
- Antenna Included: Yes
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD
- Number of supported HDDs: 4
- RAID levels
- 5
- 0
- 1
- 10
- Number of supported storage drive sizes: 6
- RAID Service: Yes

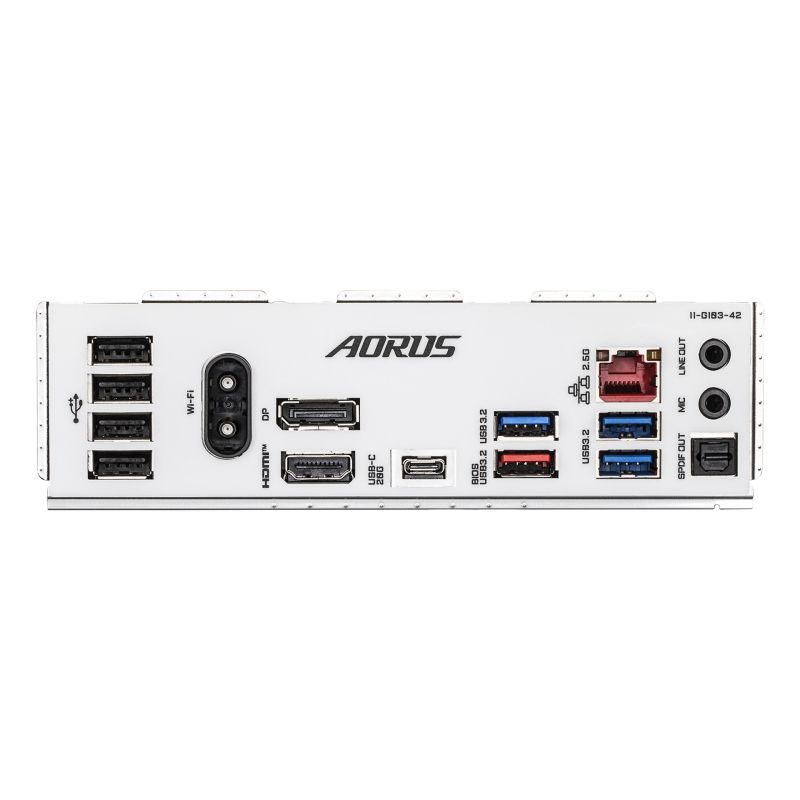

- Rear Panel I/O Ports
- S/PDIF Output Port: Yes
- Line Input: Yes
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 2.0 ports: 4
- Number of HDMI ports: 1
- Digital audio input: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.2
- HDMI version: 2.1
- Expansion slots
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 2
- Battery
- Lithium battery weight: 0.07 g
- Battery weight: 3 g
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Other functions
- Product weight: 1.33 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
