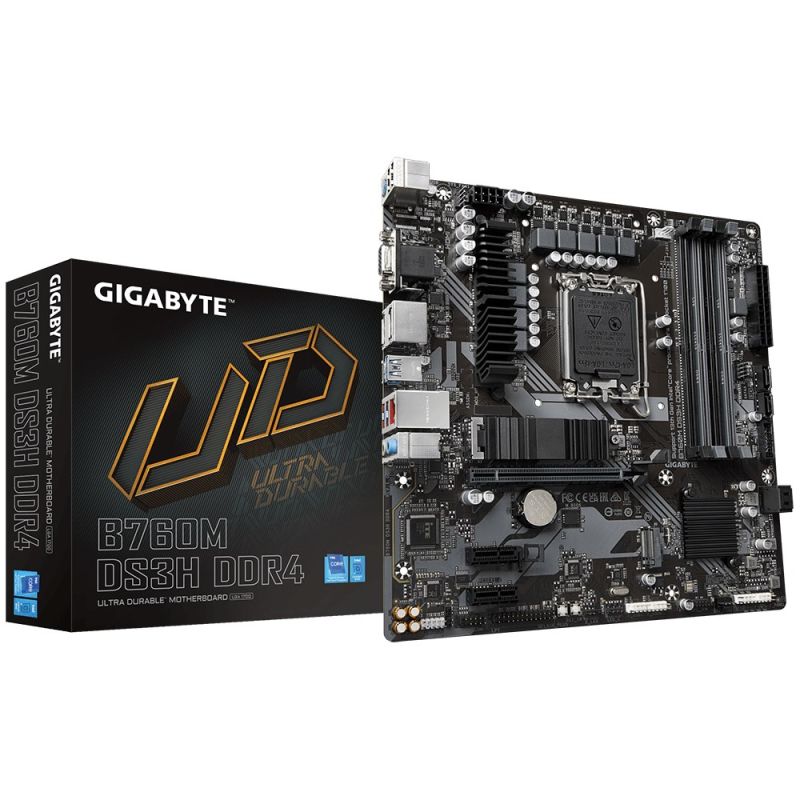

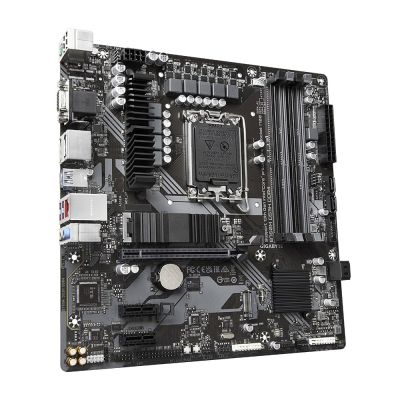

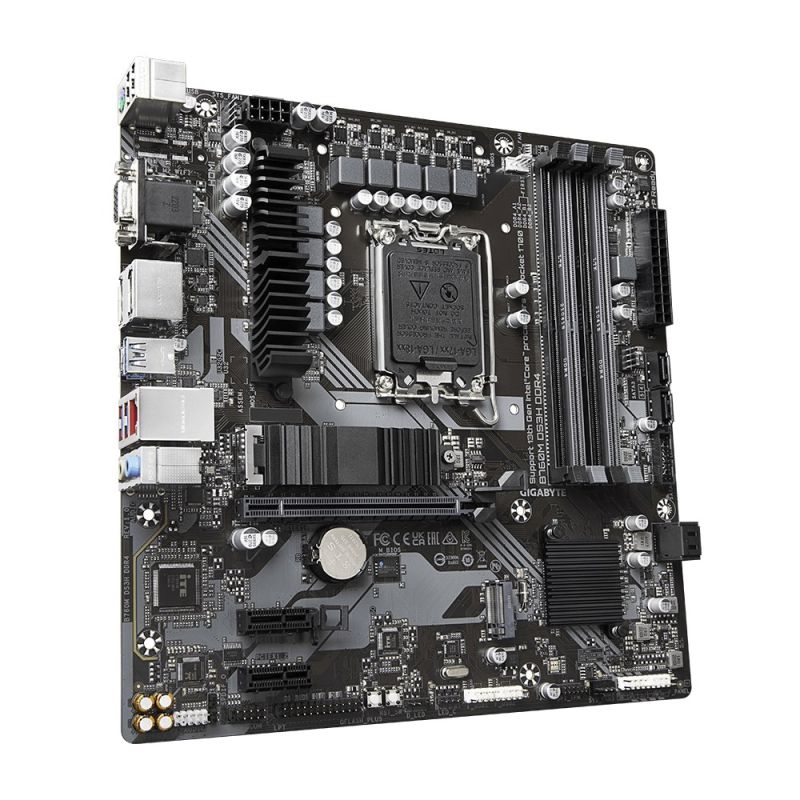

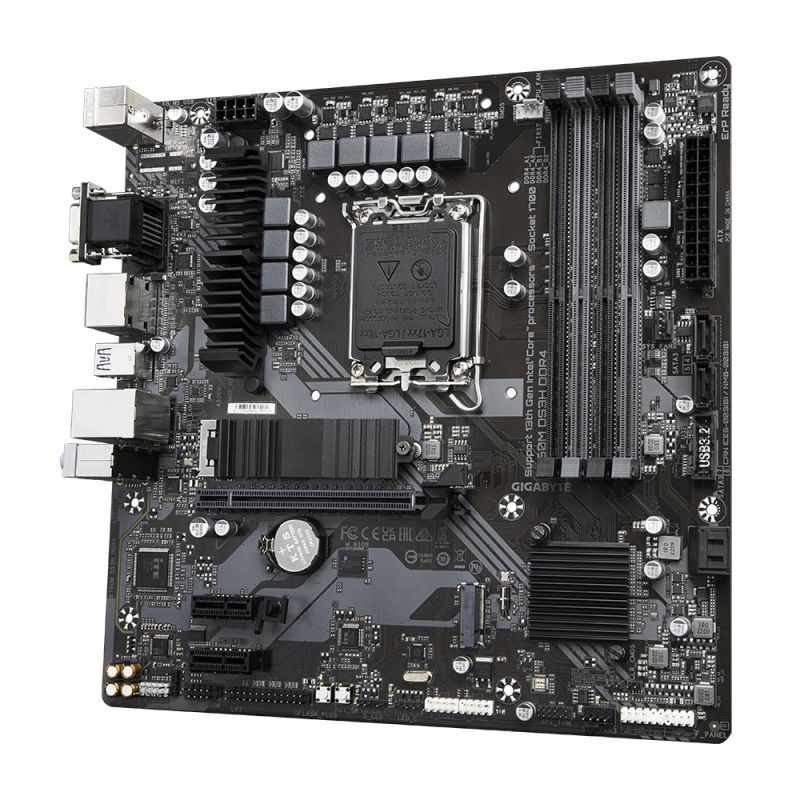

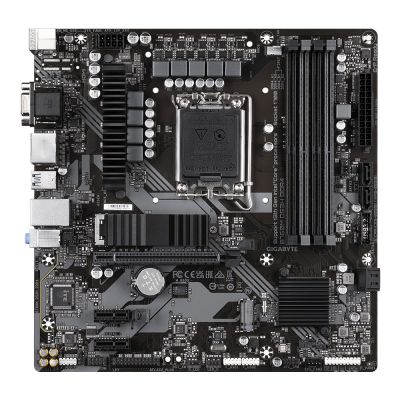

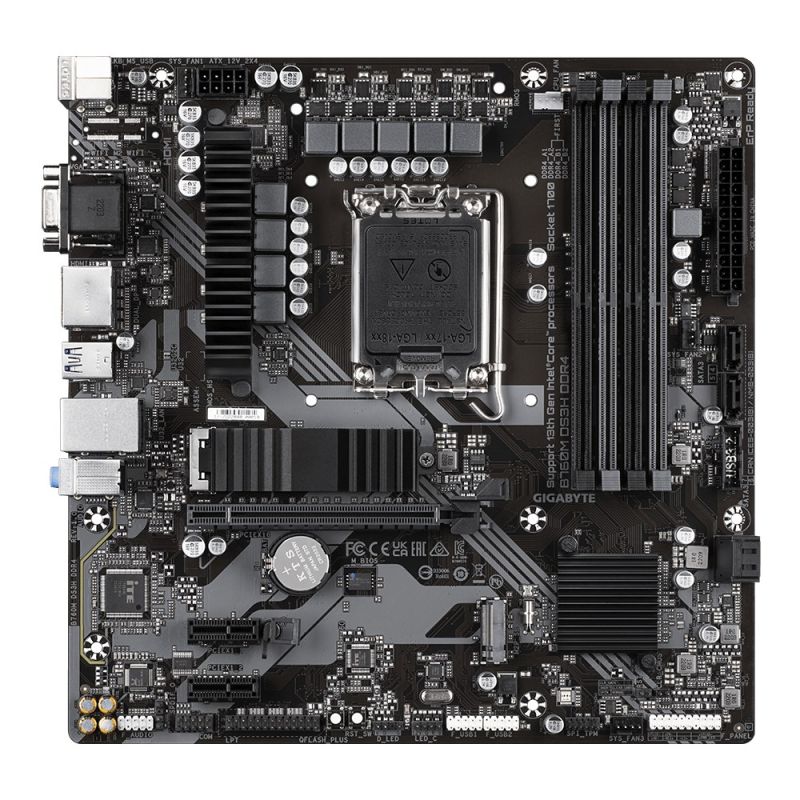

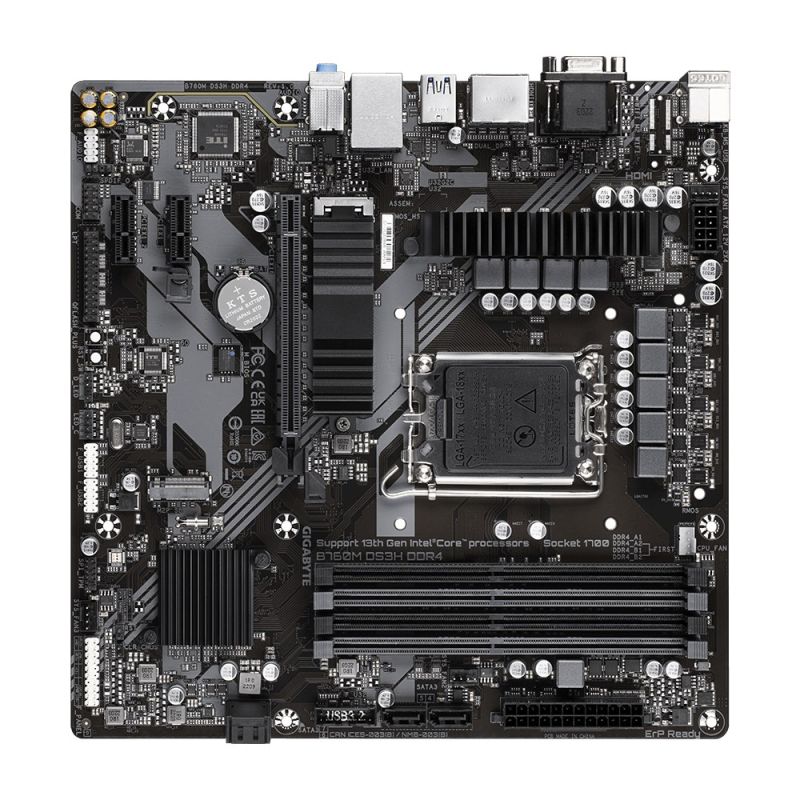

Gigabyte B760M DS3H DDR4 Motherboard
Gigabyte B760M DS3H DDR4 Motherboard
Gigabyte B760M DS3H DDR4 Motherboard
PRICE:
155,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i3
- Intel® Core™ i7
- Intel® Core™ i9
- Intel® Pentium® Gold
- Processor socket: LGA 1700
- Supported CPU sockets: LGA 1700
- Graphics
- Number of displays supported: 4
- Maximum resolution: 4096 x 2304 px
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Memory
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory clock speeds
- 3300 MHz
- 3000 MHz
- 4500 MHz
- 4266 MHz
- 3733 MHz
- 3466 MHz
- 2933 MHz
- 4800 MHz
- 3800 MHz
- 3333 MHz
- 4400 MHz
- 2133 MHz
- 4300 MHz
- 3666 MHz
- 4700 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 4933 MHz
- 3200 MHz
- 2666 MHz
- 4133 MHz
- 3400 MHz
- 3866 MHz
- 4600 MHz
- Memory Channel Support: Dual Channel
- Supported memory types: DDR4-SDRAM
- Supported memory clock speed (max): 4933 MHz
- Memory types supported by the processor: DDR4-SDRAM
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Characteristics
- Supported Windows operating systems
- Windows 10
- Windows 11
- Motherboard Layout: Intel B760
- Monitoring computer status
- Fan
- Water cooling
- Tension
- Temperature
- Chipset Board Family: Intel
- Motherboard format: Micro ATX
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- TPM Connector: Yes
- Front panel connector: Yes
- RGB LED: Yes
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 2
- Number of M.2 (M) slots: 2
- Number of SATA III connectors: 4
- Serial port connector: 1
- Number of case fan connectors: 3
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Parallel connector: Yes
- S/PDIF jack: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- Memory drivers
- Number of supported storage drive sizes: 6
- RAID levels
- 10
- 1
- 5
- 0
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

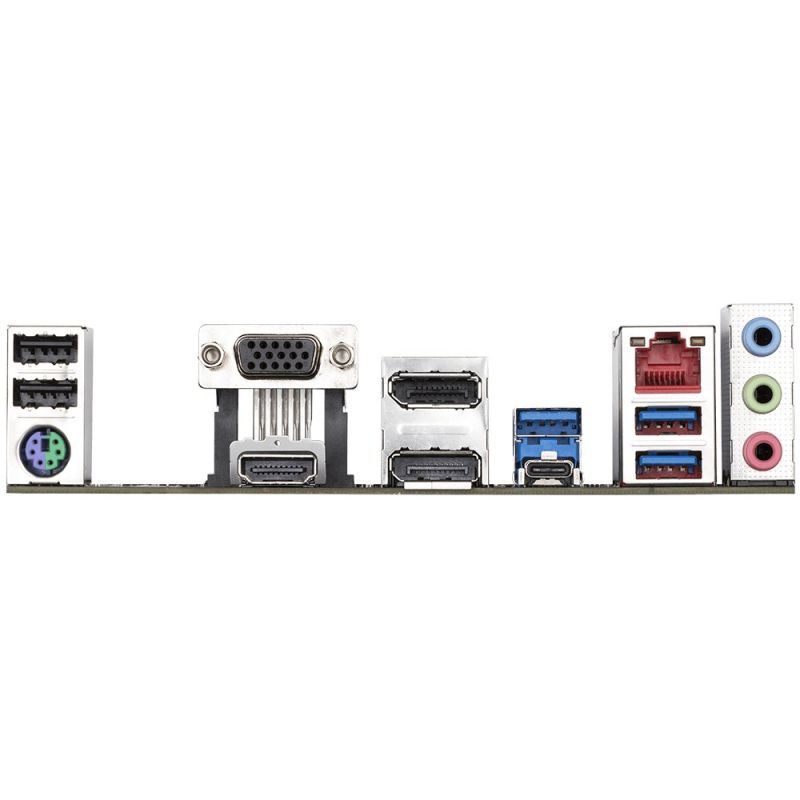

- Rear Panel I/O Ports
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of VGA (D-Sub) ports: 1
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of HDMI ports: 1
- Headphone outputs: 1
- Number of DisplayPorts: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 2
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
| Name | Details |
|---|---|
| Producer | Gigabyte |
