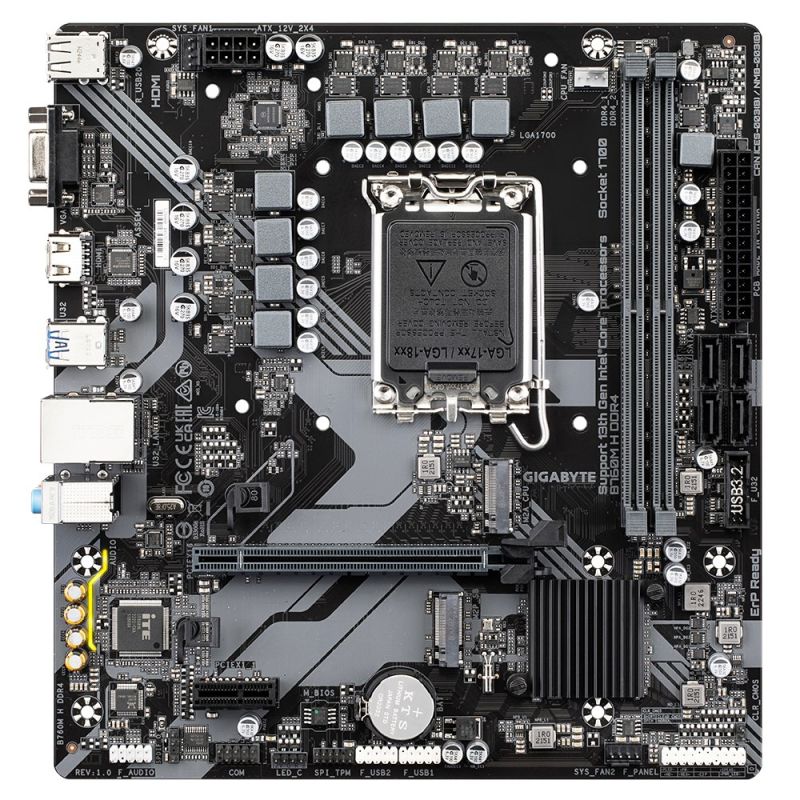

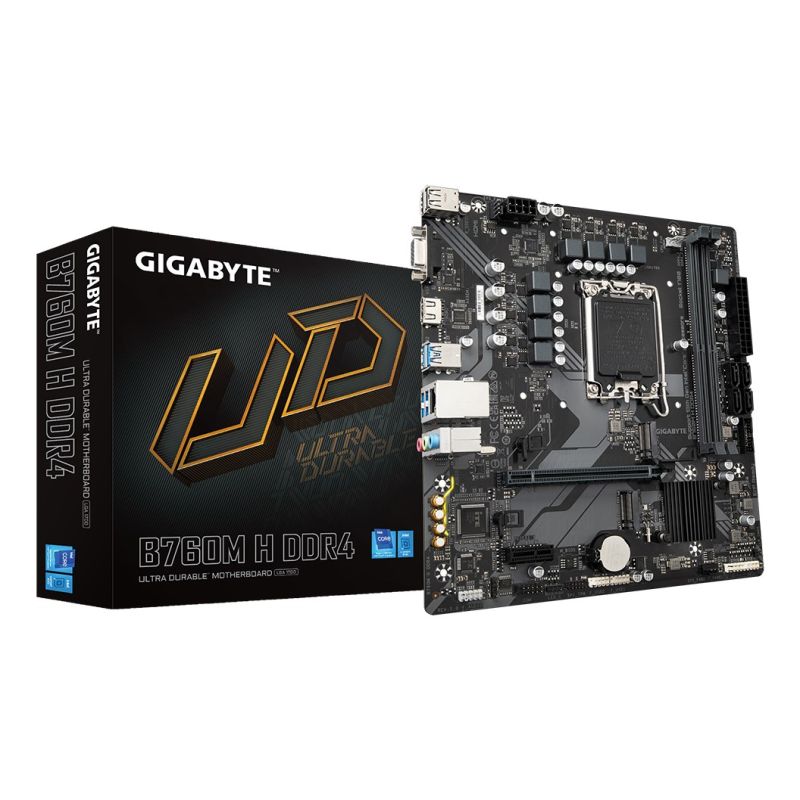

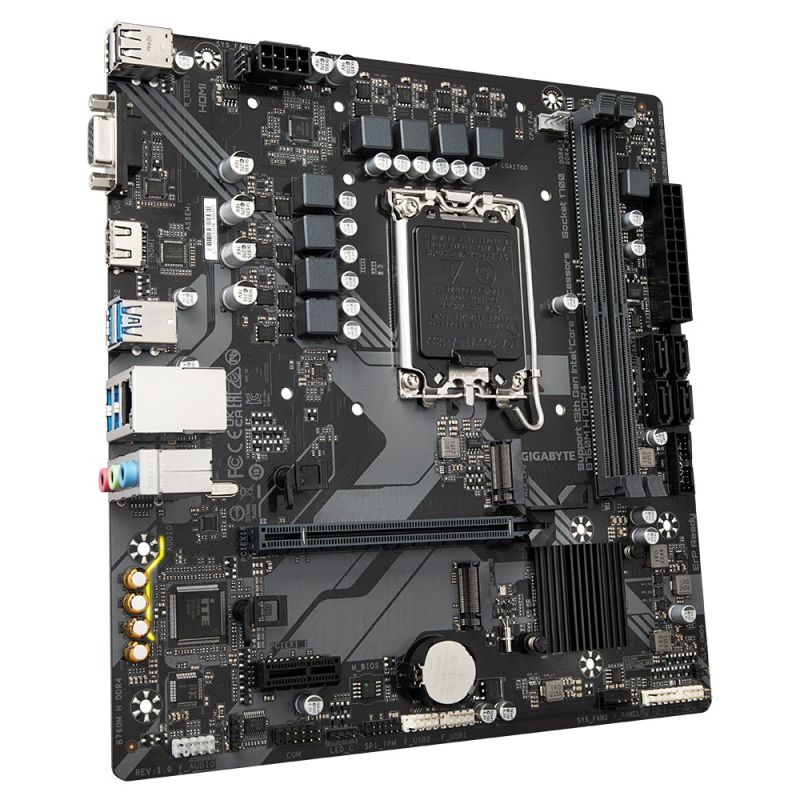

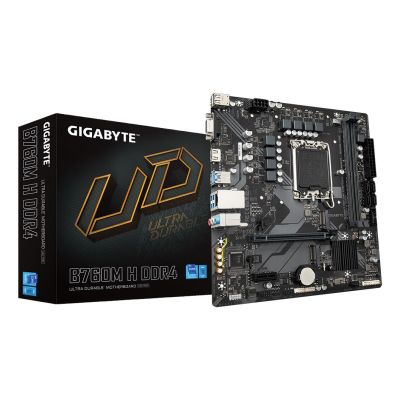

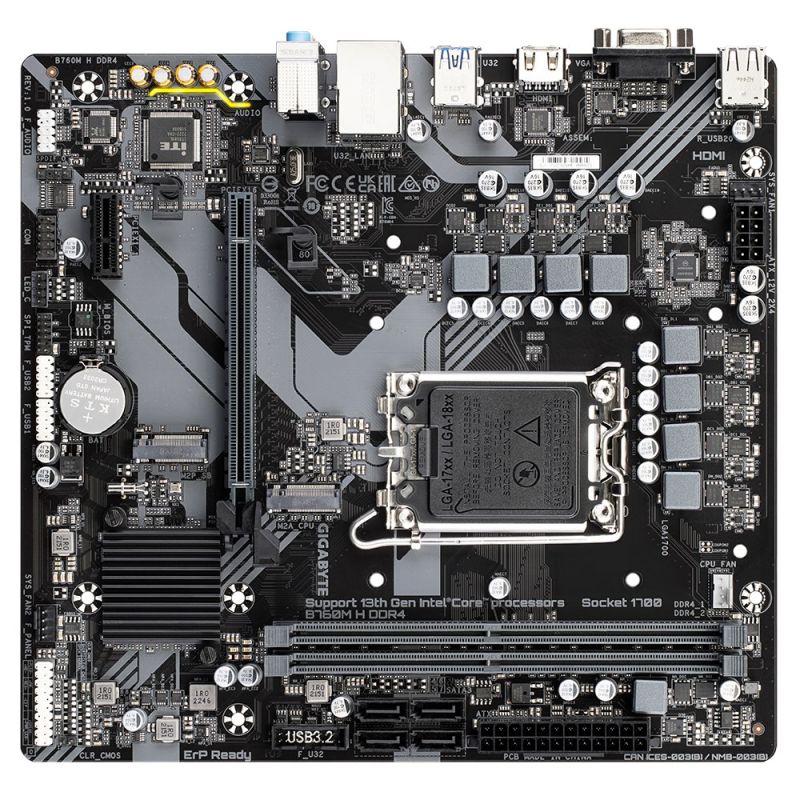

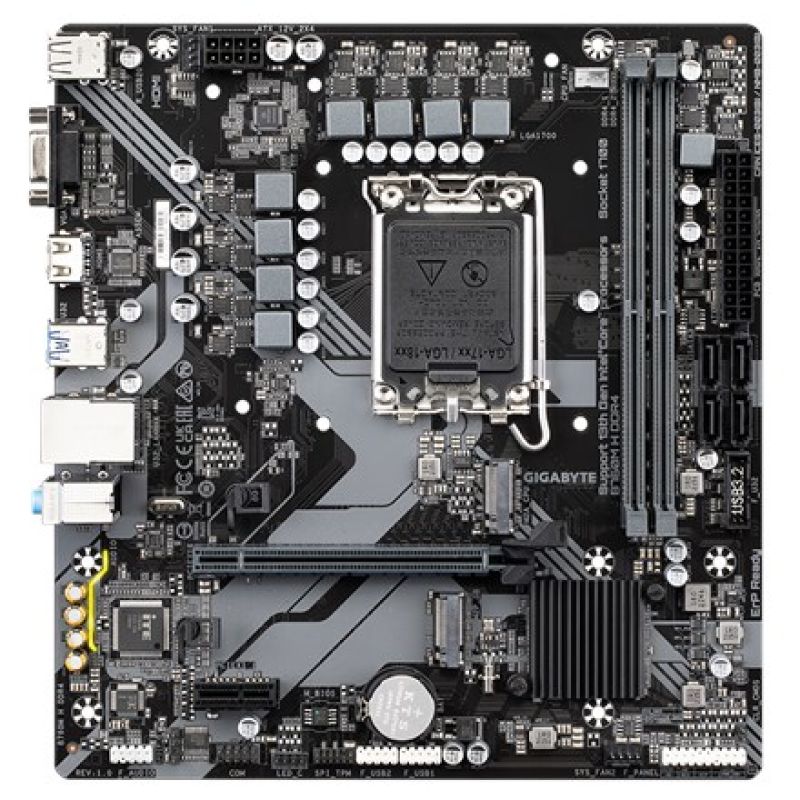

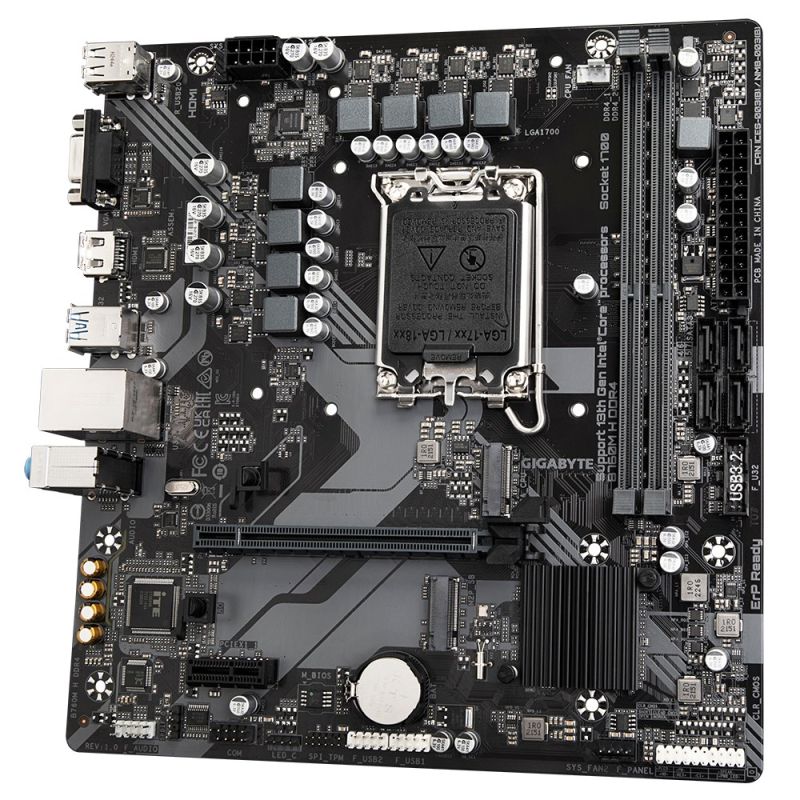

Gigabyte B760M H DDR4 (rev. 1.0) Intel B760 Express LGA 1700 micro ATX
Gigabyte B760M H DDR4 (rev. 1.0) Intel B760 Express LGA 1700 micro ATX
Gigabyte B760M H DDR4 (rev. 1.0) Intel B760 Express LGA 1700 micro ATX
PRICE:
143,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Maximum number of SMP processors: 1
- Processor
- Intel® Celeron®
- Intel® Pentium® Gold
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Maximum internal memory supported by the processor: 64 GB
- Supported CPU sockets: LGA 1700
- Graphics
- DirectX Version: 12.1
- Parallel Processing Support: Not Supported
- Memory
- Memory Channel Support: Dual Channel
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slot type: DIMM
- Supported memory clock speed (max): 3200 MHz
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- 3200 MHz
- 2666 MHz
- 2400 MHz
- 2133 MHz
- 3000 MHz
- 2933 MHz
- Supported memory module capacities
- 8GB
- 1GB
- 12GB
- 32GB
- 2GB
- 4GB
- 16GB
- Maximum memory capacity: 64 GB
- Characteristics
- Audio output channels: 7.1 ch.
- Product color: Brown
- Motherboard Layout: Intel B760 Express
- Audio chip: Realtek ALC897
- Intended use: PC
- Supported Windows operating systems
- Windows 10
- Windows 11
- Power supply type: ATX
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Weight and dimensions
- Product height: 35 mm
- Product depth: 215 mm
- Product width: 230 mm
- Internal I/O
- Total number of SATA connectors: 4
- RGB LED: Yes
- TPM Connector: Yes
- Number of USB 2.0 ports: 2
- Front panel connector: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Serial port connector: 1
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Packaging data
- Package height: 54 mm
- Package width: 265 mm
- Weight with packaging: 825 g
- Package depth: 265 mm
- Package contents
- Batteries included: Yes
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 1
- 5
- 10
- 0
- RAID Service: Yes

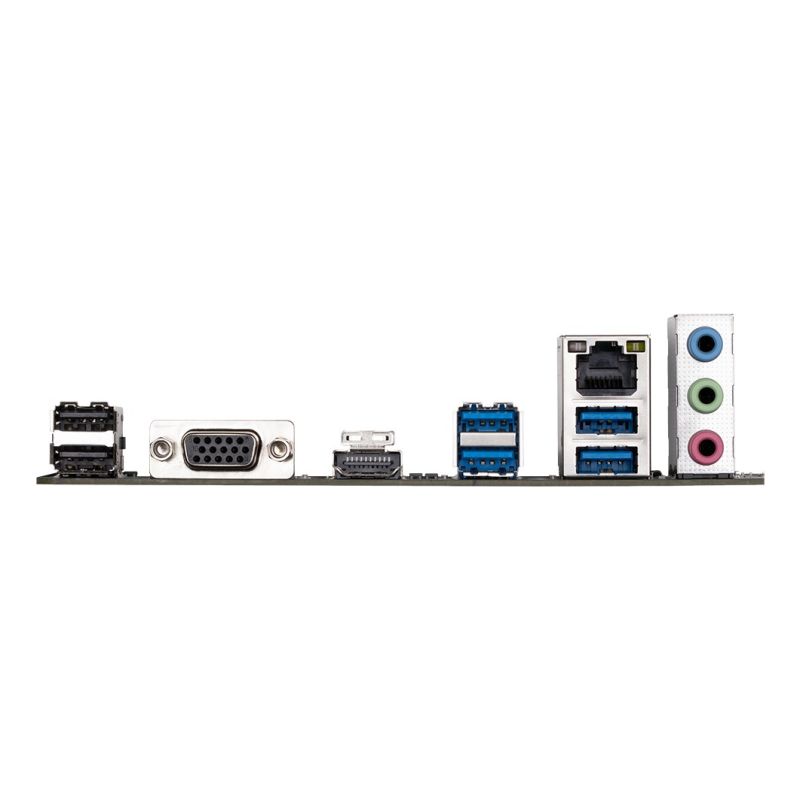

- Rear Panel I/O Ports
- Number of VGA (D-Sub) ports: 1
- Number of HDMI ports: 1
- HDMI version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- DisplayPort version: 1.4
- Number of USB 2.0 ports: 2
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
- Safety warning
- Warnings
- Avoid direct contact with electronics to prevent electrostatic damage.
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Before starting any maintenance or assembly, disconnect the product from the power source.
