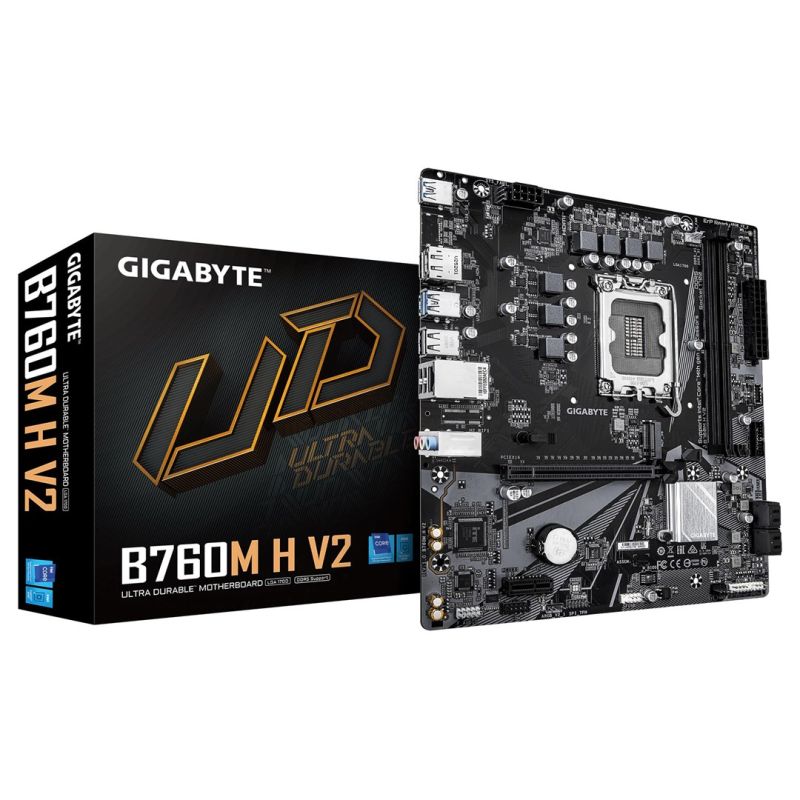

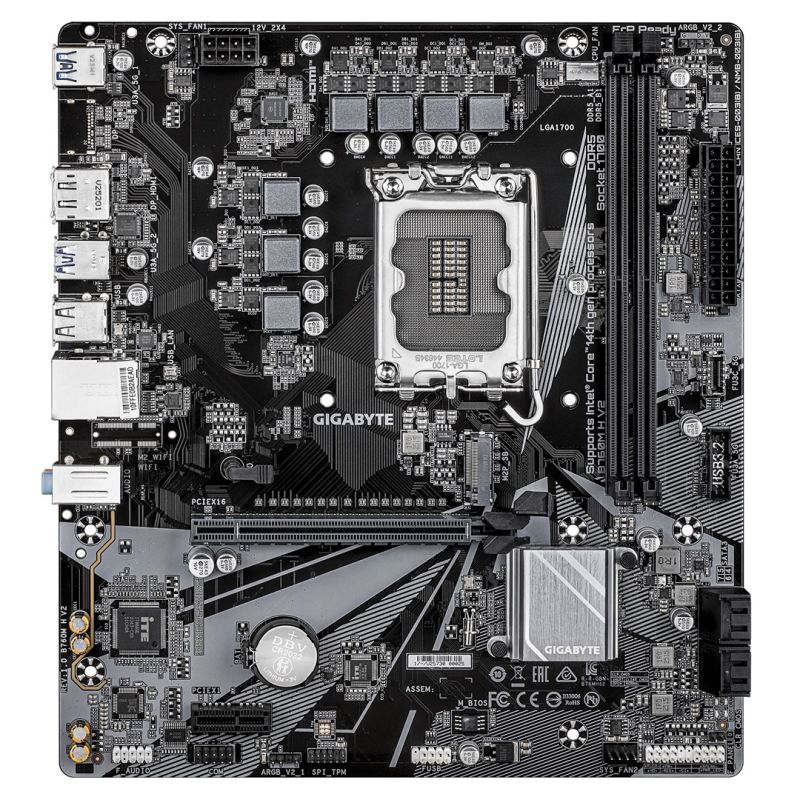

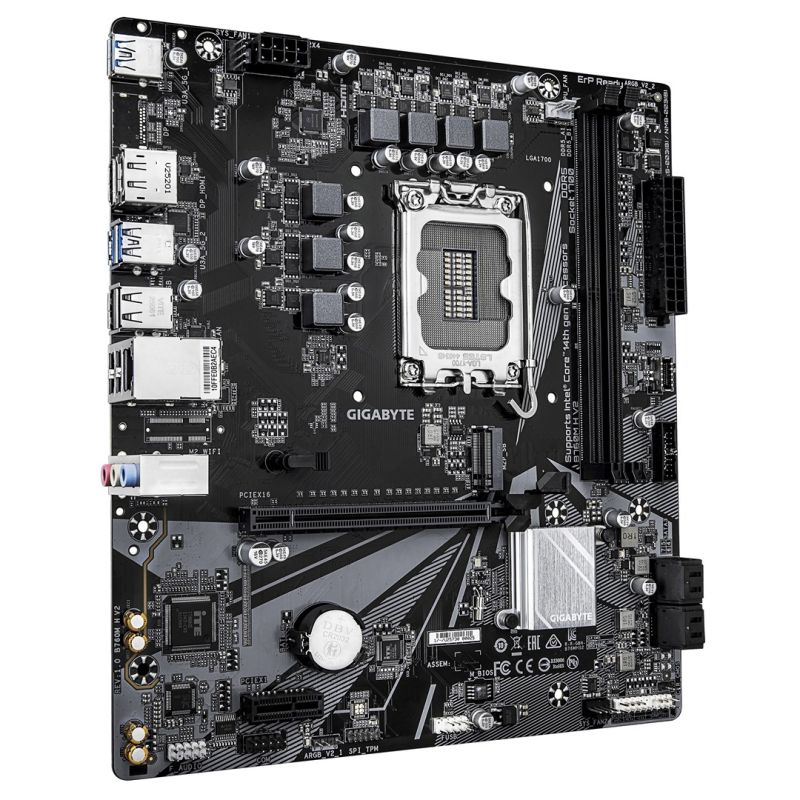

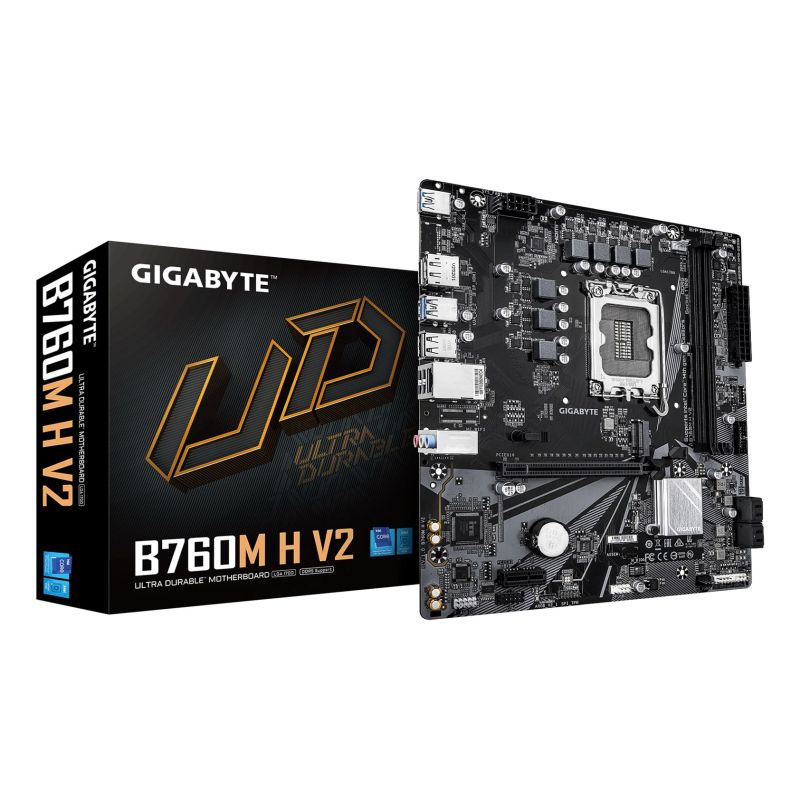

GIGABYTE B760M H V2 motherboard Intel B760 Express LGA 1700 micro ATX
GIGABYTE B760M H V2 motherboard Intel B760 Express LGA 1700 micro ATX
GIGABYTE B760M H V2 motherboard Intel B760 Express LGA 1700 micro ATX
PRICE:
143,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- Intel Core i5 12th Gen
- Intel Core i3 13th Gen
- Intel Core i7 12th Gen
- Intel Core i5 13th Gen
- Intel® Celeron®
- Intel Core i9 12th Gen
- Intel Core i3 14th Gen
- Intel Core i3 12th Gen
- Intel® Pentium® Gold
- Intel Core i9 14th Gen
- Intel Core i5 14th Gen
- Intel Core i7 13th Gen
- Intel Core i7 14th Gen
- Intel Core i9 13th Gen
- Supported CPU sockets: LGA 1700
- Processor socket: LGA 1700
- Processor manufacturer: Intel
- Processor
- Graphics
- HDCP version: 2.3
- HDCP: Yes
- Maximum resolution: 4096 x 2304 px
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Memory
- Number of memory slots: 2
- Supported memory clock speeds
- 5400 MHz
- 6600
- 6800 MHz
- 5800 MHz
- 4800 MHz
- 7000
- 4000 MHz
- 7200
- 7800
- 6200 MHz
- 7400
- 8000 MHz
- 5200 MHz
- 5600 MHz
- 6400 MHz
- 6000 MHz
- 7600
- ECC Compatibility: ECC or Non-ECC
- Maximum memory capacity: 128 GB
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Maximum internal memory per slot: 64 GB
- Unbuffered memory: Yes
- Supported memory clock speed (max): 8000 MHz
- Characteristics
- Chipset Board Family: Intel
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Product color: Dark brown
- Cooling type: Passive
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Temperature
- Water cooling
- Tension
- Fan
- Power supply type: ATX
- Audio chip: Realtek ALC897
- Intended use: PC
- Motherboard Layout: Intel B760 Express
- Motherboard format: Micro ATX
- Weight and dimensions
- Product width: 244 mm
- Product height: 35 mm
- Product depth: 220 mm
- Internal I/O
- Number of case fan connectors: 2
- TPM Connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- 12V power connector: Yes
- Number of RGB LED connectors: 2
- Number of USB 2.0 ports: 1
- Serial port connector: 1
- Front panel audio connector: Yes
- Number of SATA III connectors: 4
- Front panel connector: Yes
- CPU fan connector: Yes
- RGB LED: Yes
- ATX power socket (24-pin): Yes
- EPS power supply connector (8-pin): Yes
- Number of CPU fan connectors: 1
- Number of EPS power connectors (8-pin): 1
- Network
- LAN Controller: Realtek RTL8111H
- Wi-Fi: No
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- BIOS
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- BIOS memory size: 128 Mbit
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package width: 265 mm
- Package depth: 265 mm
- Weight with packaging: 850 g
- Package height: 54 mm
- Package contents
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- Number of supported HDDs: 4
- RAID Service: Yes
- Number of supported storage drive sizes: 5
- RAID levels
- 1
- 10
- 5
- 0
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD

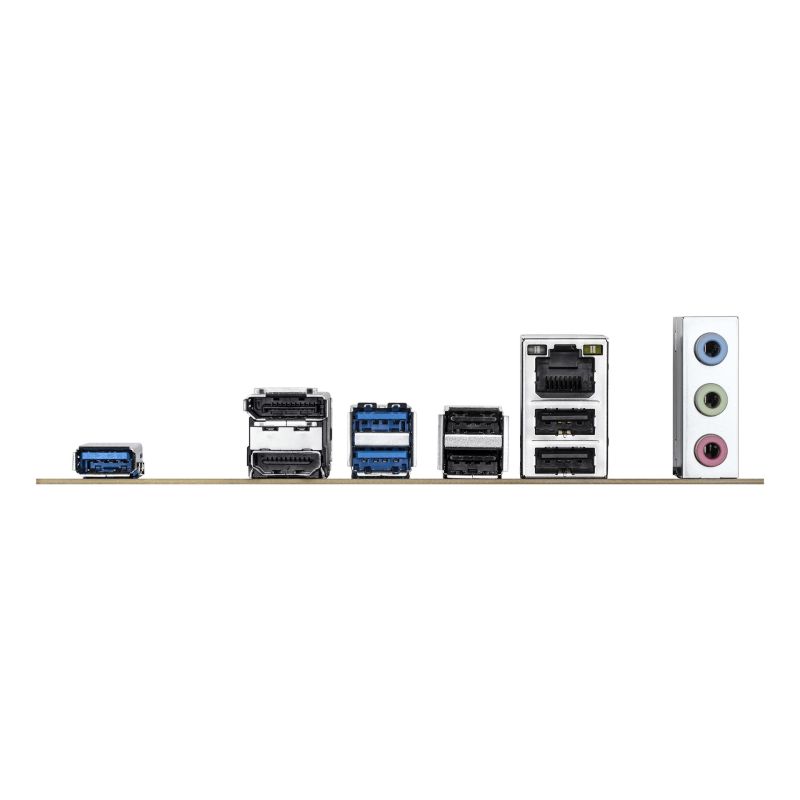

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- Number of USB 2.0 ports: 4
- DisplayPort version: 1.2
- HDMI version: 2.1
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of HDMI ports: 1
- DisplayPort Quantity: 1
- Headphone outputs: 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 4.x) slots: 1
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Battery capacity: 220 mAh
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery weight: 3 g
- Other functions
- Product weight: 770 g
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
