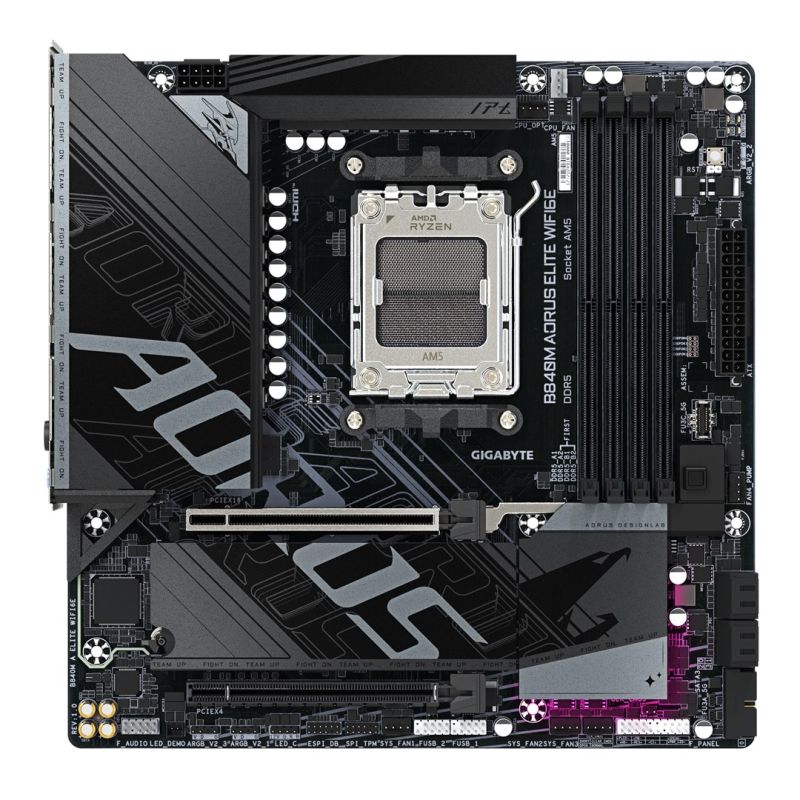

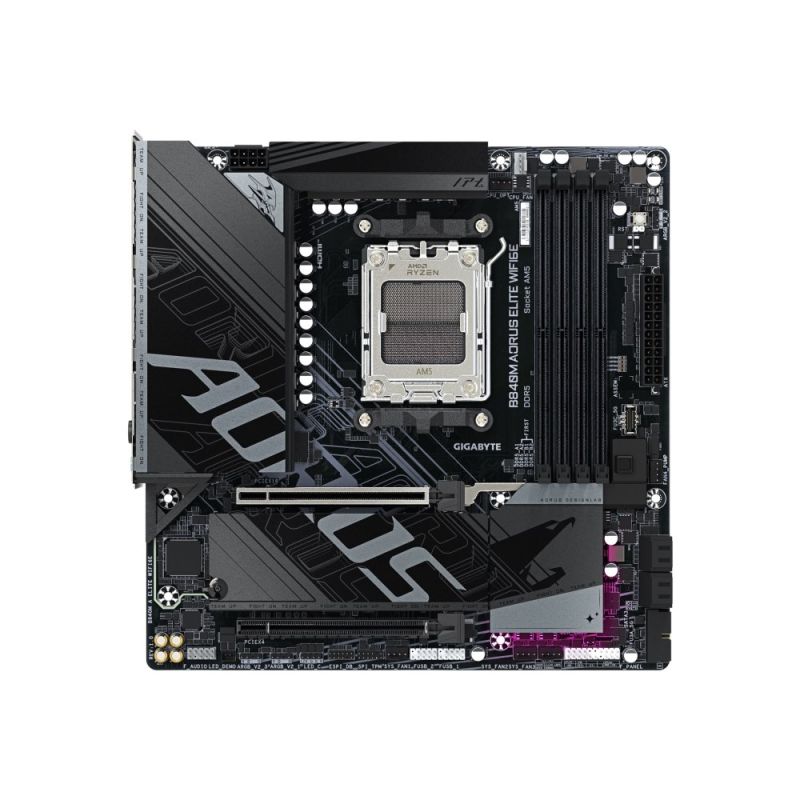

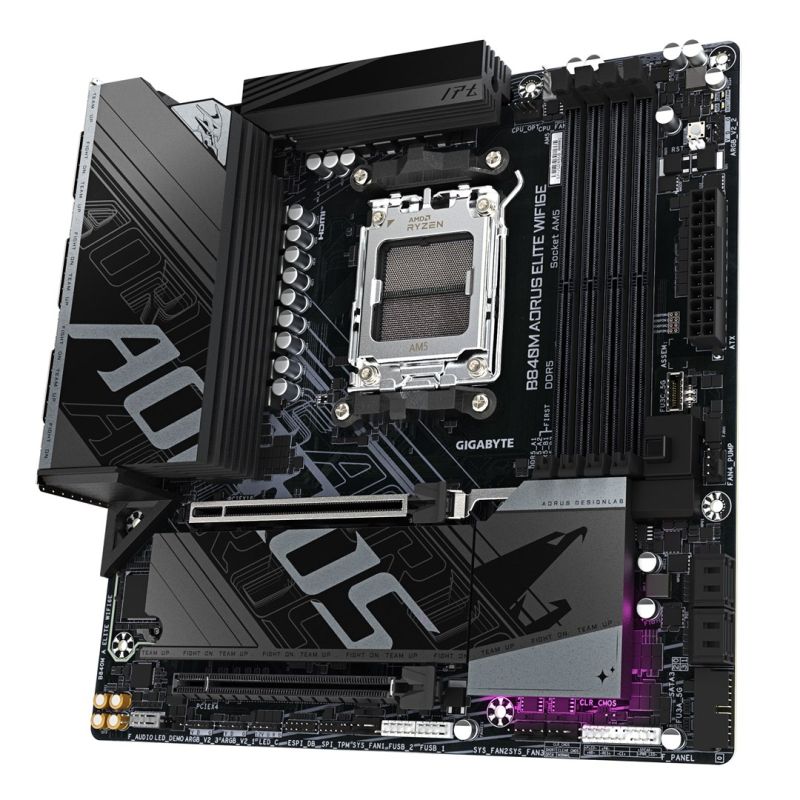

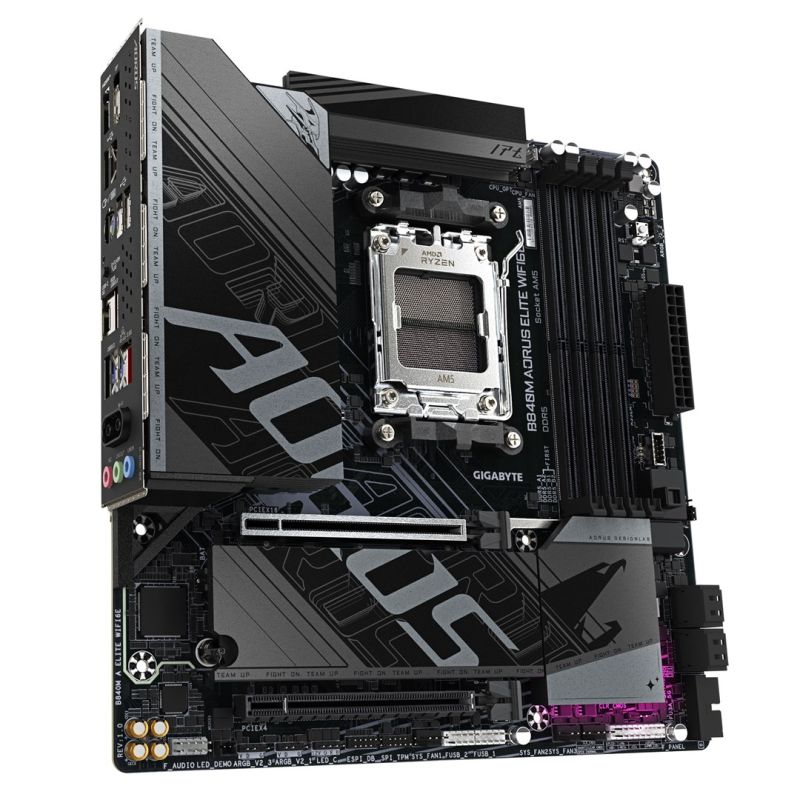

GIGABYTE B840M AORUS ELITE WIFI6E AMD B840 AM5 micro ATX motherboard (537899)
GIGABYTE B840M AORUS ELITE WIFI6E AMD B840 AM5 micro ATX motherboard (537899)
GIGABYTE B840M AORUS ELITE WIFI6E AMD B840 AM5 micro ATX motherboard (537899)
PRICE:
172,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- DirectX Version: 12.0
- HDCP: Yes
- Memory
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Supported memory clock speed (max): 8200 MHz
- Number of memory slots: 4
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- 8000
- 5800 MHz
- 7200
- 4800 MHz
- 7000
- 6600
- 6800
- 4400 MHz
- 7900
- 6200 MHz
- 5200 MHz
- 7400
- 7800
- 7950
- 7600
- 6000 MHz
- 8200
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Characteristics
- Power supply type: ATX
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Cooling type: Passive
- Monitoring computer status
- Fan
- Water cooling
- Tension
- Temperature
- Motherboard Layout: AMD B840
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC897
- Motherboard format: Micro ATX
- Product color: Dark brown
- Chipset Board Family: AMD
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- 12V power connector: Yes
- Number of case fan connectors: 4
- TPM Connector: Yes
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Front panel connector: Yes
- ATX power socket (24-pin): Yes
- Front panel audio connector: Yes
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- Number of water pump connections: 2
- Number of EPS power connectors (8-pin): 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- WLAN controller model: Realtek RTL8852CE
- Wi-Fi: Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6E (802.11ax)
- Bluetooth version: 5.3
- Wired LAN: Yes
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- BIOS
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 268 mm
- Package width: 270 mm
- Weight with packaging: 1.59 kg
- Package height: 68 mm

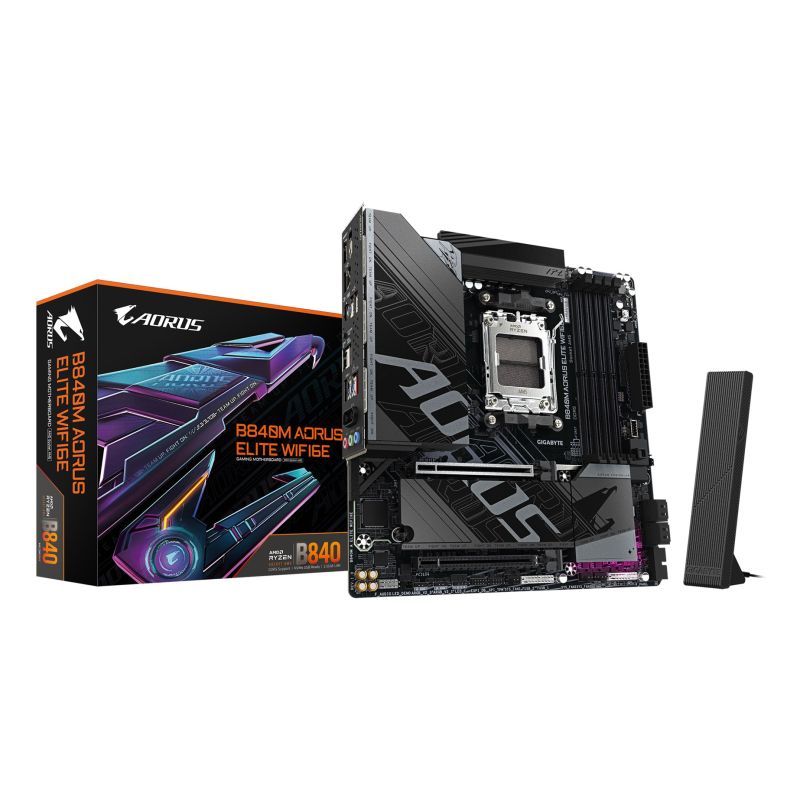

- Package contents

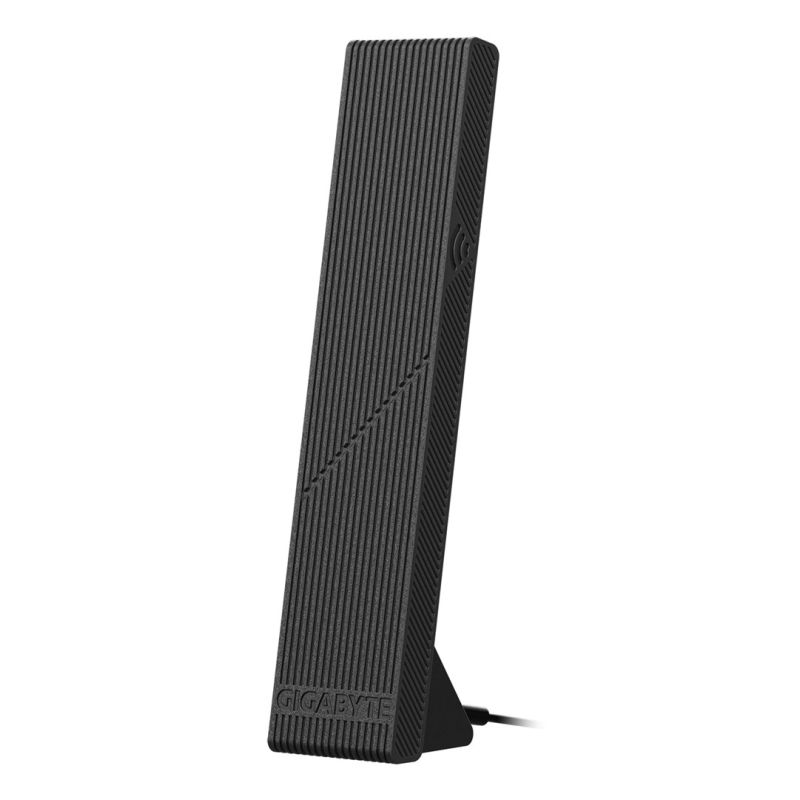

- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- RAID levels
- 1
- 0
- 10
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- RAID Service: Yes
- RAID levels

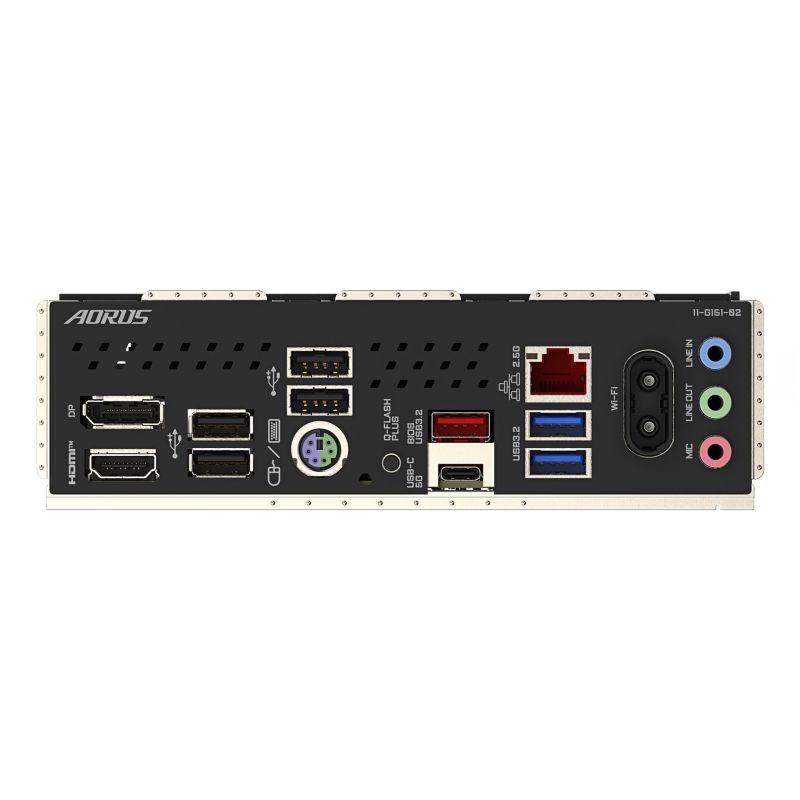

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- WiFi-AP Antenna Jack Plug: 2
- Headphone outputs: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- HDMI version: 2.1
- Line Input: Yes
- Number of PS/2 ports: 1
- Microphone: Yes
- DisplayPort version: 1.4
- DisplayPort Quantity: 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
- 2nd largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 4.0
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2580
- Battery
- Battery weight: 3 g
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.5 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
