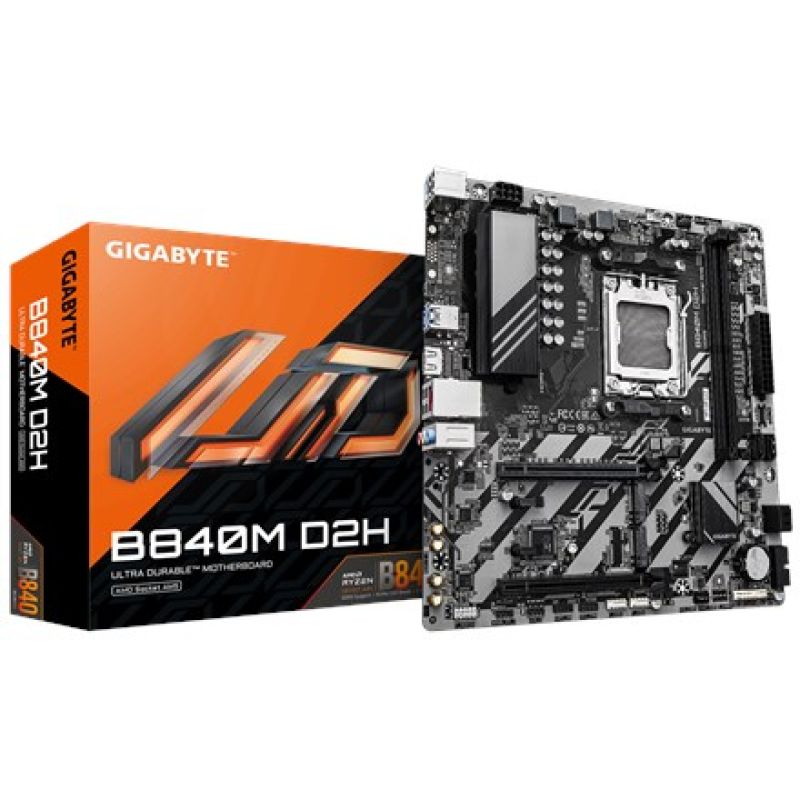

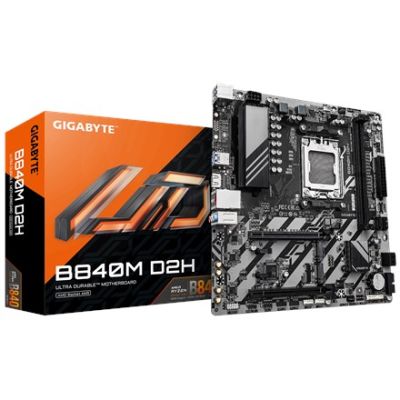

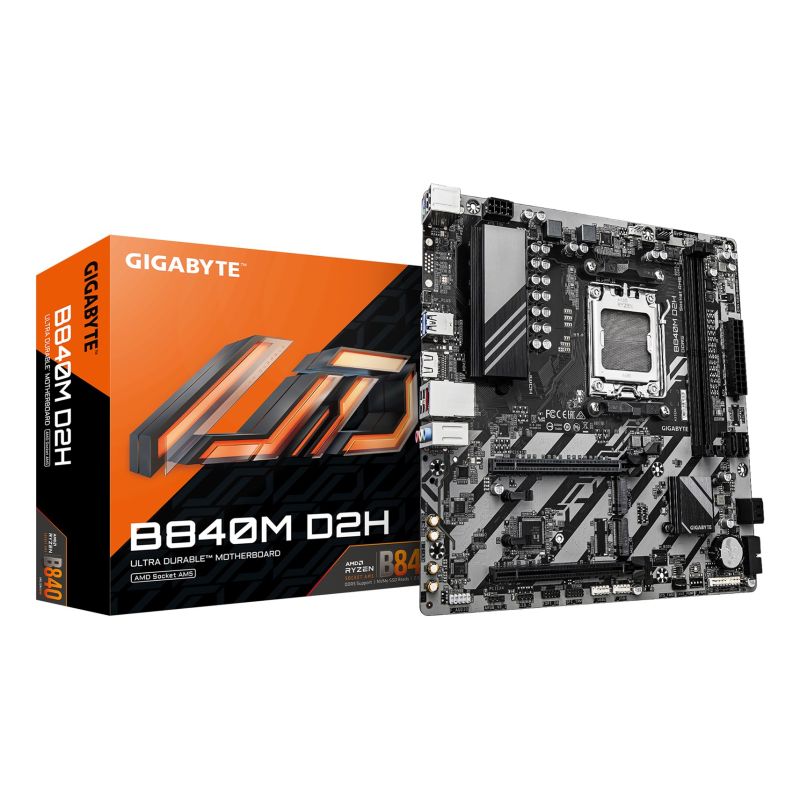

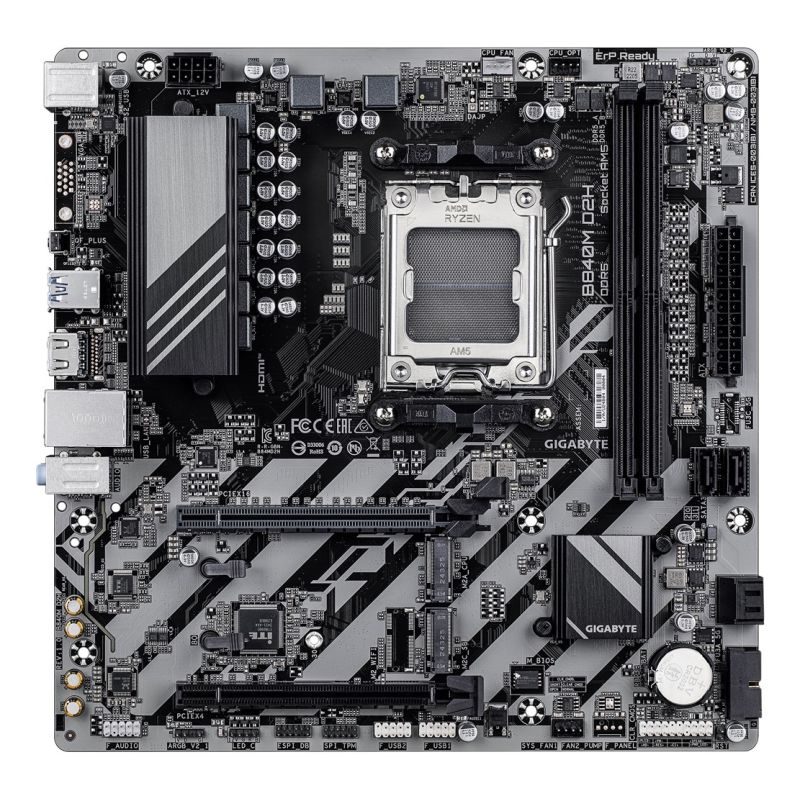

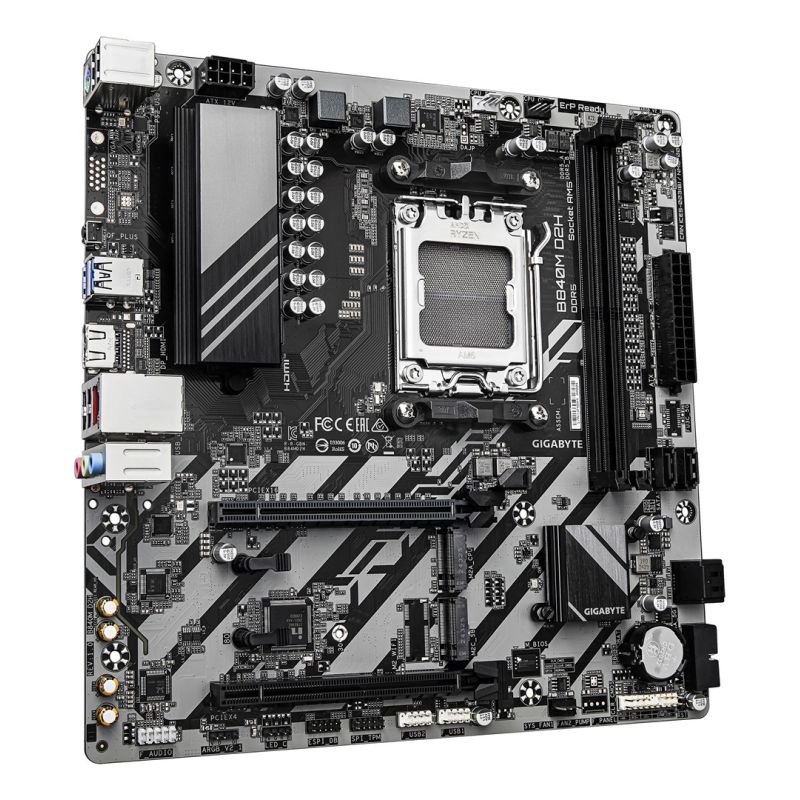

Gigabyte B840M D2H motherboard (B840, AM5, mATX, DDR5)
Gigabyte B840M D2H motherboard (B840, AM5, mATX, DDR5)
Gigabyte B840M D2H motherboard (B840, AM5, mATX, DDR5)
PRICE:
162,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- Supported CPU sockets: Socket AM5
- Processor socket: Socket AM5
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory clock speeds
- 4400 MHz
- 5200 MHz
- 7600
- 6600
- 6800
- 5600 MHz
- 6400 MHz
- 6000 MHz
- 6200 MHz
- 4800 MHz
- 7000
- 7200
- 6666 MHz
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Supported memory clock speed (max): 7600 MHz
- Supported memory clock speeds
- Characteristics
- Monitoring computer status
- Tension
- Temperature
- Water cooling
- Fan
- Chipset Board Family: AMD
- Motherboard Layout: AMD B840
- Power supply type: ATX
- Product color: Dark brown
- Audio chip: Realtek ALC897
- Cooling type: Passive
- Motherboard format: Micro ATX
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Intended use: PC
- Monitoring computer status
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 244 mm
- Internal I/O
- Number of water pump connections: 1
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED connectors: 3
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Number of case fan connectors: 1
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- RGB LED: Yes
- Front panel connector: Yes
- Network
- LAN controller: Realtek RTL8125
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- ACPI version: 5.0
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Weight with packaging: 1.03 kg
- Package width: 265 mm
- Package height: 54 mm
- Package depth: 265 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- RAID levels
- 10
- 1
- 0
- RAID Service: Yes
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4

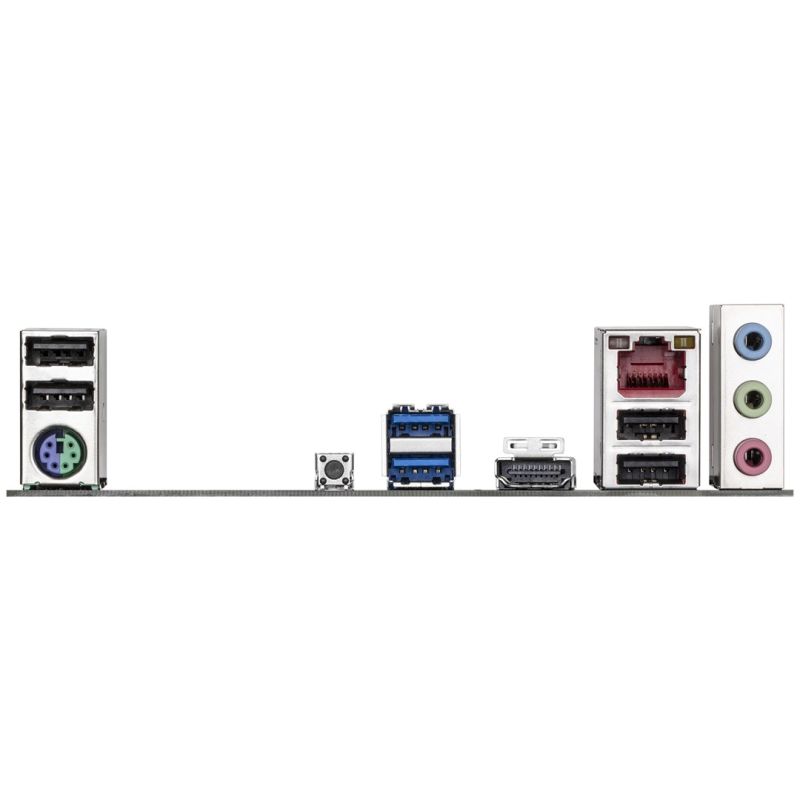

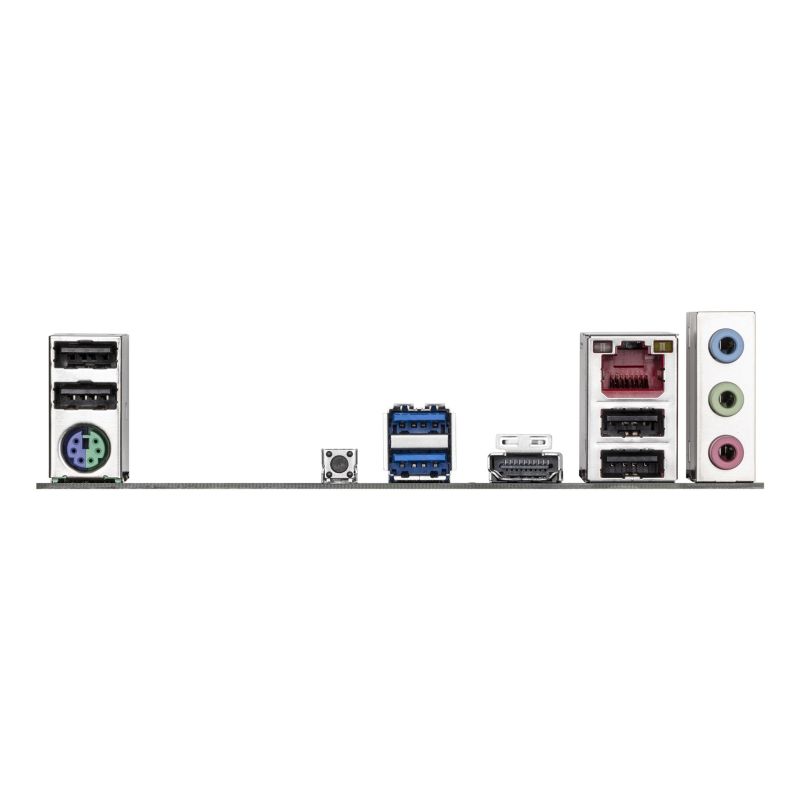

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Headphone outputs: 1
- HDMI version: 2.1
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Microphone: Yes
- Expansion slots
- 1. largest M.2 key size: 2580
- 2. M.2 highest generation PCI Express: 3.0
- 1. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Battery
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Other functions
- Product weight: 940 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
