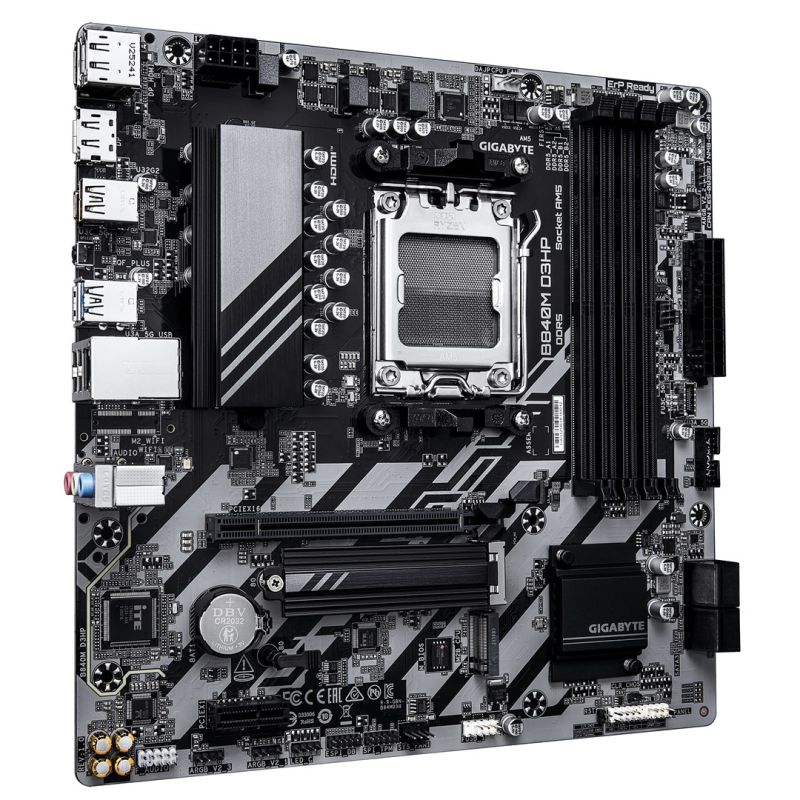

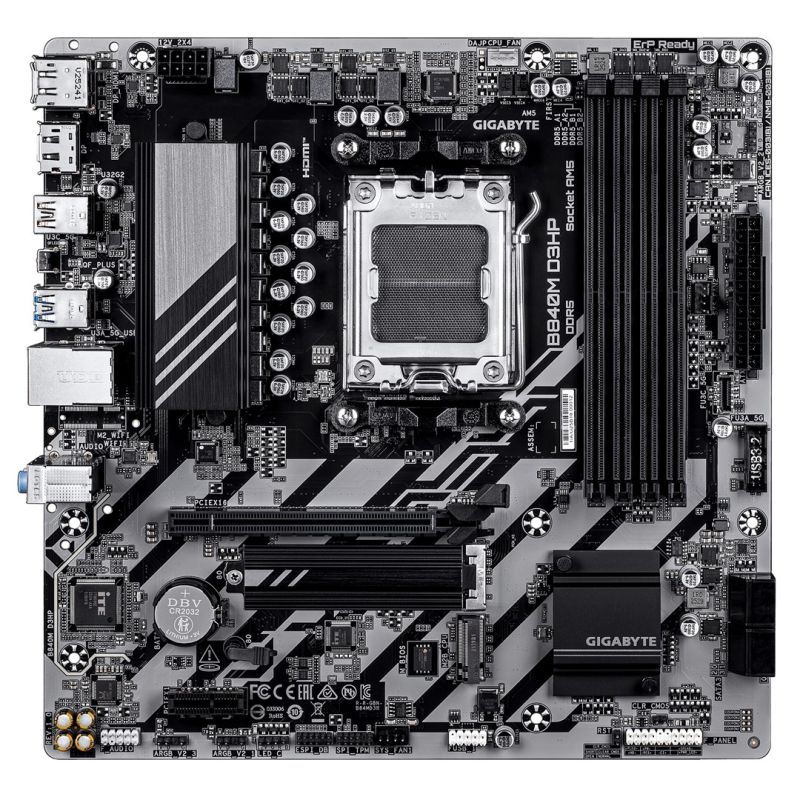

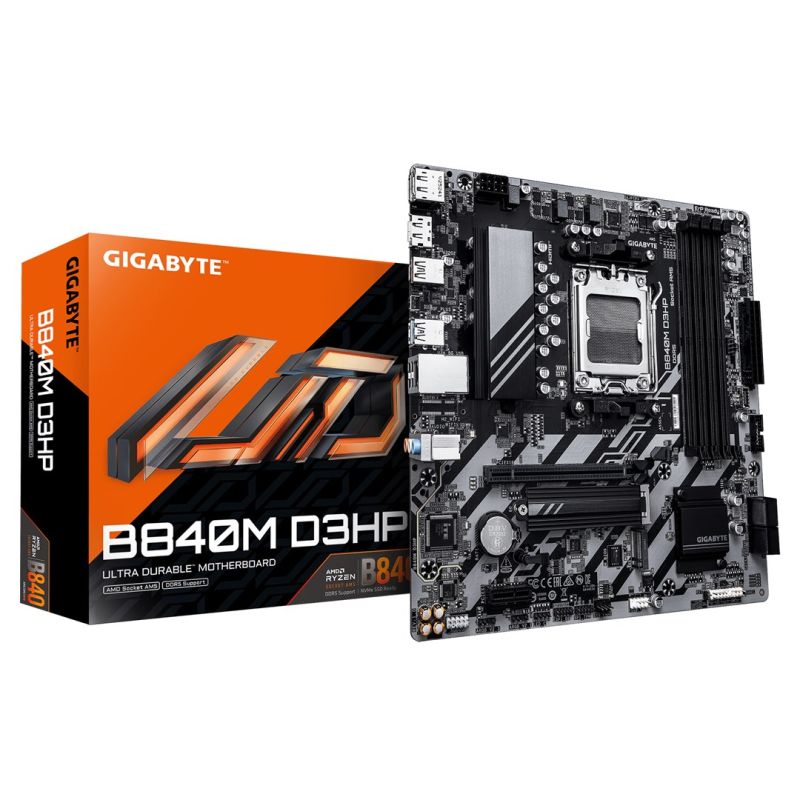

GIGABYTE B840M D3HP AMD B840 Motherboard Socket AM5 Micro ATX
GIGABYTE B840M D3HP AMD B840 Motherboard Socket AM5 Micro ATX
GIGABYTE B840M D3HP AMD B840 Motherboard Socket AM5 Micro ATX
PRICE:
180,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Supported CPU sockets: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- HDCP version: 2.3
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- Memory
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds
- 6600
- 6800 MHz
- 7400
- 5800 MHz
- 7000
- 7200
- 7800
- 7950
- 6200 MHz
- 8000 MHz
- 5600 MHz
- 6400 MHz
- 7900
- 6000 MHz
- 8200
- 7600
- Maximum memory capacity: 256 GB
- Number of memory slots: 4
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Supported memory clock speed (max): 8200 MHz
- Characteristics
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Product color: Dark brown
- Cooling type: Passive
- Power supply type: ATX
- Chipset Board Family: AMD
- Monitoring computer status
- Temperature
- Water cooling
- Tension
- Fan
- Audio chip: Realtek ALC897
- Intended use: PC
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Motherboard Layout: AMD B840
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 244 mm
- Internal I/O
- CPU fan connector: Yes
- RGB LED: Yes
- Number of USB 2.0 ports: 1
- Front panel connector: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Number of EPS power connectors (8-pin): 1
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of case fan connectors: 2
- Number of CPU fan connectors: 1
- Number of RGB LED connectors: 4
- Front panel audio connector: Yes
- Network
- LAN Controller: Realtek RTL8111H
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- BIOS
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- BIOS memory size: 256 Mbit
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package width: 265 mm
- Weight with packaging: 1.04 kg
- Package height: 54 mm
- Package depth: 265 mm
- Package contents
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- RAID levels
- 1
- 0
- 5
- 10
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Number of supported storage drive sizes: 6
- RAID Service: Yes
- Supported drive types: HDD & SSD
- RAID levels

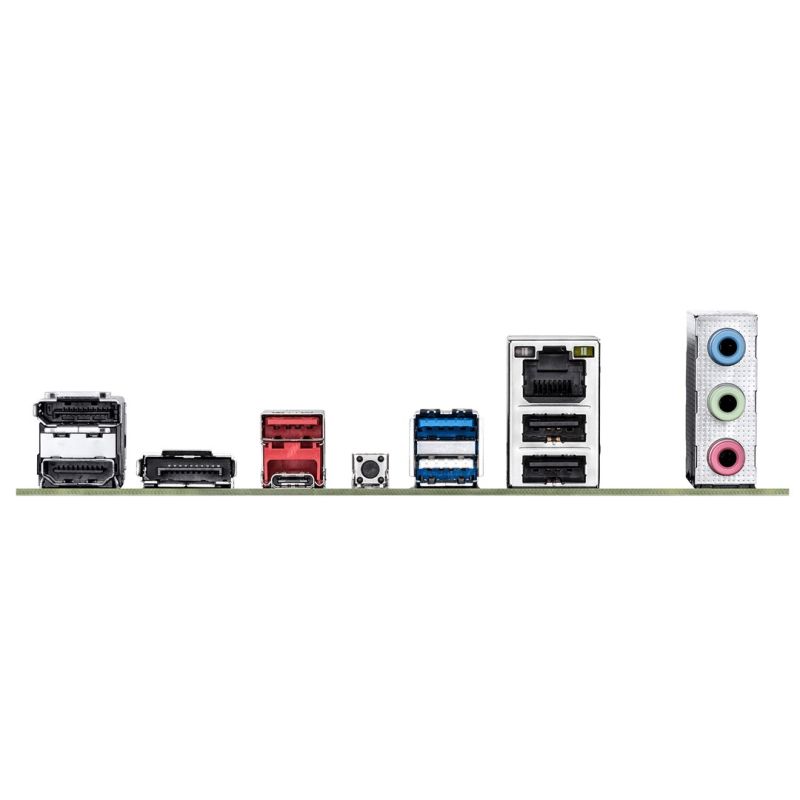

- Rear Panel I/O Ports
- Number of DisplayPorts: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of HDMI ports: 1
- DisplayPort version: 1.4
- Line Input: Yes
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 3
- Microphone: Yes
- Headphone outputs: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 2
- 1. M.2 highest generation PCI Express: 4.0
- PCI Express x1 (Gen 3.x) slots: 1
- 2nd largest M.2 key size: 2280
- 1. largest M.2 key size: 2580
- PCI Express x16 (Gen 4.x) slots: 1
- Battery
- Battery capacity: 220 mAh
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery weight: 3 g
- Other functions
- Product weight: 960 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
