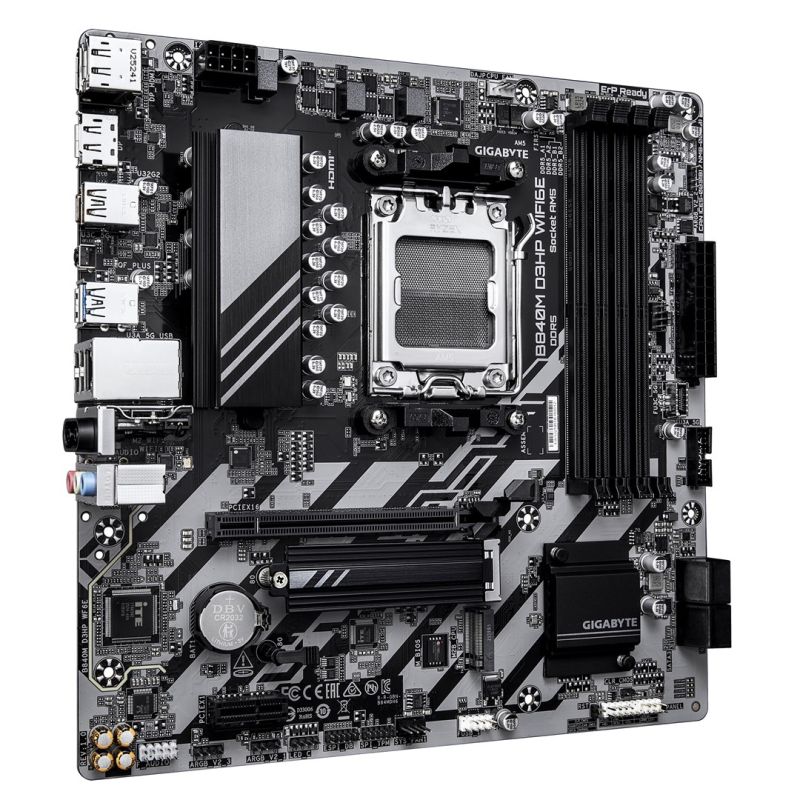

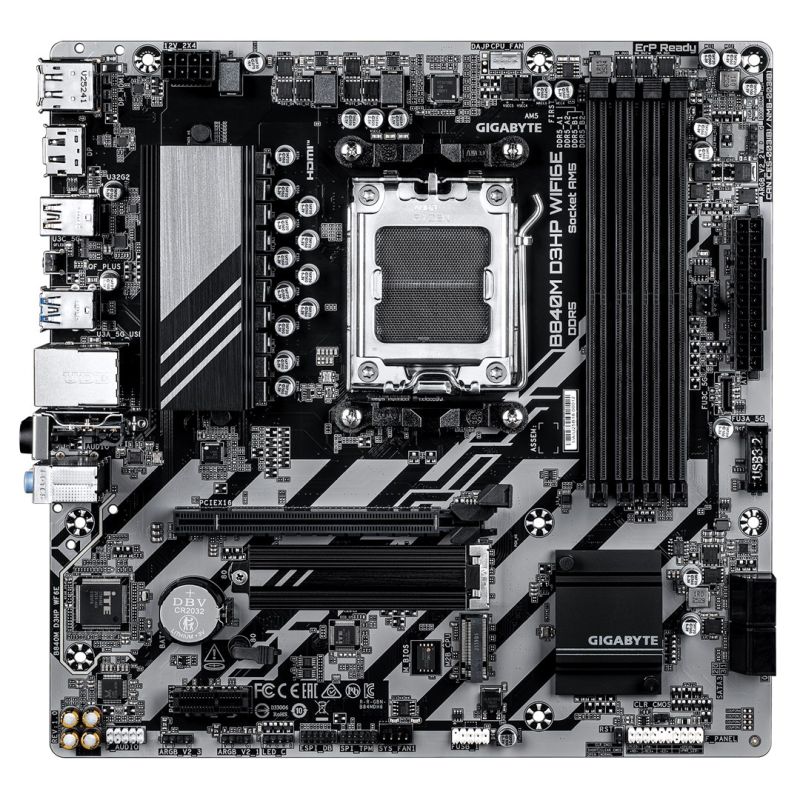

GIGABYTE B840M D3HP WIFI6E AMD B840 Socket AM5 micro ATX
GIGABYTE B840M D3HP WIFI6E AMD B840 Socket AM5 micro ATX
GIGABYTE B840M D3HP WIFI6E AMD B840 Socket AM5 micro ATX
PRICE:
197,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor socket: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Graphics
- HDCP version: 2.3
- Parallel Processing Support: Not Supported
- HDCP: Yes
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Supported memory clock speed (max): 8200 MHz
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 256 GB
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- 7900
- 7800
- 7950
- 6200 MHz
- 7000
- 6600
- 6800 MHz
- 5800 MHz
- 7400
- 8000 MHz
- 6000 MHz
- 8200
- 7200
- 7600
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Characteristics
- Power supply type: ATX
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Intended use: PC
- Product color: Dark brown
- Cooling type: Passive
- Monitoring computer status
- Tension
- Water cooling
- Temperature
- Fan
- Motherboard format: Micro ATX
- Motherboard Layout: AMD B840
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 244 mm
- Internal I/O
- RGB LED: Yes
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- TPM Connector: Yes
- Number of case fan connectors: 2
- Number of USB 2.0 ports: 1
- EPS power supply connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of RGB LED connectors: 4
- Front panel audio connector: Yes
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 1
- Network
- WLAN controller model: MediaTek MT7902
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Bluetooth version: 5.3
- Bluetooth: Yes
- LAN Controller: Realtek RTL8111H
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- BIOS
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Packaging data
- Package height: 68 mm
- Package width: 270 mm
- Weight with packaging: 1.18 kg
- Package depth: 268 mm

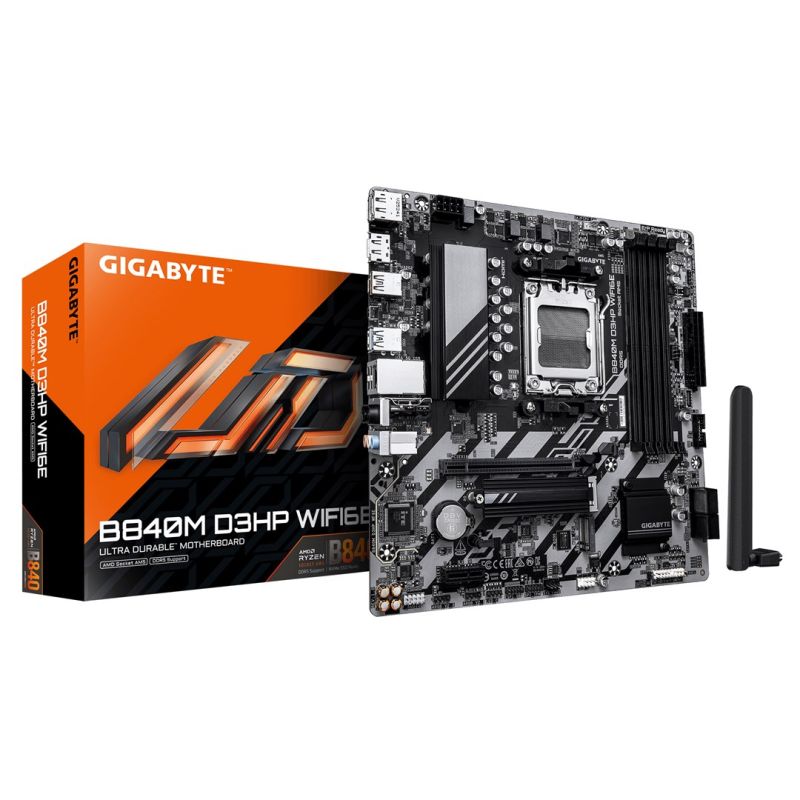

- Package contents
- Screws Included: Yes
- Antenna Included: Yes
- Batteries included: Yes
- Memory drivers
- Number of supported HDDs: 4
- RAID levels
- 10
- 0
- 5
- 1
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Number of supported storage drive sizes: 6

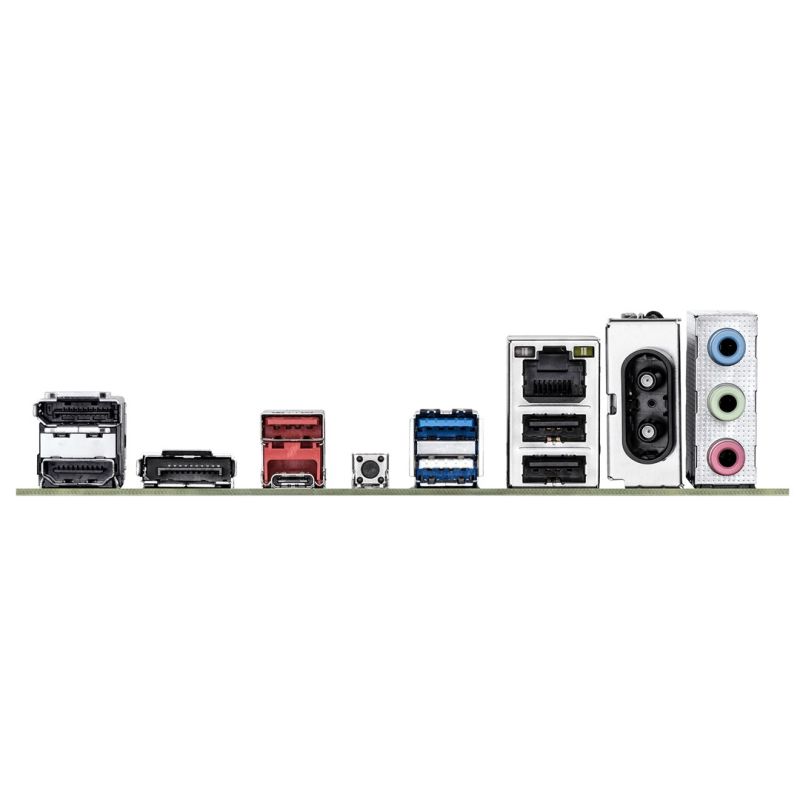

- Rear Panel I/O Ports
- WiFi-AP Antenna Jack Plug: 2
- Headphone outputs: 1
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Number of HDMI ports: 1
- Number of DisplayPorts: 2
- Number of USB 2.0 ports: 3
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Microphone: Yes
- HDMI version: 2.1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 1
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2580
- Battery
- Battery capacity: 220 mAh
- Number of battery compartments: 1
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Other functions
- Product weight: 1.09 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
