GIGABYTE B840M DS3H WIFI6 AMD B840 Socket AM5 micro ATX
GIGABYTE B840M DS3H WIFI6 AMD B840 Socket AM5 micro ATX
GIGABYTE B840M DS3H WIFI6 AMD B840 Socket AM5 micro ATX
PRICE:
222,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory clock speeds
- 6000 MHz
- 8200
- 6600
- 6800 MHz
- 4400 MHz
- 8000 MHz
- 4800 MHz
- 7000
- 7800
- 7950
- 5600 MHz
- 6400 MHz
- 7900
- 6666 MHz
- 7400
- 6200 MHz
- 5200 MHz
- 7200
- 7600
- Maximum memory capacity: 256 GB
- Memory Channel Support: Dual Channel
- Maximum internal memory per slot: 64 GB
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory clock speed (max): 8200 MHz
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- Characteristics
- Product color: Dark brown
- Intended use: PC
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Temperature
- Fan
- Water cooling
- Tension
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Power supply type: ATX
- Chipset Board Family: AMD
- Cooling type: Passive
- Motherboard format: Micro ATX
- Motherboard Layout: AMD B840
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 244 mm
- Internal I/O
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Number of water pump connections: 2
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Number of RGB LED connectors: 3
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of case fan connectors: 2
- Front panel audio connector: Yes
- Number of SATA III connectors: 4
- Front panel connector: Yes
- RGB LED: Yes
- Number of USB 2.0 ports: 2
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 2
- Network
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- Wired LAN: Yes
- Wi-Fi standards
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- Wi-Fi 6 (802.11ax)
- Wi-Fi: Yes
- WLAN controller model: Realtek RTL8851BE
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Bluetooth version: 5.3
- Ethernet interface type: 2.5 Gigabit Ethernet
- BIOS
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Weight with packaging: 1.23 kg
- Package width: 270 mm
- Package height: 68 mm
- Package depth: 268 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Antenna Included: Yes
- Memory drivers
- RAID Service: Yes
- Number of supported storage drive sizes: 6
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- RAID levels
- 10
- 1
- 0
- 5
- Number of supported HDDs: 4

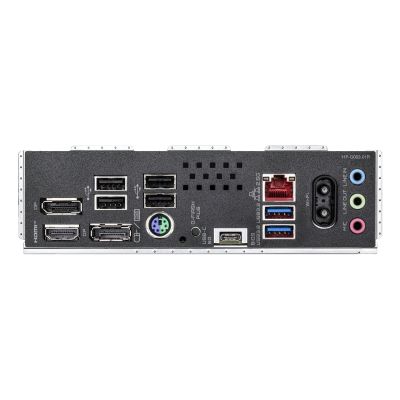

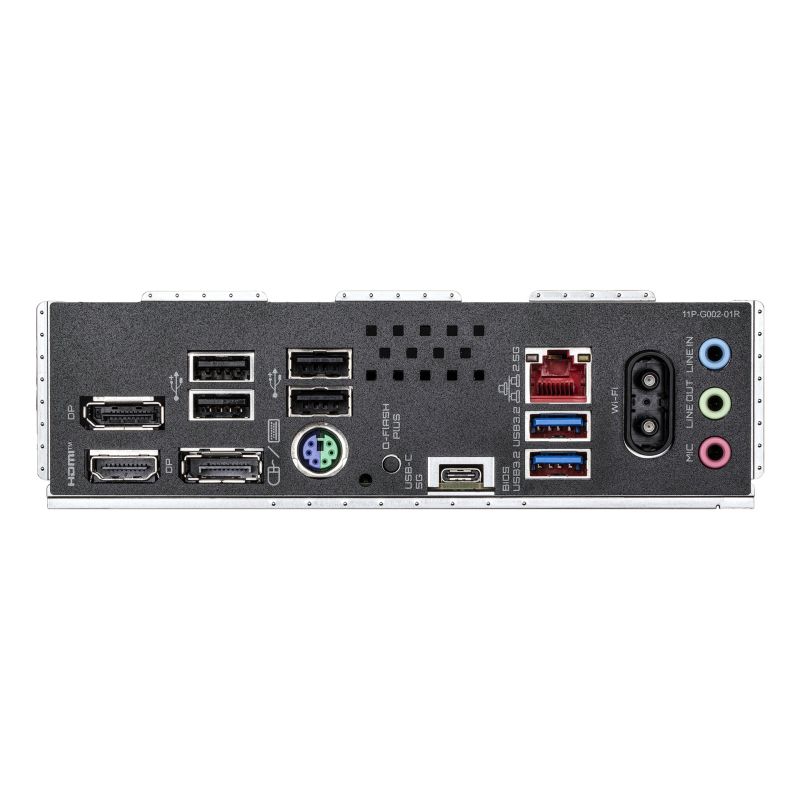

- Rear Panel I/O Ports
- Number of DisplayPorts: 2
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- HDMI version: 2.1
- Microphone: Yes
- Number of USB 2.0 ports: 4
- Number of HDMI ports: 1
- Number of PS/2 ports: 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Line Input: Yes
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2580
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
- 2nd largest M.2 key size: 25110
- PCI Express x16 (Gen 4.x) slots: 1
- Battery
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.13 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
