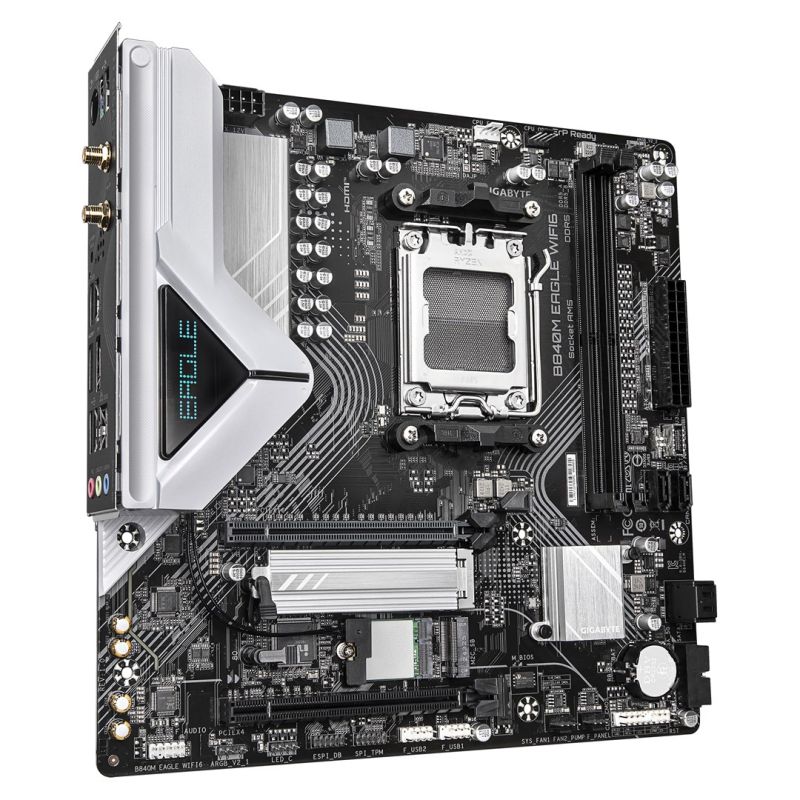

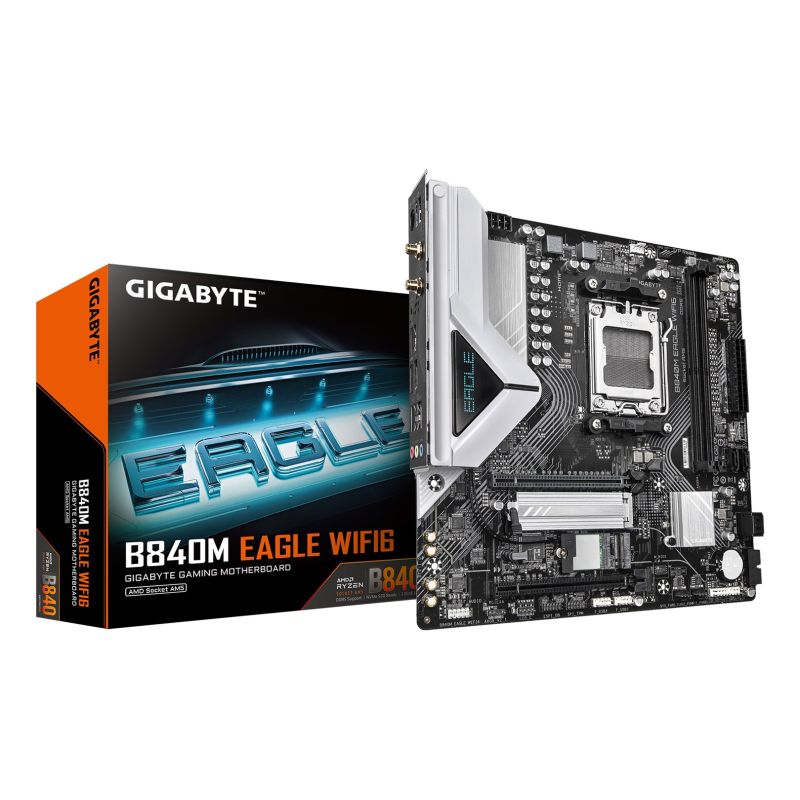

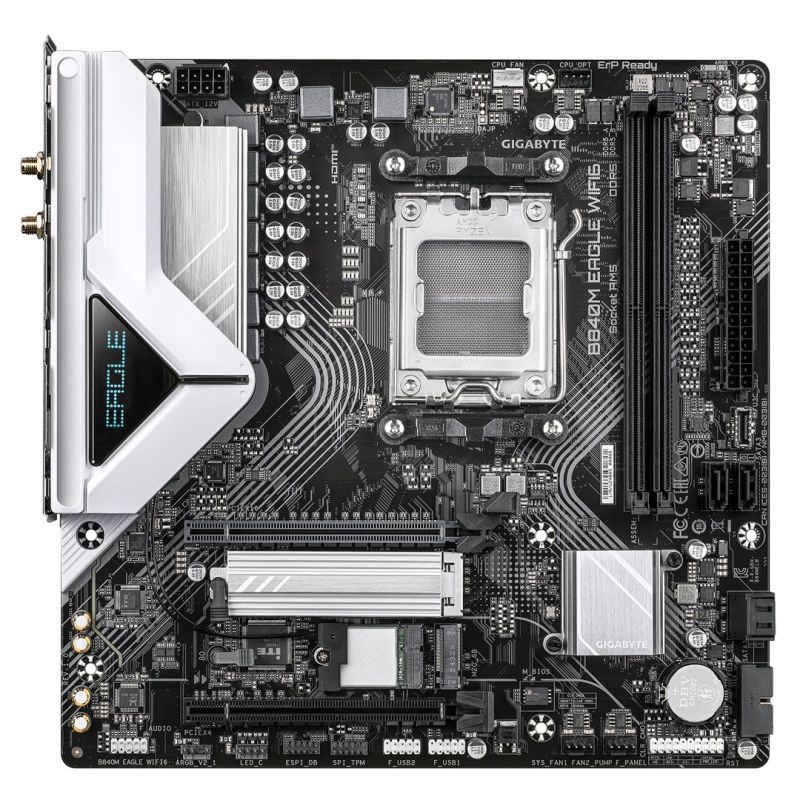

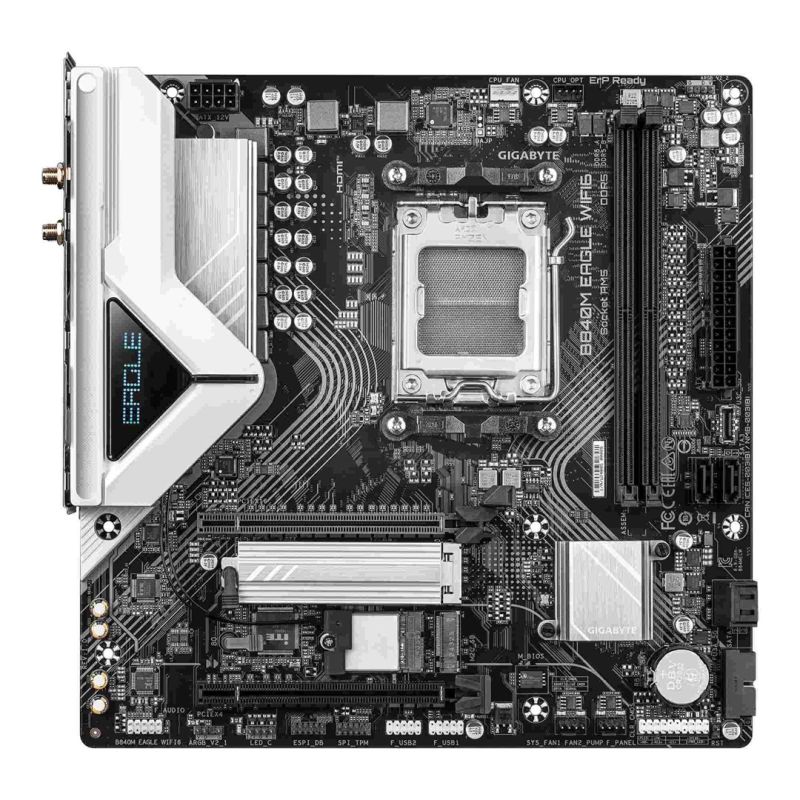

GIGABYTE B840M EAGLE WIFI6 motherboard AMD B840 Socket AM5 micro ATX
GIGABYTE B840M EAGLE WIFI6 motherboard AMD B840 Socket AM5 micro ATX
GIGABYTE B840M EAGLE WIFI6 motherboard AMD B840 Socket AM5 micro ATX
PRICE:
204,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- Graphics
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Maximum resolution: 4096 x 2160 px
- DirectX Version: 12.0
- Memory
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Memory slot type: DIMM
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Maximum memory capacity: 128 GB
- Supported memory clock speeds
- 5200 MHz
- 4400 MHz
- 5600 MHz
- 6400 MHz
- 6000 MHz
- 6200 MHz
- 4800 MHz
- 7000
- 6600
- 6800 MHz
- 5800 MHz
- 7200
- 7600
- Unbuffered memory: Yes
- Supported memory clock speed (max): 7600 MHz
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Cooling type: Passive
- Monitoring computer status
- Water cooling
- Tension
- Fan
- Temperature
- Intended use: PC
- Power supply type: ATX
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Audio chip: Realtek ALC897
- Product color: Dark brown
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD B840
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Product height: 35 mm
- Internal I/O
- CPU fan connector: Yes
- TPM Connector: Yes
- Number of case fan connectors: 2
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Front panel connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 3
- Number of water pump connections: 2
- Number of EPS power connectors (8-pin): 1
- 12V power connector: Yes
- RGB LED: Yes
- Network
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Bluetooth version: 5.3
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- 802.11b
- Wi-Fi 6 (802.11ax)
- WLAN controller model: Realtek RTL8851BE
- Bluetooth: Yes
- LAN controller: Realtek RTL8125
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS Jumper: Yes
- ACPI version: 5.0
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package height: 68 mm
- Package width: 270 mm
- Weight with packaging: 1.31 kg
- Package depth: 268 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Antenna Included: Yes
- Memory drivers
- RAID Service: Yes
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6
- RAID levels
- 10
- 0
- 1
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD

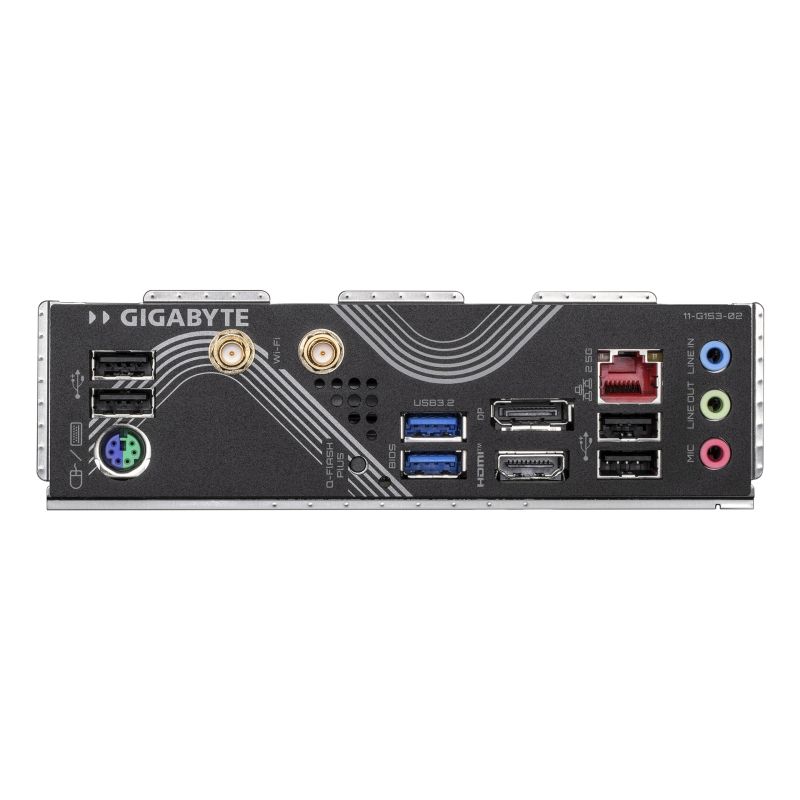

- Rear Panel I/O Ports
- Line Input: Yes
- Headphone outputs: 1
- Number of HDMI ports: 1
- HDMI version: 2.1
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 2.0 ports: 4
- DisplayPort Quantity: 1
- Number of PS/2 ports: 1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- 1. largest M.2 key size: 2580
- 2nd largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 3.0
- 1. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 4.x) slots: 1
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Battery weight: 3 g
- Other functions
- Product weight: 1.22 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
