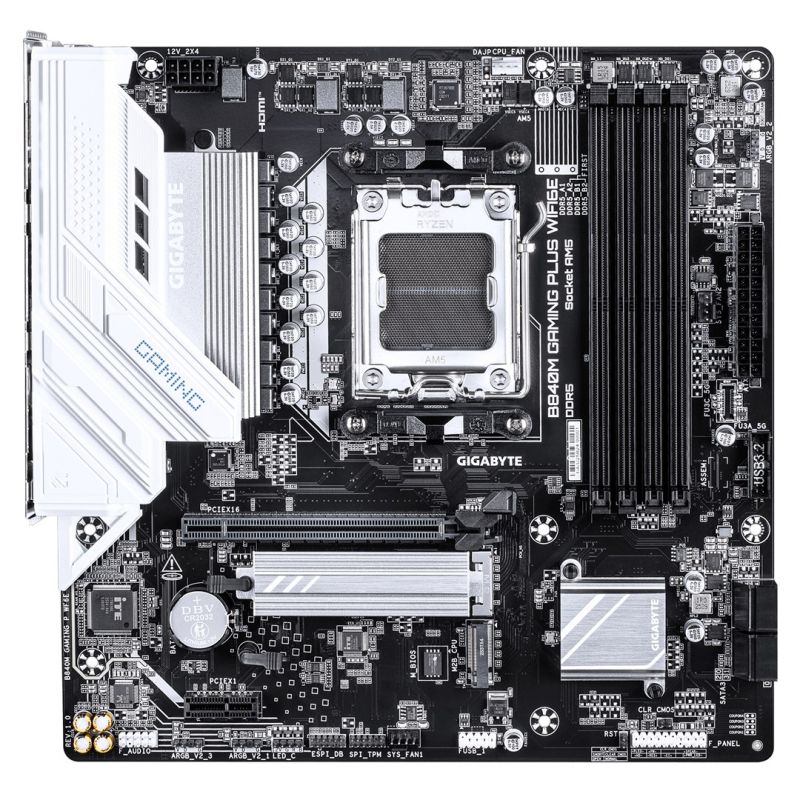

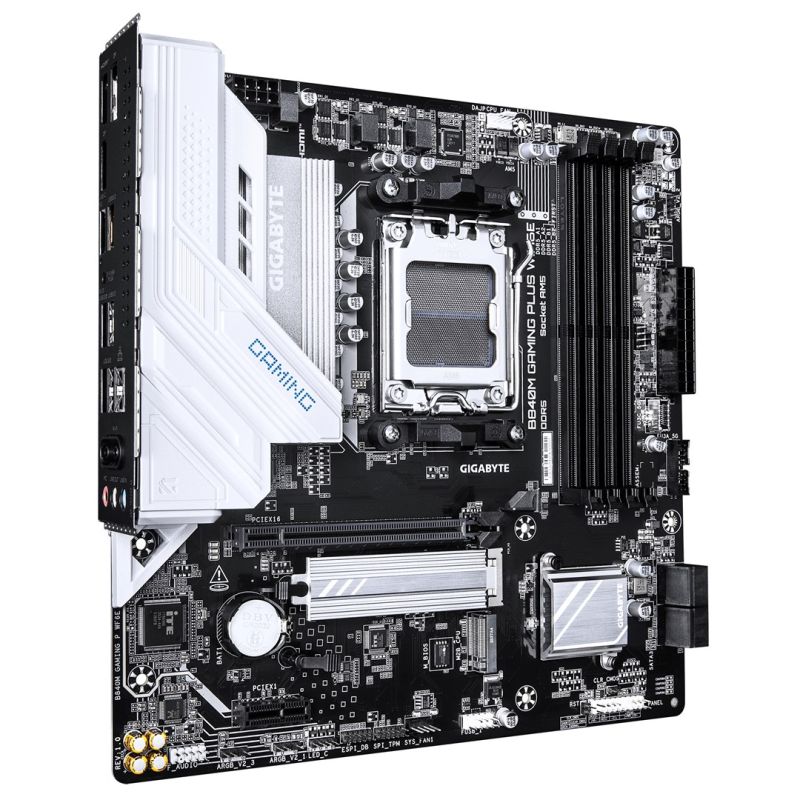

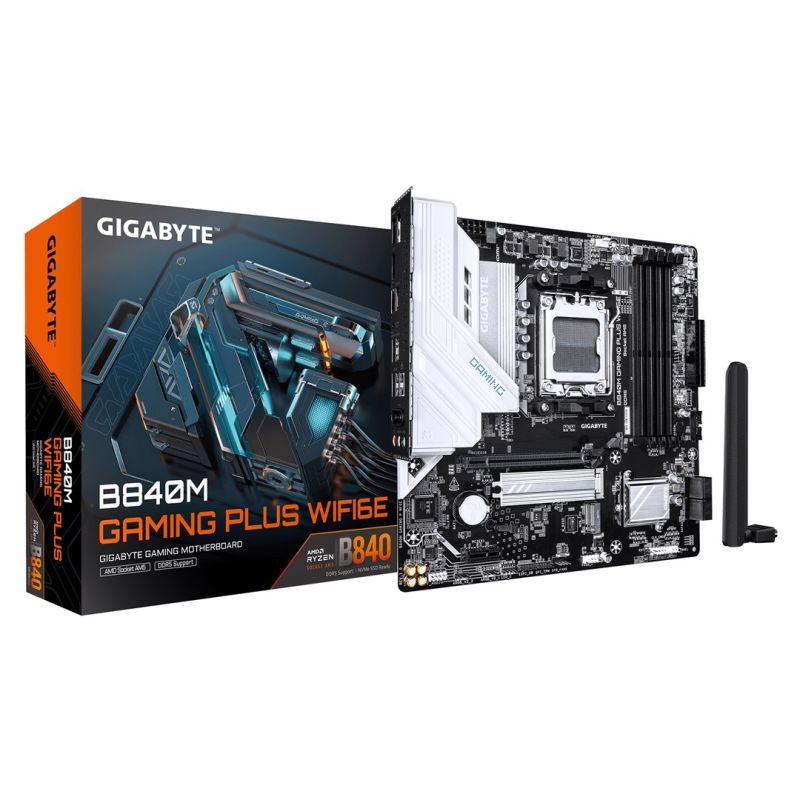

GIGABYTE B840M GAMING PLUS WIFI6E AMD B840 Socket AM5 micro ATX
GIGABYTE B840M GAMING PLUS WIFI6E AMD B840 Socket AM5 micro ATX
GIGABYTE B840M GAMING PLUS WIFI6E AMD B840 Socket AM5 micro ATX
PRICE:
217,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- HDCP version: 2.3
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- DirectX Version: 12.0
- Memory
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Number of memory slots: 4
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- 7900
- 7400
- 6000 MHz
- 8200
- 8000 MHz
- 7000
- 5800 MHz
- 6600
- 6800 MHz
- 6200 MHz
- 7800
- 7950
- 7200
- 7600
- Supported memory clock speed (max): 8200 MHz
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Power supply type: ATX
- Product color: Dark brown
- Cooling type: Passive
- Audio chip: Realtek ALC897
- Monitoring computer status
- Temperature
- Water cooling
- Fan
- Tension
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Intended use: PC
- Motherboard Layout: AMD B840
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- RGB LED: Yes
- TPM Connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of RGB LED connectors: 4
- Number of CPU fan connectors: 1
- Front panel connector: Yes
- Number of EPS power connectors (8-pin): 1
- Number of case fan connectors: 2
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Front panel audio connector: Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Network
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: Yes
- Wired LAN: Yes
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Bluetooth version: 5.3
- LAN Controller: Realtek RTL8111H
- WLAN controller model: MediaTek MT7902
- Bluetooth: Yes
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- ACPI version: 5.0
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 268 mm
- Package height: 68 mm
- Package width: 270 mm
- Weight with packaging: 1.24 kg
- Package contents
- Batteries included: Yes
- Antenna Included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- RAID levels
- 10
- 1
- 5
- 0

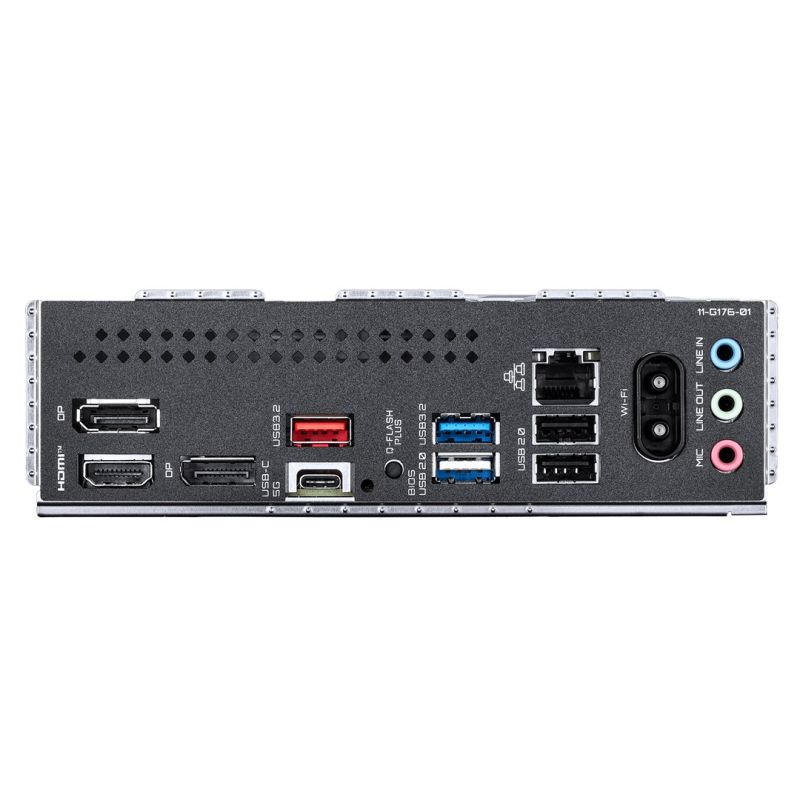

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- WiFi-AP Antenna Jack Plug: 2
- Headphone outputs: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Microphone: Yes
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- HDMI version: 2.1
- Number of USB 2.0 ports: 3
- Number of DisplayPorts: 2
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Expansion slots
- 1. largest M.2 key size: 2580
- 2nd largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 4.x) slots: 1
- 2. M.2 highest generation PCI Express: 4.0
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
- Battery
- Battery capacity: 220 mAh
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.15 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
