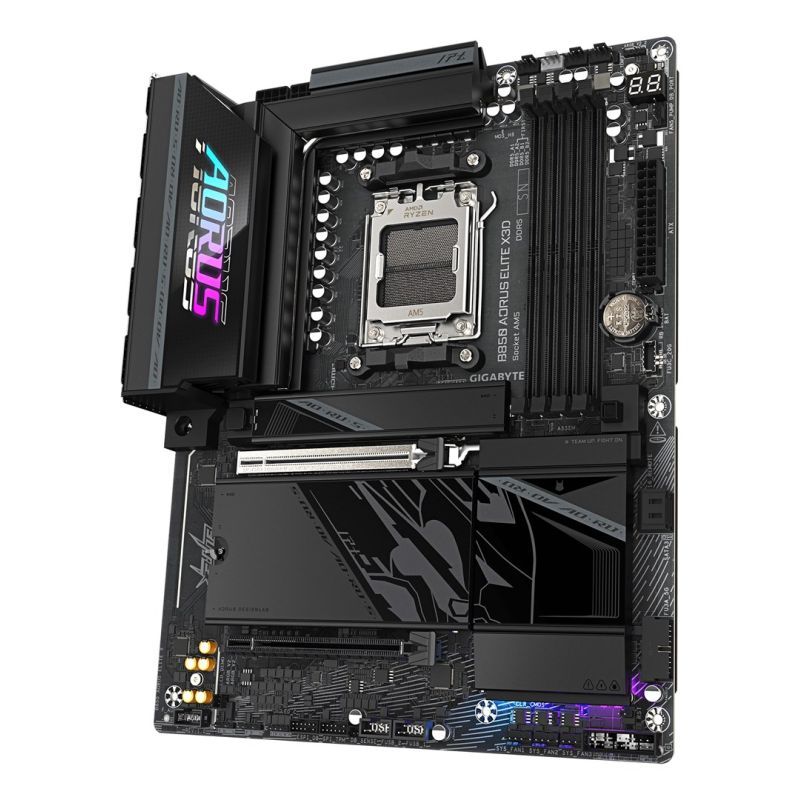

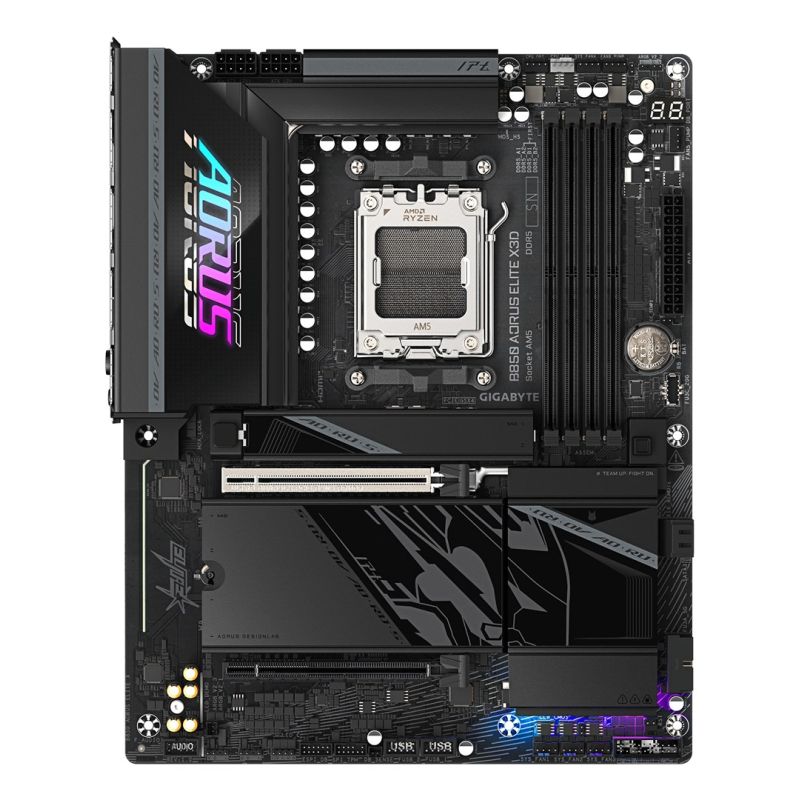

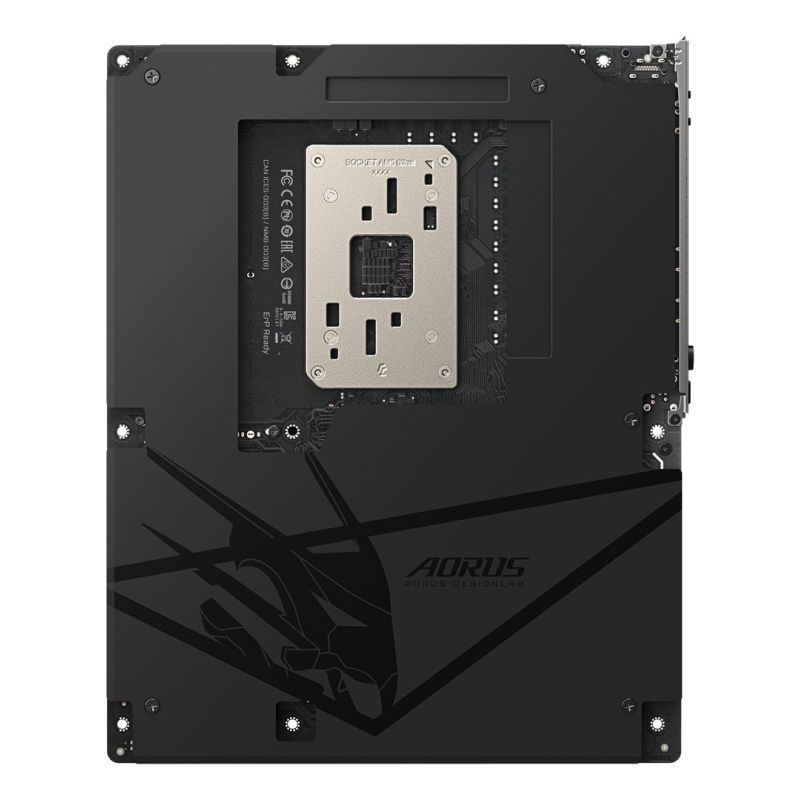

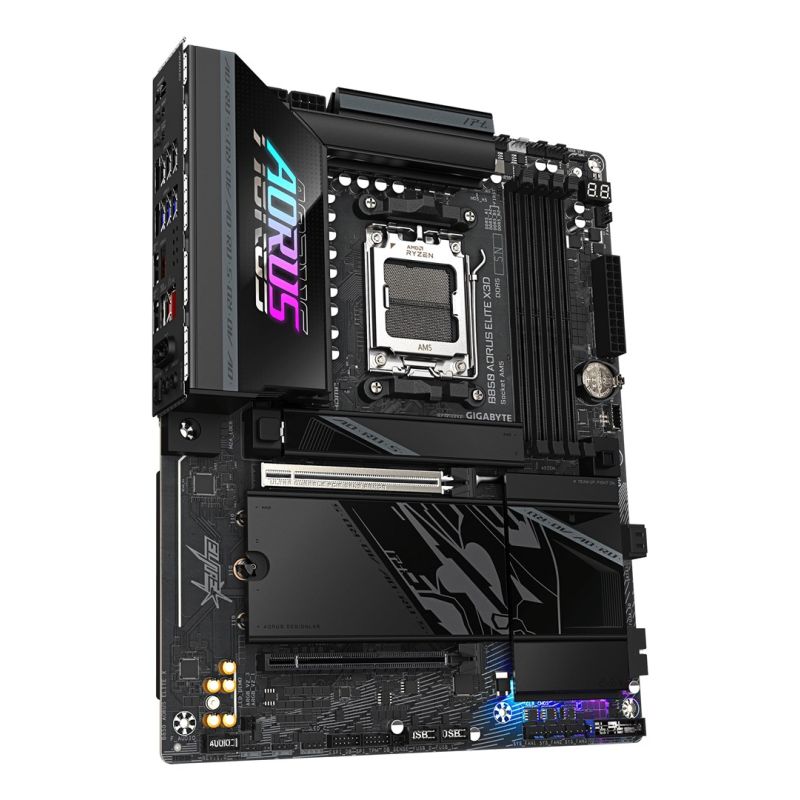

GIGABYTE B850 AORUS ELITE X3D AMD B850 Socket AM5 ATX
GIGABYTE B850 AORUS ELITE X3D AMD B850 Socket AM5 ATX
GIGABYTE B850 AORUS ELITE X3D AMD B850 Socket AM5 ATX
PRICE:
461,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- Supported CPU sockets: Socket AM5
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Processor
- Graphics
- DirectX Version: 12.0
- HDCP version: 2.3
- Maximum resolution: 4096 x 2160 px
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Built-in graphics card: No
- Memory
- Supported memory clock speeds
- 7200
- 4800 MHz
- 7000
- 7800
- 7950
- 5200 MHz
- 5600 MHz
- 6400 MHz
- 7900
- 7600
- 6200 MHz
- 5800 MHz
- 8000
- 6600
- 6800
- 6000 MHz
- 8200 MHz
- 7400
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Number of memory slots: 4
- Maximum internal memory per slot: 64 GB
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 8200 MHz
- Supported memory clock speeds
- Characteristics
- Intended use: PC
- Monitoring computer status
- Tension
- Fan
- Temperature
- Water cooling
- Cooling type: Passive
- Audio chip: Realtek ALC1220
- Product color: Black
- Chipset Board Family: AMD
- Power supply type: ATX
- Supported Windows operating systems: Windows 11 x64
- Motherboard Layout: AMD B850
- Audio output channels: 7.1 ch.
- Motherboard format: ATX
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- 12V power connector: Yes
- Number of EPS power connectors (8-pin): 2
- TPM Connector: Yes
- Number of case fan connectors: 6
- Number of RGB LED connectors: 4
- Front panel connector: Yes
- RGB LED: Yes
- Number of CPU fan connectors: 2
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 2x2 ports: 1
- Number of water pump connections: 3
- EPS power supply connector (8-pin): Yes
- Number of temperature sensor headers: 2
- Number of noise detection headers: 1
- Network
- Bluetooth: Yes
- Wi-Fi standards
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 4 (802.11n)
- Ethernet network interface type
- Gigabit Ethernet
- 5 Gigabit Ethernet
- Fast Ethernet
- 2.5 Gigabit Ethernet
- Bluetooth version: 5.4
- Wired LAN: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- WLAN controller model: Realtek RTL8922AE
- LAN controller: Realtek RTL8126
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- BIOS memory size: 512 Mbit
- ACPI version: 5.0
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Jumper: Yes
- Packaging data
- Weight with packaging: 3.15 kg
- Package depth: 270 mm
- Package width: 335 mm
- Package height: 80 mm

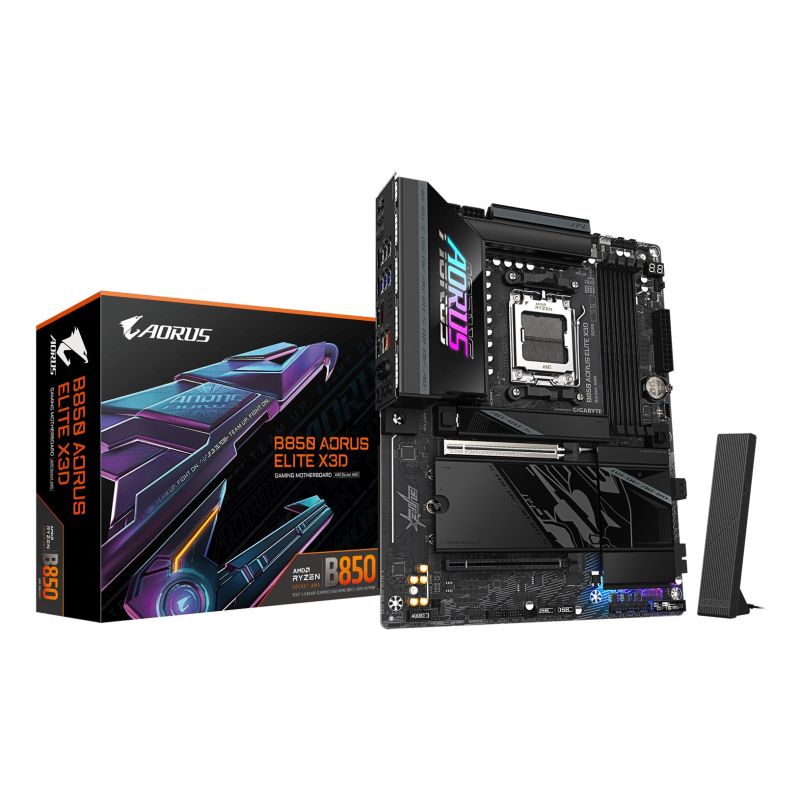

- Package contents
- Screws Included: Yes
- Antenna Included: Yes
- Batteries included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 1
- 0
- 10
- Number of supported HDDs: 2
- RAID Service: Yes
- Number of supported storage drive sizes: 6

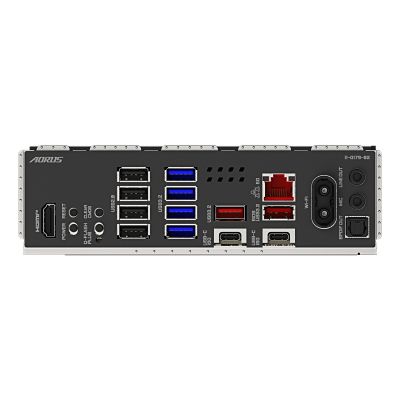

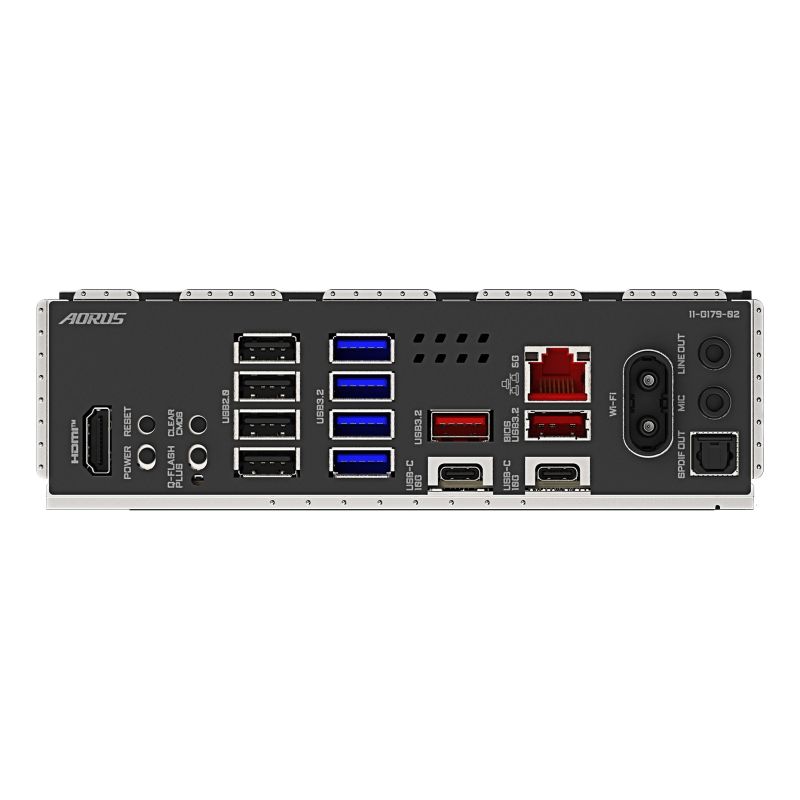

- Rear Panel I/O Ports
- Microphone: Yes
- HDMI version: 2.1
- WiFi-AP Antenna Jack Plug: 2
- Number of HDMI ports: 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 4.x) slots: 1
- 3. largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2580
- 2nd largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 5.0
- 4. M.2 highest generation PCI Express: 4.0
- 4. largest M.2 key size: 22110
- 3. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 5.x) slots: 1
- Battery
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Number of battery compartments: 1
- Battery capacity: 220 mAh
- Other functions
- Product weight: 2.75 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Gigabyte |
| Department | Electronics |
