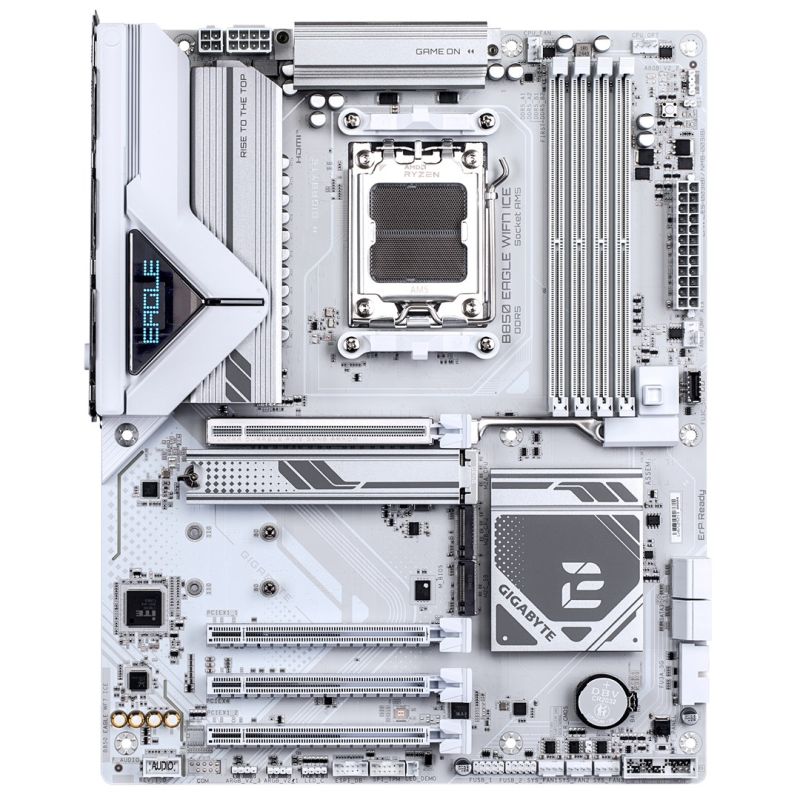

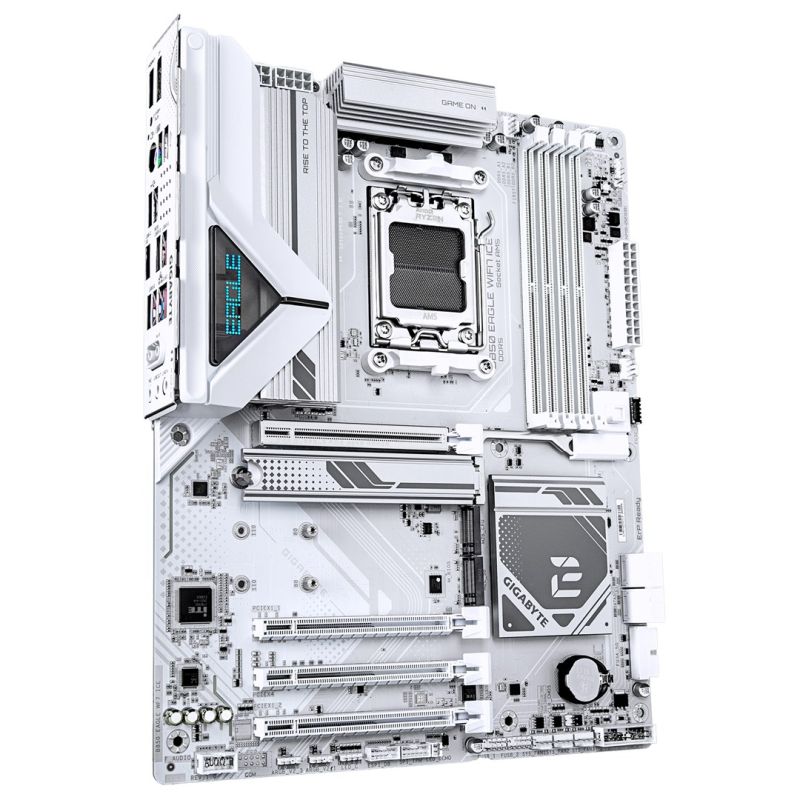

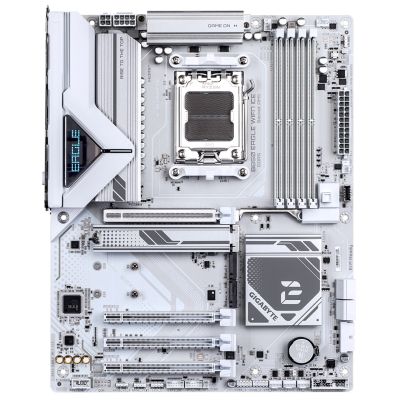

GIGABYTE B850 EAGLE WIFI7 ICE AMD B850 AM5 ATX Socket
GIGABYTE B850 EAGLE WIFI7 ICE AMD B850 AM5 ATX Socket
GIGABYTE B850 EAGLE WIFI7 ICE AMD B850 AM5 ATX Socket
PRICE:
296,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- Built-in graphics card: No
- Memory
- Supported memory clock speeds
- 8000
- 6000 MHz
- 8200
- 5600 MHz
- 6400 MHz
- 7900
- 7800
- 7950
- 4400 MHz
- 4800 MHz
- 7000
- 5800 MHz
- 7600
- 7400
- 7200
- 5200 MHz
- 6200 MHz
- 6600
- 6800
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Supported memory clock speed (max): 8200 MHz
- Supported memory clock speeds
- Characteristics
- Audio chip: Realtek ALC897
- Power supply type: ATX
- Monitoring computer status
- Fan
- Tension
- Temperature
- Water cooling
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Product color: White
- Motherboard Layout: AMD B850
- Motherboard format: ATX
- Cooling type: Passive
- Intended use: PC
- Supported Windows operating systems: Windows 11 x64
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 305 mm
- Internal I/O
- Number of CPU fan connectors: 2
- Number of water pump connections: 2
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED connectors: 4
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Front panel audio connector: Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- 12V power connector: Yes
- RGB LED: Yes
- Front panel connector: Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- Number of case fan connectors: 4
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Network
- Bluetooth: Yes
- LAN controller: Realtek RTL8125
- WLAN controller model: Realtek RTL8922AE
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 4 (802.11n)
- Wired LAN: Yes
- Bluetooth version: 5.4
- BIOS
- System BIOS (SMBIOS) version: 2.7
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Packaging data
- Weight with packaging: 1.89 kg
- Package depth: 270 mm
- Package width: 335 mm
- Package height: 80 mm
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- RAID Service: Yes
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 0
- 10
- 1
- Number of supported storage drive sizes: 7
- Number of supported HDDs: 4

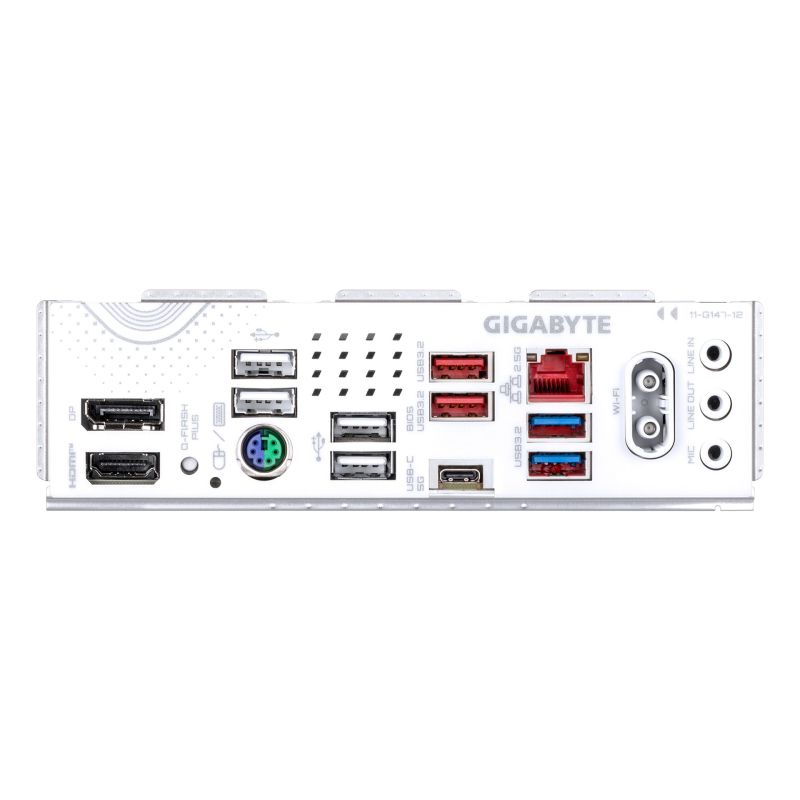

- Rear Panel I/O Ports
- DisplayPort version: 1.4
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- HDMI version: 1.4
- WiFi-AP Antenna Jack Plug: 2
- Headphone outputs: 1
- Microphone: Yes
- Expansion slots
- 3. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 22110
- 3. largest M.2 key size: 22110
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 3
- Battery
- Lithium battery weight: 0.07 g
- Battery weight: 3 g
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Other functions
- Product weight: 1.69 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
