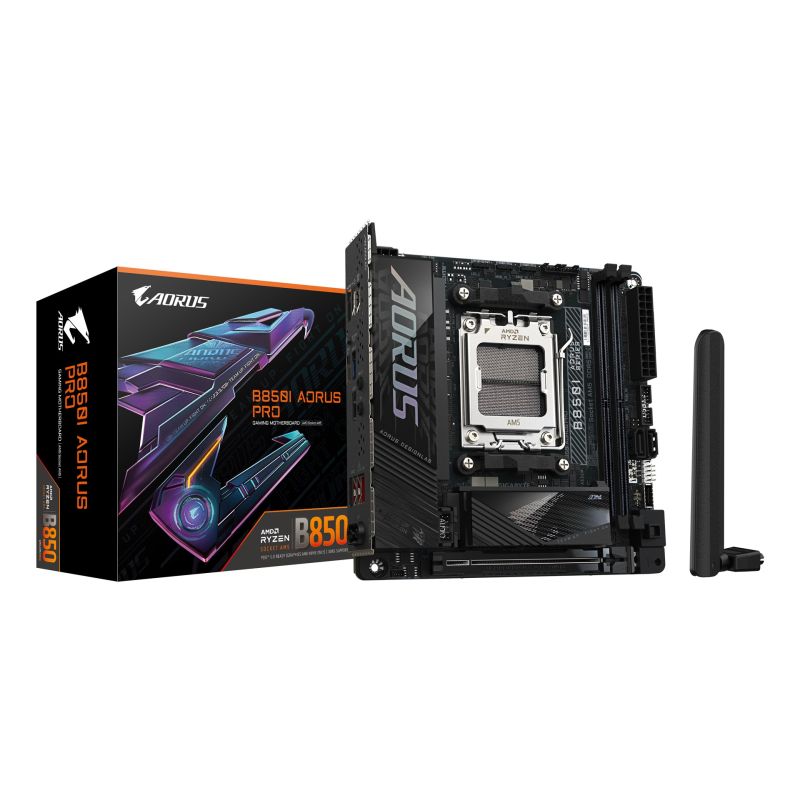

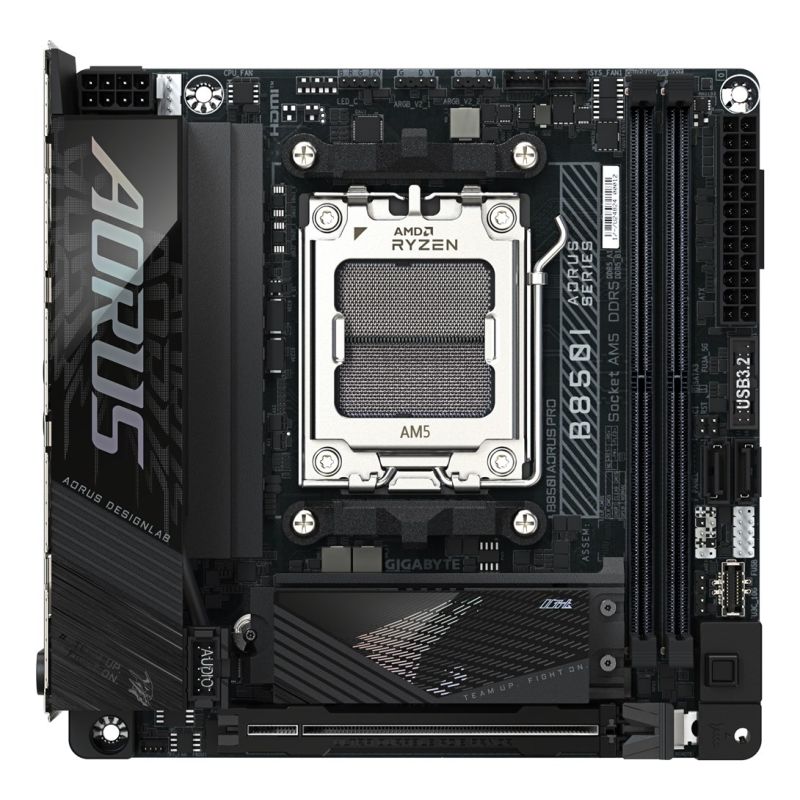

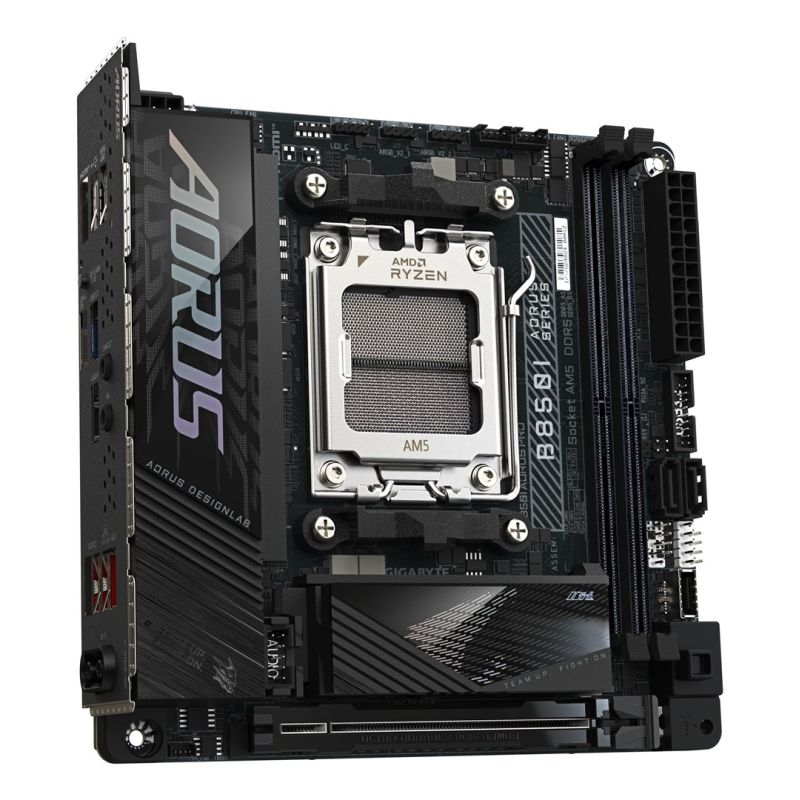

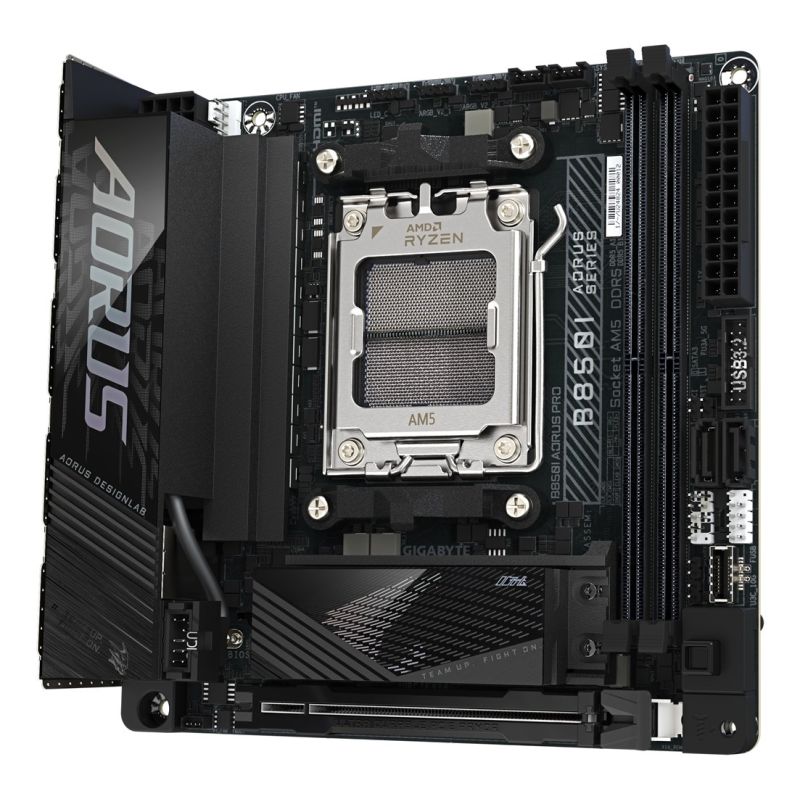

GIGABYTE B850I AORUS PRO Motherboard AMD B850 Socket AM5 Mini ITX
GIGABYTE B850I AORUS PRO Motherboard AMD B850 Socket AM5 Mini ITX
GIGABYTE B850I AORUS PRO Motherboard AMD B850 Socket AM5 Mini ITX
PRICE:
432,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Graphics
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- Memory
- Memory slot type: DIMM
- Number of memory slots: 2
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 8400 MHz
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Supported memory clock speeds
- 6200 MHz
- 4800 MHz
- 7000
- 5600 MHz
- 6400 MHz
- 7600
- 8000
- 8400 MHz
- 4400 MHz
- 7200
- 6000 MHz
- 8200
- 6666 MHz
- 6600
- 6800
- 5200 MHz
- 7800
- Maximum memory capacity: 128 GB
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Monitoring computer status
- Tension
- Fan
- Temperature
- Water cooling
- Motherboard Layout: AMD B850
- Motherboard format: Mini ITX
- Intended use: PC
- Chipset Board Family: AMD
- Product color
- Black
- Brown
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product height: 35 mm
- Product depth: 170 mm
- Product width: 170 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- 12V power connector: Yes
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- Total number of SATA connectors: 2
- Front panel connector: Yes
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 1
- Number of water pump connections: 1
- Number of CPU fan connectors: 2
- CPU fan connector: Yes
- Front panel audio connector: Yes
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 2
- Number of USB 2.0 ports: 1
- Network
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8922AE
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 4 (802.11n)
- 802.11b
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Bluetooth version: 5.4
- Wi-Fi: Yes
- Wired LAN: Yes
- Bluetooth: Yes
- BIOS
- BIOS memory size: 256 Mbit
- Clear CMOS Button: Yes
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Jumper: Yes
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Package contents

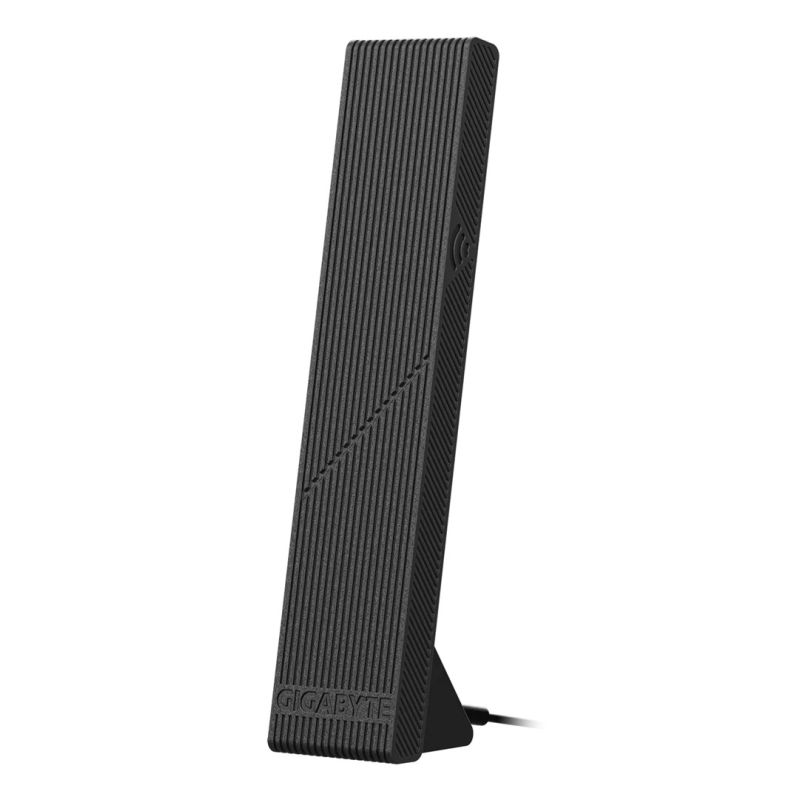

- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 4
- Number of supported HDDs: 2
- RAID levels
- 0
- 10
- 1
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes

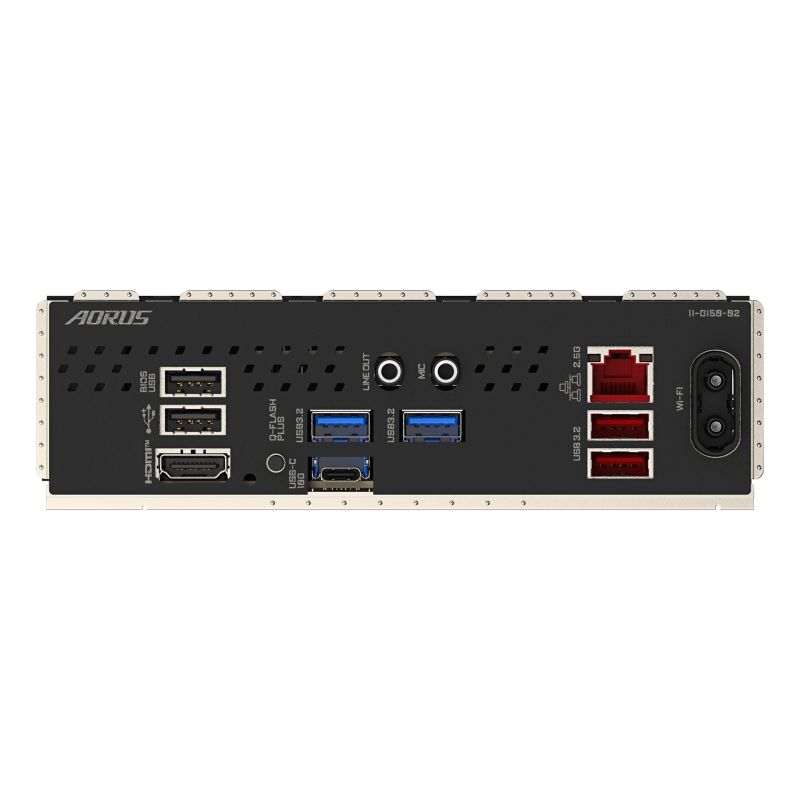

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- WiFi-AP Antenna Jack Plug: 2
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Headphone outputs: 1
- DisplayPort Quantity: 1
- DisplayPort version: 2.1
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- 1. largest M.2 key size: 2280
- 2nd largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- Number of M.2 (M) slots: 2
- Battery
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Number of battery compartments: 1
- Battery weight: 3 g
- Other functions
- Product weight: 1.3 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
