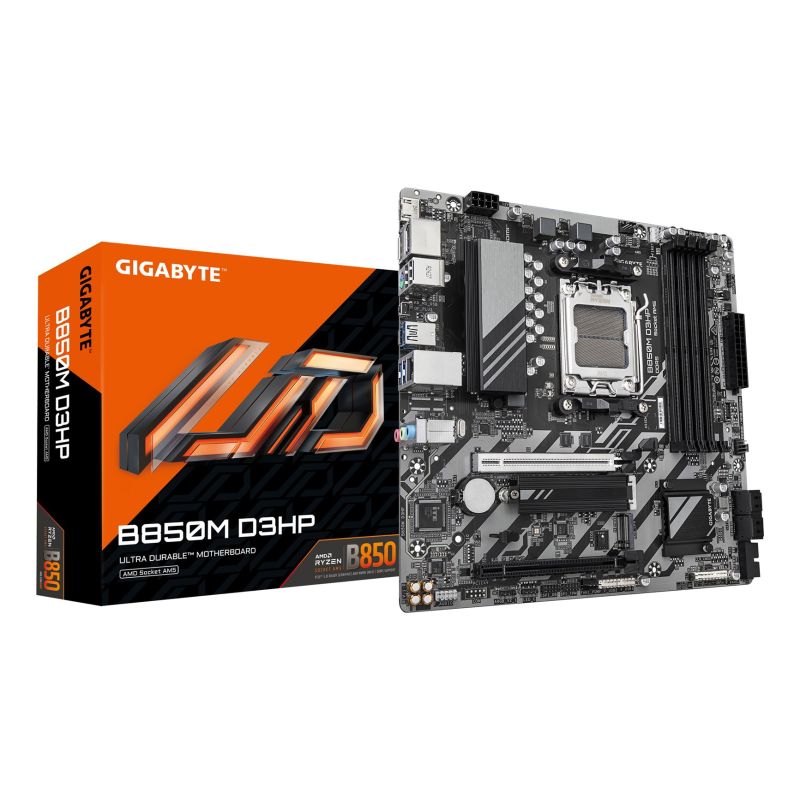

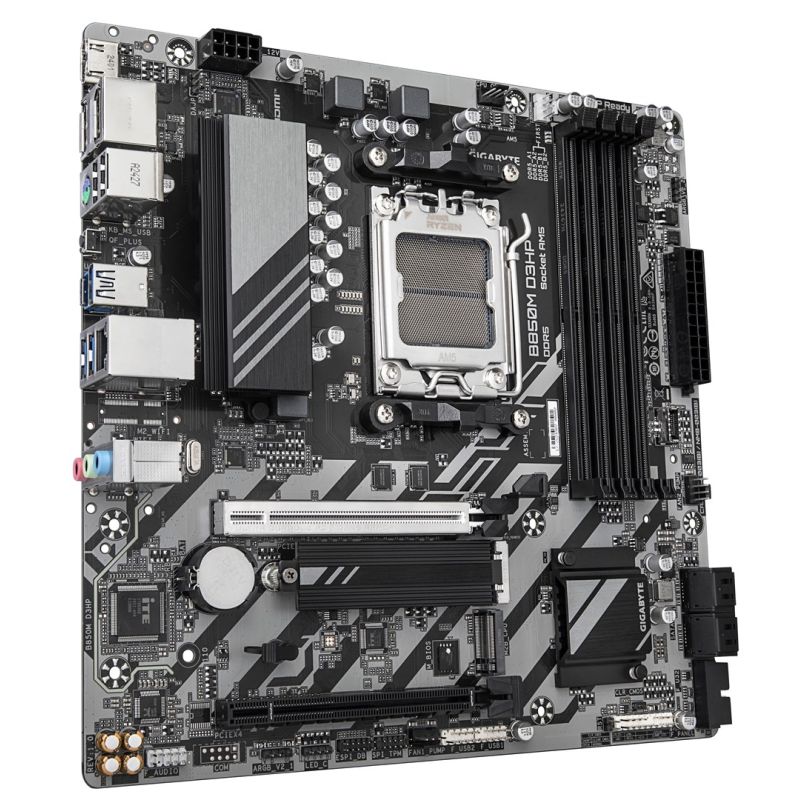

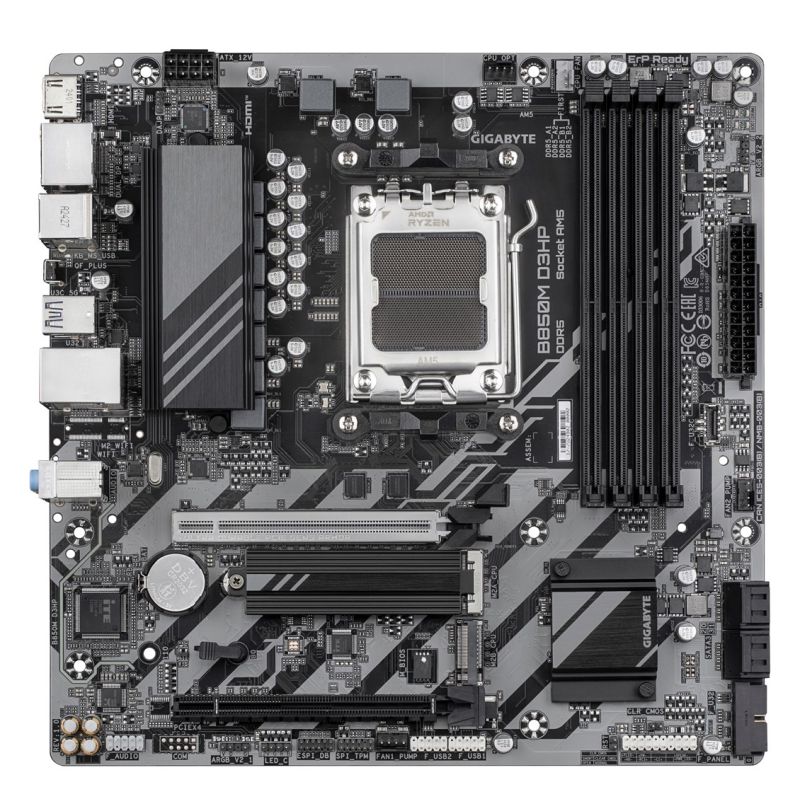

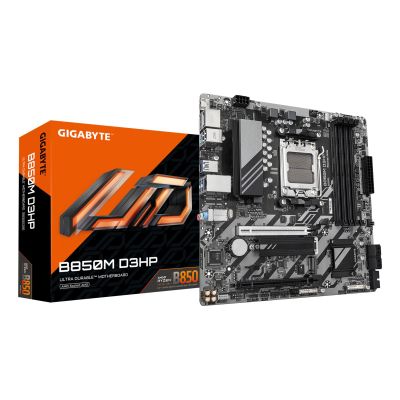

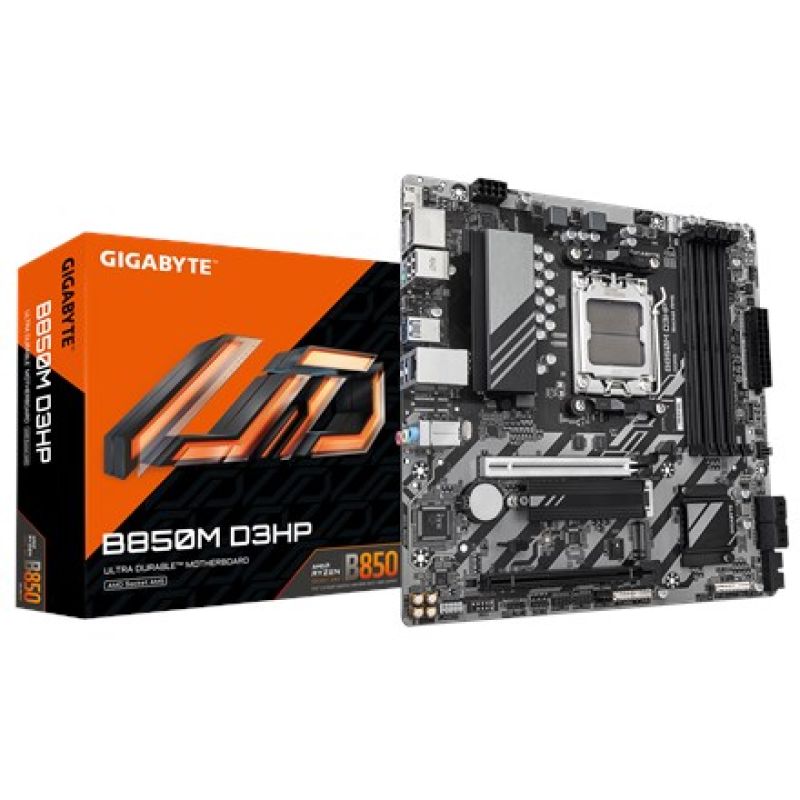

GIGABYTE B850M D3HP AMD B850 Motherboard Socket AM5 Micro ATX
GIGABYTE B850M D3HP AMD B850 Motherboard Socket AM5 Micro ATX
GIGABYTE B850M D3HP AMD B850 Motherboard Socket AM5 Micro ATX
PRICE:
204,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Graphics
- HDCP: Yes
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Memory
- Maximum memory capacity: 256 GB
- Supported memory clock speeds
- 4800 MHz
- 7000
- 5600 MHz
- 6400 MHz
- 8000
- 6000 MHz
- 8200
- 7200
- 6200 MHz
- 5200 MHz
- 7600
- 4400 MHz
- 6666 MHz
- 6600
- 6800
- 7800
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Characteristics
- Monitoring computer status
- Fan
- Tension
- Temperature
- Water cooling
- Chipset Board Family: AMD
- Product color: Brown
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Motherboard Layout: AMD B850
- Intended use: PC
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Monitoring computer status
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Serial port connector: 1
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel audio connector: Yes
- Number of RGB LED connectors: 4
- Number of case fan connectors: 3
- CPU fan connector: Yes
- Number of EPS power connectors (8-pin): 1
- Peripheral (Molex) Power Connectors (4-pin): 1
- 12V power connector: Yes
- TPM Connector: Yes
- RGB LED: Yes
- Front panel connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of CPU fan connectors: 2
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Button: Yes
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- ACPI version: 5.0
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- RAID Service: Yes
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 0
- 1
- 10
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6

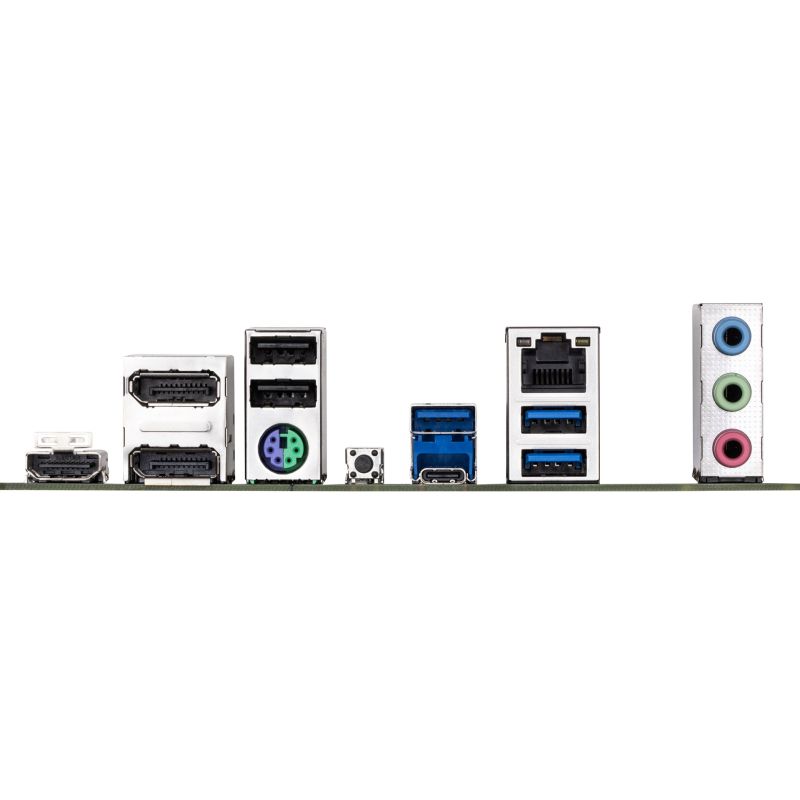

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of USB 2.0 ports: 2
- DisplayPort version: 2.1
- Microphone: Yes
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- Expansion slots
- Number of M.2 (M) slots: 2
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2580
- 1. M.2 highest generation PCI Express: 5.0
- PCI Express x16 (Gen 5.x) slots: 1
- Battery
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.3 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
