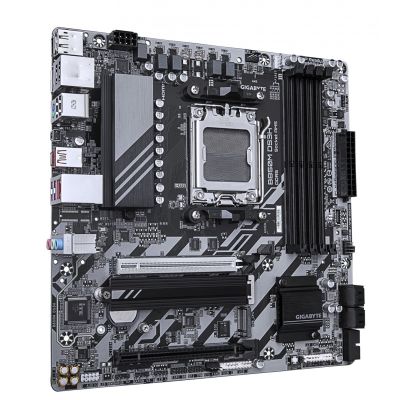

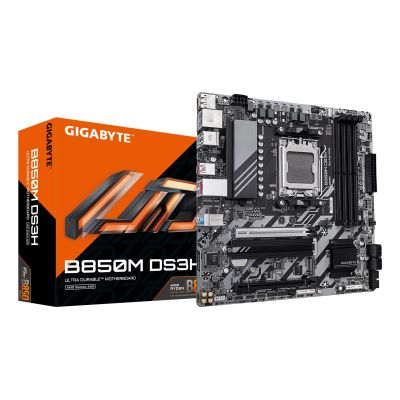

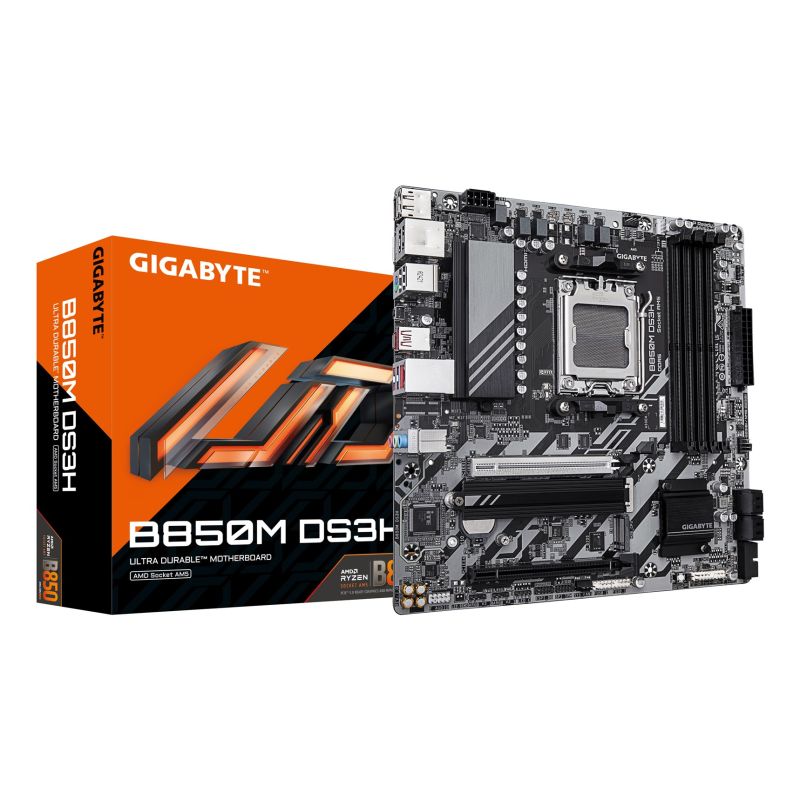

GIGABYTE B850M DS3H AMD B850 Motherboard Socket AM5 Micro ATX
GIGABYTE B850M DS3H AMD B850 Motherboard Socket AM5 Micro ATX
GIGABYTE B850M DS3H AMD B850 Motherboard Socket AM5 Micro ATX
PRICE:
219,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Supported CPU sockets: Socket AM5
- Processor socket: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- HDCP: Yes
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- Memory
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory clock speed (max): 8200 MHz
- Supported memory clock speeds
- 6666 MHz
- 7600
- 5200 MHz
- 4800 MHz
- 7000
- 4400 MHz
- 8000
- 6200 MHz
- 6000 MHz
- 5600 MHz
- 6400 MHz
- 6600
- 6800
- 8200
- 7800
- 7200
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Power supply type: ATX
- Chipset Board Family: AMD
- Intended use: PC
- Monitoring computer status
- Tension
- Water cooling
- Temperature
- Fan
- Product color: Brown
- Motherboard format: Micro ATX
- Motherboard Layout: AMD B850
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC897
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Product height: 35 mm
- Internal I/O
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED connectors: 4
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of SATA III connectors: 4
- RGB LED: Yes
- TPM Connector: Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- Total number of SATA connectors: 4
- 12V power connector: Yes
- Front panel connector: Yes
- Serial port connector: 1
- CPU fan connector: Yes
- Front panel audio connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Network
- Wi-Fi: No
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Button: Yes
- BIOS memory size: 256 Mbit
- Clear CMOS Jumper: Yes
- ACPI version: 5.0
- Packaging data
- Package depth: 268 mm
- Package width: 270 mm
- Package height: 68 mm
- Weight with packaging: 1.34 kg
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported HDDs: 4
- RAID levels
- 10
- 1
- 0
- RAID Service: Yes
- Number of supported storage drive sizes: 6
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

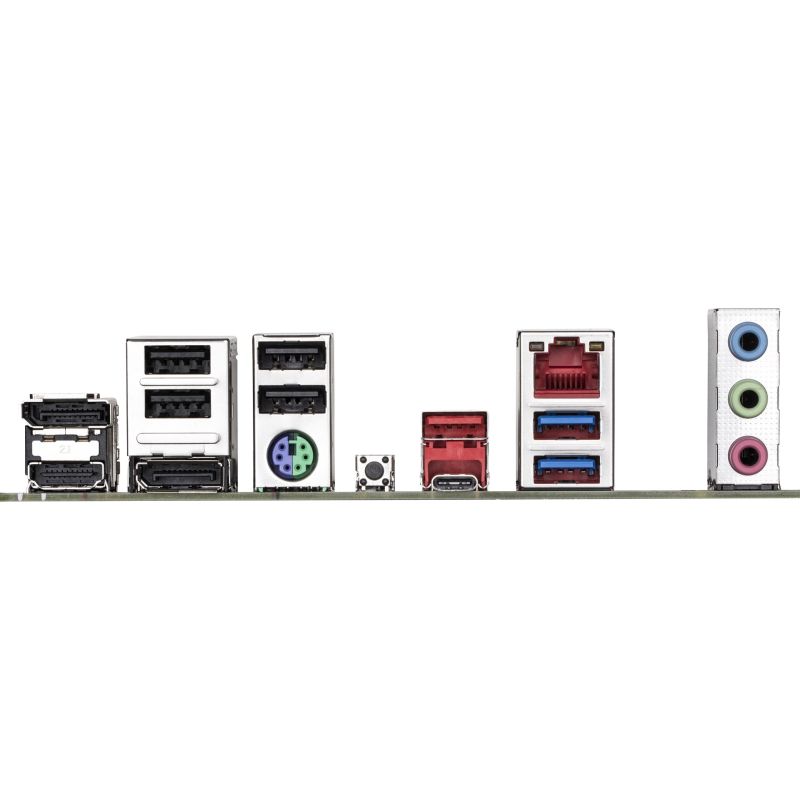

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- HDMI version: 2.1
- Headphone outputs: 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Microphone: Yes
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- DisplayPort version: 2.1
- Number of DisplayPorts: 2
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 25110
- 2nd largest M.2 key size: 25110
- 1. M.2 highest generation PCI Express: 5.0
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Battery
- Lithium battery weight: 0.07 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery weight: 3 g
- Other functions
- Product weight: 1.14 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
