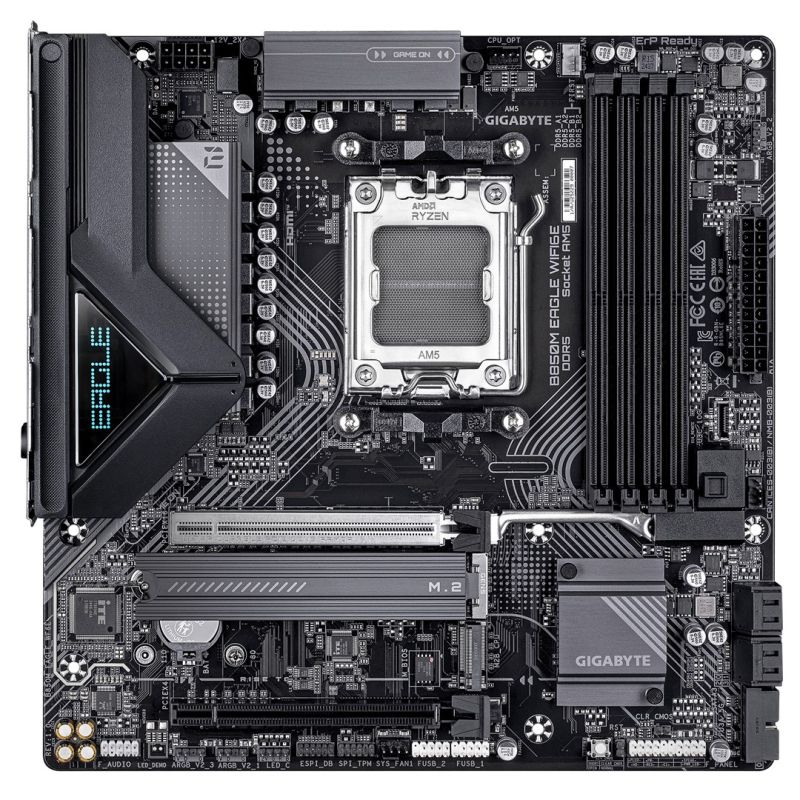

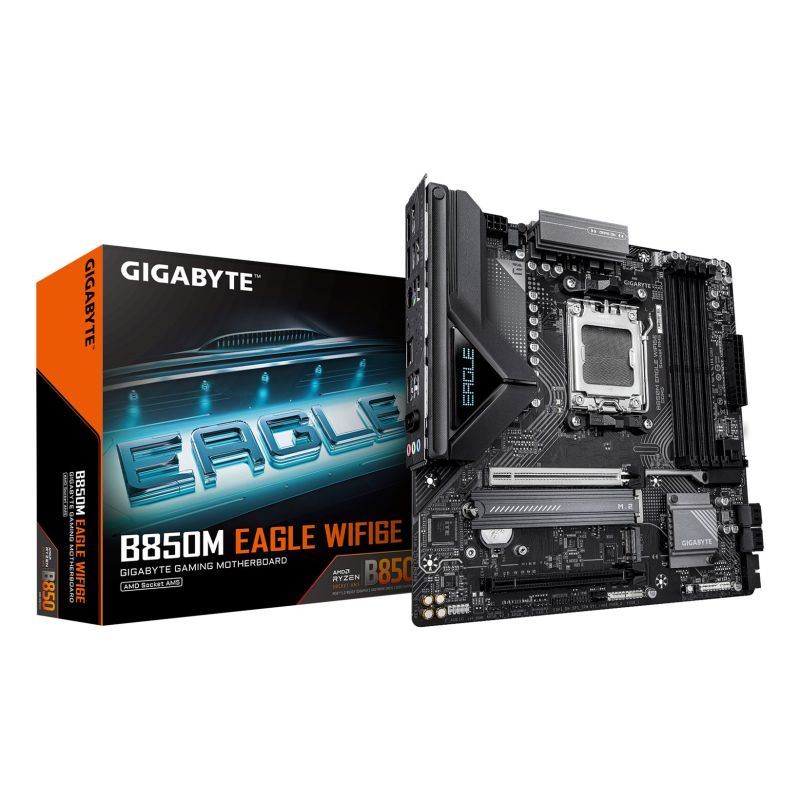

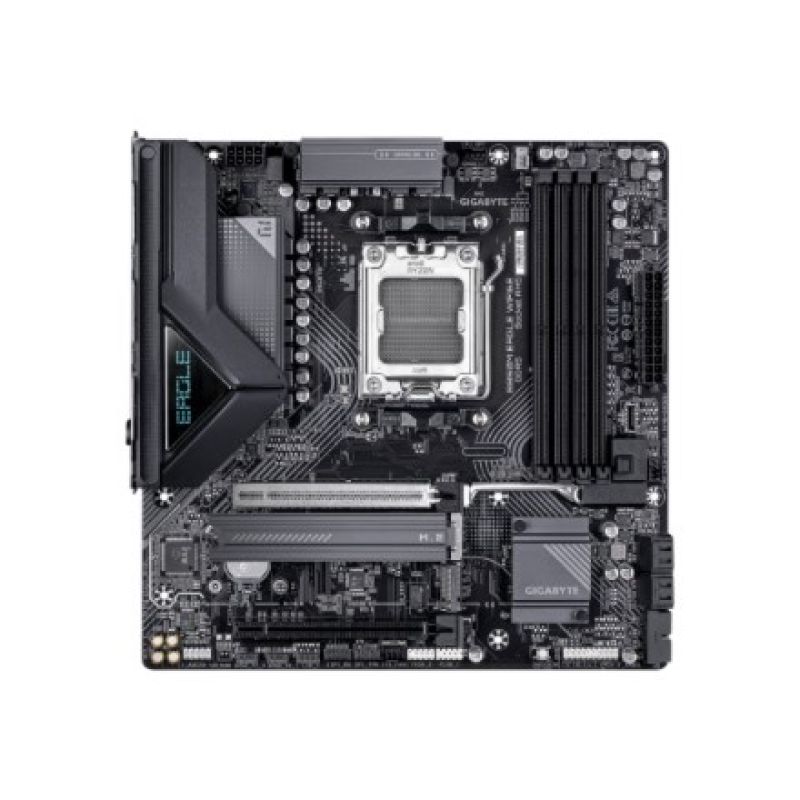

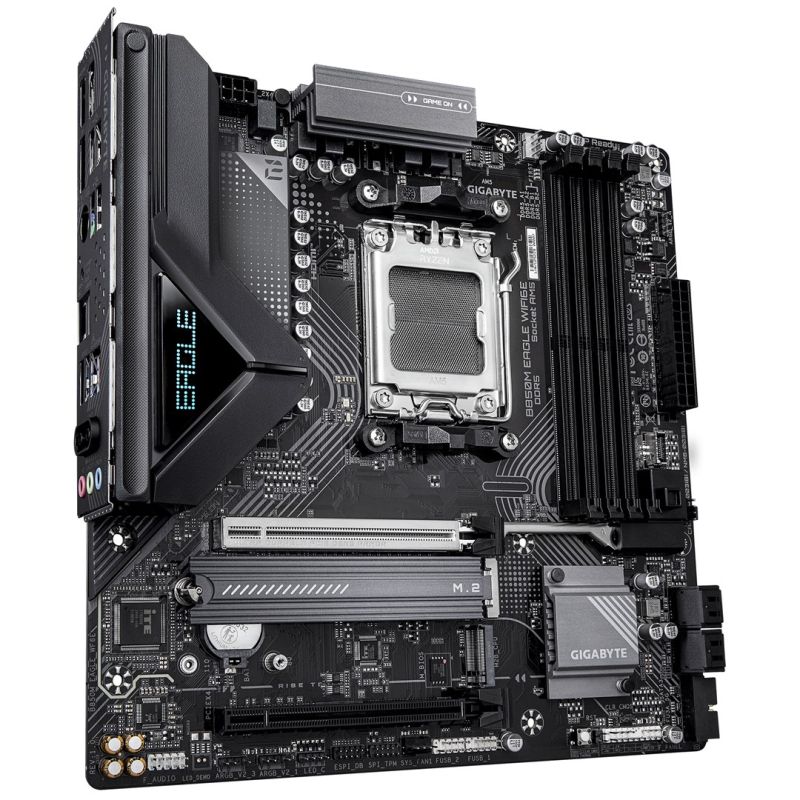

GIGABYTE B850M EAGLE WIFI6E AMD B850 AM5 micro ATX motherboard
GIGABYTE B850M EAGLE WIFI6E AMD B850 AM5 micro ATX motherboard
GIGABYTE B850M EAGLE WIFI6E AMD B850 AM5 micro ATX motherboard
PRICE:
269,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- HDCP version: 2.3
- Memory
- Supported memory clock speeds
- 7800
- 7950
- 6000 MHz
- 7400
- 7200 MHz
- 4800 MHz
- 7000 MHz
- 6600
- 6800
- 7600
- 8000
- 8200
- 5800 MHz
- 5600 MHz
- 6400 MHz
- 7900
- 4400 MHz
- 6200 MHz
- 5200 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 8200 MHz
- Supported memory clock speeds
- Characteristics
- Product color: Dark brown
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Water cooling
- Fan
- Tension
- Temperature
- Audio chip: Realtek ALC897
- Power supply type: ATX
- Motherboard Layout: AMD B850
- Motherboard format: Micro ATX
- Chipset Board Family: AMD
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Cooling type: Passive
- Intended use: PC
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Product height: 35 mm
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- TPM Connector: Yes
- Number of case fan connectors: 2
- EPS power supply connector (8-pin): Yes
- 12V power connector: Yes
- RGB LED: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of water pump connections: 2
- CPU fan connector: Yes
- Front panel connector: Yes
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 1
- Network
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- WLAN controller model: Realtek RTL8852CE
- Wi-Fi standards
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- Bluetooth version: 5.3
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- BIOS
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- ACPI version: 5.0
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Weight with packaging: 1.46 kg
- Package height: 68 mm
- Package width: 270 mm
- Package depth: 268 mm
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- RAID levels
- 1
- 0
- 10
- 5
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6
- RAID levels

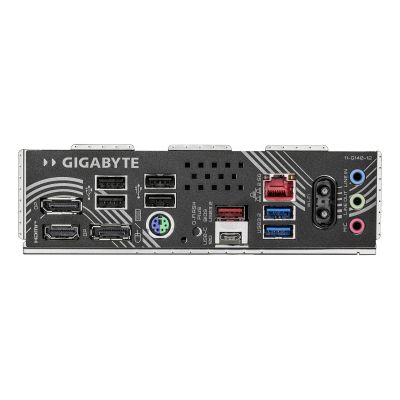

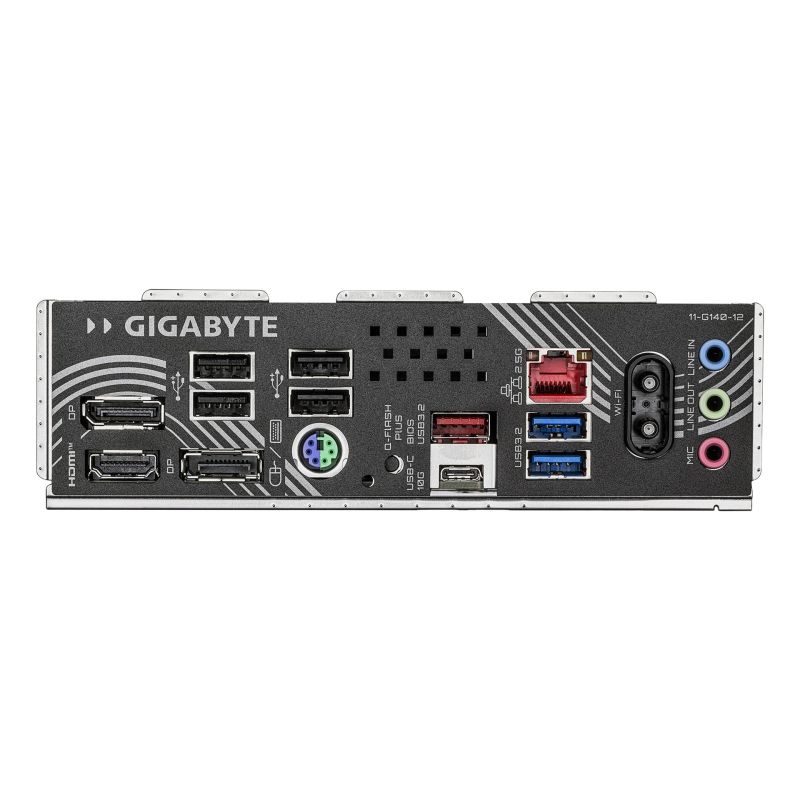

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 4
- DisplayPort version: 1.4
- Number of DisplayPorts: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Line Input: Yes
- HDMI version: 2.1
- Microphone: Yes
- Number of PS/2 ports: 1
- Expansion slots
- 1. M.2 highest generation PCI Express: 5.0
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 22110
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- 1. largest M.2 key size: 25110
- PCI Express x16 (Gen 5.x) slots: 1
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Battery weight: 3 g
- Supported battery type: CR2032
- Number of battery compartments: 1
- Other functions
- Product weight: 1.26 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
