GIGABYTE B850M EAGLE WIFI7 AMD B850 Socket AM5 micro ATX
GIGABYTE B850M EAGLE WIFI7 AMD B850 Socket AM5 micro ATX
GIGABYTE B850M EAGLE WIFI7 AMD B850 Socket AM5 micro ATX
PRICE:
296,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Graphics
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- HDCP version: 2.3
- DirectX Version: 12.0
- Memory
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Supported memory clock speeds
- 6200 MHz
- 6600
- 6800 MHz
- 5800 MHz
- 7000
- 8000 MHz
- 7400
- 7800
- 7950
- 7200
- 6000 MHz
- 8200
- 5600 MHz
- 6400 MHz
- 7900
- 7600
- Number of memory slots: 4
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 256 GB
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 8200 MHz
- Characteristics
- Audio output channels: 7.1 ch.
- Supported Windows operating systems: Windows 11 x64
- Monitoring computer status
- Tension
- Fan
- Water cooling
- Temperature
- Power supply type: ATX
- Product color: Dark brown
- Audio chip: Realtek ALC897
- Intended use: PC
- Chipset Board Family: AMD
- Cooling type: Passive
- Motherboard format: Micro ATX
- Motherboard Layout: AMD B850
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- Number of water pump connections: 2
- Front panel connector: Yes
- Number of SATA III connectors: 4
- EPS power supply connector (8-pin): Yes
- Front panel audio connector: Yes
- 12V power connector: Yes
- TPM Connector: Yes
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- RGB LED: Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of case fan connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Network
- LAN controller: Realtek RTL8125
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11b
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Ethernet network interface type
- 2.5 Gigabit Ethernet
- Gigabit Ethernet
- Fast Ethernet
- Bluetooth: Yes
- WLAN controller model: Realtek RTL8922AE
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Bluetooth version: 5.4
- Wired LAN: Yes
- BIOS
- BIOS Flashback Button: Yes
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package height: 68 mm
- Weight with packaging: 1.46 kg
- Package width: 270 mm
- Package depth: 268 mm
- Package contents
- Batteries included: Yes
- Antenna Included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 6
- RAID levels
- 0
- 10
- 1
- 5
- Supported drive types: HDD & SSD
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- RAID Service: Yes

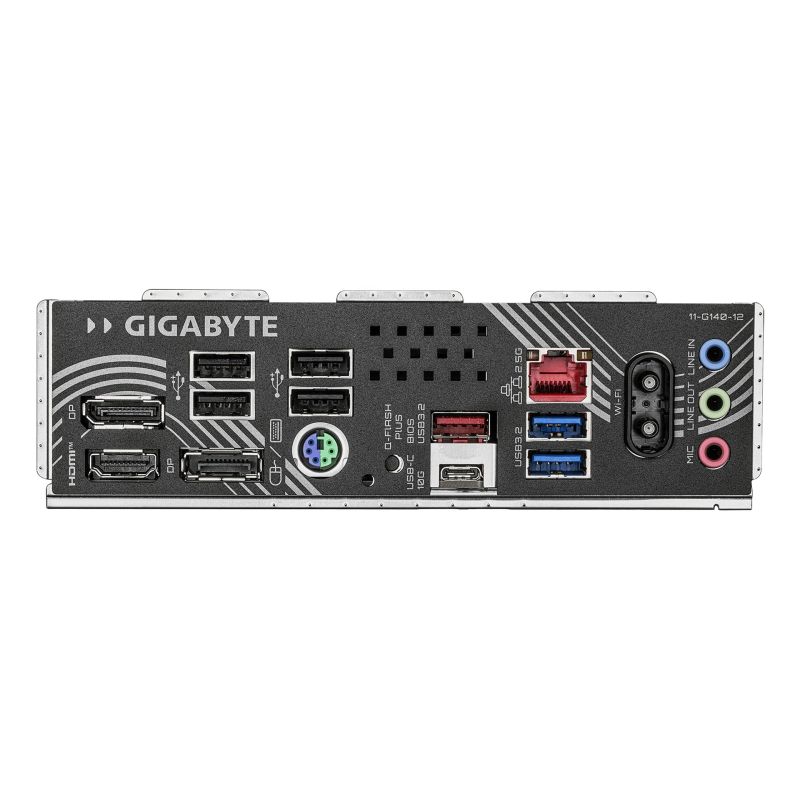

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Headphone outputs: 1
- HDMI version: 2.1
- Number of USB 2.0 ports: 4
- Number of DisplayPorts: 2
- WiFi-AP Antenna Jack Plug: 2
- Microphone: Yes
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Line Input: Yes
- DisplayPort version: 1.4
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 25110
- 2nd largest M.2 key size: 22110
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Battery
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery capacity: 220 mAh
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Other functions
- Product weight: 1.26 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
