GIGABYTE B850M FORCE AMD B850 motherboard Socket AM5 micro ATX
GIGABYTE B850M FORCE AMD B850 motherboard Socket AM5 micro ATX
GIGABYTE B850M FORCE AMD B850 motherboard Socket AM5 micro ATX
PRICE:
204,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Graphics
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- DirectX Version: 12.0
- HDCP: Yes
- Memory
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- ECC Compatibility: Non-ECC
- Number of memory slots: 2
- Supported memory clock speed (max): 9600 MHz
- Supported memory clock speeds
- 6666 MHz
- 8200
- 8600 MHz
- 7000 MHz
- 7200 MHz
- 6600
- 6800
- 9200 MHz
- 8800 MHz
- 8400 MHz
- 9600 MHz
- 7800
- 8000
- 6000 MHz
- 4400 MHz
- 6200 MHz
- 4800 MHz
- 7600
- 5600 MHz
- 6400 MHz
- 5200 MHz
- Maximum internal memory per slot: 64 GB
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Characteristics
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Cooling type: Passive
- Intended use: PC
- Product color: Dark brown
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Temperature
- Tension
- Water cooling
- Fan
- Audio chip: Realtek ALC897
- Power supply type: ATX
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Motherboard Layout: AMD B850
- Supported Windows operating systems
- Weight and dimensions
- Product width: 244 mm
- Product height: 35 mm
- Product depth: 244 mm
- Internal I/O
- TPM Connector: Yes
- Number of case fan connectors: 2
- CPU fan connector: Yes
- Front panel audio connector: Yes
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- ATX power socket (24-pin): Yes
- 12V power connector: Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED connectors: 4
- Number of CPU fan connectors: 2
- Number of water pump connections: 2
- Network
- Wired LAN: Yes
- Wi-Fi: No
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package depth: 268 mm
- Weight with packaging: 1.4 kg
- Package height: 68 mm
- Package width: 270 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 7
- Number of supported HDDs: 4
- RAID levels
- 10
- 1
- 5
- 0
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- RAID Service: Yes

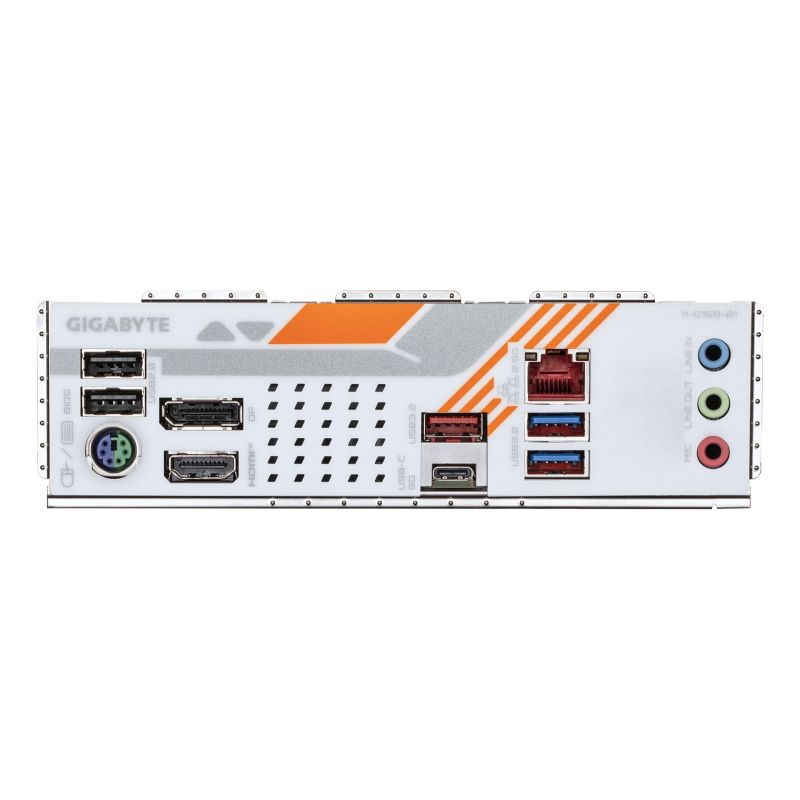

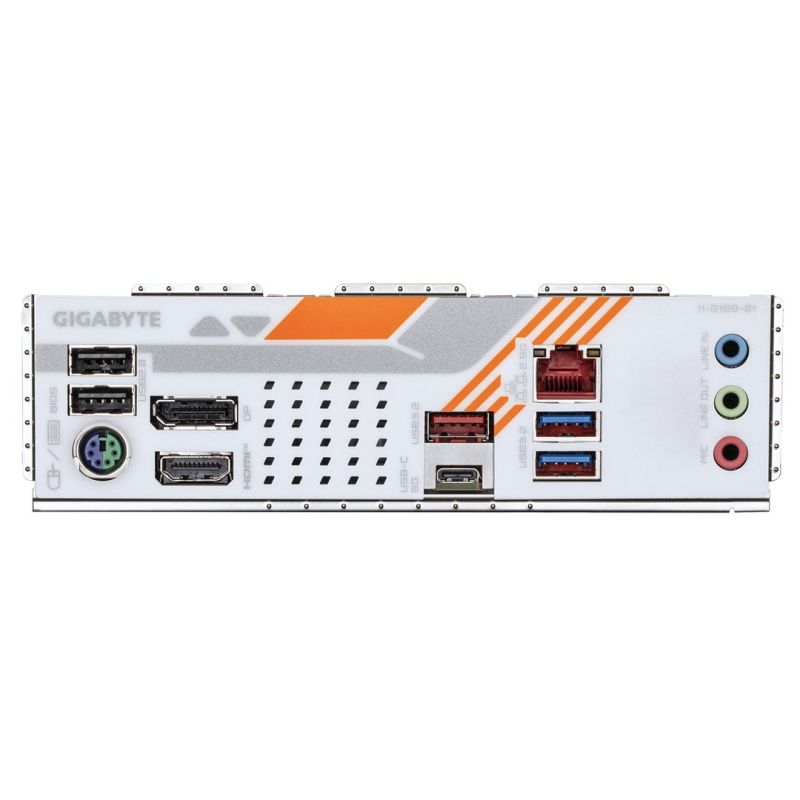

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 2
- HDMI version: 2.1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- DisplayPort Quantity: 1
- DisplayPort version: 1.4
- Expansion slots
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- 3. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 2280
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Battery weight: 3 g
- Other functions
- Product weight: 1.18 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
