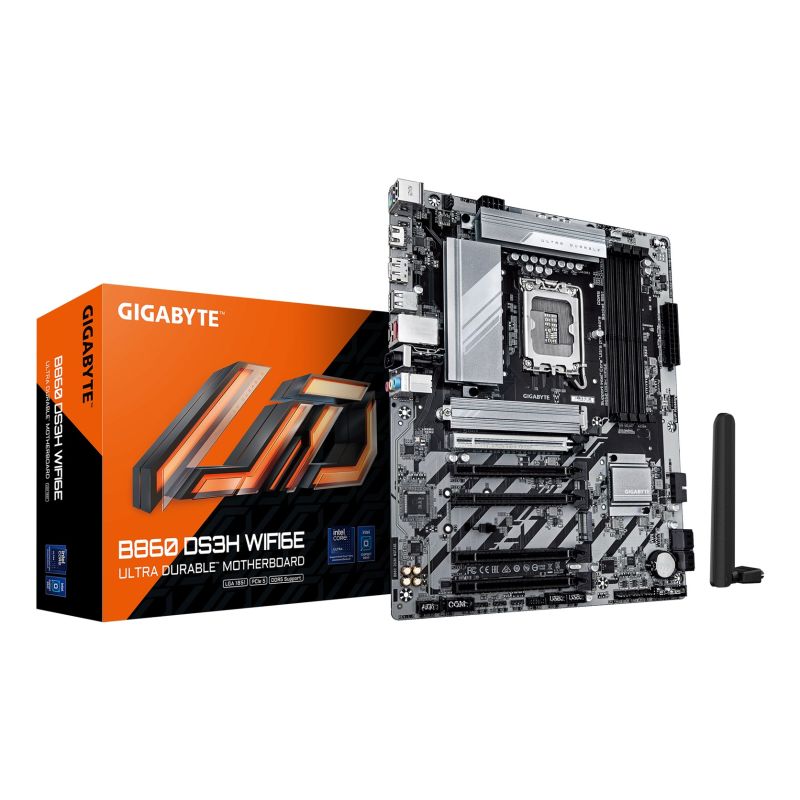

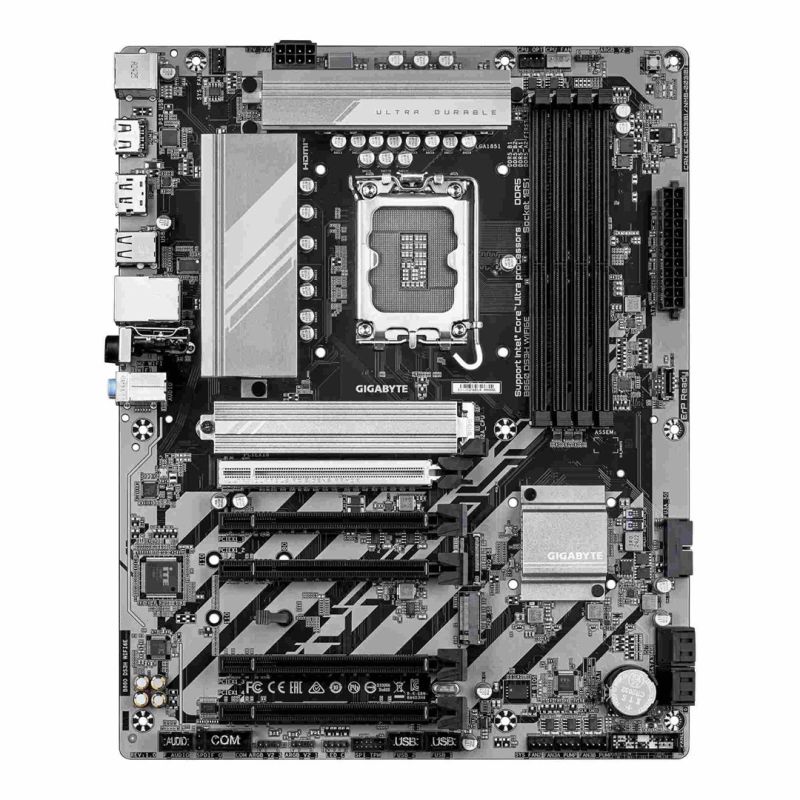

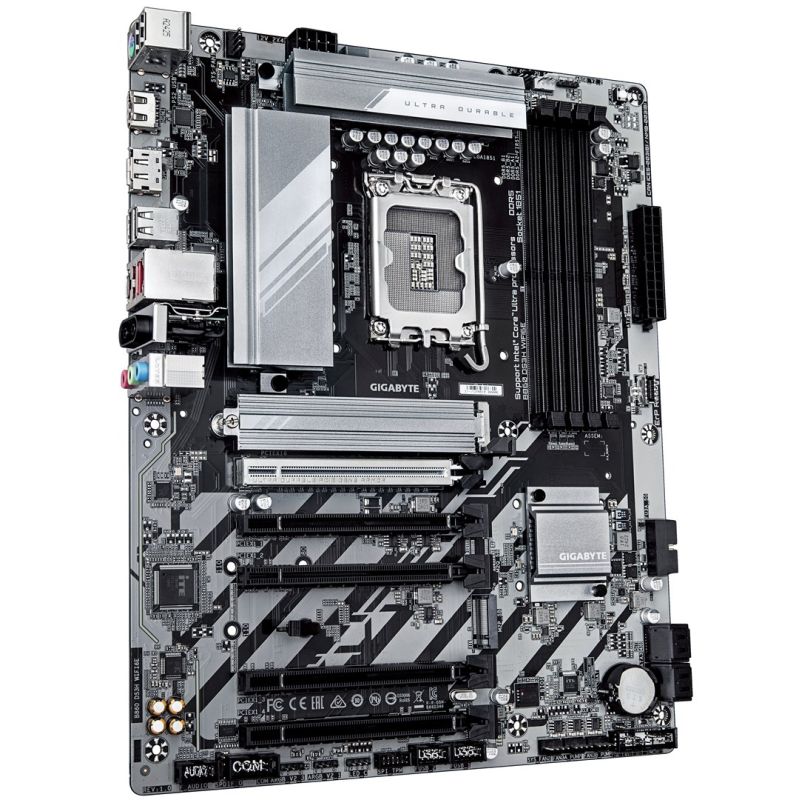

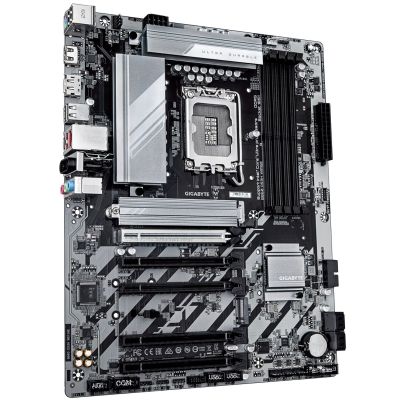

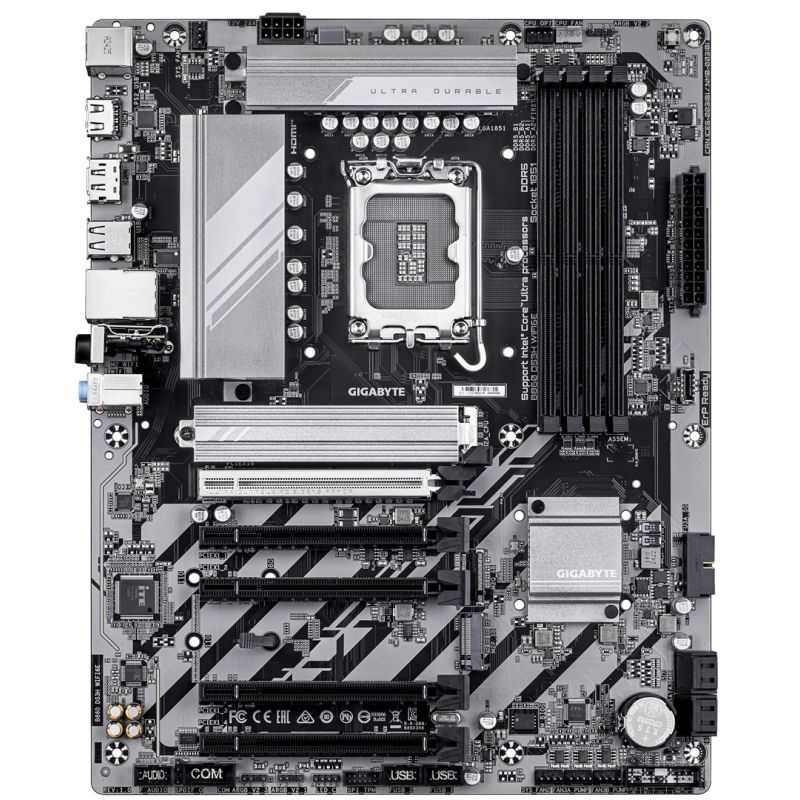

GIGABYTE B860 DS3H WIFI6E motherboard Intel B860 LGA 1851 (Socket V1) ATX
GIGABYTE B860 DS3H WIFI6E motherboard Intel B860 LGA 1851 (Socket V1) ATX
GIGABYTE B860 DS3H WIFI6E motherboard Intel B860 LGA 1851 (Socket V1) ATX
PRICE:
246,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: LGA 1851
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Graphics
- Maximum resolution: 4096 x 2160 px
- DirectX Version: 12.0
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speed (max): 9066 MHz
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 7400
- 8200
- 7000
- 6600
- 6800
- 8800
- 8600
- 5600 MHz
- 6400 MHz
- 7900
- 8000
- 8266
- 7800
- 7950
- 7200
- 9066
- 7600
- 8400 MHz
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: ECC or Non-ECC
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Intended use: PC
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel B860
- Motherboard format: ATX
- Audio chip: Realtek ALC897
- Chipset Board Family: Intel
- Monitoring computer status
- Temperature
- Water cooling
- Fan
- Tension
- Cooling type: Passive
- Power supply type: ATX
- Supported Windows operating systems
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- Number of case fan connectors: 4
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- TPM Connector: Yes
- RGB LED: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of USB 2.0 ports: 2
- S/PDIF jack: Yes
- Number of SATA III connectors: 4
- Serial port connector: 1
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- Front panel audio connector: Yes
- Number of water pump connections: 3
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 2
- Network
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Wired LAN: Yes
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 4 (802.11n)
- Wi-Fi 6E (802.11ax)
- 802.11b
- WLAN controller model: Intel Wi-Fi 6E AX211
- Bluetooth version: 5.3
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Jumper: Yes
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 270 mm
- Package width: 335 mm
- Package height: 80 mm
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 5
- 10
- 1
- 0

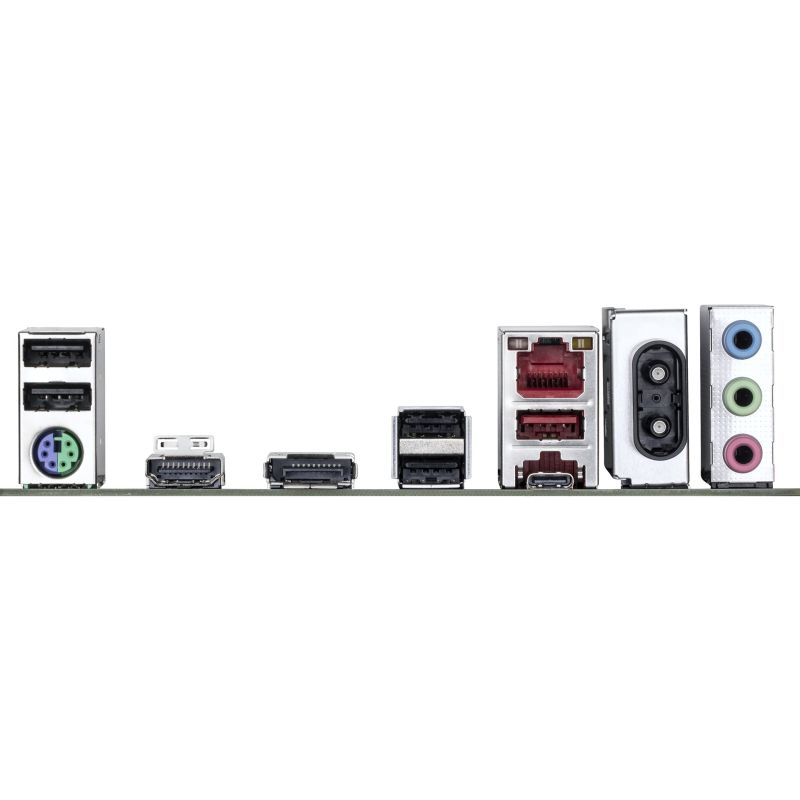

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Line Input: Yes
- WiFi-AP Antenna Jack Plug: 2
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Microphone: Yes
- Number of PS/2 ports: 1
- Headphone outputs: 1
- HDMI version: 2.1
- DisplayPort Quantity: 1
- DisplayPort version: 2.1
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 4
- Number of M.2 (M) slots: 2
- 2nd largest M.2 key size: 25110
- 1. M.2 highest generation PCI Express: 5.0
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 25110
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Number of battery compartments: 1
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 2 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
