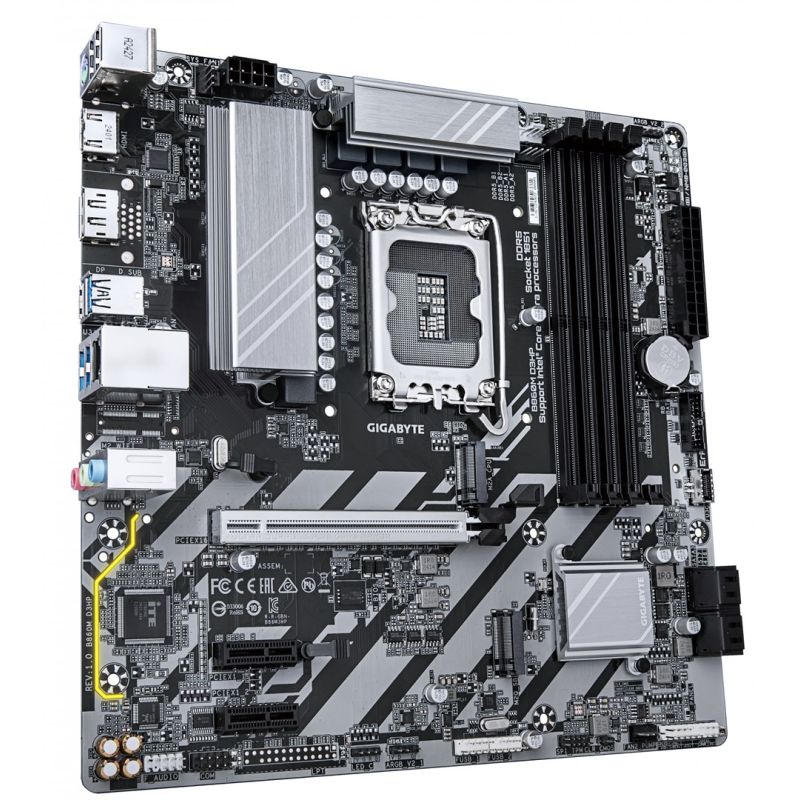

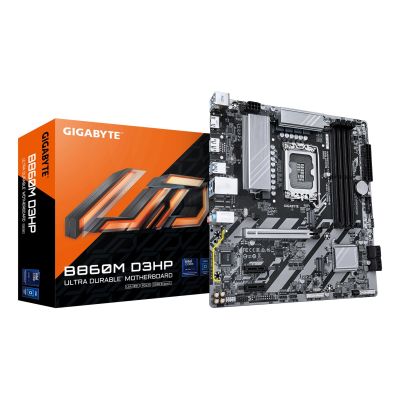

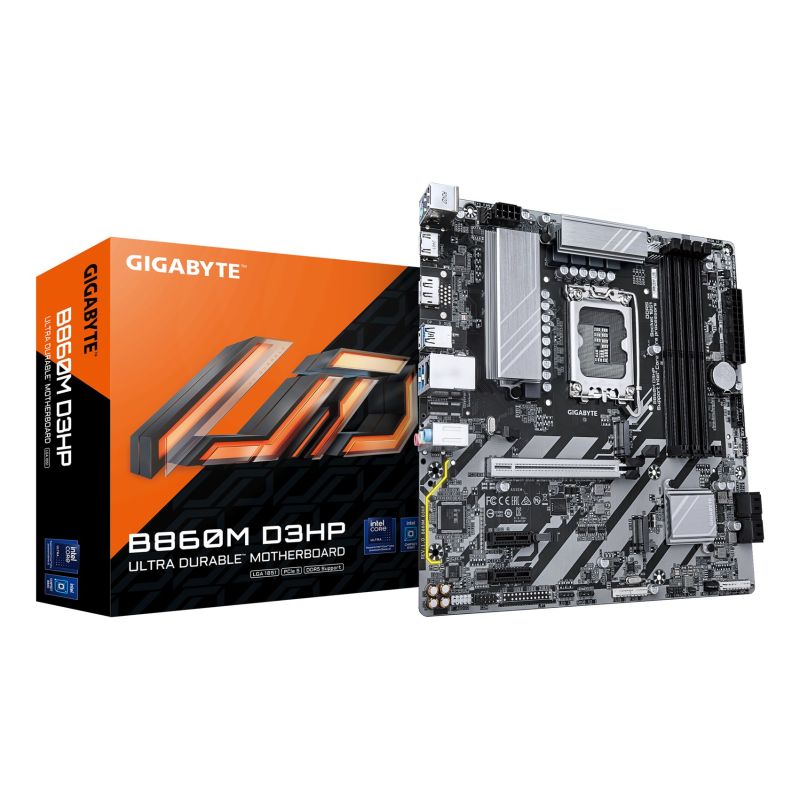

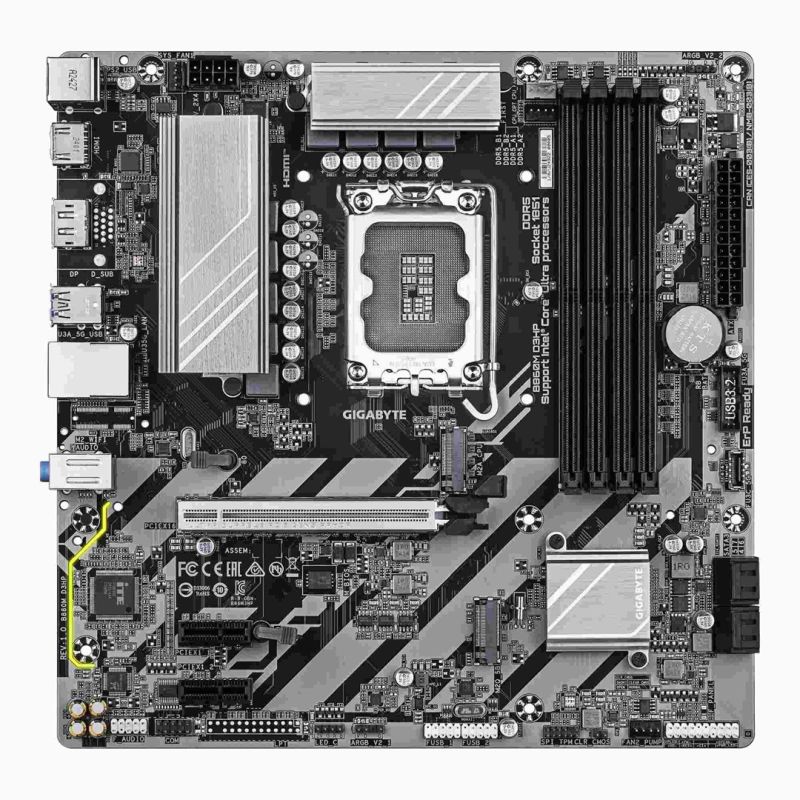

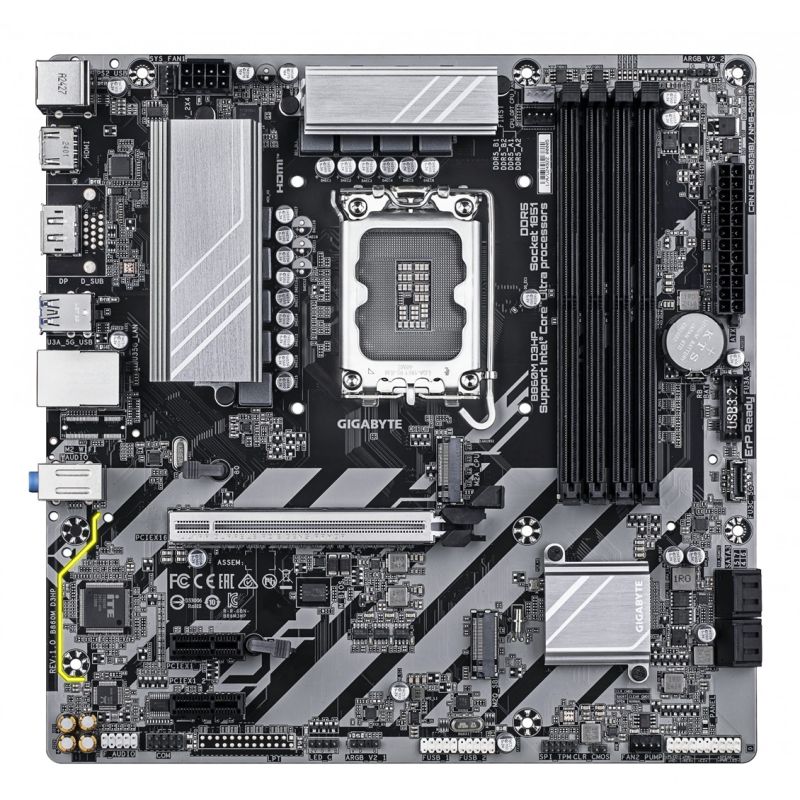

GIGABYTE B860M D3HP motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M D3HP motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M D3HP motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
PRICE:
217,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor socket: LGA 1851 (Socket V1)
- Supported CPU sockets: LGA 1851
- Processor
- Intel Core Ultra (Series 1)
- Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory clock speeds
- 9066 MHz
- 5600 MHz
- 6400 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speed (max): 9066 MHz
- Maximum internal memory per slot: 64 GB
- Supported memory clock speeds
- Characteristics
- Audio chip: Realtek ALC897
- Motherboard Layout: Intel B860
- Product color: Dark brown
- Cooling type: Passive
- Monitoring computer status
- Temperature
- Tension
- Water cooling
- Fan
- Power supply type: ATX
- Intended use: PC
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- RGB LED: Yes
- Number of case fan connectors: 2
- Number of USB 2.0 ports: 2
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Serial port connector: 1
- Front panel connector: Yes
- Front panel audio connector: Yes
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 3
- Number of water pump connections: 2
- Network
- LAN Controller: Realtek RTL8111H
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- BIOS
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS Jumper: Yes
- Packaging data
- Package height: 54 mm
- Package depth: 265 mm
- Package width: 265 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- RAID levels
- 5
- 1
- 0
- 10
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6

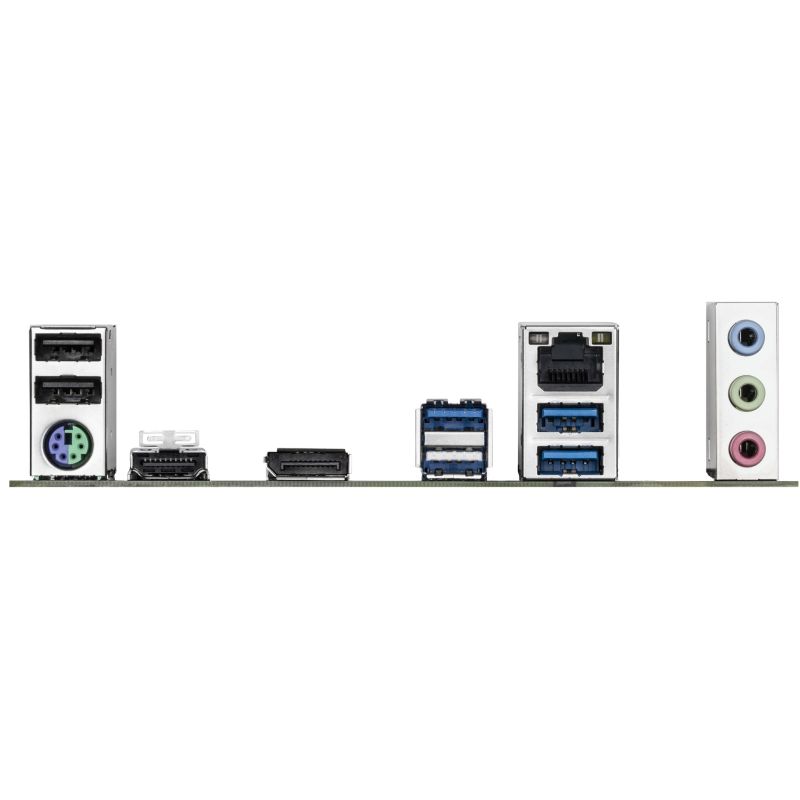

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of USB 2.0 ports: 3
- DisplayPort version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- HDMI version: 2.1
- Number of PS/2 ports: 1
- Headphone outputs: 1
- Number of HDMI ports: 1
- Line Input: Yes
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- 1. largest M.2 key size: 2280
- Battery
- Battery weight: 3 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Number of battery compartments: 1
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.1 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
