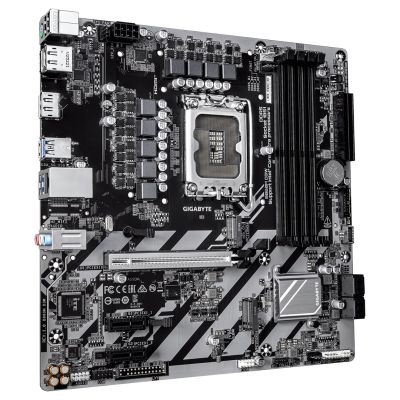

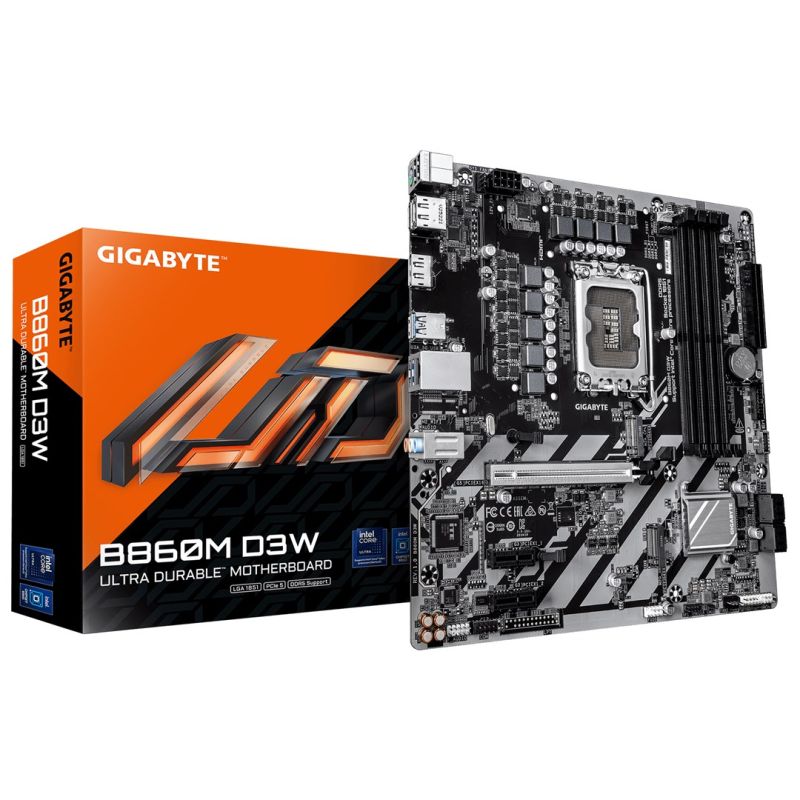

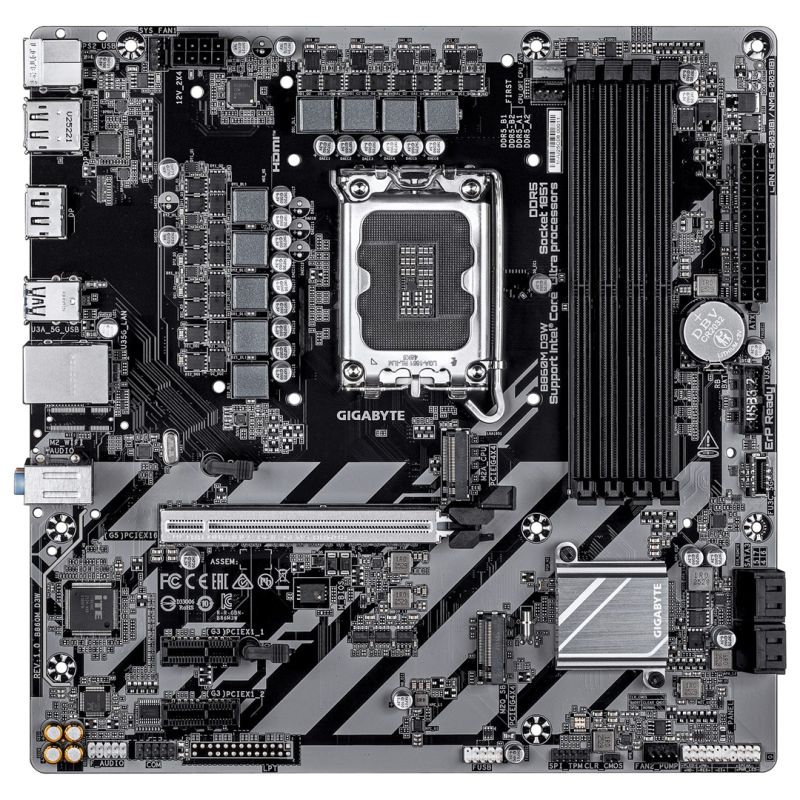

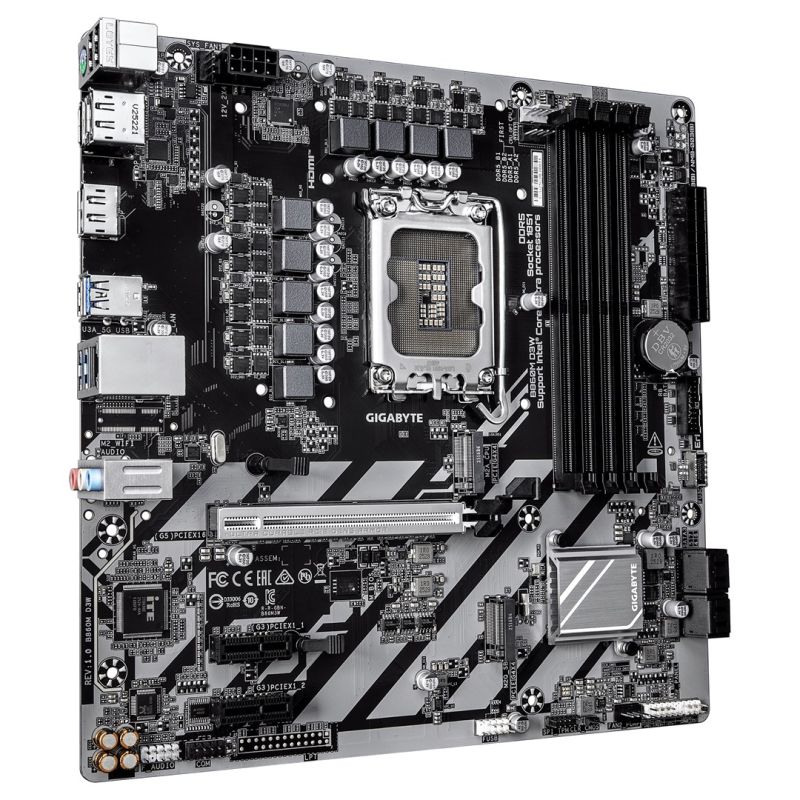

GIGABYTE B860M D3W motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M D3W motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M D3W motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
PRICE:
209,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- Intel Core Ultra (Series 1)
- Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Processor
- Graphics
- HDCP version: 2.3
- HDCP: Yes
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Supported memory clock speeds
- 8200 MHz
- 7600
- 8000
- 8266
- 8600
- 7000
- 7800
- 7950
- 7200
- 9066
- 5600 MHz
- 6400 MHz
- 7900
- 8400
- 7400
- 6600
- 6800
- 8800
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory clock speed (max): 9066 MHz
- ECC Compatibility: ECC or Non-ECC
- Maximum internal memory per slot: 64 GB
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Intended use: PC
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Power supply type: ATX
- Cooling type: Passive
- Monitoring computer status
- Fan
- Tension
- Water cooling
- Temperature
- Product color: Dark brown
- Motherboard Layout: Intel B860
- Motherboard format: Micro ATX
- Audio chip: Realtek ALC897
- Supported Windows operating systems
- Weight and dimensions
- Product height: 35 mm
- Product width: 244 mm
- Product depth: 244 mm
- Internal I/O
- Front panel connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of case fan connectors: 2
- TPM Connector: Yes
- Serial port connector: 1
- Number of USB 2.0 ports: 1
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of SATA III connectors: 4
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 1
- Number of water pump connections: 2
- Network
- Wired LAN: Yes
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- LAN Controller: Realtek RTL8111H
- BIOS
- System BIOS (SMBIOS) version: 2.7
- ACPI version: 5.0
- BIOS memory size: 256 Mbit
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- Packaging data
- Package depth: 265 mm
- Package height: 54 mm
- Package width: 265 mm
- Weight with packaging: 1.6 kg
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported HDDs: 4
- RAID levels
- 1
- 10
- 5
- 0
- Number of supported storage drive sizes: 6
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes

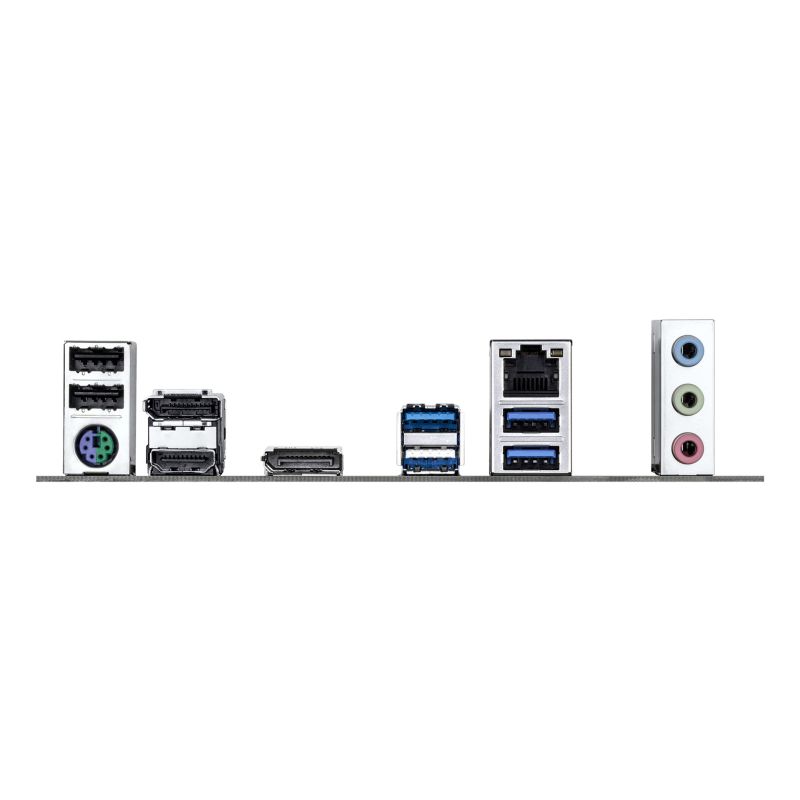

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of Ethernet LAN ports (RJ-45): 1
- HDMI version: 2.1
- DisplayPort version: 2.1
- Headphone outputs: 1
- Line Input: Yes
- Number of USB 2.0 ports: 3
- Number of PS/2 ports: 1
- Number of DisplayPorts: 2
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery capacity: 220 mAh
- Number of battery compartments: 1
- Battery weight: 3 g
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.35 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | Gigabyte |
| Department | Electronics |
