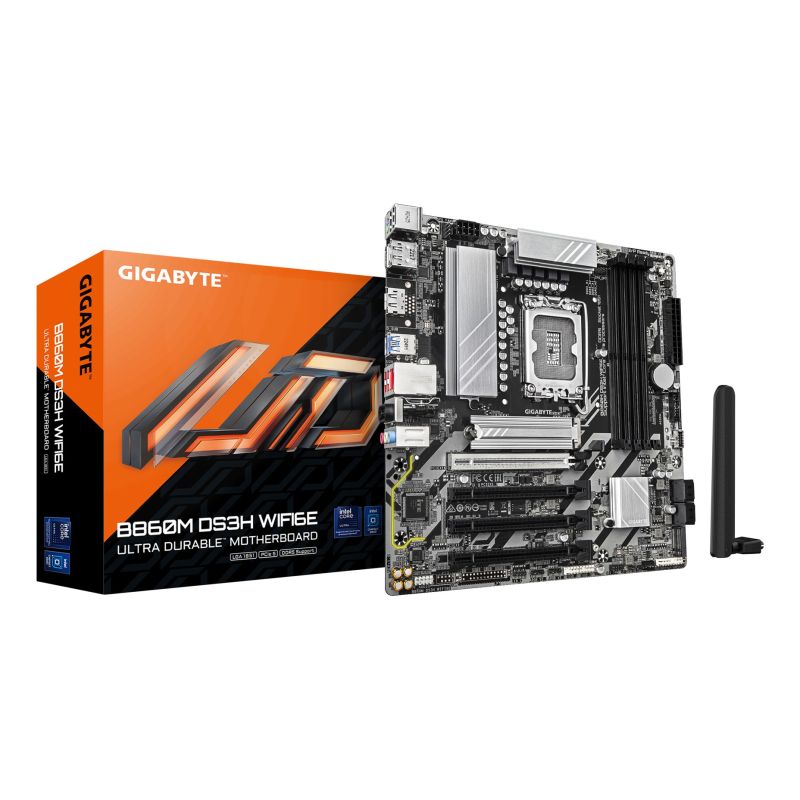

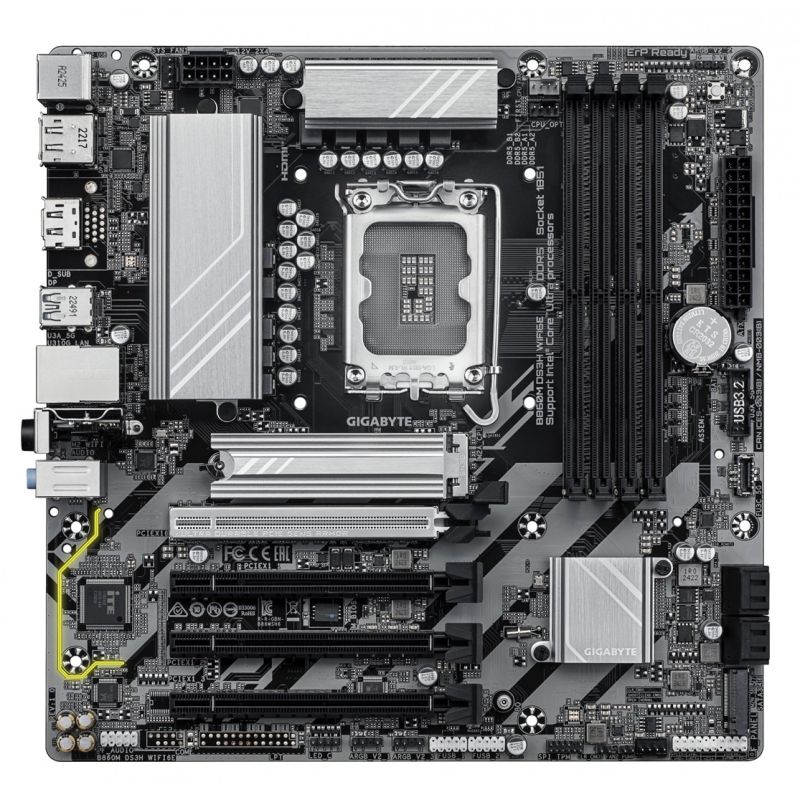

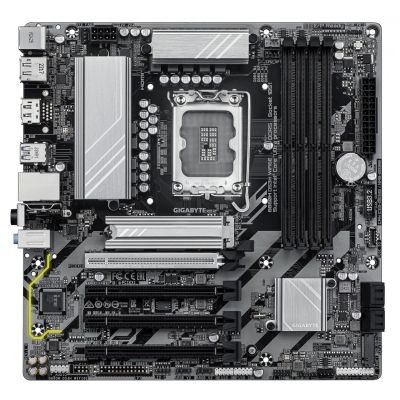

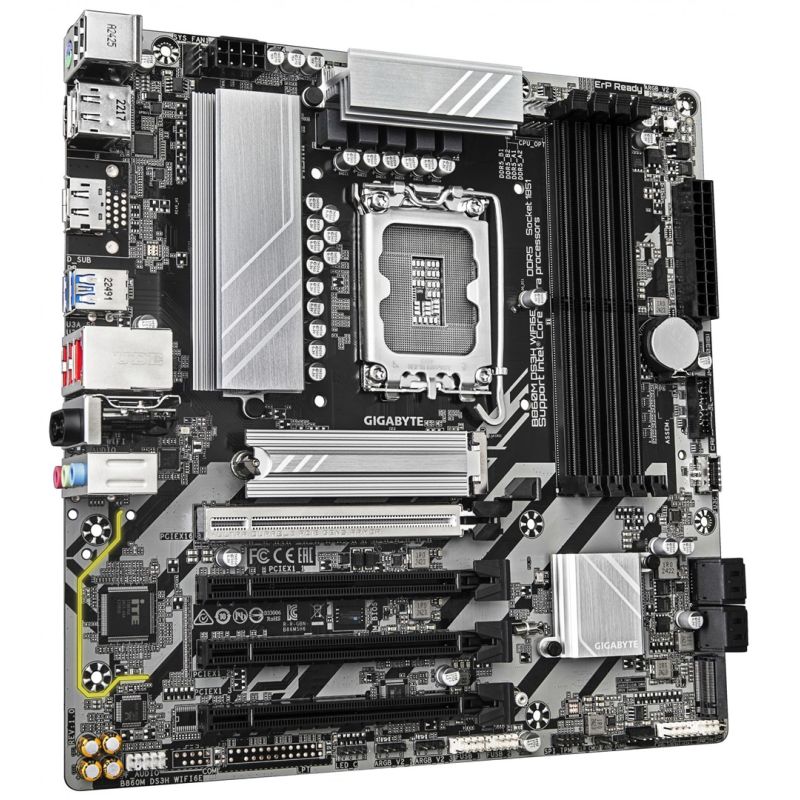

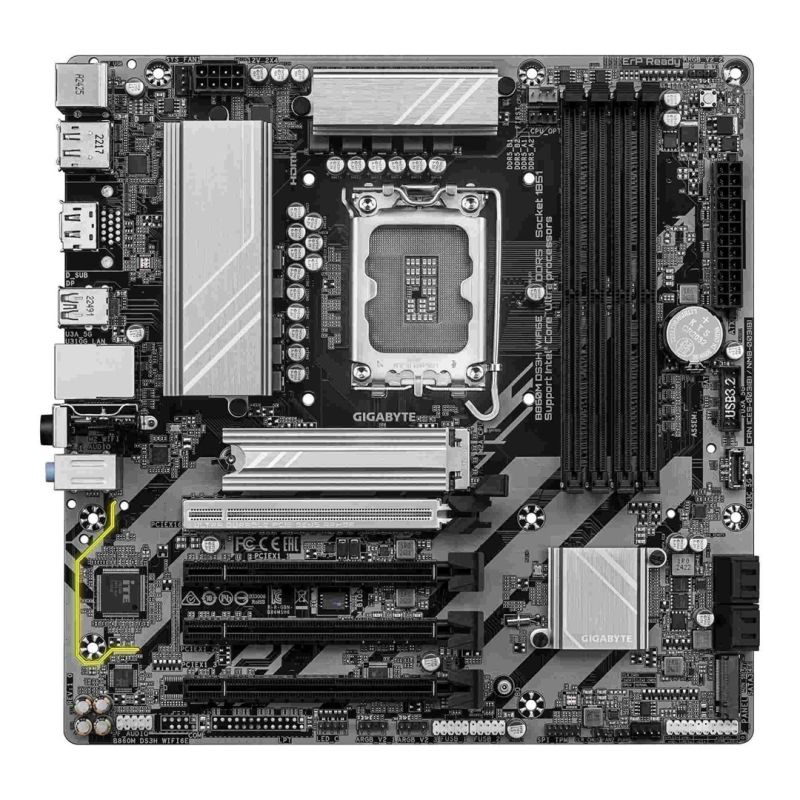

GIGABYTE B860M DS3H WIFI6E motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M DS3H WIFI6E motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M DS3H WIFI6E motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
PRICE:
261,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- Intel Core Ultra (Series 1)
- Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor
- Graphics
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Memory
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Supported memory clock speed (max): 9066 MHz
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- 9066
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- ECC Compatibility: ECC or Non-ECC
- Maximum internal memory per slot: 64 GB
- Characteristics
- Monitoring computer status
- Water cooling
- Fan
- Tension
- Temperature
- Power supply type: ATX
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Product color: Dark brown
- Cooling type: Passive
- Intended use: PC
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC897
- Chipset Board Family: Intel
- Motherboard Layout: Intel B860
- Motherboard format: Micro ATX
- Monitoring computer status
- Weight and dimensions
- Product height: 35 mm
- Product width: 244 mm
- Product depth: 244 mm
- Internal I/O
- RGB LED: Yes
- Number of USB 2.0 ports: 2
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Front panel audio connector: Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- Number of case fan connectors: 2
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 1
- Number of water pump connections: 2
- Network
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi standards
- 802.11b
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- Bluetooth version: 5.3
- WLAN controller model: Intel Wi-Fi 6E AX211
- LAN controller: Realtek RTL8125
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- BIOS
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- Packaging data
- Package height: 68 mm
- Weight with packaging: 1.25 kg
- Package width: 270 mm
- Package depth: 268 mm
- Package contents
- Screws Included: Yes
- Antenna Included: Yes
- Batteries included: Yes
- Memory drivers
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- RAID levels
- 0
- 1
- 5
- 10

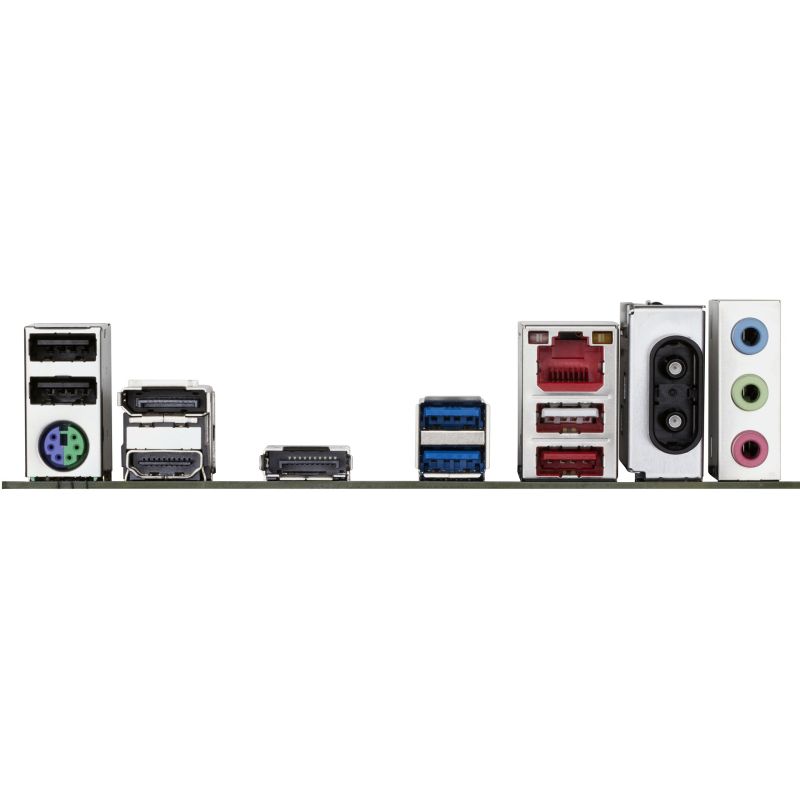

- Rear Panel I/O Ports
- Microphone: Yes
- Line Input: Yes
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- HDMI version: 2.1
- Number of PS/2 ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of DisplayPorts: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 2.0 ports: 3
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- DisplayPort version: 2.1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 5
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- 2nd largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Battery weight: 3 g
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.1 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
