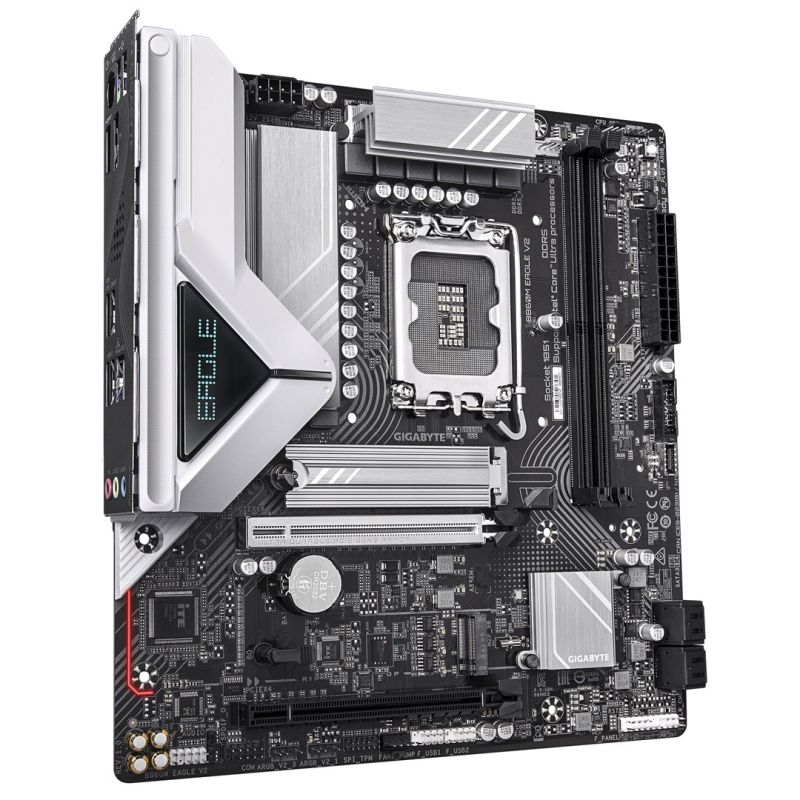

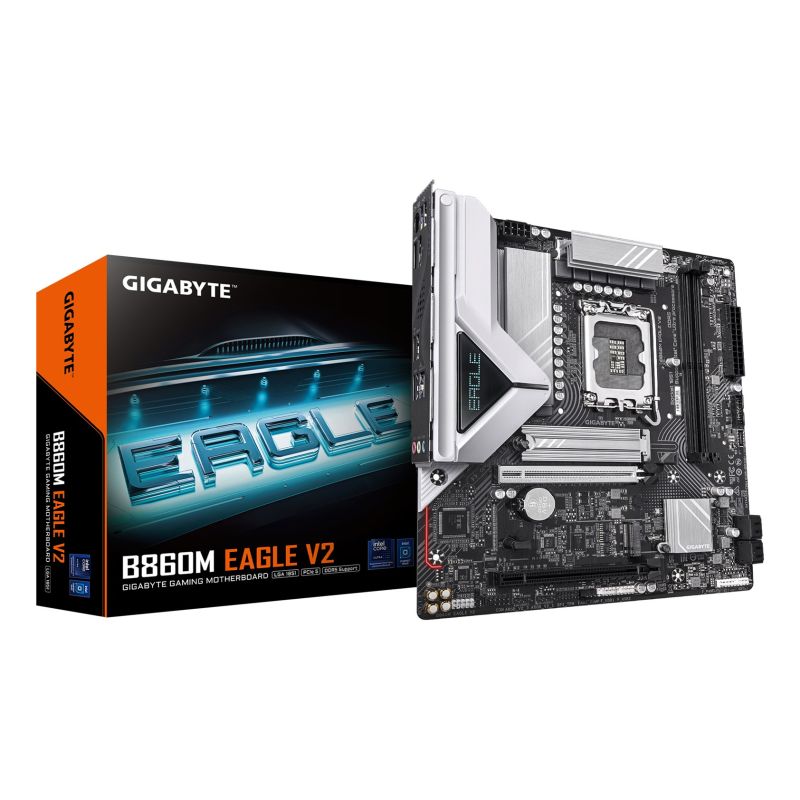

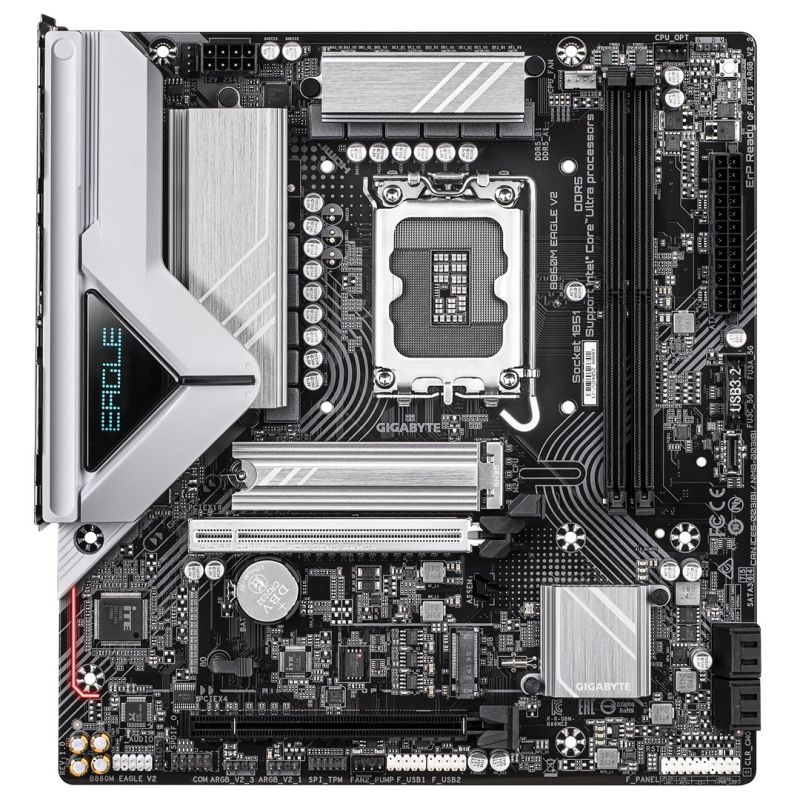

GIGABYTE B860M EAGLE V2 motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M EAGLE V2 motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M EAGLE V2 motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
PRICE:
197,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Graphics
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Memory
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speeds
- 8400 MHz
- 8200
- 5600 MHz
- 6400 MHz
- 7900
- 7000 MHz
- 8000
- 8266
- 7200 MHz
- 9066 MHz
- 8600 MHz
- 7400
- 7800
- 7950
- 6600
- 6800
- 8800 MHz
- 7600
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Maximum memory capacity: 128 GB
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 9066 MHz
- Characteristics
- Chipset Board Family: Intel
- Product color: Dark brown
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Monitoring computer status
- Tension
- Fan
- Temperature
- Water cooling
- Audio chip: Realtek ALC897
- Motherboard Layout: Intel B860
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Cooling type: Passive
- Intended use: PC
- Weight and dimensions
- Product width: 244 mm
- Product height: 35 mm
- Product depth: 225 mm
- Internal I/O
- Number of RGB LED connectors: 3
- Number of EPS power connectors (8-pin): 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Serial port connector: 1
- Number of water pump connections: 2
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- Number of CPU fan connectors: 2
- S/PDIF jack: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- EPS power supply connector (8-pin): Yes
- Number of case fan connectors: 2
- TPM Connector: Yes
- RGB LED: Yes
- Front panel connector: Yes
- Network
- LAN controller: Realtek RTL8125
- Wi-Fi: No
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Weight with packaging: 1.2 kg
- Package depth: 265 mm
- Package height: 54 mm
- Package width: 265 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- RAID levels
- 10
- 1
- 5
- 0
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6

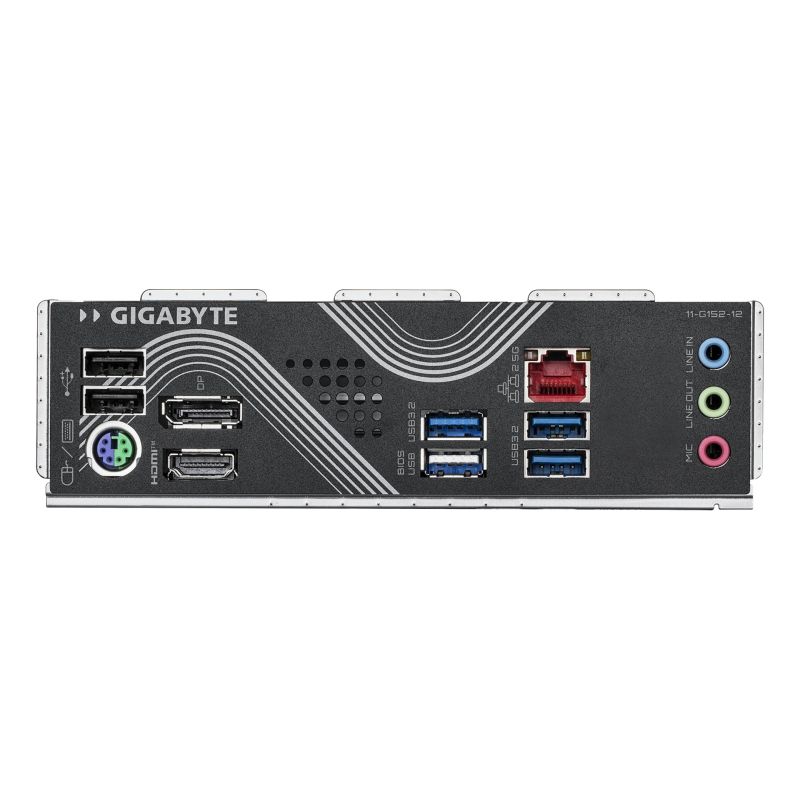

- Rear Panel I/O Ports
- DisplayPort version: 2.1
- Number of USB 2.0 ports: 3
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- HDMI version: 2.1
- Number of PS/2 ports: 1
- Microphone: Yes
- Line Input: Yes
- Number of HDMI ports: 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Expansion slots
- 1. largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- 2nd largest M.2 key size: 2280
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Battery
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Battery weight: 3 g
- Other functions
- Product weight: 1.01 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
