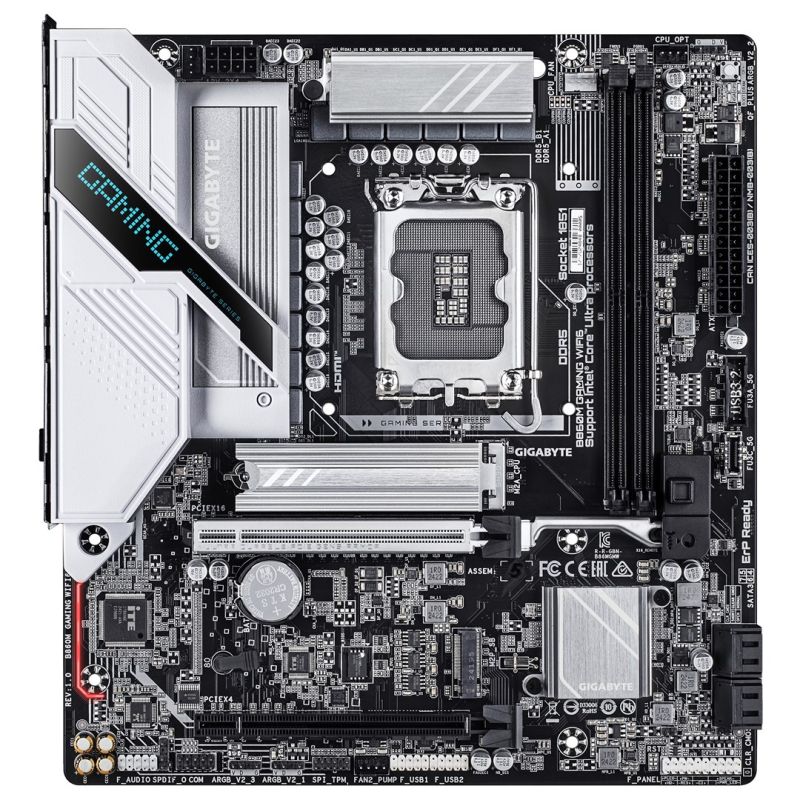

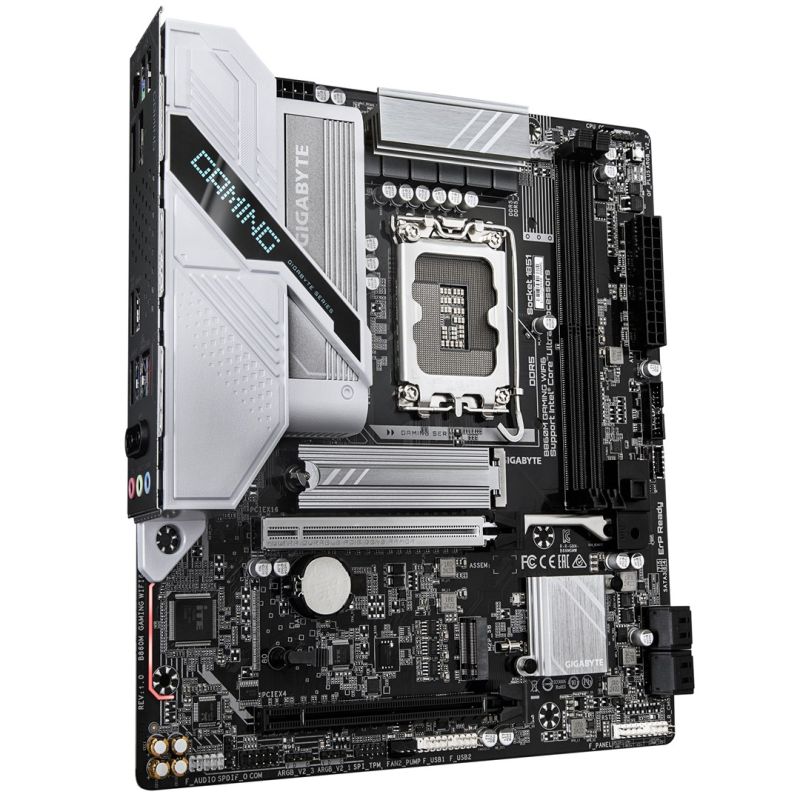

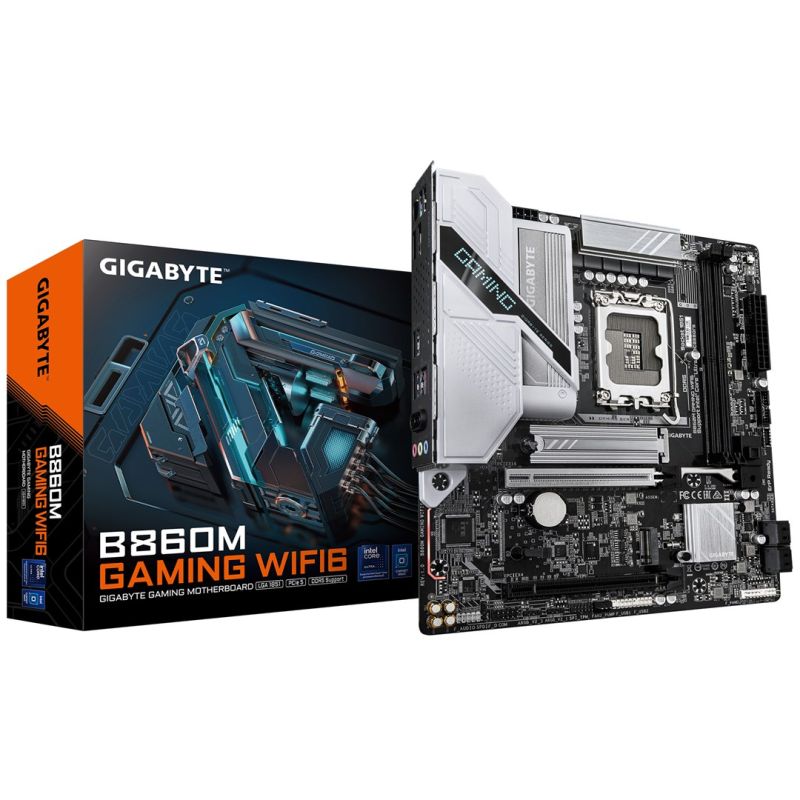

GIGABYTE B860M GAMING WIFI6 motherboard LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M GAMING WIFI6 motherboard LGA 1851 (Socket V1) micro ATX
GIGABYTE B860M GAMING WIFI6 motherboard LGA 1851 (Socket V1) micro ATX
PRICE:
246,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor
- Intel Core Ultra (Series 1)
- Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Maximum resolution: 4096 x 2160 px
- Parallel Processing Support: Not Supported
- Memory
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Supported memory clock speeds
- 7200 MHz
- 9066 MHz
- 7400
- 7800
- 7950
- 8000
- 8266
- 8600 MHz
- 8200
- 6600
- 6800
- 8800 MHz
- 7000 MHz
- 8400 MHz
- 5600 MHz
- 6400 MHz
- 7900
- 7600
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Supported memory clock speed (max): 9066 MHz
- ECC Compatibility: ECC or Non-ECC
- Maximum internal memory per slot: 64 GB
- Characteristics
- Chipset Board Family: Intel
- Product color: Brown
- Monitoring computer status
- Tension
- Temperature
- Fan
- Water cooling
- Motherboard format: Micro ATX
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Intended use: PC
- Cooling type: Passive
- Weight and dimensions
- Product depth: 225 mm
- Product height: 35 mm
- Product width: 244 mm
- Internal I/O
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- EPS power supply connector (8-pin): Yes
- Front panel audio connector: Yes
- Number of case fan connectors: 2
- TPM Connector: Yes
- Number of RGB LED connectors: 4
- RGB LED: Yes
- Number of water pump connections: 2
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 2
- Network
- Bluetooth: Yes
- Wi-Fi: Yes
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Bluetooth version: 5.3
- WLAN controller model: Realtek RTL8851BE
- BIOS
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package width: 270 mm
- Weight with packaging: 1.29 kg
- Package height: 68 mm
- Package depth: 268 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Antenna Included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- RAID levels
- 1
- 10
- 5
- 0
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4

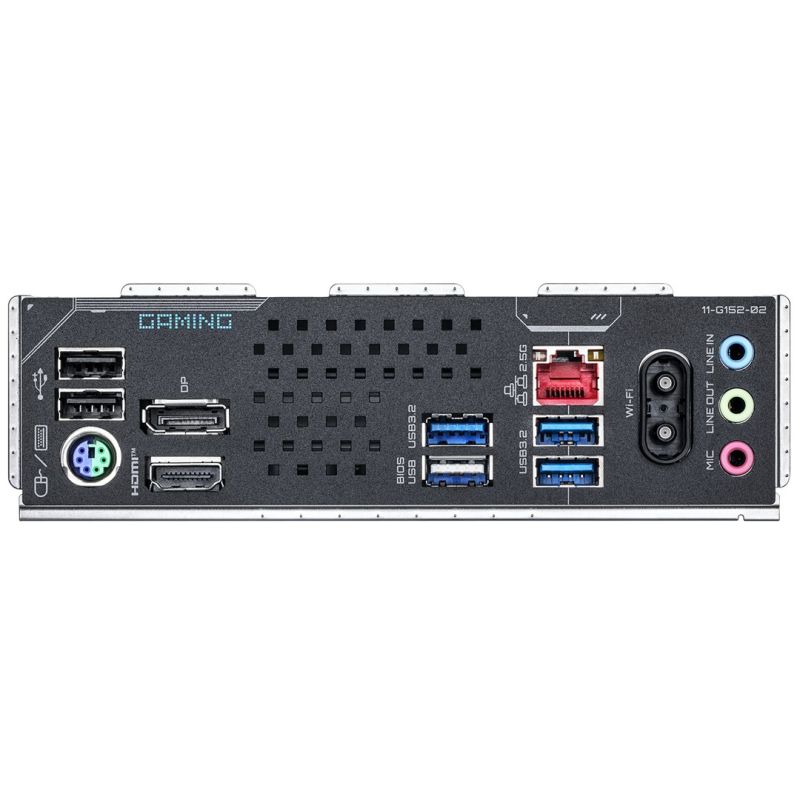

- Rear Panel I/O Ports
- DisplayPort version: 2.1
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- HDMI version: 2.1
- Microphone: Yes
- Line Input: Yes
- Number of USB 2.0 ports: 3
- Headphone outputs: 1
- Number of Ethernet LAN ports (RJ-45): 1
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
- 2nd largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- Battery
- Battery capacity: 220 mAh
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.23 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
