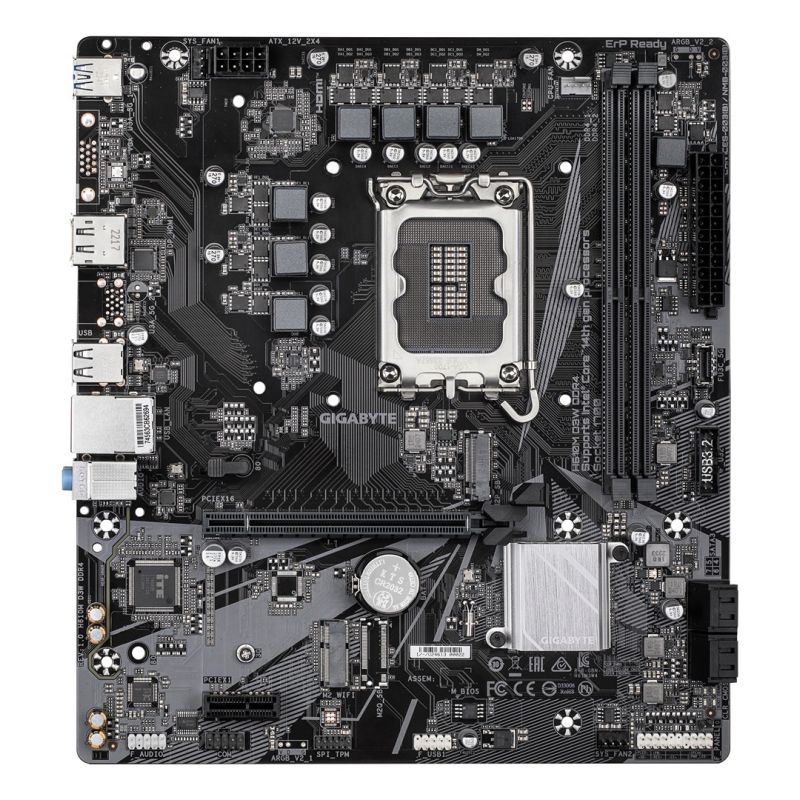

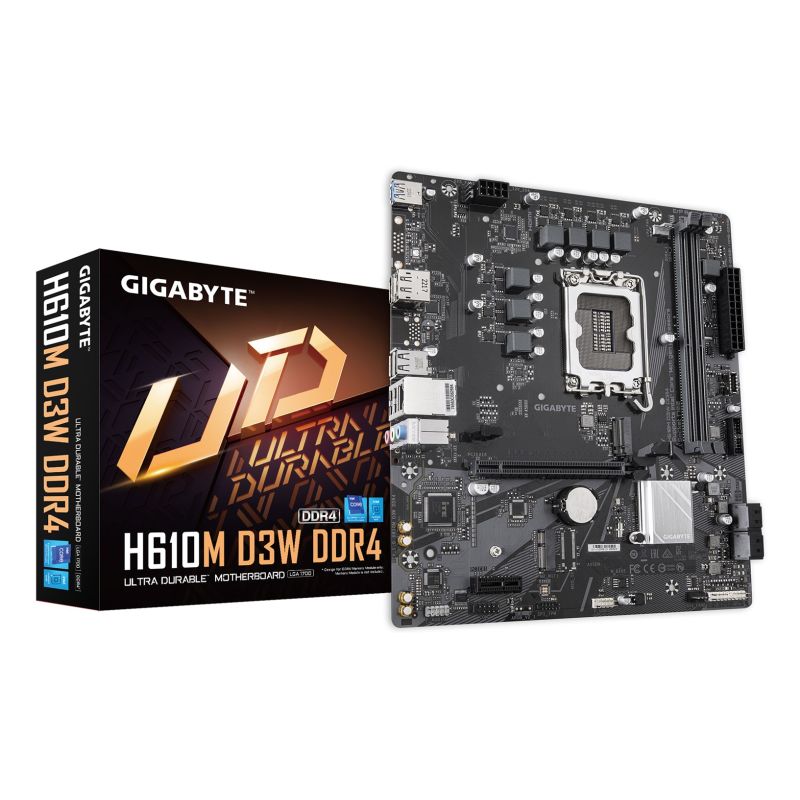

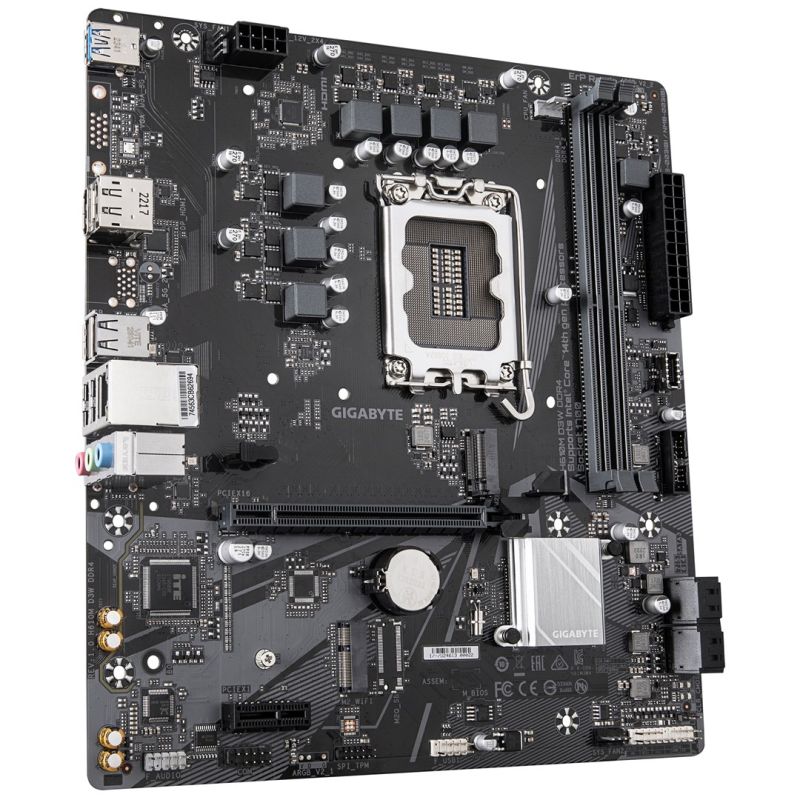

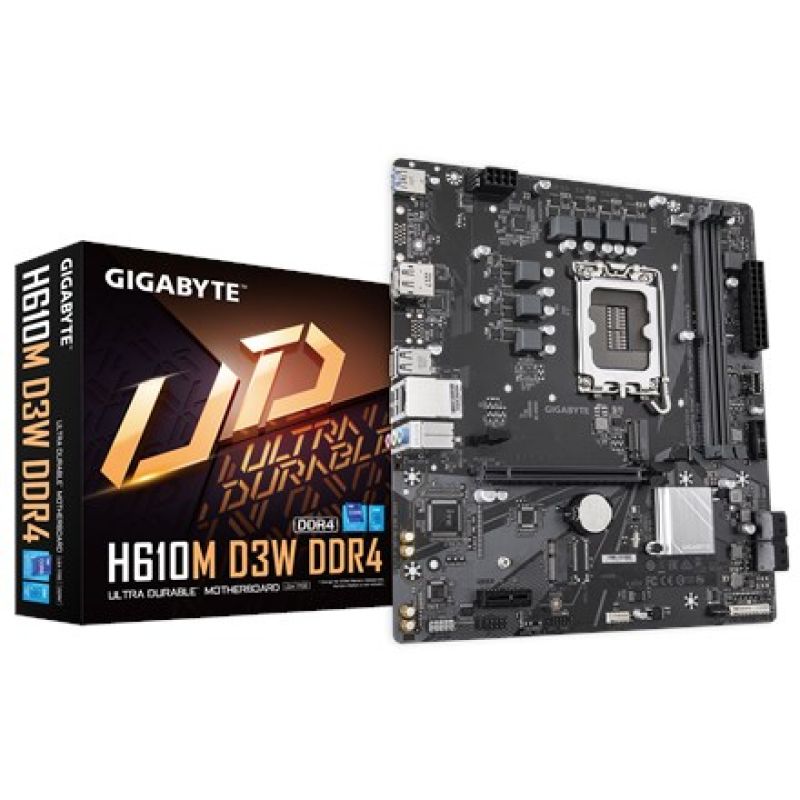

Gigabyte H610M D3W DDR4 motherboard, Intel H610, LGA1700, 2xDDR4, mATX
Gigabyte H610M D3W DDR4 motherboard, Intel H610, LGA1700, 2xDDR4, mATX
Gigabyte H610M D3W DDR4 motherboard, Intel H610, LGA1700, 2xDDR4, mATX
PRICE:
123,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- Intel Core i5 12th Gen
- Intel Core i9 14th Gen
- Intel® Pentium®
- Intel Core i5 13th Gen
- Intel Core i9 12th Gen
- Intel Core i3 14th Gen
- Intel Core i7 13th Gen
- Intel Core i3 12th Gen
- Intel Core i7 14th Gen
- Intel Core i9 13th Gen
- Intel® Celeron®
- Intel Core i3 13th Gen
- Intel Core i7 12th Gen
- Intel Core i5 14th Gen
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Supported CPU sockets: LGA 1700
- Processor
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Memory
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Supported memory types: DDR4-SDRAM
- ECC Compatibility: ECC or Non-ECC
- Maximum internal memory per slot: 32 GB
- Supported memory clock speed (max): 3200 MHz
- Supported memory clock speeds
- 3000 MHz
- 3200 MHz
- 2666 MHz
- 2933 MHz
- 2133 MHz
- 2400 MHz
- Maximum memory capacity: 64 GB
- Unbuffered memory: Yes
- Characteristics
- Monitoring computer status
- Tension
- Water cooling
- Fan
- Temperature
- Intended use: PC
- Power supply type: ATX
- Chipset Board Family: Intel
- Audio chip: Realtek ALC897
- Supported Windows operating systems
- Windows 10
- Windows 11
- Motherboard Layout: Intel H610
- Product color: Gray
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Monitoring computer status
- Weight and dimensions
- Product height: 35 mm
- Product width: 244 mm
- Product depth: 220 mm
- Internal I/O
- Number of USB 2.0 ports: 1
- Number of SATA III connectors: 4
- Front panel connector: Yes
- Front panel audio connector: Yes
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Number of case fan connectors: 2
- Serial port connector: 1
- Number of CPU fan connectors: 1
- Number of EPS power connectors (8-pin): 1
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- LAN controller: Realtek RTL8111H
- BIOS
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- BIOS Type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Packaging data
- Package height: 54 mm
- Weight with packaging: 800 g
- Package width: 265 mm
- Package depth: 265 mm
- Package contents
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- Number of supported storage drive sizes: 5
- Number of supported HDDs: 4
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

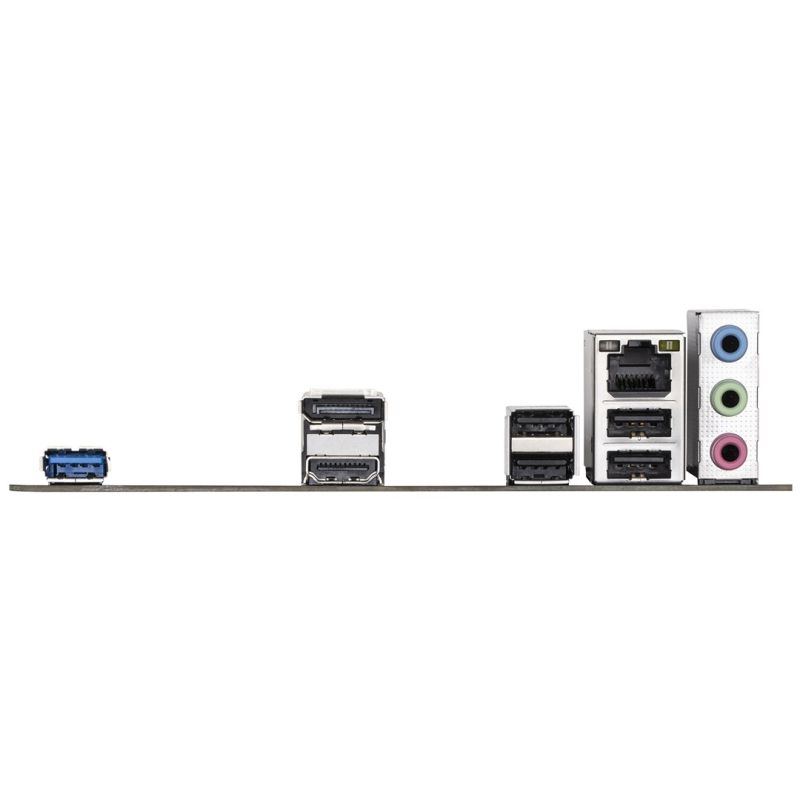

- Rear Panel I/O Ports
- HDMI version: 2.1
- Number of HDMI ports: 1
- Microphone: Yes
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- DisplayPort Quantity: 1
- DisplayPort version: 1.2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 3.0
- Battery
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 770 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
