GIGABYTE H610M D3W WIFI6 Intel H610 LGA 1700 micro ATX
GIGABYTE H610M D3W WIFI6 Intel H610 LGA 1700 micro ATX
GIGABYTE H610M D3W WIFI6 Intel H610 LGA 1700 micro ATX
PRICE:
111,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- Intel Core i5 13th Gen
- Intel® Celeron®
- Intel Core i7 14th Gen
- Intel Core i3 13th Gen
- Intel Core i7 12th Gen
- Intel Core i5 14th Gen
- Intel® Pentium® Gold
- Intel Core i9 14th Gen
- Intel Core i9 12th Gen
- Intel Core i3 12th Gen
- Intel Core i5 12th Gen
- Intel Core i3 14th Gen
- Intel Core i7 13th Gen
- Intel Core i9 13th Gen
- Processor socket: LGA 1700
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1700
- Processor
- Graphics
- DirectX Version: 12.0
- HDCP version: 2.3
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 5200 MHz
- 5600 MHz
- 4400 MHz
- 4800 MHz
- Memory slot type: DIMM
- Number of memory slots: 2
- Maximum internal memory per slot: 64 GB
- Maximum memory capacity: 128 GB
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speed (max): 5600 MHz
- Unbuffered memory: Yes
- Characteristics
- Product color: Dark brown
- Audio chip: Realtek ALC897
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Chipset Board Family: Intel
- Intended use: PC
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Tension
- Temperature
- Fan
- Water cooling
- Power supply type: ATX
- Motherboard Layout: Intel H610
- Cooling type: Passive
- Weight and dimensions
- Product height: 35 mm
- Product depth: 220 mm
- Product width: 244 mm
- Internal I/O
- RGB LED: Yes
- TPM Connector: Yes
- Number of RGB LED connectors: 2
- Number of CPU fan connectors: 1
- Number of EPS power connectors (8-pin): 1
- Number of case fan connectors: 2
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Serial port connector: 1
- Front panel audio connector: Yes
- Number of USB 2.0 ports: 1
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- Network
- WLAN controller model: Realtek RTL8851BE
- Wi-Fi standards
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- Wi-Fi: Yes
- LAN Controller: Realtek RTL8111H
- Ethernet interface type: Gigabit Ethernet
- Bluetooth version: 5.3
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- BIOS memory size: 128 Mbit
- Packaging data
- Package height: 68 mm
- Package depth: 268 mm
- Package width: 270 mm
- Weight with packaging: 938 g
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Antenna Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 5
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, PCI Express 3.0, SATA III
- Supported drive types: HDD & SSD

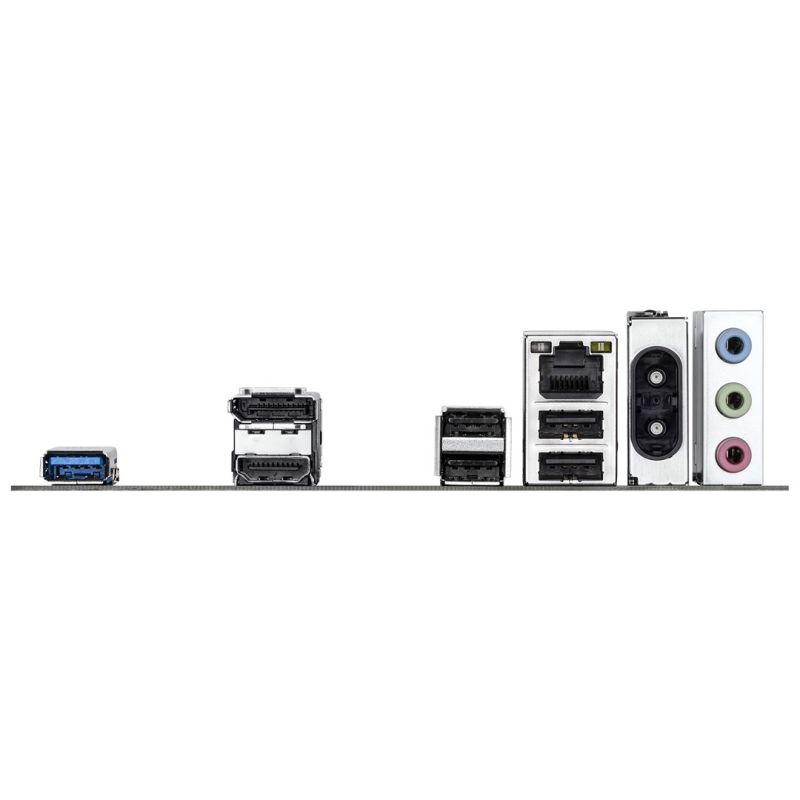

- Rear Panel I/O Ports
- HDMI version: 2.1
- Number of HDMI ports: 1
- Line Input: Yes
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- DisplayPort version: 1.2
- DisplayPort Quantity: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Expansion slots
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 3.0
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- Battery
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Battery weight: 3 g
- Other functions
- Product weight: 742 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
