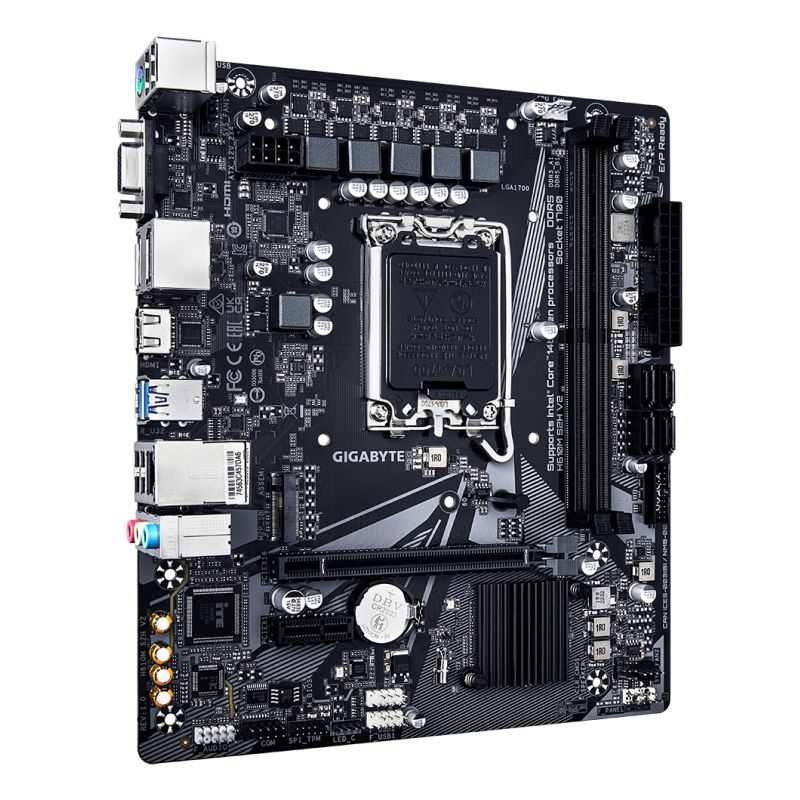

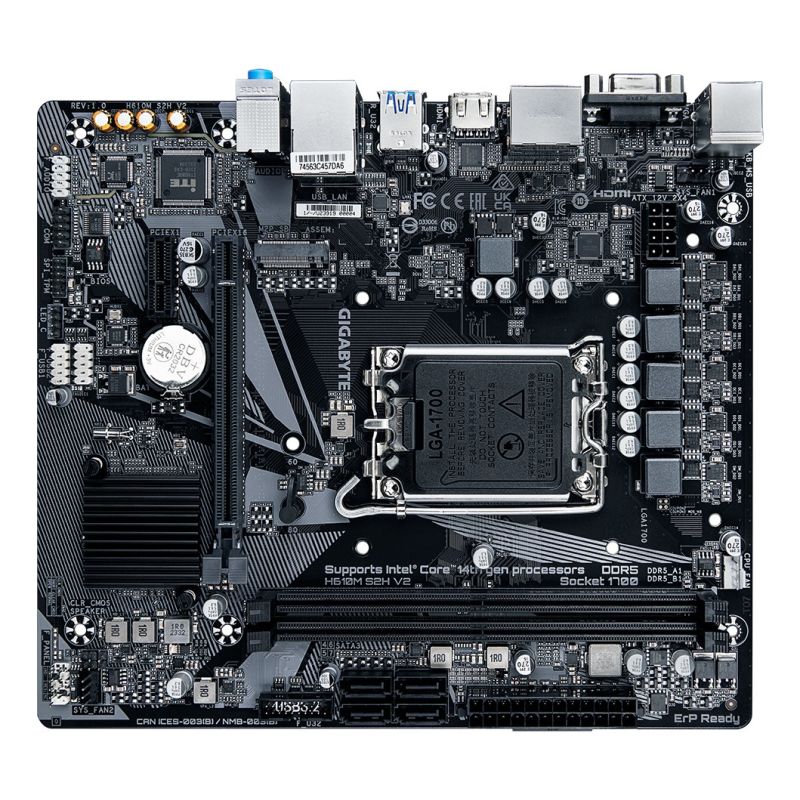

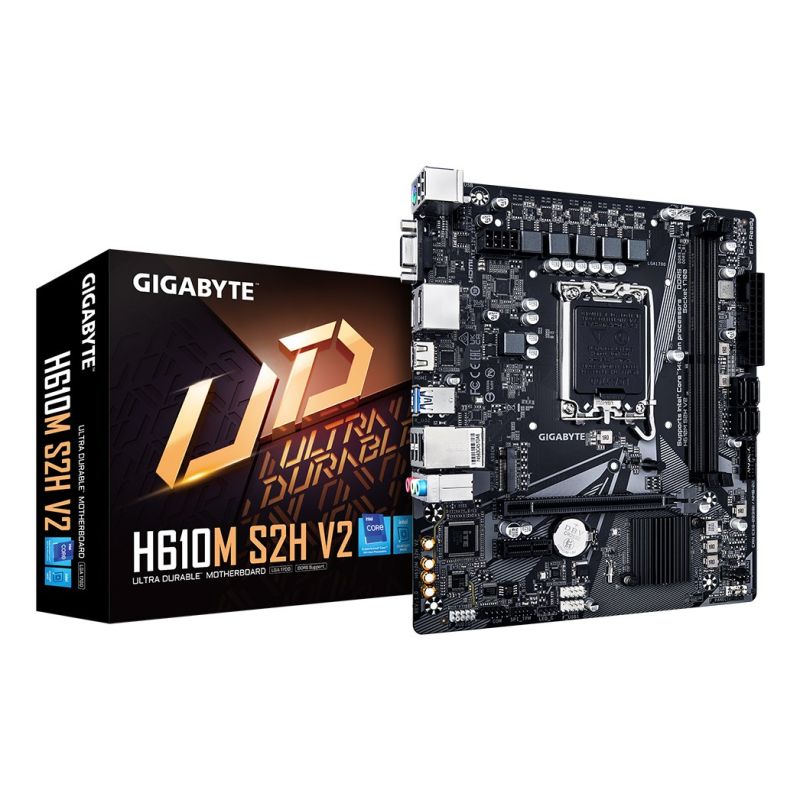

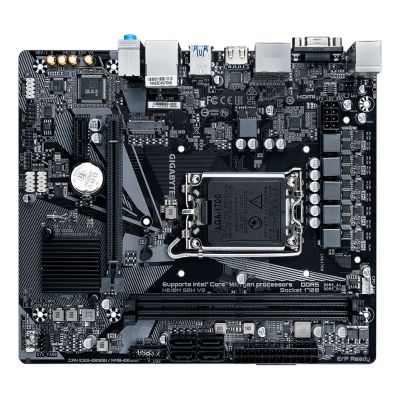

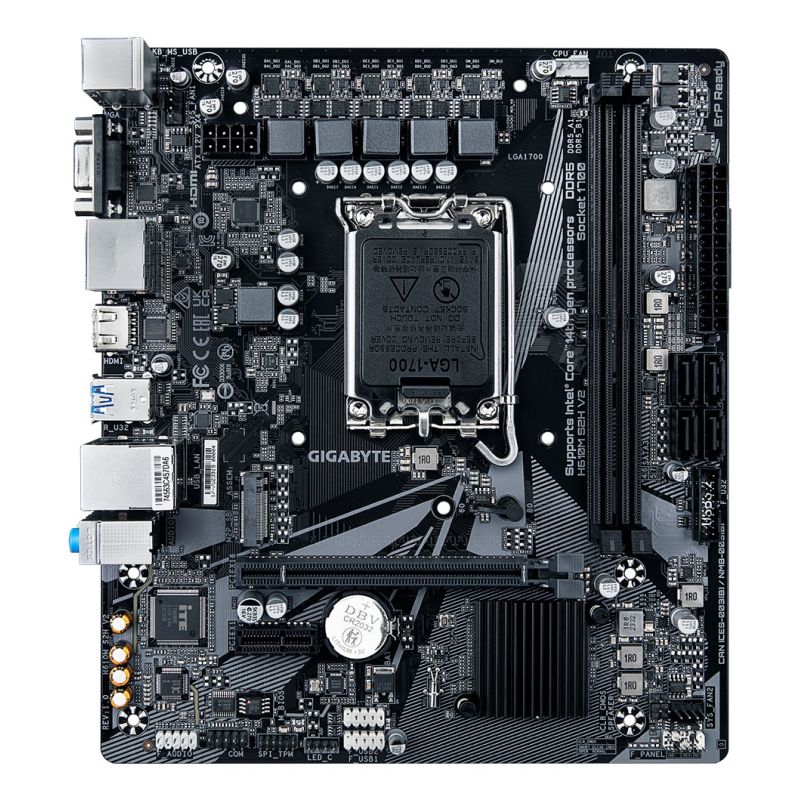

Gigabyte H610M S2H V2 motherboard
Gigabyte H610M S2H V2 motherboard
Gigabyte H610M S2H V2 motherboard
PRICE:
93,99
€
IN A WAREHOUSE
8 pcs
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Maximum number of SMP processors: 1
- Maximum internal memory supported by the processor: 96 GB
- Processor
- Intel® Core™ i9
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i7
- Intel® Pentium® Gold
- Intel® Core™ i3
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Supported CPU sockets: LGA 1700
- Graphics
- Graphics Adapter Family: Intel
- HDCP: Yes
- Built-in graphics card: Yes
- Maximum resolution: 4096 x 2304 px
- Built-in graphics card model: Intel® HD Graphics
- Graphics card: HD Graphics
- Memory
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 2
- Memory Channel Support: Dual Channel
- Supported memory clock speed (max): 5600 MHz
- ECC Compatibility: ECC or Non-ECC
- Maximum memory capacity: 96 GB
- Supported memory clock speeds
- 5600 MHz
- 4400 MHz
- 4800 MHz
- 5200 MHz
- Supported memory module capacities
- 12GB
- 8GB
- 1GB
- 2GB
- 4GB
- 32GB
- 48GB
- Unbuffered memory: Yes
- Characteristics
- Power supply type: ATX
- Chipset Board Family: Intel
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Monitoring computer status
- LED
- Fan
- Water cooling
- Temperature
- Tension
- Motherboard format: Micro ATX
- Audio chip: Realtek ALC897
- Cooling type: Active
- Audio output channels: 7.1 ch.
- Product color: Black
- Motherboard Layout: Intel H610 Express
- Weight and dimensions
- Product width: 230 mm
- Product height: 35 mm
- Product depth: 215 mm
- Internal I/O
- 12V power connector: Yes
- Number of USB 2.0 ports: 2
- RGB LED: Yes
- Number of case fan connectors: 2
- TPM Connector: Yes
- Serial port connector: 1
- Number of SATA III connectors: 4
- EPS power supply connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- CPU fan connector: Yes
- Front panel audio connector: Yes
- Number of COM sockets: 1
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- Clear CMOS Jumper: Yes
- Packaging data
- Package depth: 235 mm
- Package width: 265 mm
- Package height: 52 mm
- Weight with packaging: 690 g
- Package contents
- Cables: SATA
- Batteries included: Yes
- Memory drivers
- Number of supported HDDs: 4
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA
- Number of supported storage drive sizes: 1

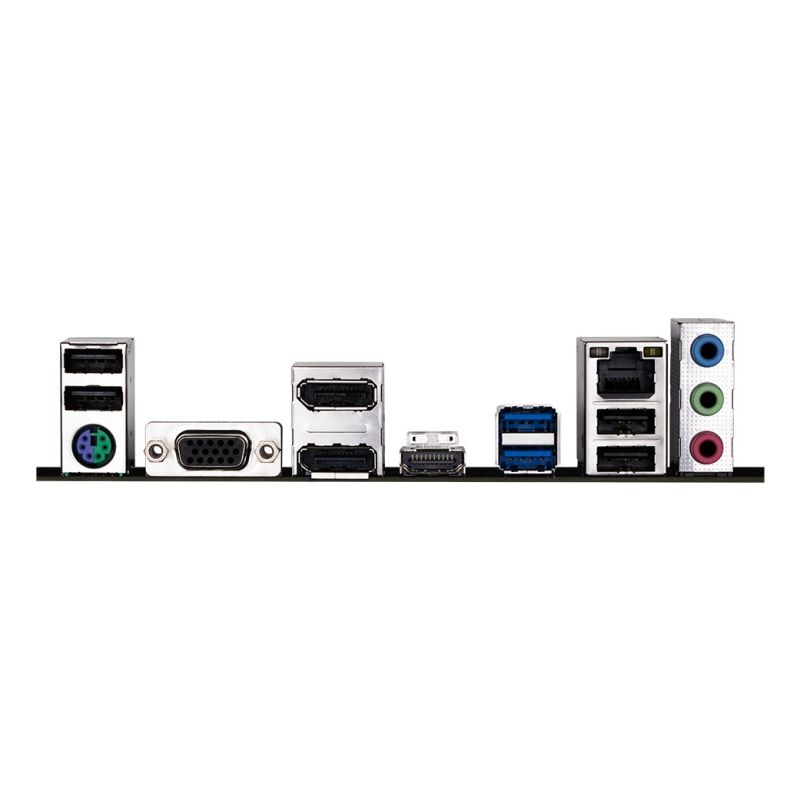

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of VGA (D-Sub) ports: 1
- Number of HDMI ports: 1
- Number of DVI-D ports: 1
- Microphone: Yes
- Headphone outputs: 1
- Number of PS/2 ports: 1
- Number of USB 2.0 ports: 4
- Expansion slots
- PCI Express x1 slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x16 slots: 1
- Battery
- Battery weight: 3 g
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Other functions
- Supports DIMM sizes
- 8GB
- 16GB
- Supports DIMM sizes
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
