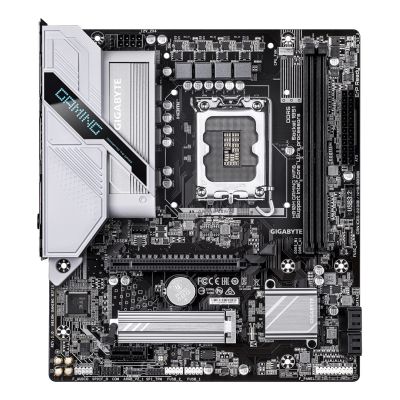

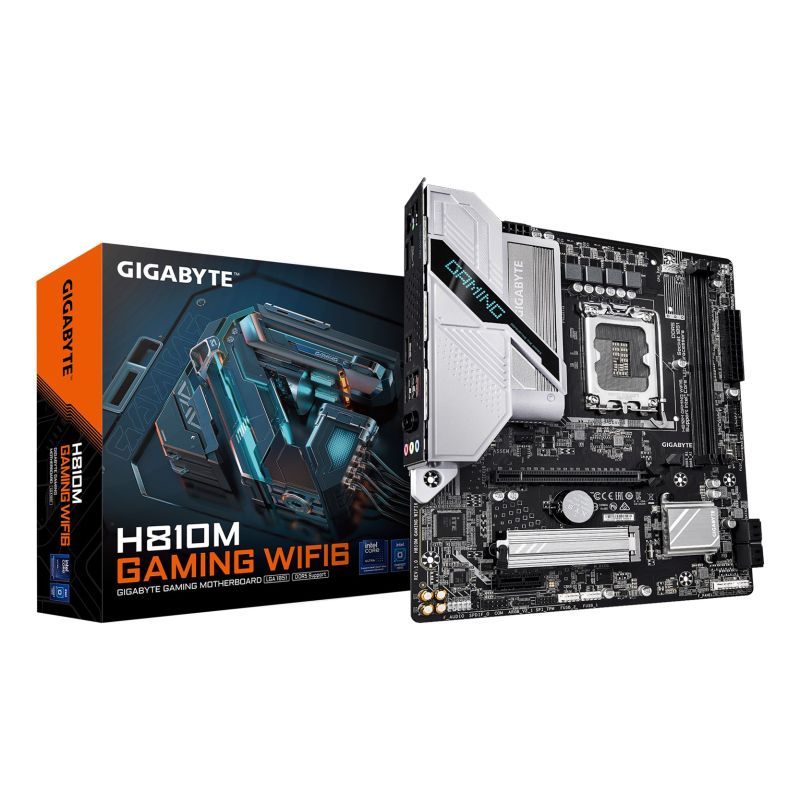

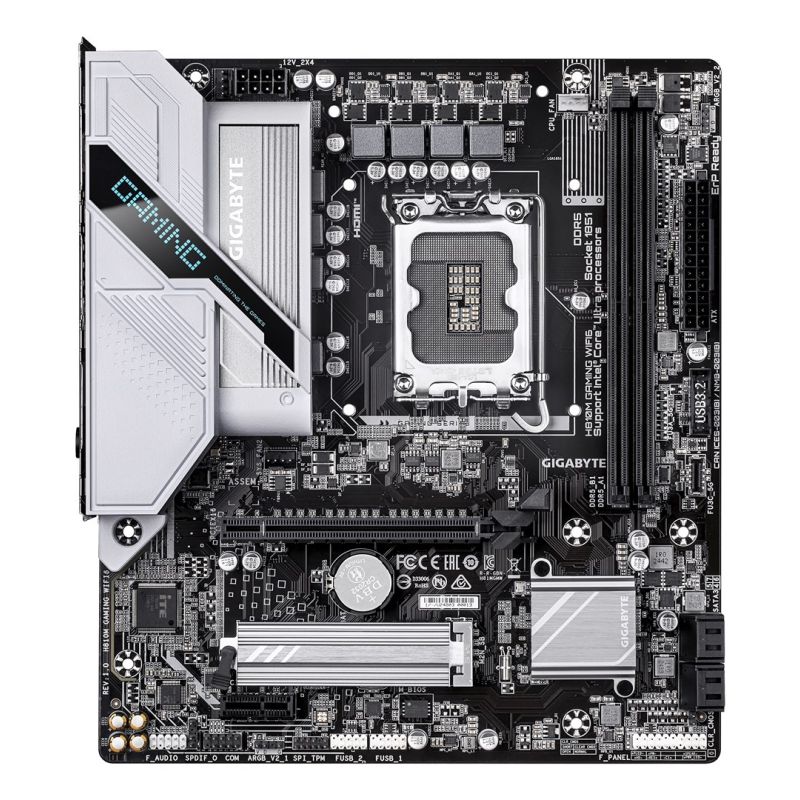

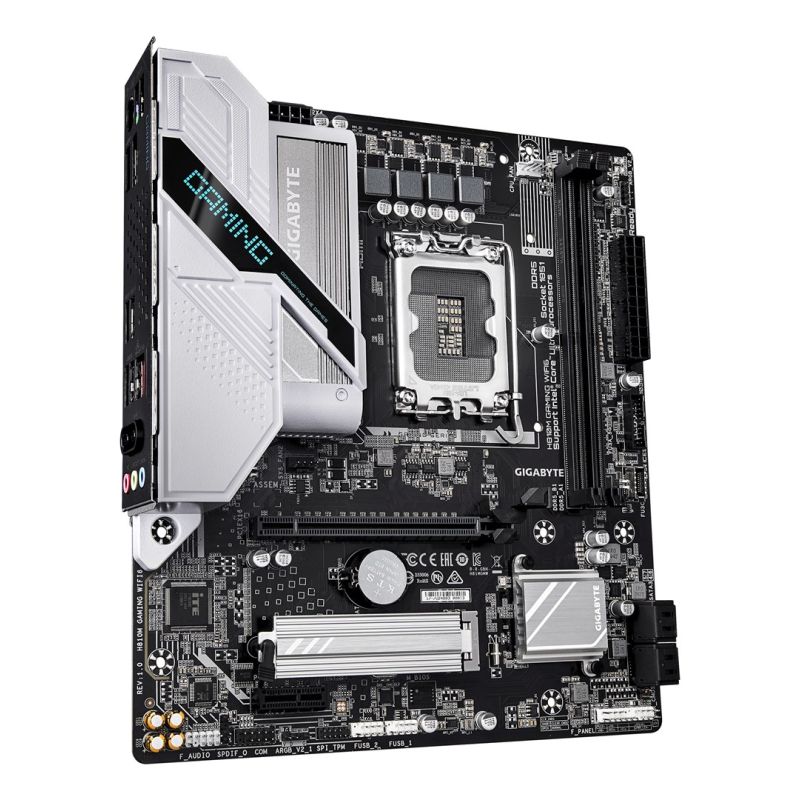

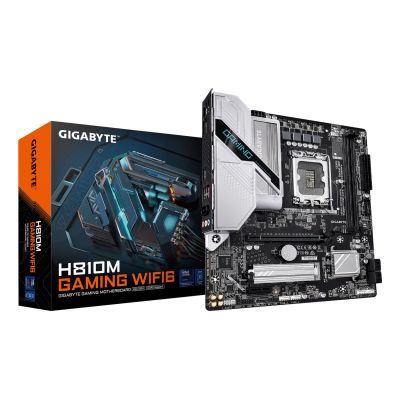

GIGABYTE H810M GAMING WIFI6 Motherboard Intel H810 LGA 1851 (Socket V1) Micro ATX
GIGABYTE H810M GAMING WIFI6 Motherboard Intel H810 LGA 1851 (Socket V1) Micro ATX
GIGABYTE H810M GAMING WIFI6 Motherboard Intel H810 LGA 1851 (Socket V1) Micro ATX
PRICE:
160,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Supported memory clock speed (max): 6400 MHz
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speeds
- Characteristics
- Motherboard Layout: Intel H810
- Audio chip: Realtek ALC897
- Product color: Dark brown
- Monitoring computer status
- Tension
- Fan
- Water cooling
- Temperature
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Cooling type: Passive
- Power supply type: ATX
- Motherboard format: Micro ATX
- Weight and dimensions
- Product width: 244 mm
- Product height: 35 mm
- Product depth: 215 mm
- Internal I/O
- Number of RGB LED connectors: 2
- S/PDIF jack: Yes
- TPM Connector: Yes
- Number of USB 2.0 ports: 2
- Number of CPU fan connectors: 1
- Number of case fan connectors: 2
- Serial port connector: 1
- RGB LED: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Front panel connector: Yes
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of EPS power connectors (8-pin): 1
- Network
- Bluetooth: Yes
- LAN controller: Realtek RTL8125
- Ethernet interface type: 2.5 Gigabit Ethernet
- WLAN controller model: Realtek RTL8851BE
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Bluetooth version: 5.3
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wi-Fi 4 (802.11n)
- Wired LAN: Yes
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Packaging data
- Package depth: 268 mm
- Package width: 270 mm
- Package height: 68 mm
- Weight with packaging: 1.19 kg
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- RAID levels
- 0
- 5
- 1
- 10
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 5
- RAID Service: Yes

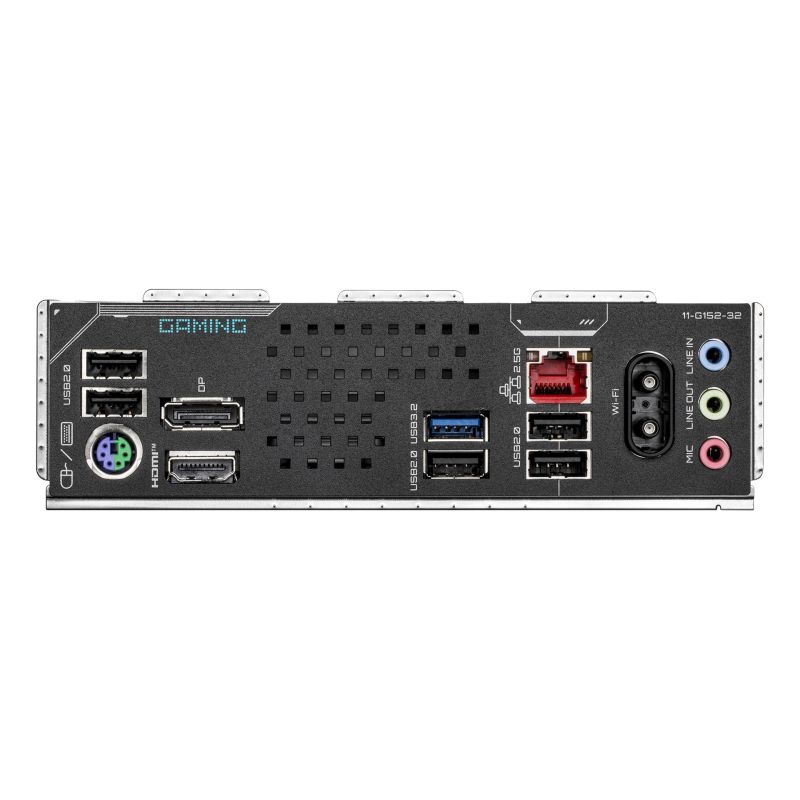

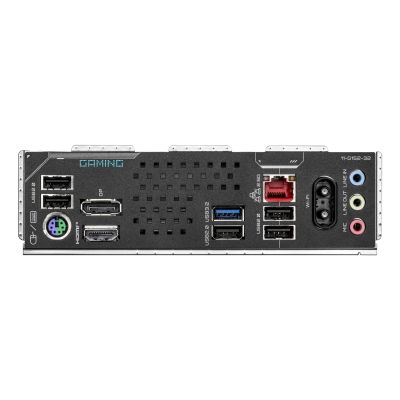

- Rear Panel I/O Ports
- Microphone: Yes
- Number of PS/2 ports: 1
- HDMI version: 2.1
- WiFi-AP Antenna Jack Plug: 2
- Headphone outputs: 1
- DisplayPort Quantity: 1
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 5
- DisplayPort version: 2.1
- Expansion slots
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- Battery
- Number of battery compartments: 1
- Battery weight: 3 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Other functions
- Product weight: 1.1 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
