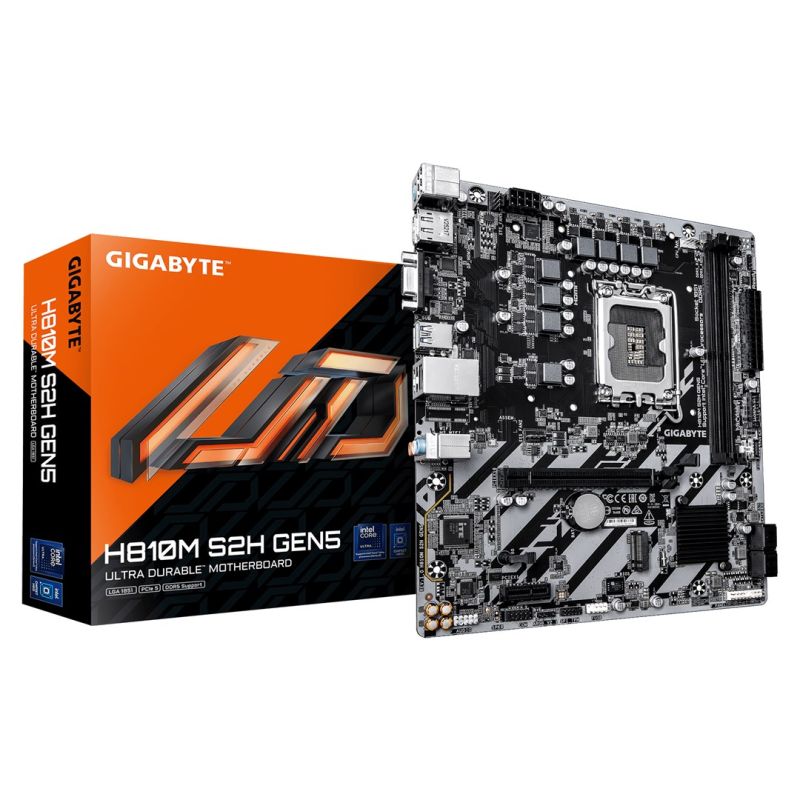

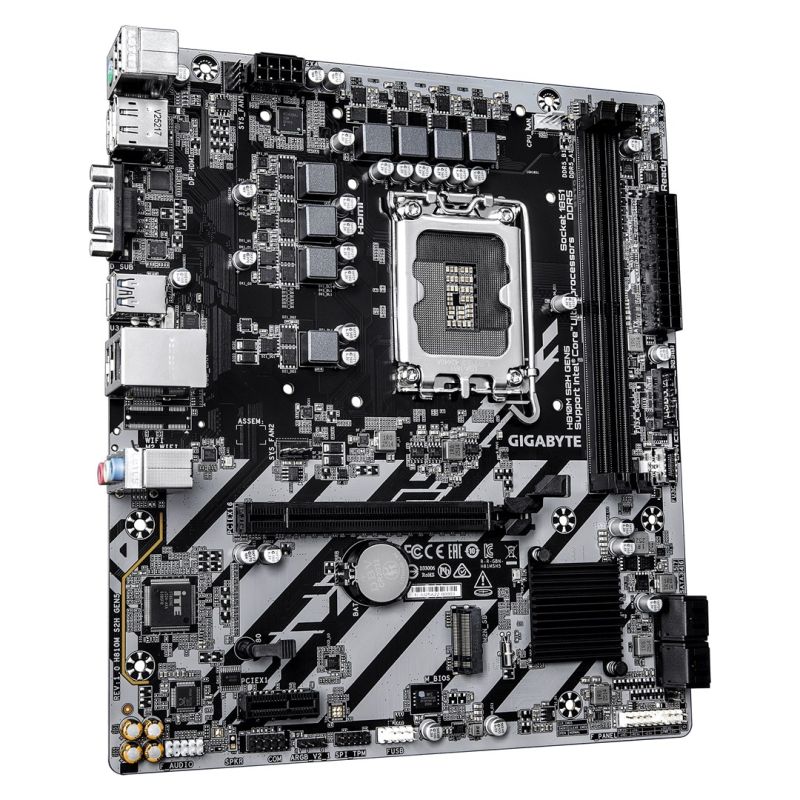

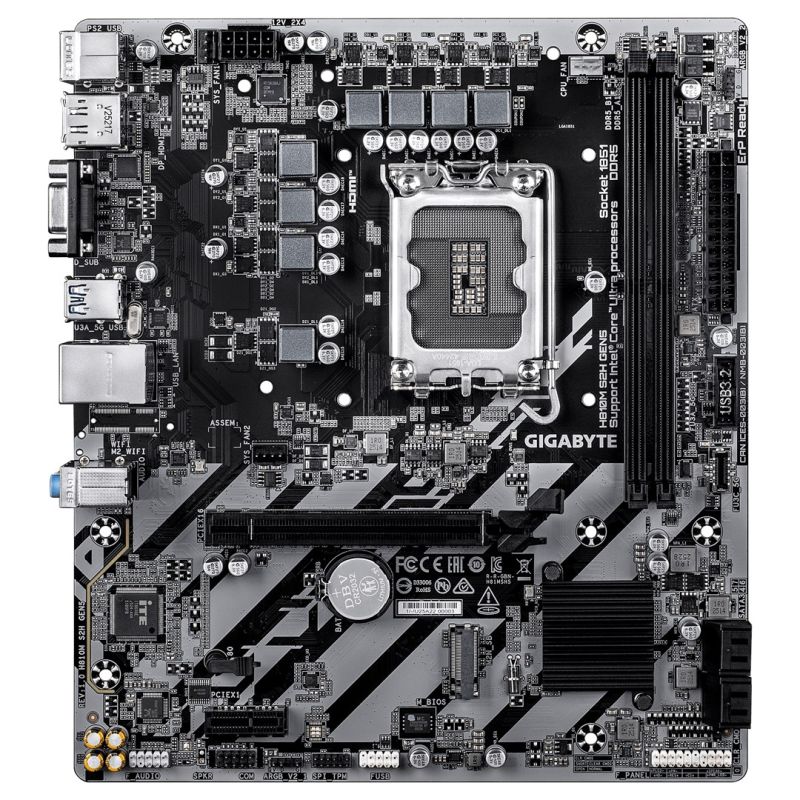

GIGABYTE H810M S2H GEN5 motherboard Intel H810 LGA 1851 (Socket V1) micro ATX
GIGABYTE H810M S2H GEN5 motherboard Intel H810 LGA 1851 (Socket V1) micro ATX
GIGABYTE H810M S2H GEN5 motherboard Intel H810 LGA 1851 (Socket V1) micro ATX
PRICE:
172,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Supported CPU sockets: LGA 1851
- Processor manufacturer: Intel
- Graphics
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- HDCP version: 2.3
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- Number of memory slots: 2
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 6400 MHz
- Maximum internal memory per slot: 64 GB
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 128 GB
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speeds
- Characteristics
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Power supply type: ATX
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Motherboard Layout: Intel H810
- Cooling type: Passive
- Product color: Dark brown
- Monitoring computer status
- Fan
- Temperature
- Tension
- Water cooling
- Intended use: PC
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Weight and dimensions
- Product height: 35 mm
- Product width: 244 mm
- Product depth: 215 mm
- Internal I/O
- Number of USB 2.0 ports: 1
- Serial port connector: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- TPM Connector: Yes
- Number of case fan connectors: 2
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- Number of RGB LED connectors: 2
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of EPS power connectors (8-pin): 1
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- LAN Controller: Realtek RTL8111H
- Wi-Fi: No
- BIOS
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package height: 54 mm
- Package depth: 265 mm
- Weight with packaging: 872.4 g
- Package width: 265 mm
- Package contents
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Number of supported storage drive sizes: 5
- Supported drive types: HDD & SSD
- Number of supported HDDs: 4

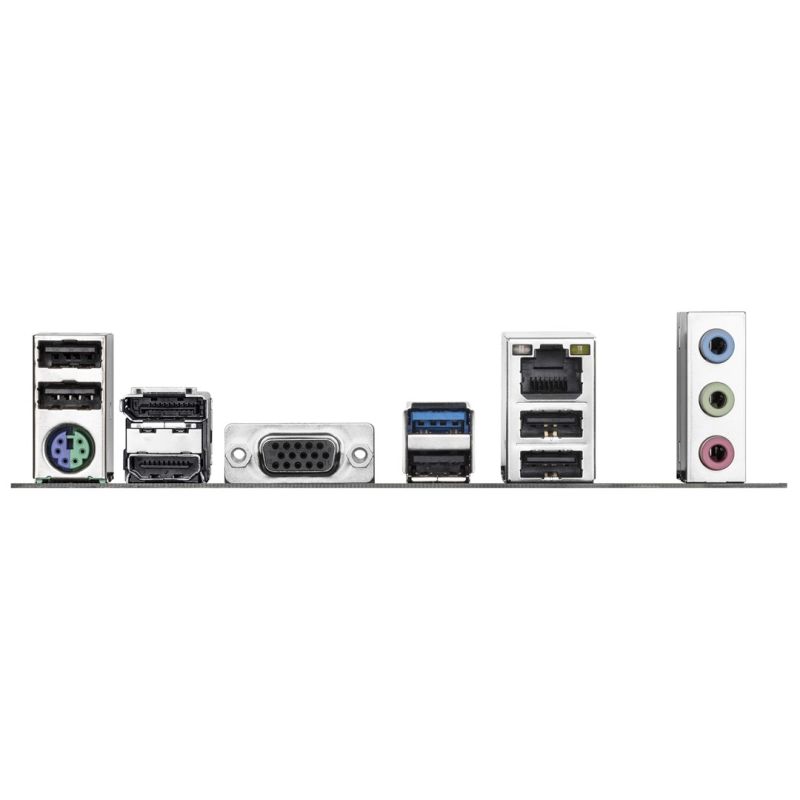

- Rear Panel I/O Ports
- Line Input: Yes
- Microphone: Yes
- Number of PS/2 ports: 1
- Headphone outputs: 1
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 5
- HDMI version: 2.1
- Number of VGA (D-Sub) ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- DisplayPort Quantity: 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Number of battery compartments: 1
- Battery capacity: 220 mAh
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 790 g
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
