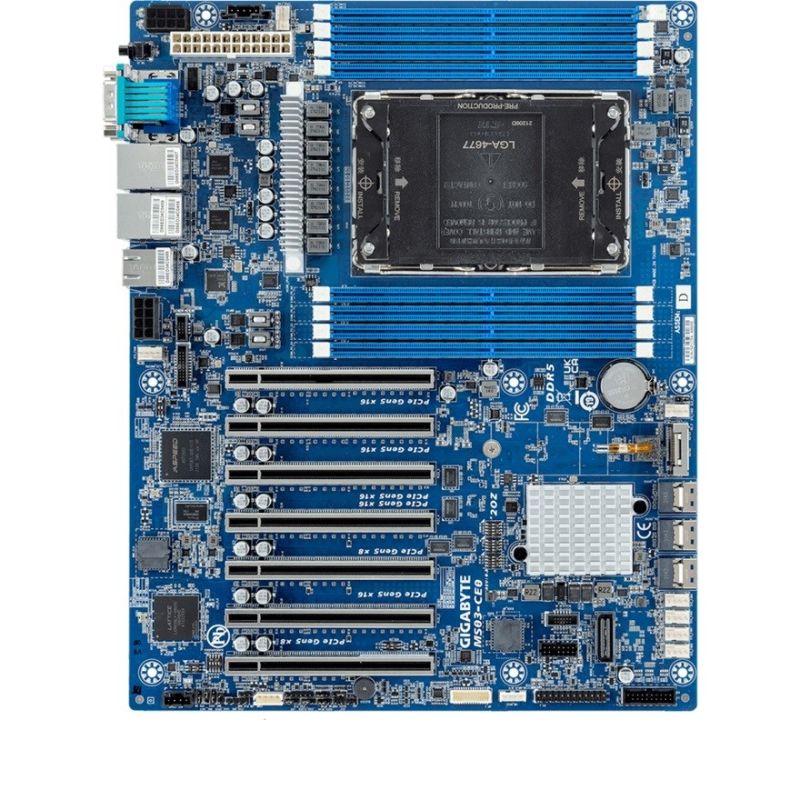

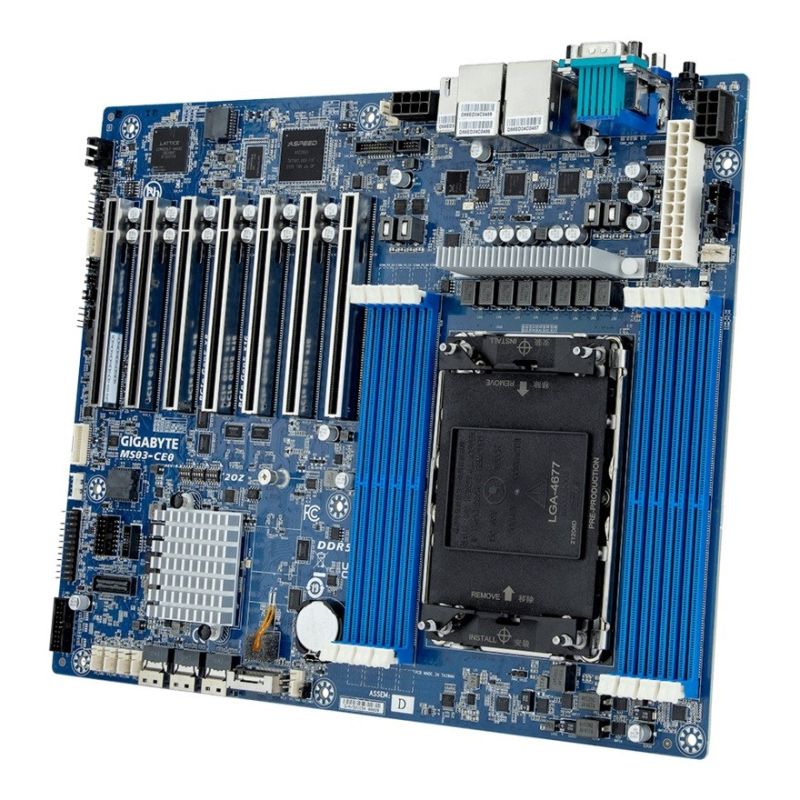

Gigabyte MS03-CE0 motherboard 1x LGA4677 Intel Xeon Scalable 4/5gen C741 (8x DIMM, 3x SlimSAS (12x SATA), 1xM.2, 2x 1Gbe IPMI, ATX)
Gigabyte MS03-CE0 motherboard 1x LGA4677 Intel Xeon Scalable 4/5gen C741 (8x DIMM, 3x SlimSAS (12x SATA), 1xM.2, 2x 1Gbe IPMI, ATX)
Gigabyte MS03-CE0 motherboard 1x LGA4677 Intel Xeon Scalable 4/5gen C741 (8x DIMM, 3x SlimSAS (12x SATA), 1xM.2, 2x 1Gbe IPMI, ATX)
PRICE:
1120,99
€
IN A WAREHOUSE
2 pcs
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- Intel Xeon Max Series
- Intel Xeon Scalable Gen 4
- Intel Xeon Scalable Gen 5
- Maximum number of SMP processors: 1
- Supported CPU sockets: LGA 4677 (Socket E)
- Processor manufacturer: Intel
- Processor
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Supported memory types: DDR5 RDIMM/3DS RDIMM
- Number of memory slots: 8
- Memory Channel Support: Eight Channels
- Memory slot type: DIMM
- Supported memory clock speeds
- 4800 MHz
- 5600 MHz
- Characteristics
- Intended use: Server/workstation
- Chipset Board Family: Intel
- Motherboard format: ATX
- Motherboard Layout: Intel C741
- Product color: Blue
- Weight and dimensions
- Product width: 304.8 mm
- Product depth: 244 mm
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- ATX power socket (24-pin): Yes
- Number of M.2 (M) slots: 1
- 12V power connector: Yes
- Number of case fan connectors: 5
- Number of SlimSAS connectors: 3
- CPU fan connector: Yes
- Network
- Wi-Fi: No
- Wired LAN: Yes
- Ethernet interface type: 1 Gigabit Ethernet
- Packaging data
- Packaging depth: 330 mm
- Package width: 360 mm
- Package height: 80 mm

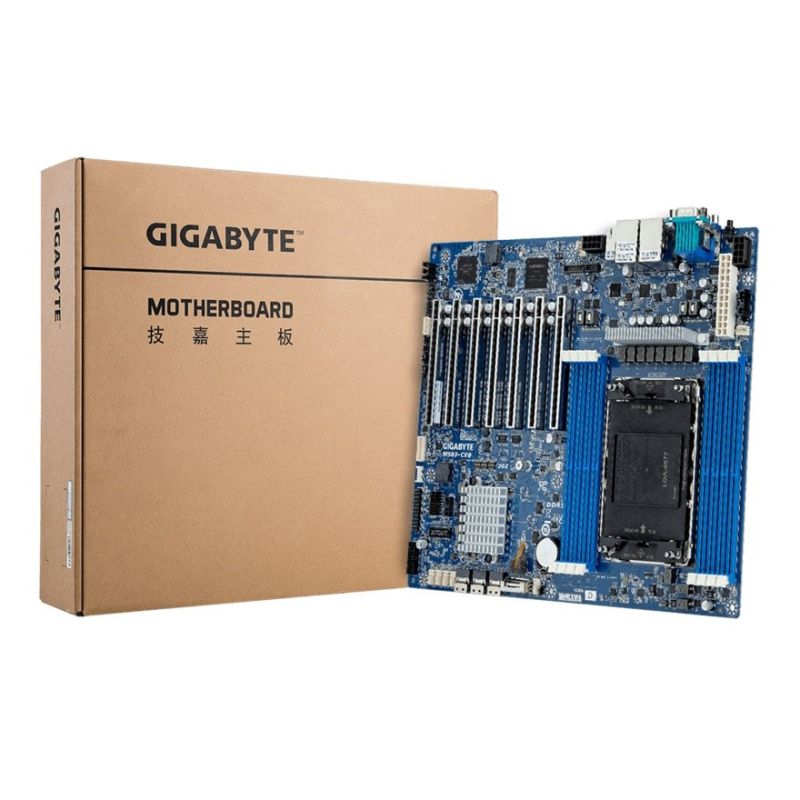

- Package contents
- Cables: 1 x SlimSAS 4i to 4 x SATA
- User manual: Yes
- I/O Shield: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- Supported RAID configuration: 0/1/5/10
- RAID Service: Yes

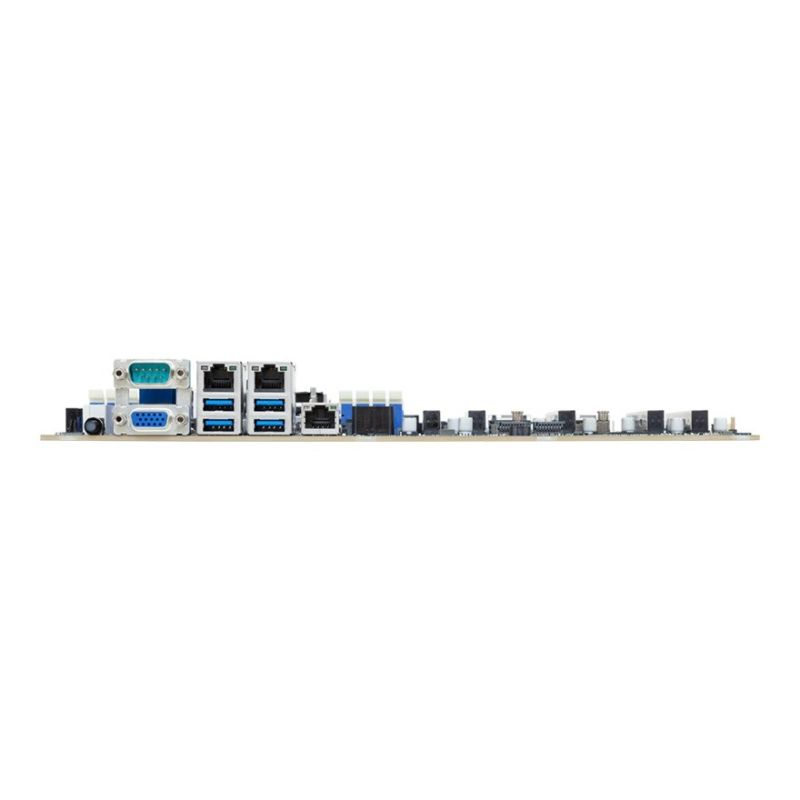

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 2
- Number of COM sockets: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Port Management LAN: Yes, 1
- Number of VGA (D-Sub) ports: 1
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 5
- PCI Express x8 (Gen 5.x) slots: 2
- Safety warning
- Warnings
- Dispose of in accordance with local regulations for electronic waste.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Do not open or disassemble the motherboard.
- Use only in a dry and well-ventilated place.
- The motherboard may contain electronic components hazardous to health – avoid direct contact.
- Avoid contact with liquids to prevent electronic damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
