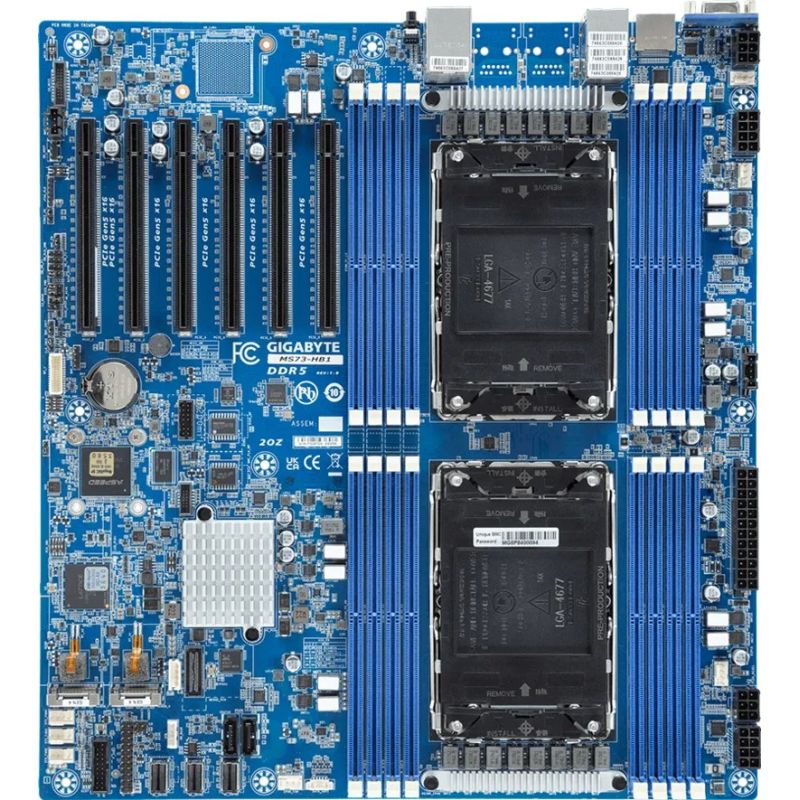

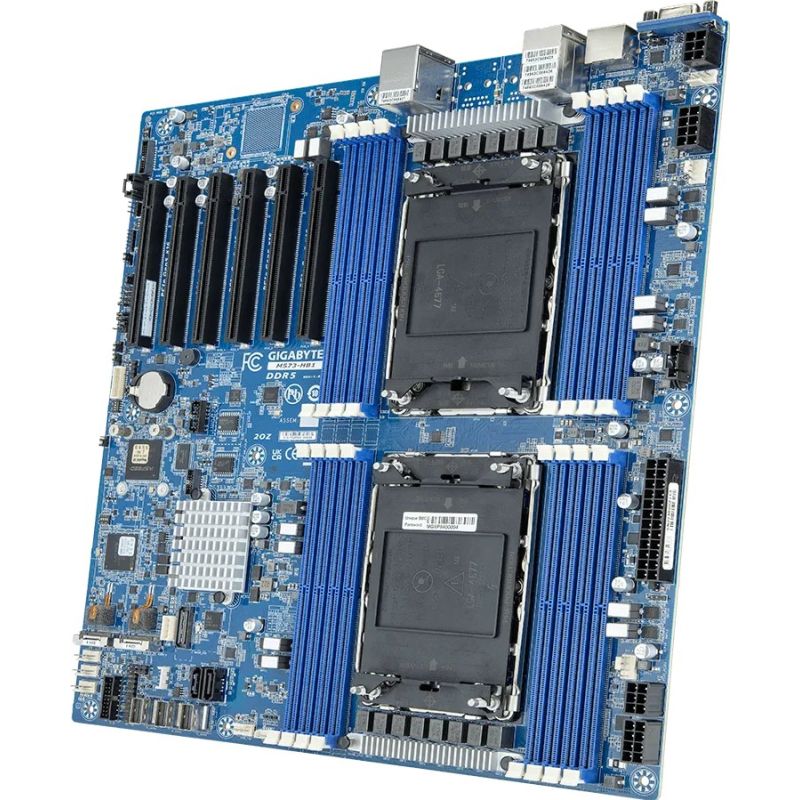

GigaByte MS73-HB1 Dual Intel XEON 5th/4th Gen Mainboard
GigaByte MS73-HB1 Dual Intel XEON 5th/4th Gen Mainboard
GigaByte MS73-HB1 Dual Intel XEON 5th/4th Gen Mainboard
PRICE:
1849,99
€
IN A WAREHOUSE
LAST ITEM!
Goods available on request - delivery time to 9 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor: Intel® Xeon®
- Processor socket: LGA 4677 (Socket E)
- Graphics
- Built-in graphics card model: Aspeed AST2600
- Memory
- Memory Channel Support: Eight Channels
- Supported memory clock speeds
- 5600 MHz
- 4800 MHz
- Memory slot type: DIMM
- Number of memory slots: 16
- Supported memory types: DDR5-SDRAM
- Characteristics
- Motherboard Layout: Intel C741
- Motherboard format: Extended ATX
- Chipset Board Family: Intel
- Purpose: Server
- Weight and dimensions
- Product width: 304.8 mm
- Product depth: 330.2 mm
- Working conditions
- Temperature range (operation): -40 - 60 °C
- Temperature range (storage): 10 - 40 °C
- Relative humidity range: 8 - 80%
- Permissible relative humidity: 20 - 95%
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Front panel connector: Yes
- ATX power socket (24-pin): Yes
- Number of EPS power connectors (8-pin): 2
- Number of CPU fan connectors: 1
- Network
- LAN Controller: Intel® I210-AT
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Packaging data
- Package height: 78 mm
- Package width: 490 mm
- Package depth: 355 mm
- Package contents
- Cables: SATA
- Memory drivers
- RAID levels
- 0
- 1
- 5
- 10
- RAID Service: Yes
- Supported hard drive interfaces: SATA III
- Number of supported storage drive sizes: 12
- RAID levels

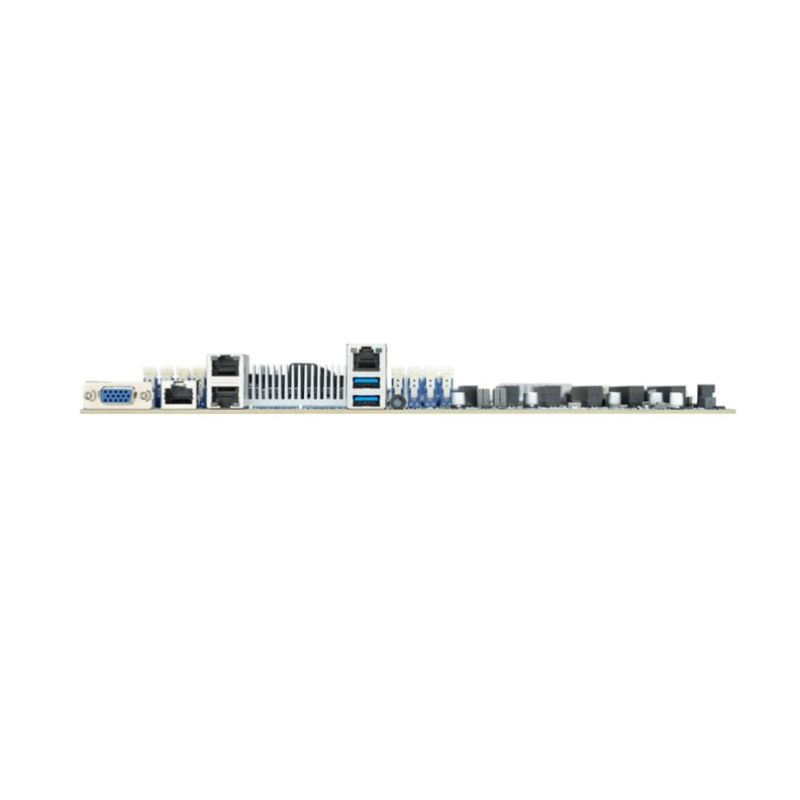

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 2
- Number of VGA (D-Sub) ports: 1
- Number of COM ports: 1
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 5.x) slots: 5
- 2nd largest M.2 key size: 22110
- PCI Express x8 (Gen 5.x) slots: 2
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | No name |
| Department | Electronics |
