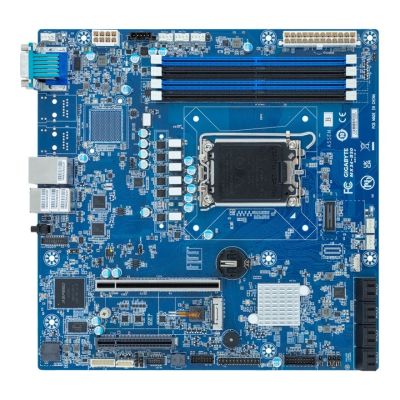

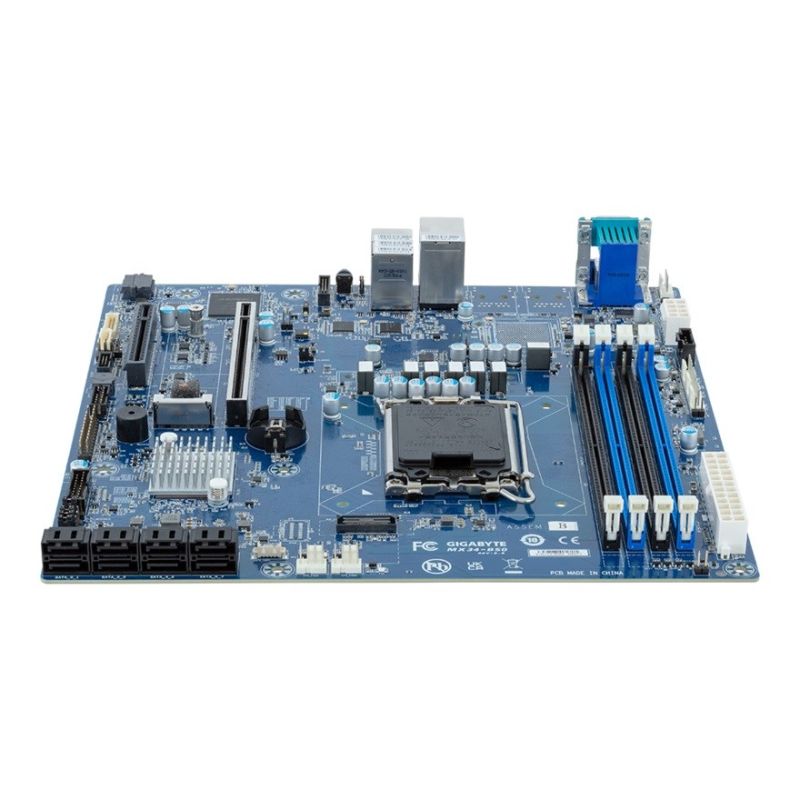

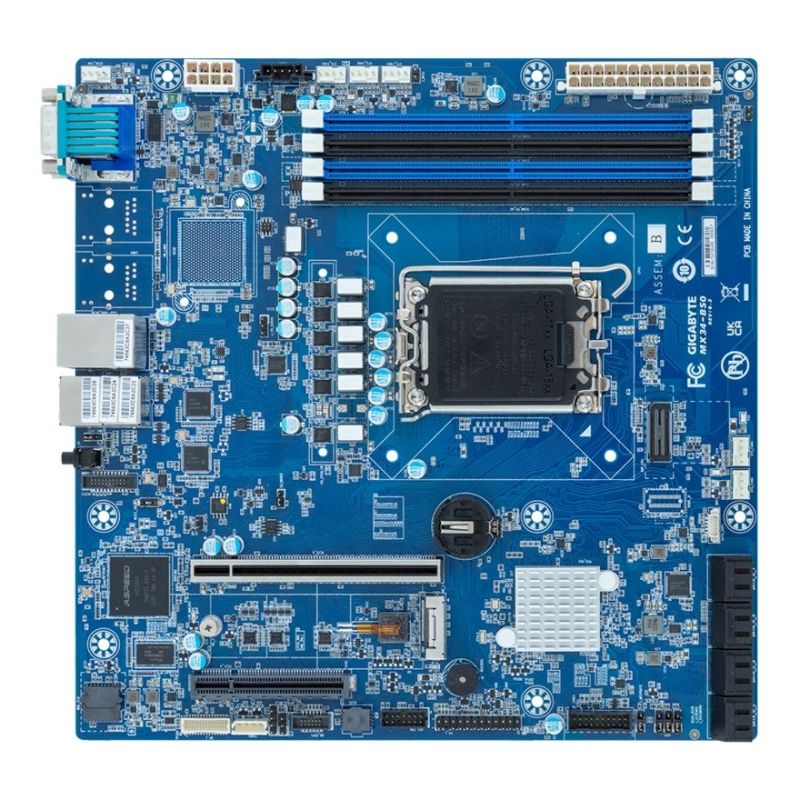

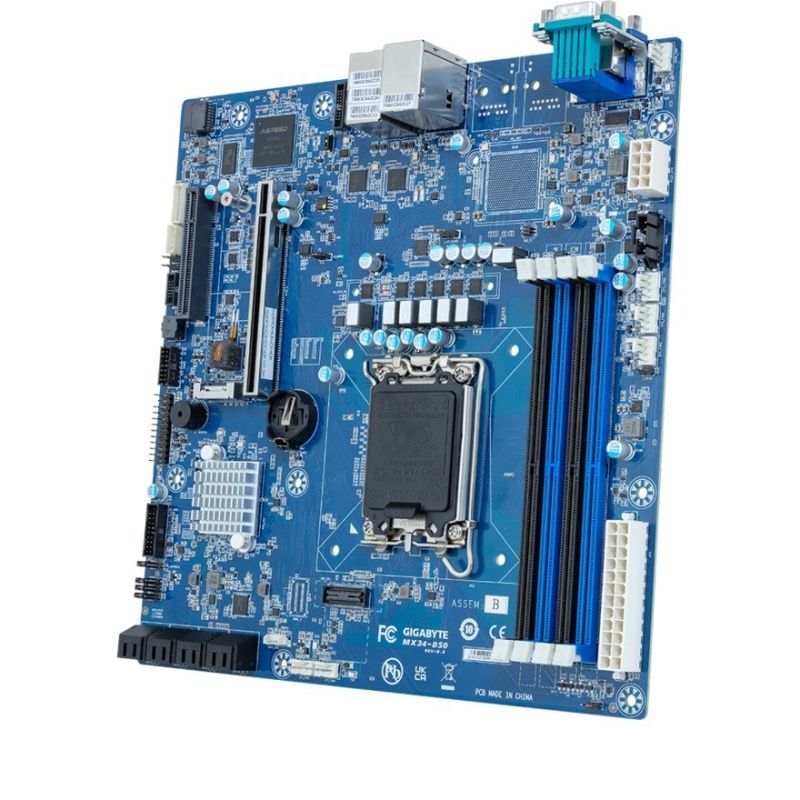

Gigabyte MX34-BS0(MR) Motherboard 1x LGA1700 Intel Xeon E-24XX C262 (4x DIMM, 8x SATA, 1xM.2, 2x1Gbe, IPMI, mATX)
Gigabyte MX34-BS0(MR) Motherboard 1x LGA1700 Intel Xeon E-24XX C262 (4x DIMM, 8x SATA, 1xM.2, 2x1Gbe, IPMI, mATX)
Gigabyte MX34-BS0(MR) Motherboard 1x LGA1700 Intel Xeon E-24XX C262 (4x DIMM, 8x SATA, 1xM.2, 2x1Gbe, IPMI, mATX)
PRICE:
493,99
€
IN A WAREHOUSE
LAST ITEM!
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: LGA 1700
- Maximum number of SMP processors: 1
- Processor manufacturer: Intel
- Processor
- Intel Pentium Gold G7400
- Intel Xeon 6300 series
- Intel Xeon E-2400
- Intel Pentium Gold G7400T
- Processor socket: LGA 1700
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 4400 MHz
- 3600 MHz
- 4000 MHz
- Memory slot type: DIMM
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5 UDIMM
- Supported memory clock speeds
- Characteristics
- Chipset Board Family: Intel
- Product color: Blue
- Motherboard Layout: Intel C262
- Motherboard format: Micro ATX
- Intended use: Server/workstation
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Internal I/O
- Number of case fan connectors: 5
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- Number of SATA ports: 8
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- 12V power connector: Yes
- Network
- Ethernet interface type: 1 Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- Packaging data
- Package height: 78.5 mm
- Package depth: 308.5 mm
- Package width: 321 mm

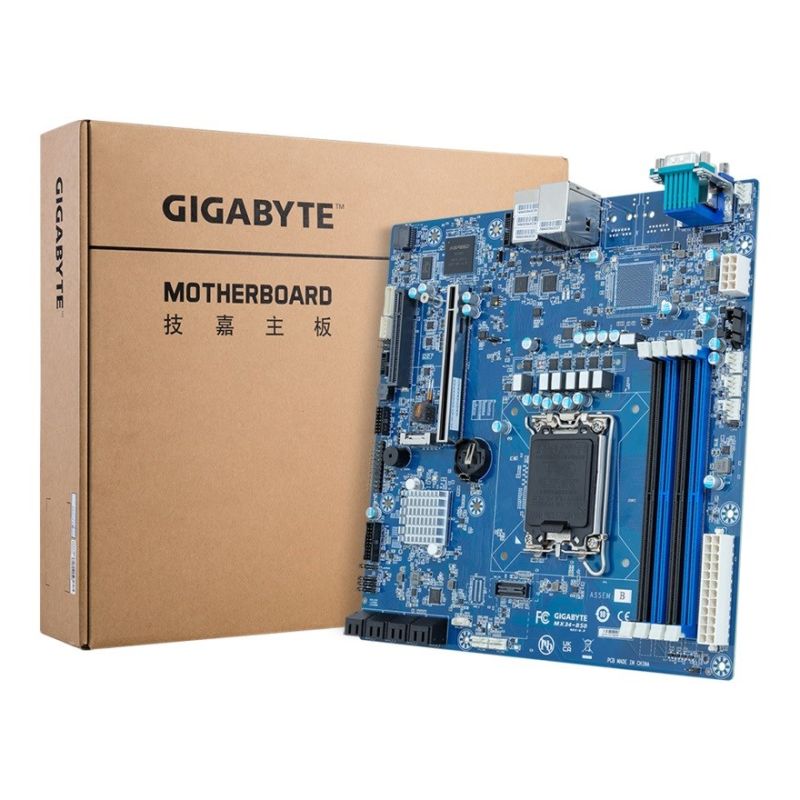

- Package contents
- User manual: Yes
- Cables: 2 x SATA
- I/O Shield: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- Supported RAID configuration: 0,1,5,10

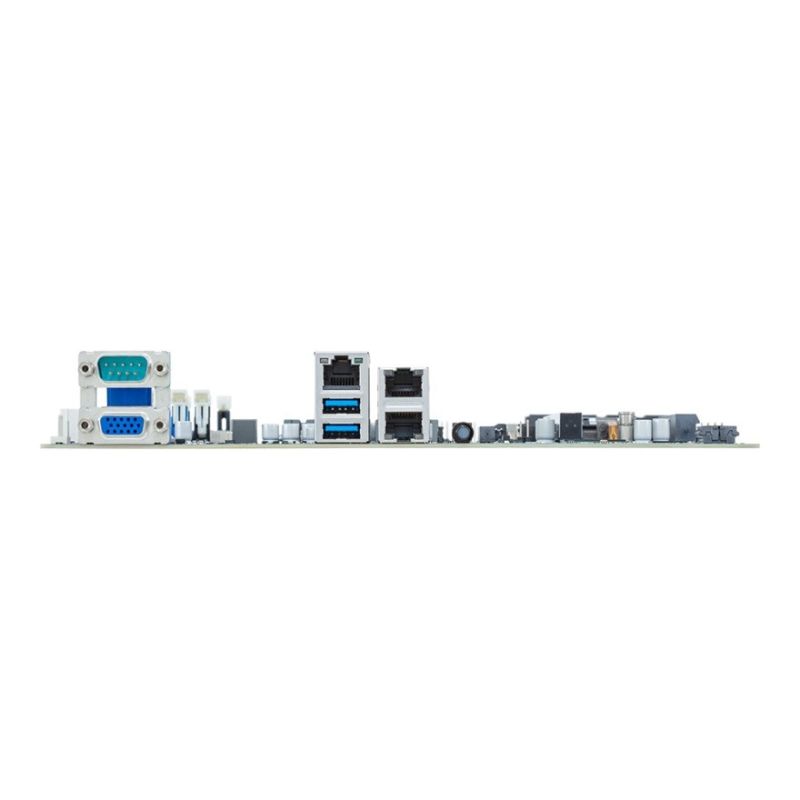

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of VGA (D-Sub) ports: 1
- Number of COM ports: 1
- Port Management LAN: Yes, 1
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x8 (Gen 4.x) slots: 1
- Safety warning
- Warnings
- Dispose of in accordance with local regulations for electronic waste.
- Avoid contact with liquids to prevent electronic damage.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Use only in a dry and well-ventilated place.
- The motherboard may contain electronic components hazardous to health – avoid direct contact.
- Do not open or disassemble the motherboard.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
