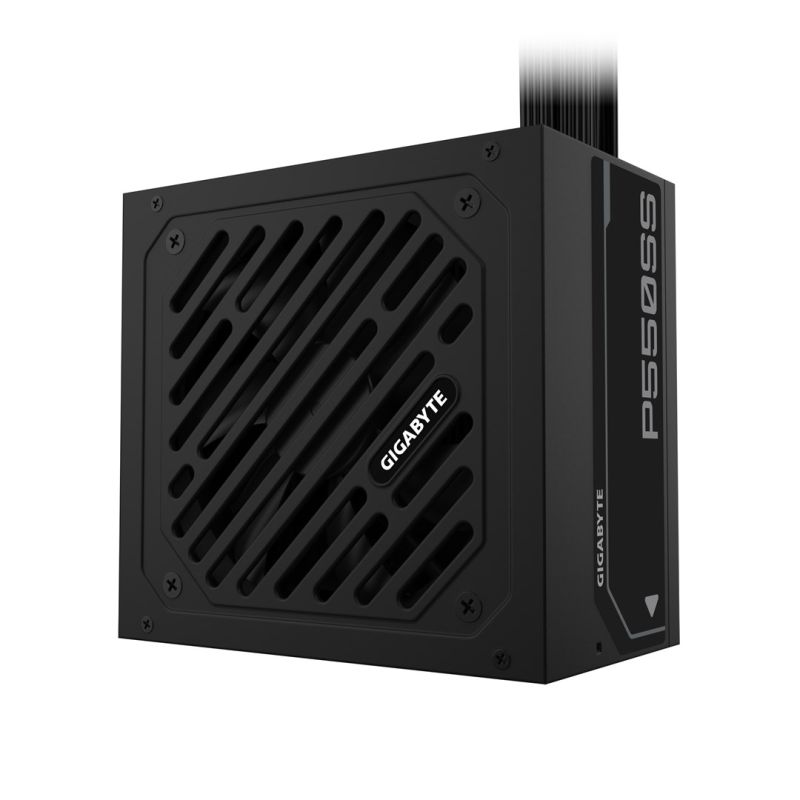

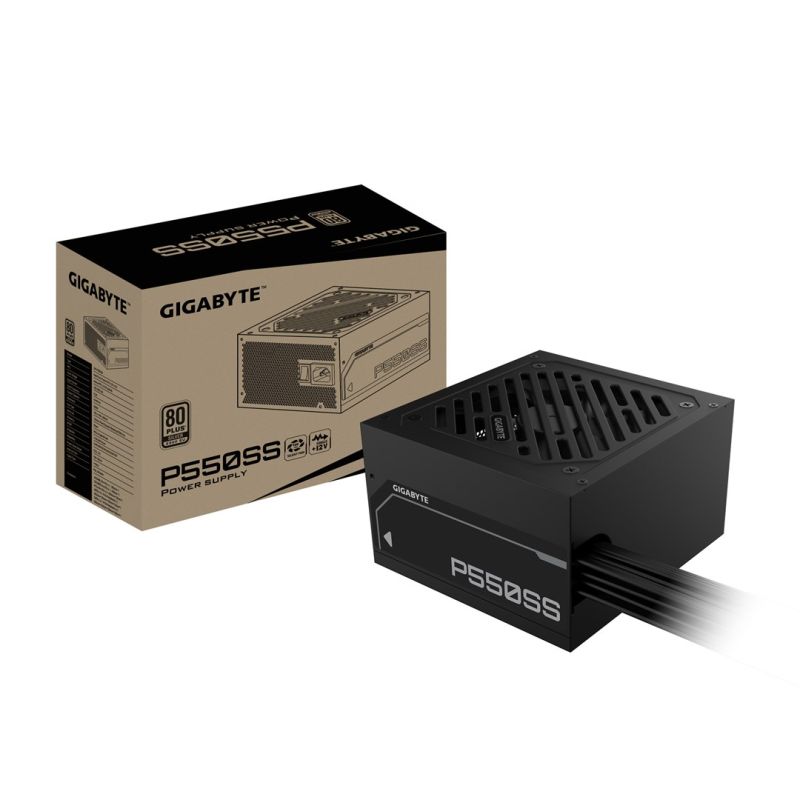

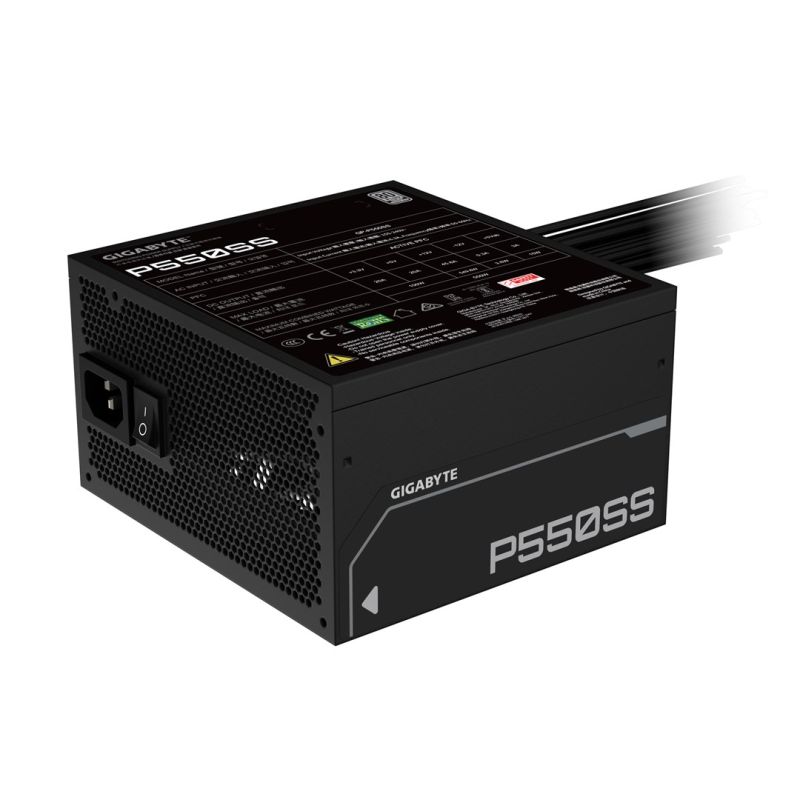

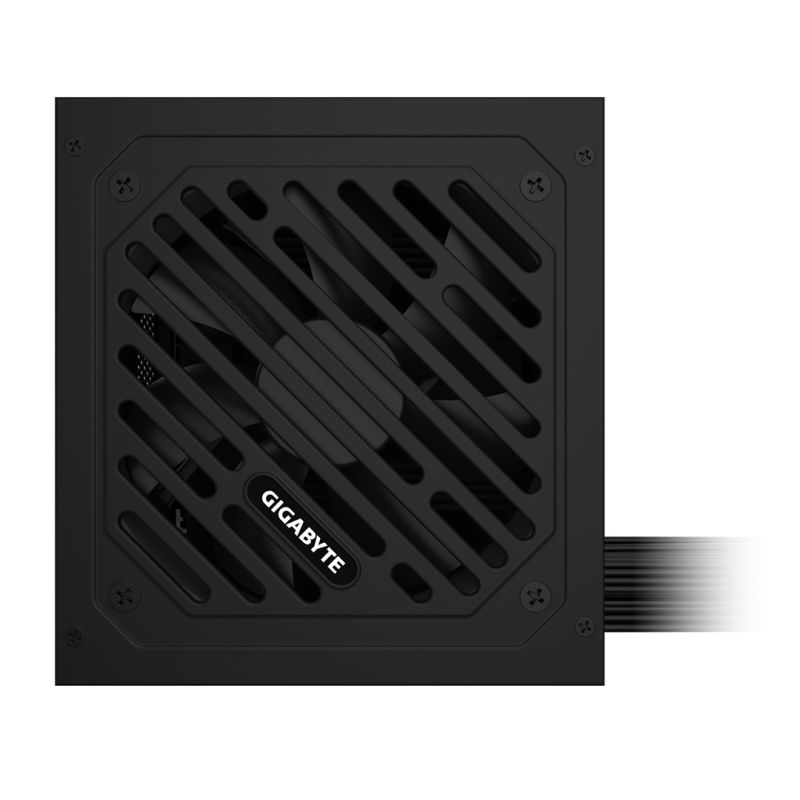

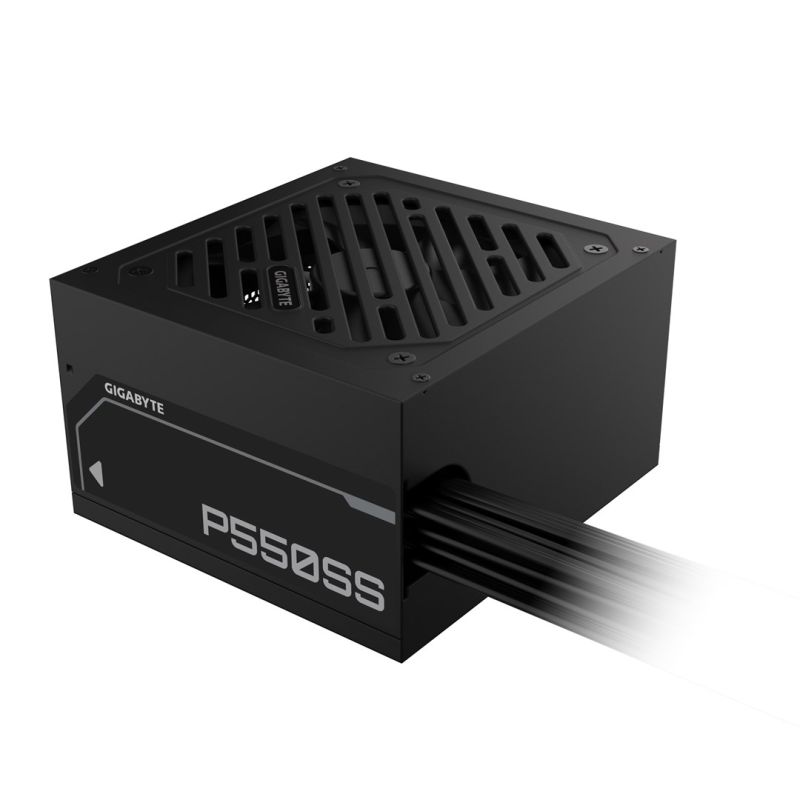

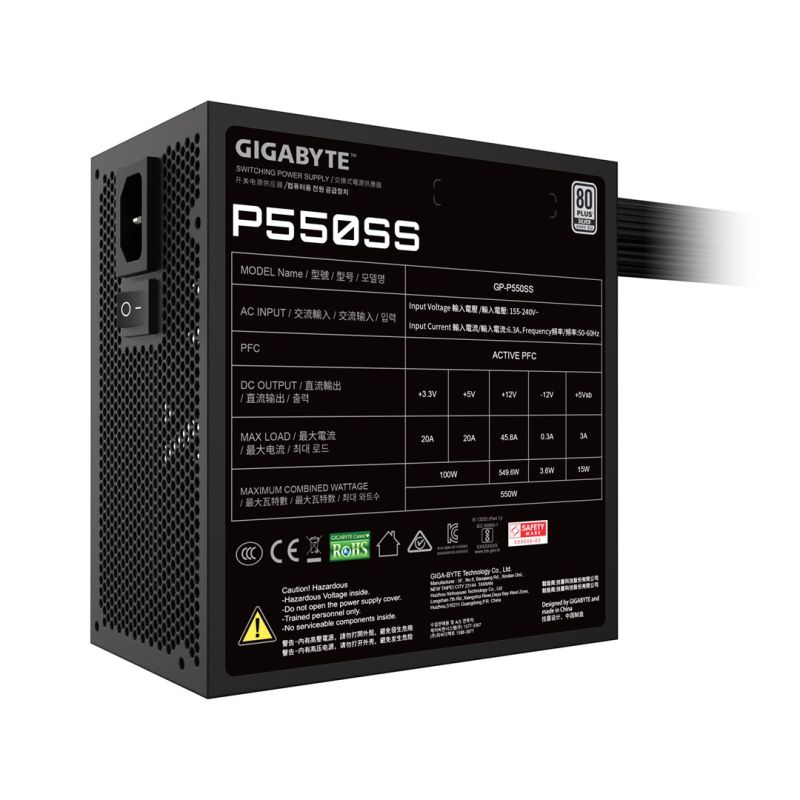

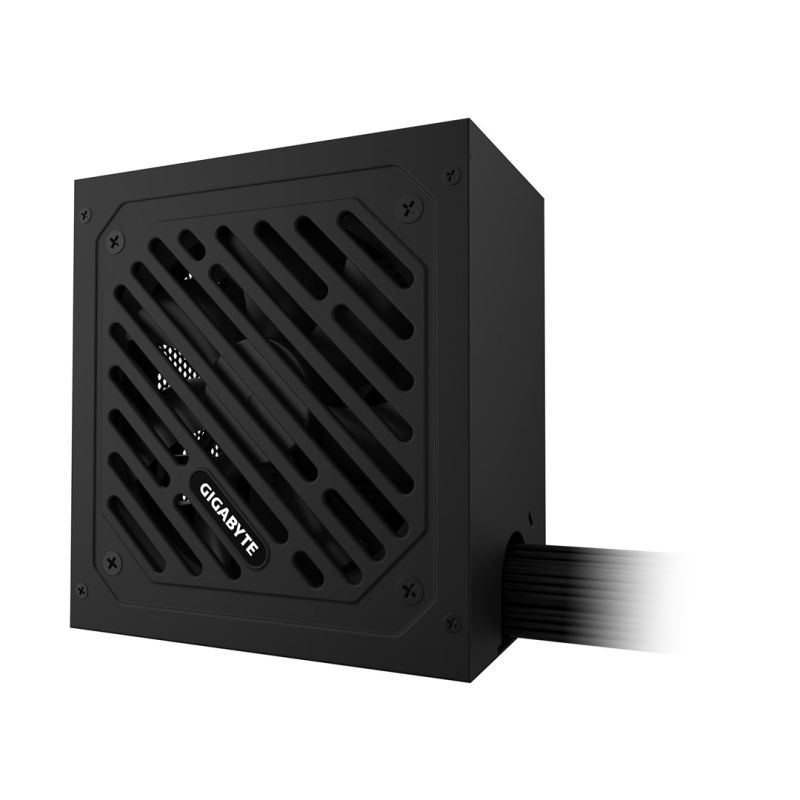

Gigabyte P550SS 550W Power Supply
Gigabyte P550SS 550W Power Supply
Gigabyte P550SS 550W Power Supply
PRICE:
61,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Number of fans: 1 fan
- Cooling type: Active
- Fan bowl diameter: 12 cm
- Built-in switch: Yes
- Fan Location: Top
- Product color: Black
- Power
- Total power (+5 Vsb): 15 W
- Total power (+12V): 549.6 W
- Hold time: 16 ms
- Total power (-12V): 3.6 W
- Total power (+5V): 200 W
- Maximum output current (+3.3V): 20 A
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+12V): 45.8 A
- Maximum output current (+5V): 20A
- Maximum output current (-12V): 0.3A
- Total power (+3.3V): 100 W
- Power protection features
- Overload protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Low voltage protection
- Total power: 550 W
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Input current: 6.3 A
- Power factor: 0.9
- AC input voltage: 155-240V
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Product depth: 140 mm
- Product width: 150 mm
- Product height: 86 mm
- Efficiency
- ATX version: 3.0
- Power supply type (PSU): ATX
- 80 PLUS Certificate: 80 PLUS Bronze
- Bearing technology: HDB
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Ports and interfaces
- CPU power supply connector (4+4 pin): Yes
- ATX power supply connector (20+4 pin): Yes
- Motherboard cable length: 60 cm
- PCI Express slot: Yes
- Floppy drive connector: 1
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 5
- Peripheral (Molex) Power cable length: 500 mm
- SATA power cable length: 500 mm
- CPU power cable length: 60 cm
- PCI Express power cable length: 50 cm
- Peripheral (Molex) Power Connectors (4-pin): 3
- Floppy disk drive slot: Yes
- Wiring Type: Non-Modular
- PCI Express power connectors (6+2 pin): 2
- Logistics data
- Harmonized System (HS) code: 84733020
