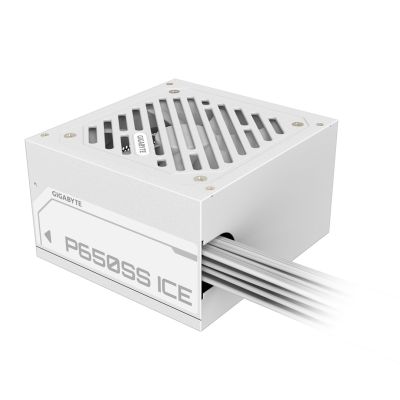

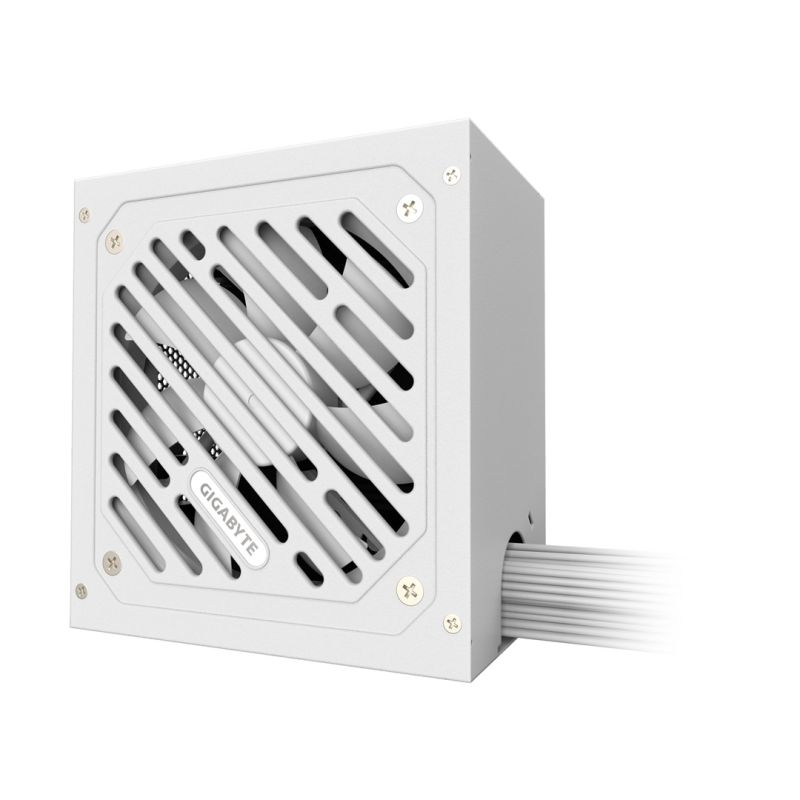

Gigabyte P650SS ICE 650W Power Supply
Gigabyte P650SS ICE 650W Power Supply
Gigabyte P650SS ICE 650W Power Supply
PRICE:
74,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Fan Location: Top
- Number of fans: 1 fan
- Product color: White
- Cooling type: Active
- Fan bowl diameter: 12 cm
- Built-in switch: Yes
- Power
- Maximum output current (+3.3V): 20 A
- Total power (-12V): 3.6 W
- Total power (+3.3V): 100 W
- Maximum output current (+5 Vsb): 3 A
- Total power (+12V): 649.2 W
- Maximum output current (-12V): 0.3A
- AC input frequency: 50/60 Hz
- Power factor: 0.9
- PFC (Power Factor Correction) Type: Active
- Total power (+5 Vsb): 15 W
- Total power (+5V): 100 W
- Power protection features
- Short circuit
- Low voltage protection
- Overcharge protection
- Overload protection
- Maximum output current (+12V): 54.1 A
- Total power: 650 W
- Input current: 6.3 A
- AC input voltage: 155-240V
- Maximum output current (+5V): 20A
- Good Signal Power Delay Range: 100 - 150 ms
- Weight and dimensions
- Product width: 140 mm
- Product depth: 150 mm
- Product weight: 2.23 kg
- Product height: 86 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Silver
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Power supply type (PSU): ATX
- ATX version: 3.0
- Bearing Technology: FDB
- Packaging data
- Packaging type: Box
- Package depth: 206 mm
- Package width: 254 mm
- Package height: 117 mm
- Weight with packaging: 2.6 kg
- Ports and interfaces
- CPU power cable length: 60 cm
- PCI Express power cable length: 65 cm
- Number of SATA power connectors: 5
- CPU power supply connector (4+4 pin): Yes
- P4 CPU connector (4-pin): 1
- Peripheral (Molex) Power Connectors (4-pin): 2
- SATA power cable length
- 120
- 500 mm
- Wiring Type: Non-Modular
- Peripheral (Molex) Power Cable Length
- 500 mm
- 120
- PCI Express power connectors (6+2 pin): 2
- ATX power supply connector (20+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- Floppy disk drive slot: Yes
- Motherboard cable length: 60 cm
- Logistics data
- Warranty period: 3 years
| Name | Details |
|---|---|
| Producer | Gigabyte |
