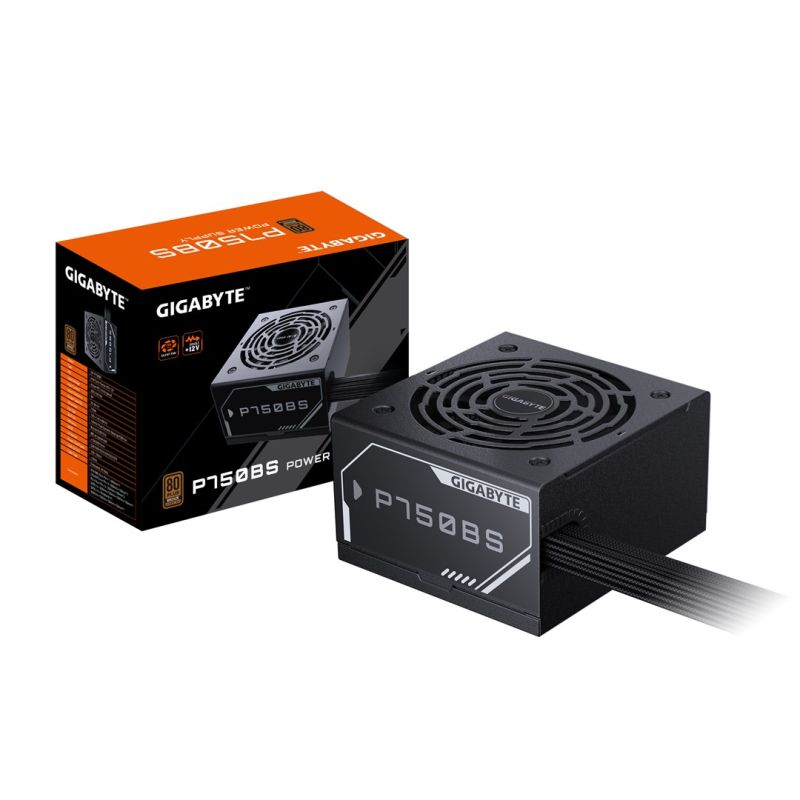

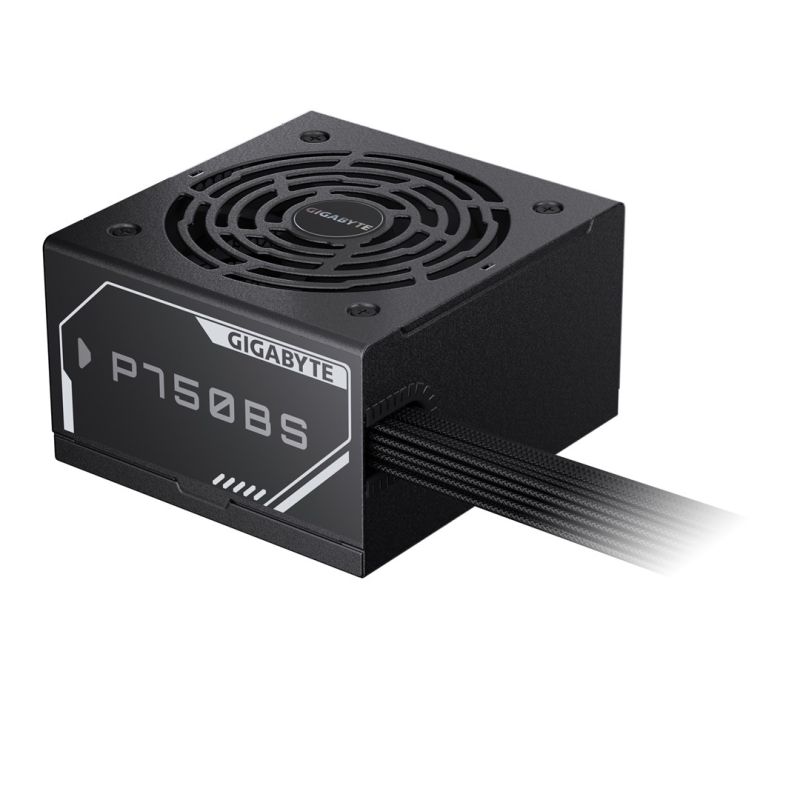

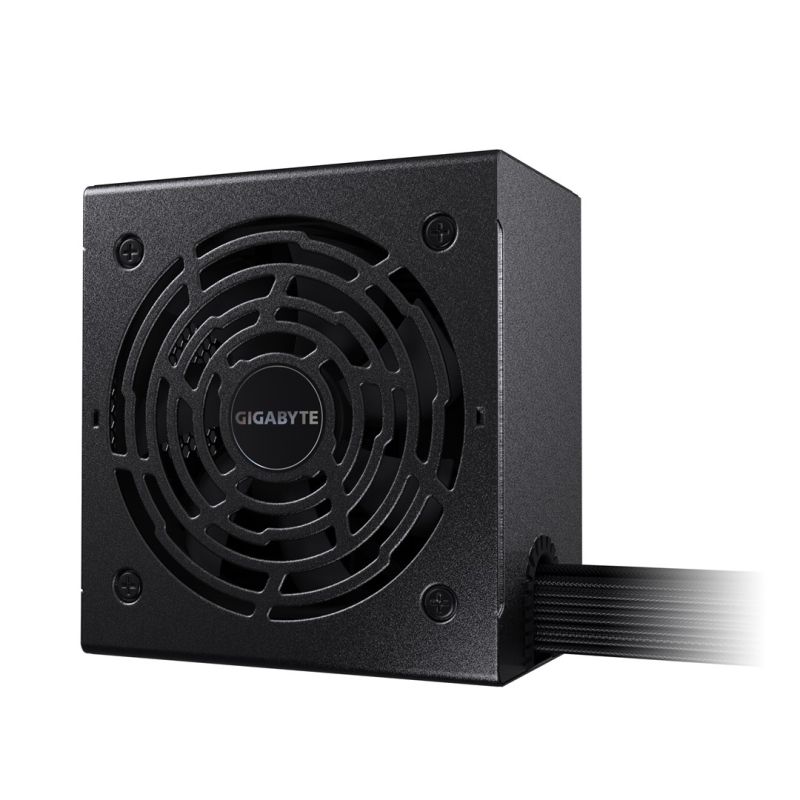

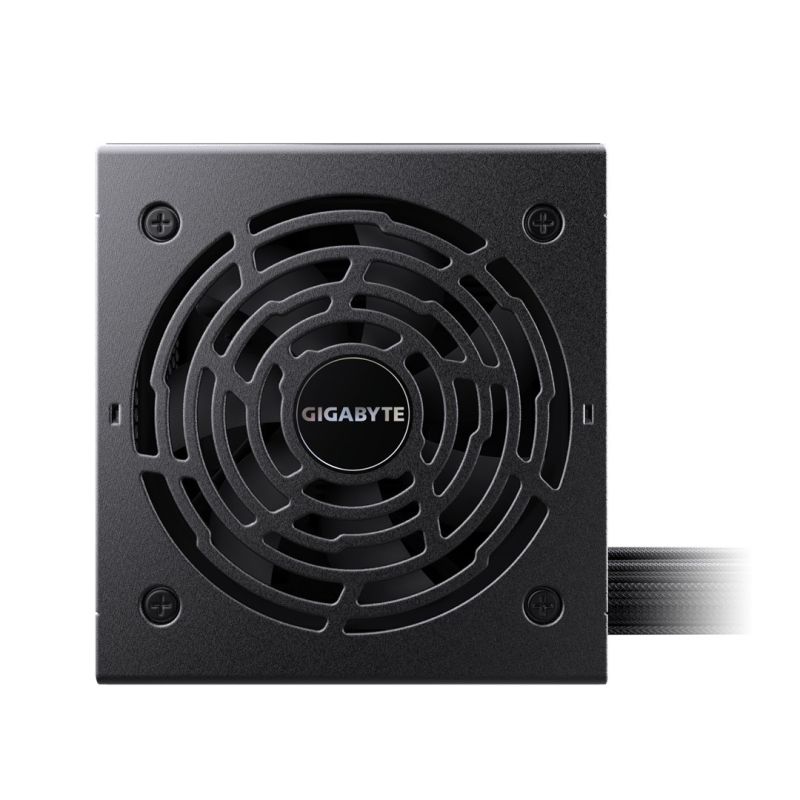

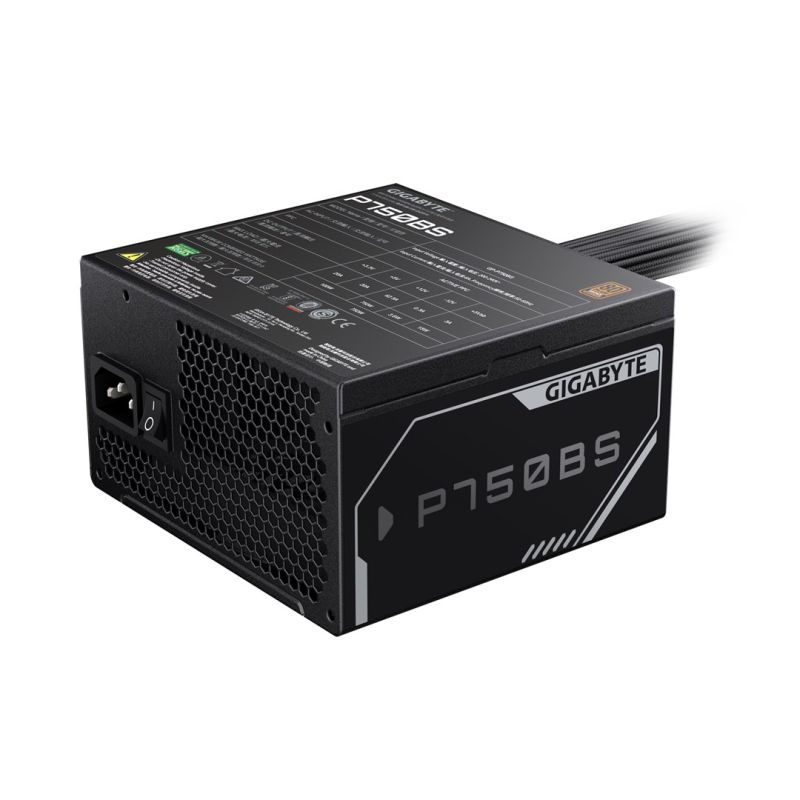

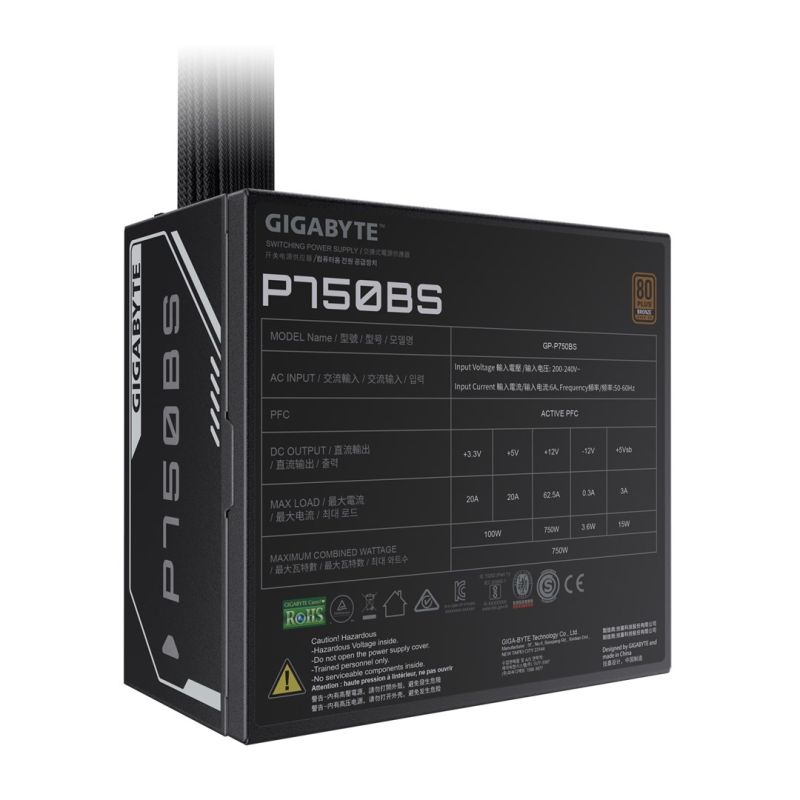

Gigabyte P750BS 750W 80+ Bronze Power Supply
Gigabyte P750BS 750W 80+ Bronze Power Supply
Gigabyte P750BS 750W 80+ Bronze Power Supply
PRICE:
88,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Number of fans: 1 fan
- Product color: Black
- Built-in switch: Yes
- Fan Location: Top
- Power
- Efficiency: 88%
- AC input voltage: 200 - 240 V
- Power factor: 0.9
- Total power: 750 W
- Input current: 6 A
- AC input frequency: 50/60 Hz
- Power protection features
- Overload protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Low voltage protection
- Total power (+3.3V): 100 W
- Hold time: 16 ms
- Total power (+5 Vsb): 15 W
- Maximum output current (+3.3V): 20 A
- Good Signal Power Delay Range: 100 - 150 ms
- Total power (+12V): 750 W
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 62.5A
- Total power (+5V): 100 W
- Maximum output current (+5V): 20A
- Maximum output current (+5 Vsb): 3 A
- Total power (-12V): 3.6 W
- Maximum output current (-12V): 0.3A
- Weight and dimensions
- Product width: 150 mm
- Product depth: 140 mm
- Product height: 86 mm
- Product weight: 2.22 kg
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS Bronze
- Intended use: PC
- Power supply type (PSU): ATX
- Bearing Technology: FDB
- Packaging data
- Package width: 254 mm
- Package height: 117 mm
- Packaging type: Box
- Weight with packaging: 2.68 kg
- Package depth: 206 mm
- Ports and interfaces
- Floppy disk drive slot: Yes
- Peripheral (Molex) Power Connectors (4-pin): 2
- Wiring Type: Non-Modular
- PCI Express power connectors (6+2 pin): 4
- CPU power supply connector (4+4 pin): Yes
- SATA power cable length
- 500 mm
- 150
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) Power Cable Length
- 600
- 150
- Motherboard cable length: 60 cm
- ATX power supply connector (20+4 pin): Yes
- Number of SATA power connectors: 7
- Floppy drive connector: 2
- PCI Express slot: Yes
- Logistics data
- Warranty period: 3 years
| Name | Details |
|---|---|
| Producer | Gigabyte |
