Gigabyte Q870M D3H (Q870,S1851,mATX,DDR5
Gigabyte Q870M D3H (Q870,S1851,mATX,DDR5
Gigabyte Q870M D3H (Q870,S1851,mATX,DDR5
PRICE:
313,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor: Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Graphics
- HDCP version: 2.3
- HDCP: Yes
- Parallel Processing Support: Not Supported
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Supported memory clock speed (max): 6400 MHz
- Memory slot type: DIMM
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- 6000 MHz
- 5800 MHz
- 6200 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Characteristics
- Intended use: PC
- Cooling type: Passive
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Motherboard Layout: Intel Q870
- Monitoring computer status
- Water cooling
- Fan
- Tension
- Temperature
- Audio chip: Realtek ALC897
- Power supply type: ATX
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Product color: Dark brown
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 244 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Front panel connector: Yes
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of case fan connectors: 2
- Parallel connector: Yes
- 12V power connector: Yes
- Number of CPU fan connectors: 2
- Number of water pump connections: 2
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED connectors: 1
- Serial port connector: 2
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Network
- Ethernet network interface type
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Fast Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- LAN controller: Realtek RTL8125
- Ethernet network interface type
- BIOS
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- ACPI version: 5.0
- Packaging data
- Package depth: 265 mm
- Package height: 54 mm
- Package width: 265 mm
- Weight with packaging: 930 g
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4
- RAID Service: Yes
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 0
- 10
- 1
- 5

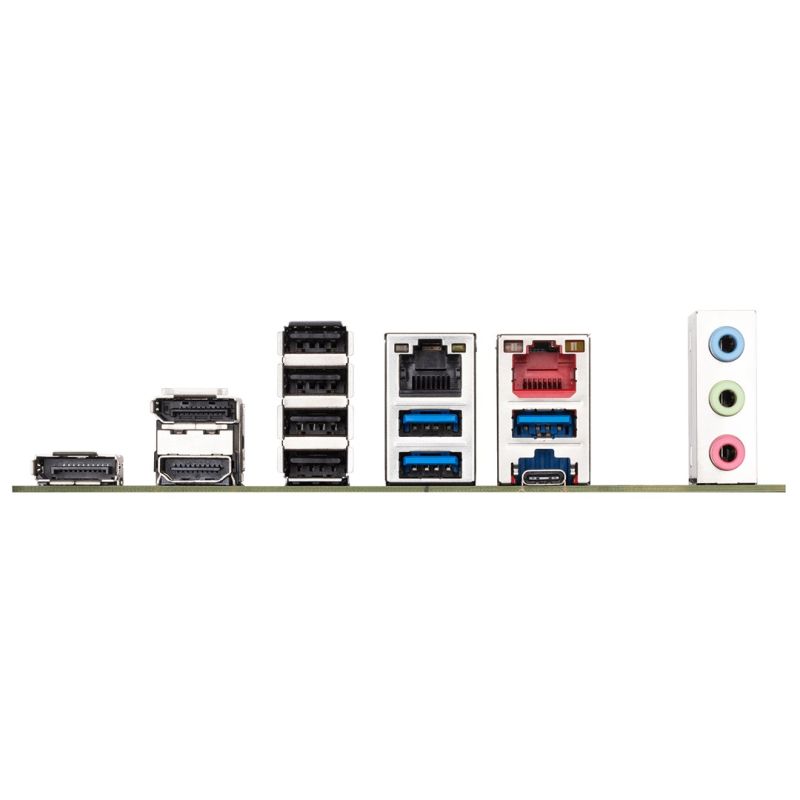

- Rear Panel I/O Ports
- Microphone: Yes
- Number of HDMI ports: 1
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Headphone outputs: 1
- HDMI version: 2.1
- Number of Ethernet LAN ports (RJ-45): 2
- Number of DisplayPorts: 2
- DisplayPort version: 2.1
- Number of USB 2.0 ports: 4
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- Number of M.2 (M) slots: 2
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Supported battery type: CR2032
- Number of battery compartments: 1
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 840 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
