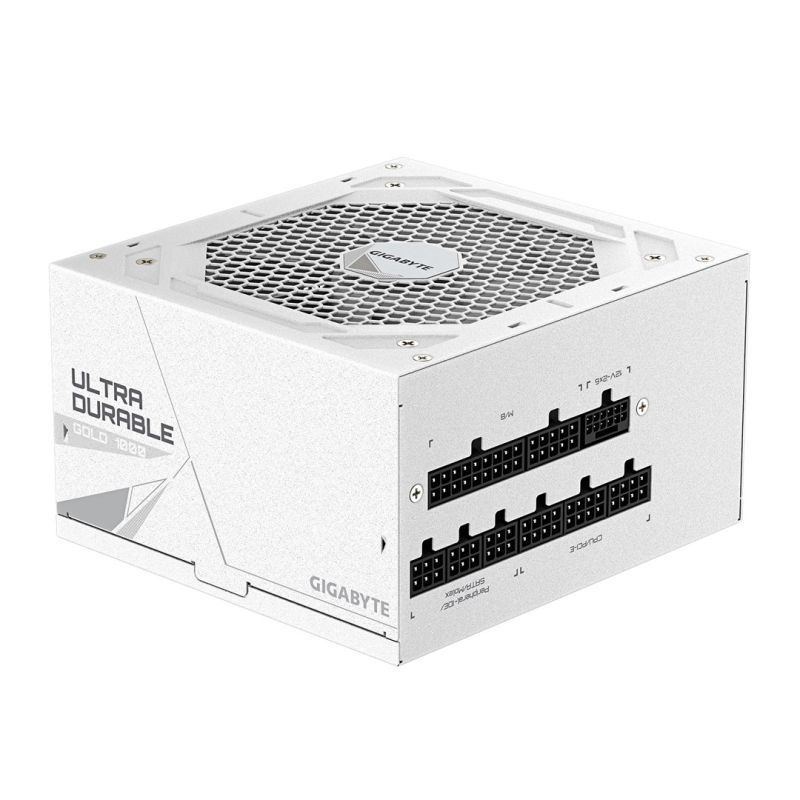

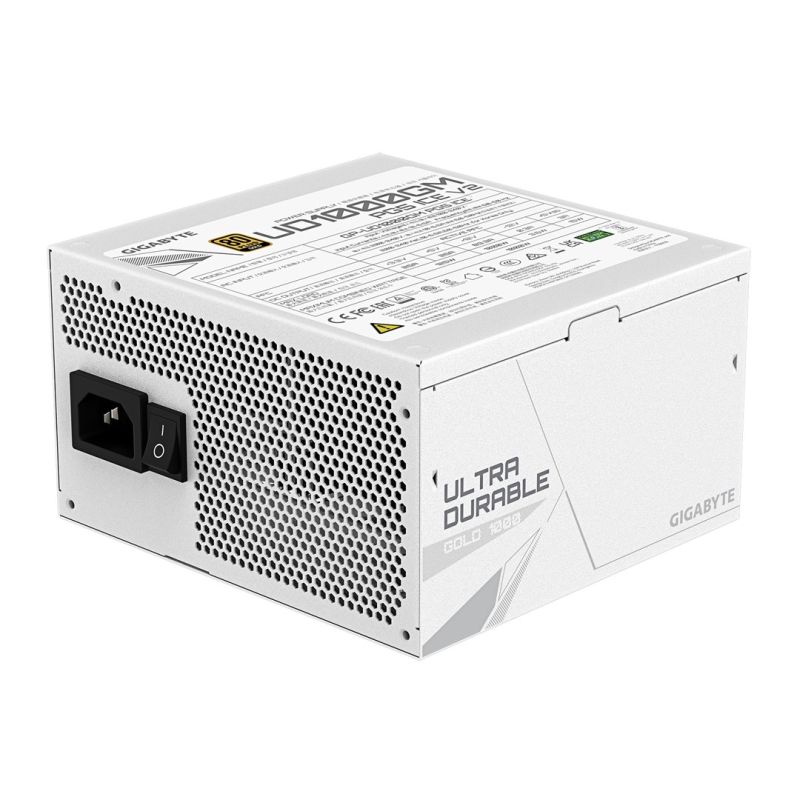

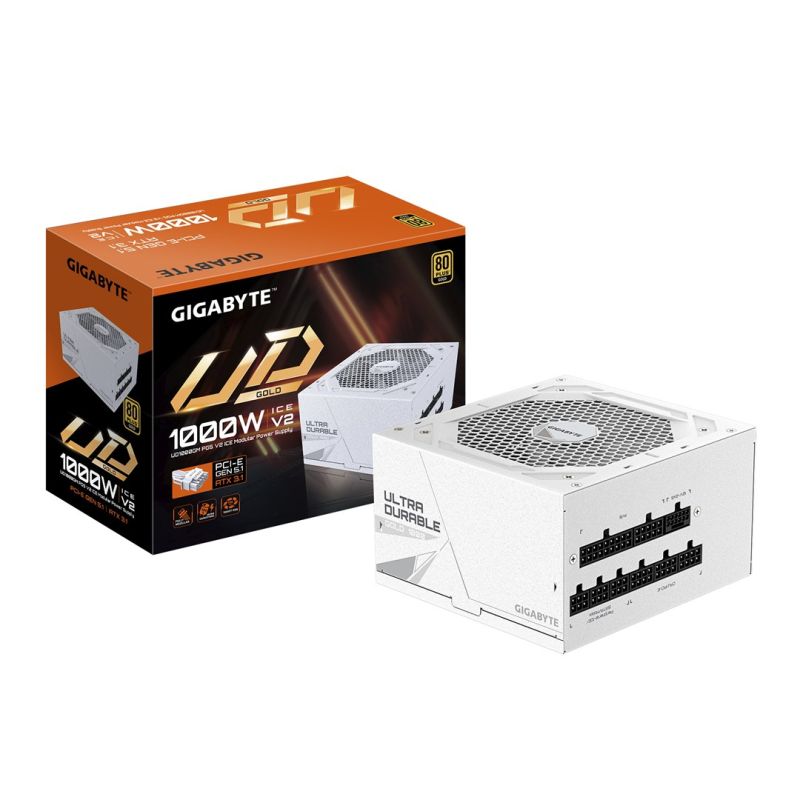

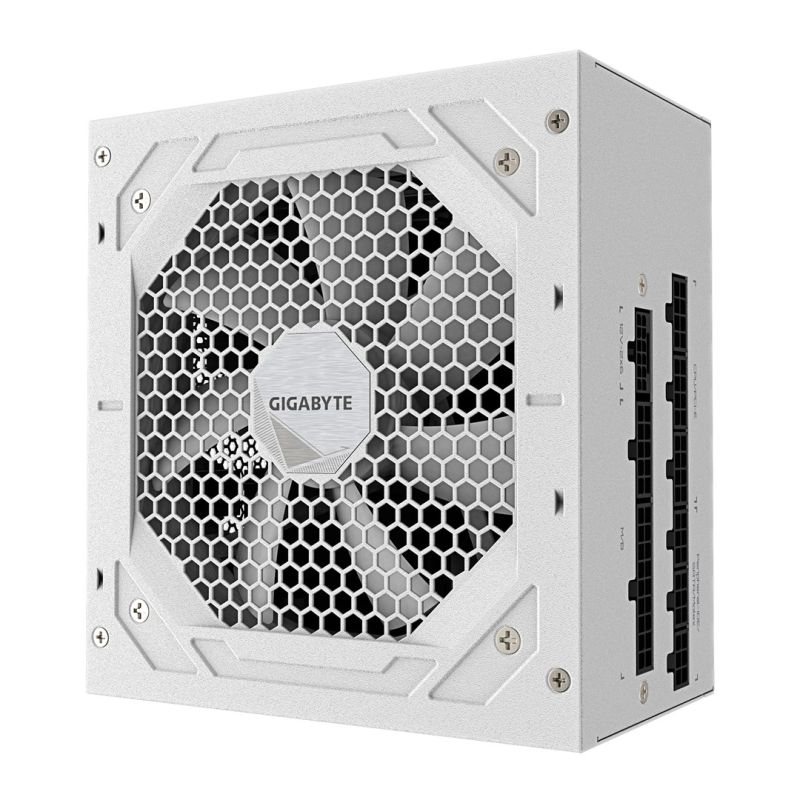

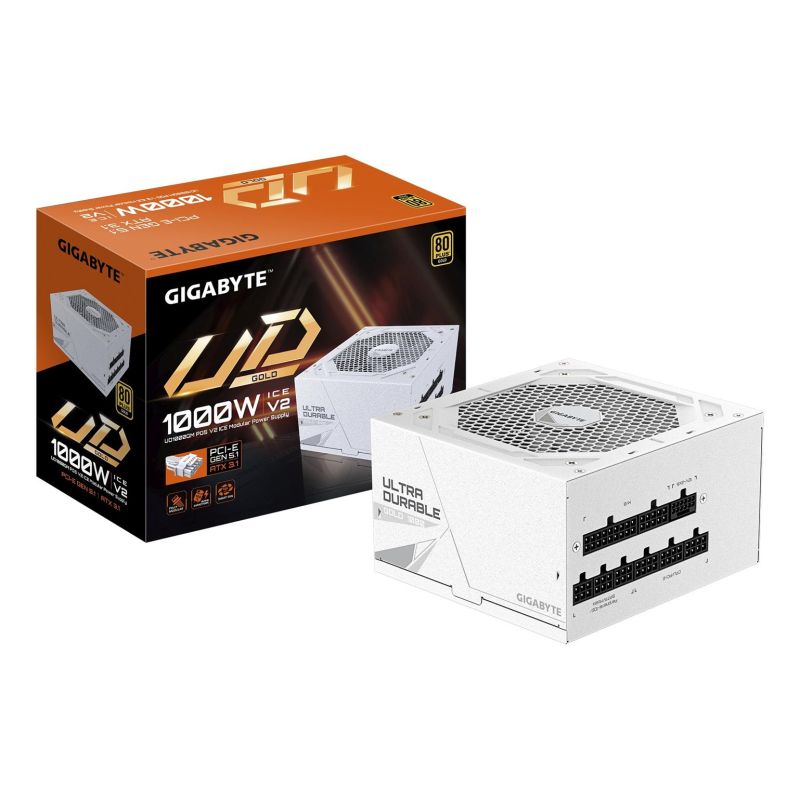

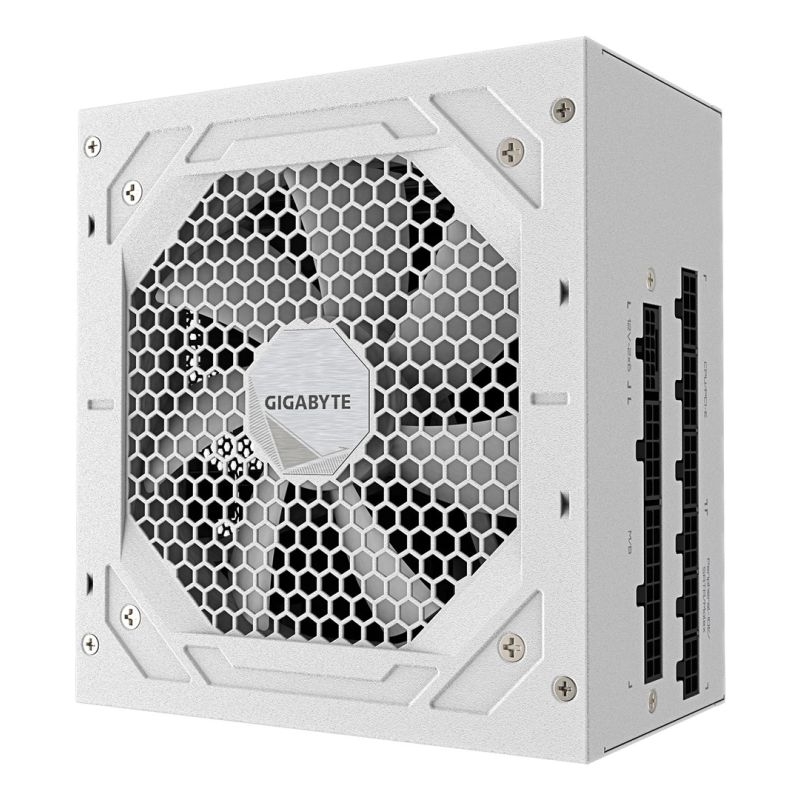

Gigabyte UD1000GM 1000W PG5 ICE Power Supply
Gigabyte UD1000GM 1000W PG5 ICE Power Supply
Gigabyte UD1000GM 1000W PG5 ICE Power Supply
PRICE:
195,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design

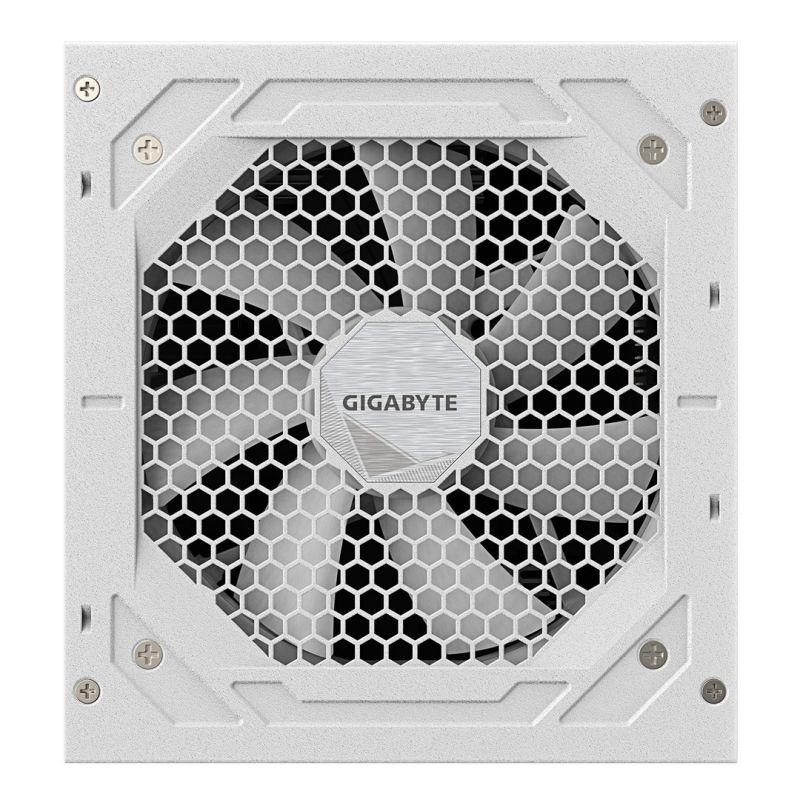

- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Built-in switch: Yes
- Product color: White
- Cooling type: Active

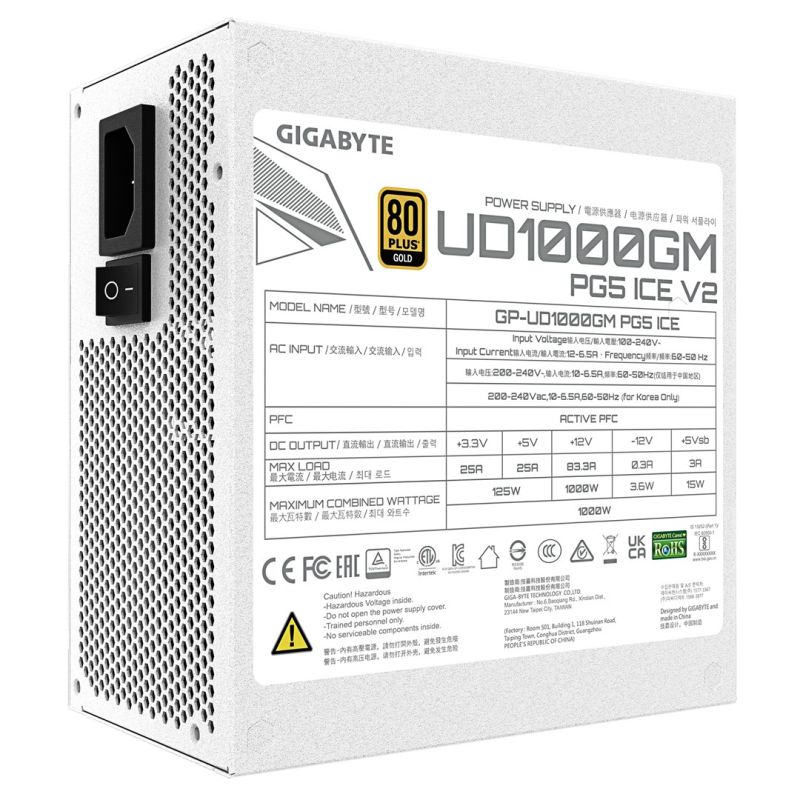

- Power
- Power factor: 0.9
- Power protection features
- OPP
- SCP
- OVP
- OTP
- OCP
- UVP
- Total power: 1000 W
- Efficiency: 90%
- Maximum output current (-12V): 0.3A
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+5V): 25A
- PFC (Power Factor Correction) Type: Active
- Total power (+12V): 1000 W
- Total power (+3.3V): 125 W
- Total power (+5 Vsb): 15 W
- Total power (+5V): 125 W
- Maximum output current (+3.3V): 25 A
- Total power (-12V): 3.6 W
- Hold time: 16 ms
- Maximum output current (+12V): 83.3A
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 - 6.5 A
- Weight and dimensions
- Product depth: 140 mm
- Product height: 86 mm
- Product width: 150 mm
- Efficiency
- Power supply type (PSU): ATX
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Gold
- MTBF (Mean Time Between Failures): 100000 h
- ATX version: 3.1

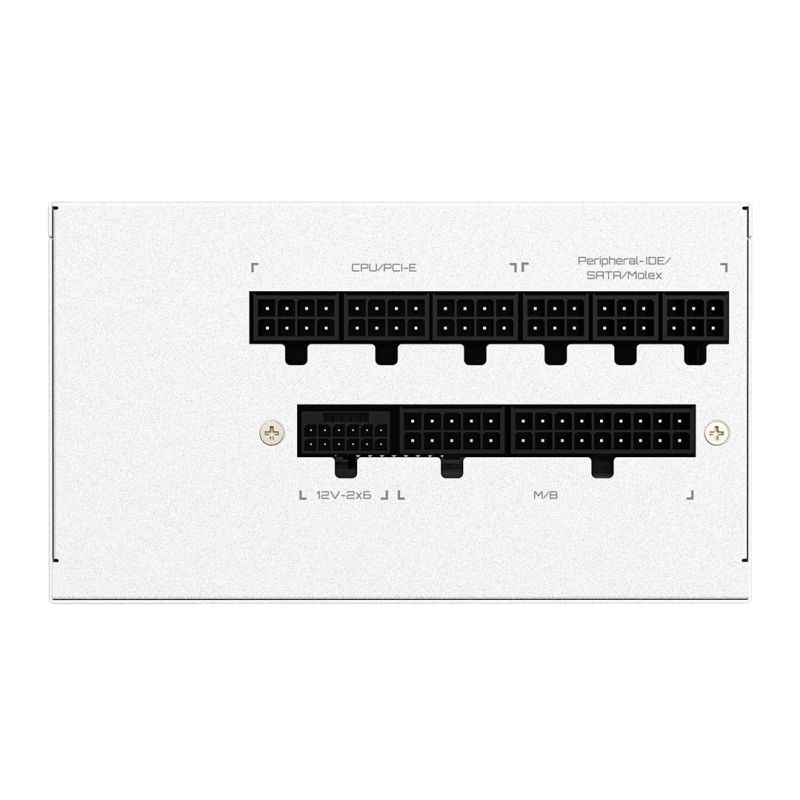

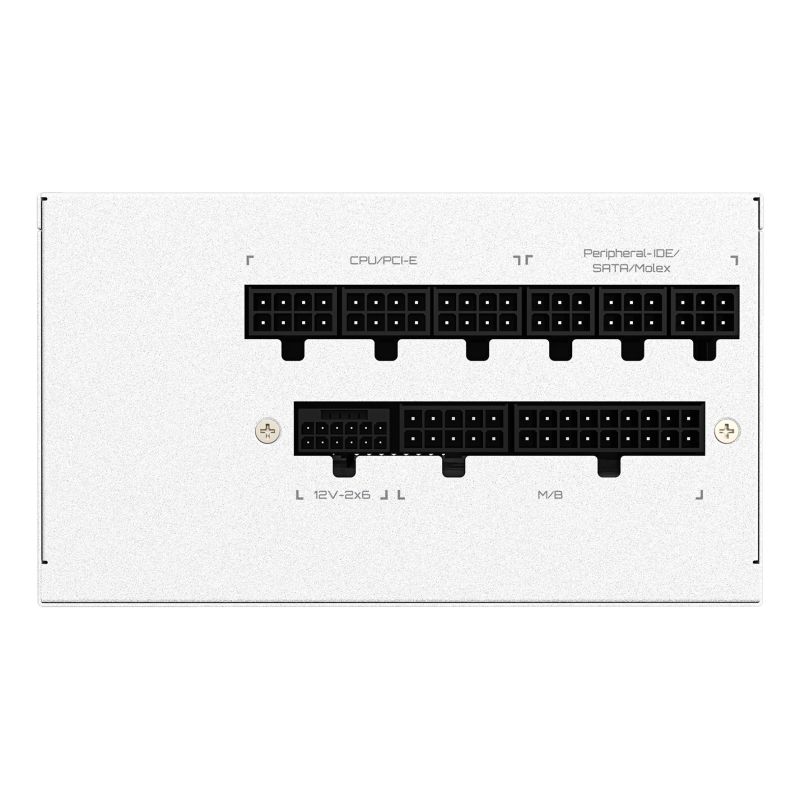

- Ports and interfaces
- Wiring Type: Fully Modular
- CPU power supply connector (4+4 pin): Yes
- PCI Express slot: Yes
- PCI Express power connectors (12+4 pin): 1
- Motherboard power connector: 20+4 pin ATX
- Number of EPS connectors: 2
- PCI Express power connectors (12+4 pin) cable length: 700 mm
- Number of SATA power connectors: 8
- PCI Express power connectors (6+2 pin): 4
- Motherboard cable length: 61 cm
