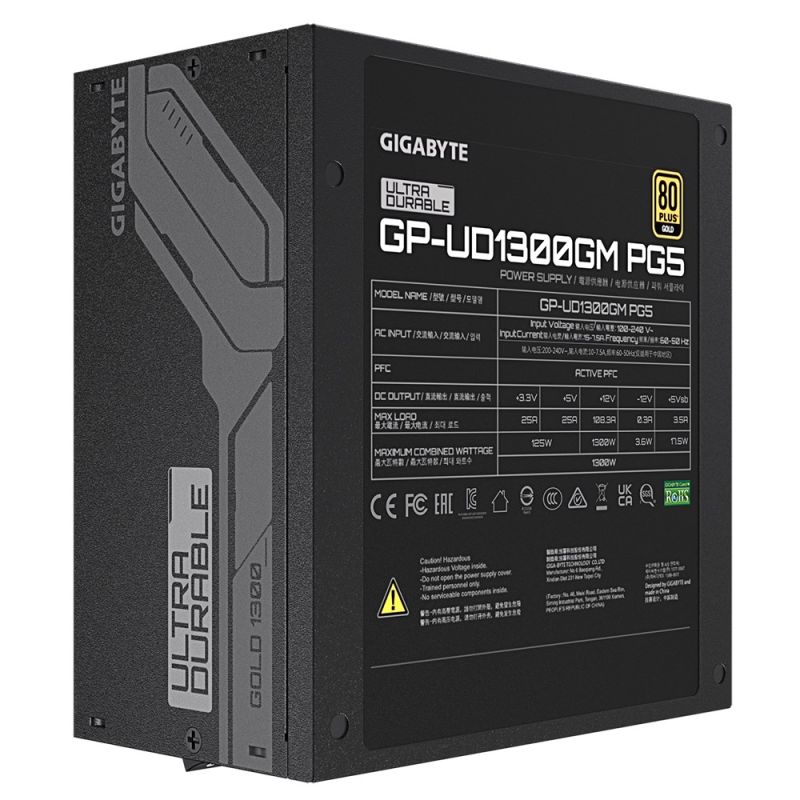

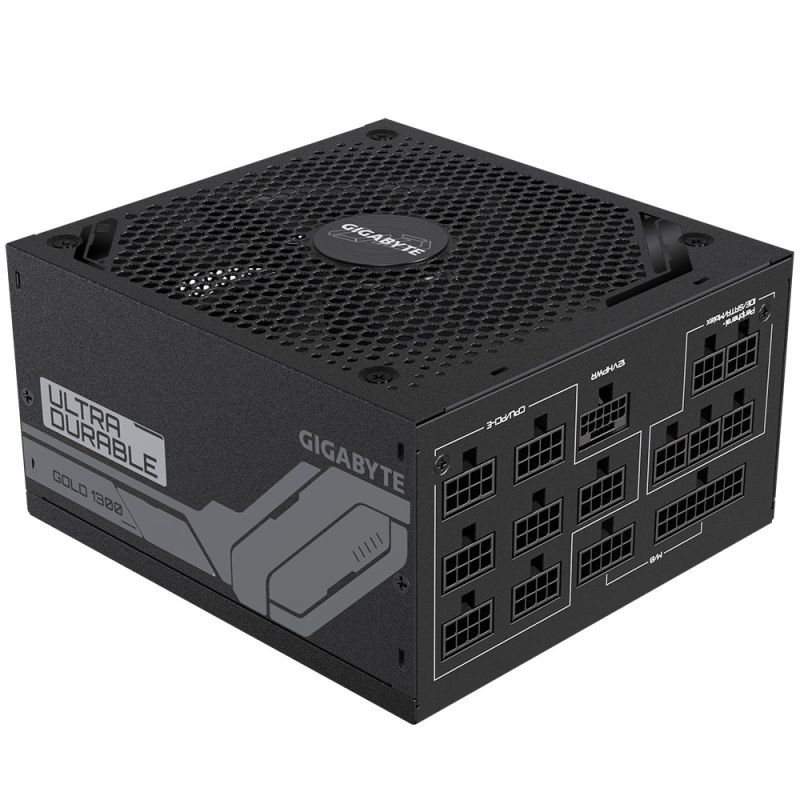

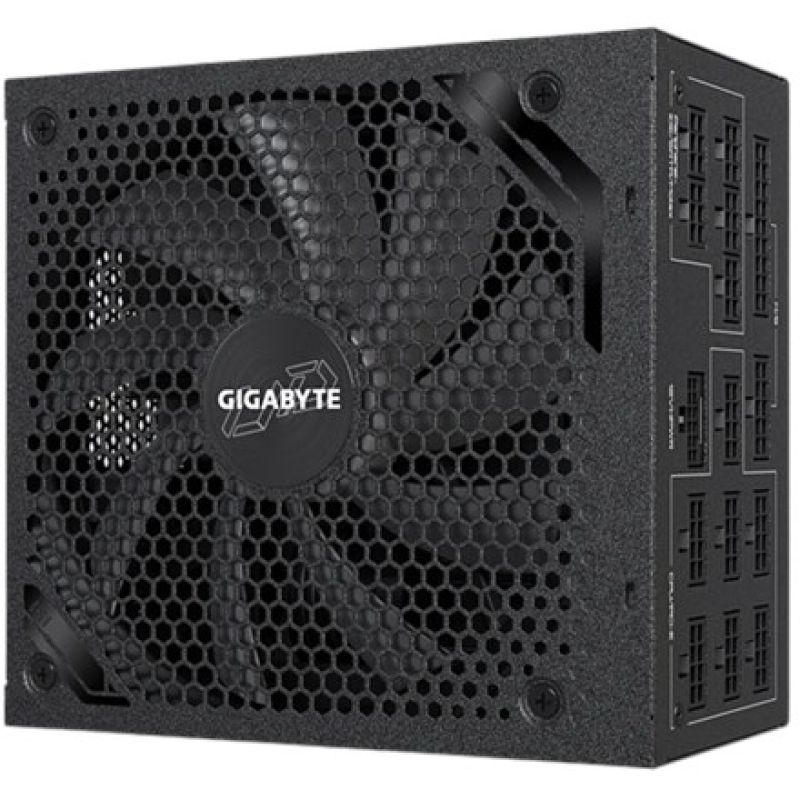

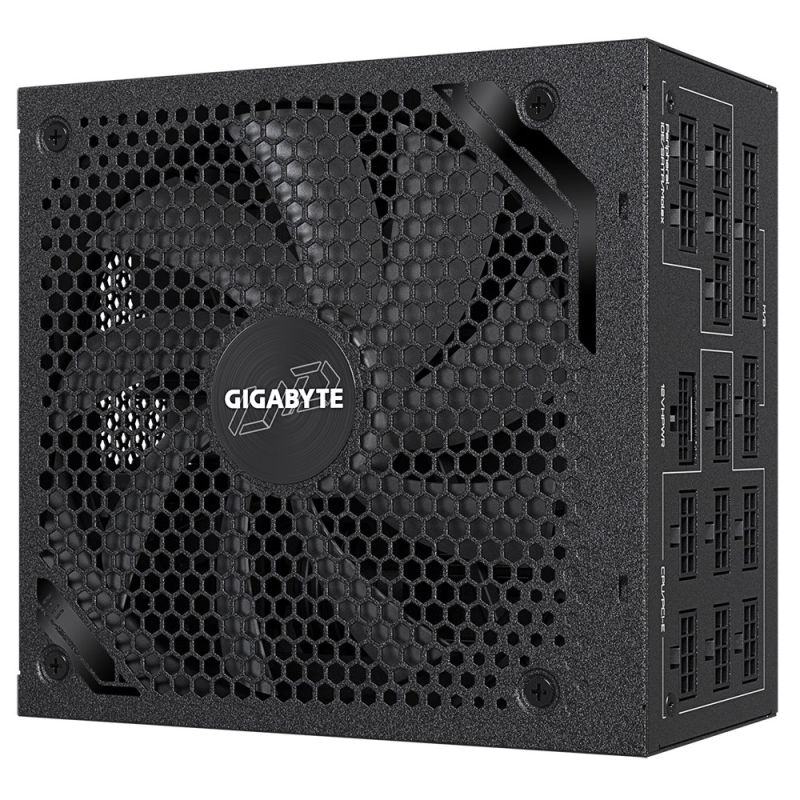

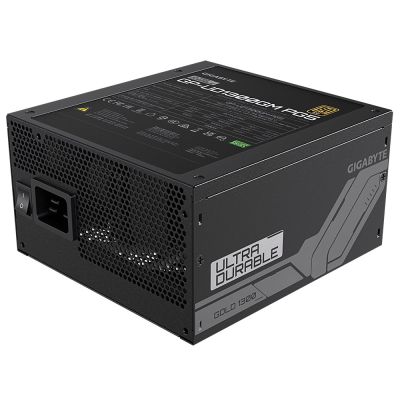

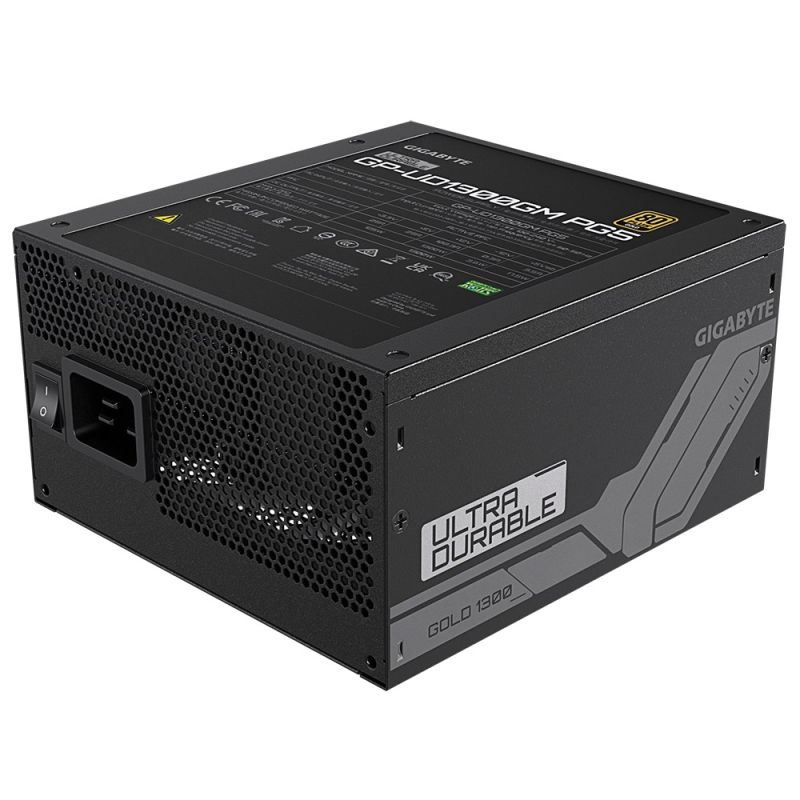

Gigabyte UD1300GM PG5 1300W 80+ Gold Power Supply
Gigabyte UD1300GM PG5 1300W 80+ Gold Power Supply
Gigabyte UD1300GM PG5 1300W 80+ Gold Power Supply
PRICE:
357,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Product color: Black
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Backlight: No

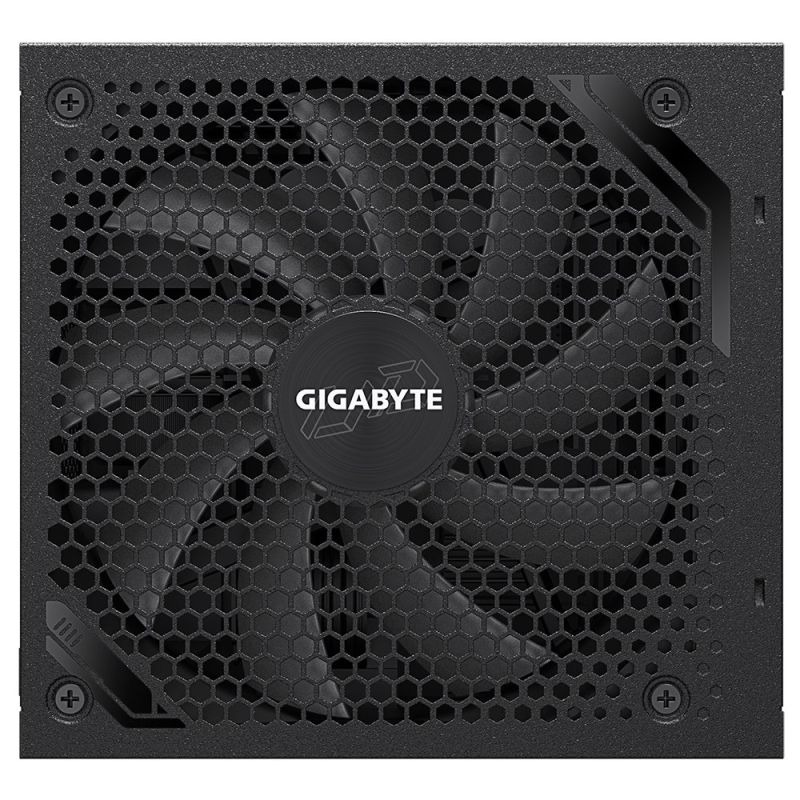

- Fan Location: Top
- Power
- AC input voltage: 100 - 240 V
- Input current: 12 - 6 A
- AC input frequency: 50 - 60 Hz
- Maximum output current (+5 Vsb): 3.5 A
- Maximum output current (+5V): 25A
- Maximum input current (@ 110V): 6 A
- Power protection features
- Overload protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Low voltage protection
- Maximum output current (-12V): 0.3A
- Total power (+3.3V): 125 W
- Hold time: 16 ms
- Total power (+5 Vsb): 17.5 W
- Maximum output current (+12V): 108.3A
- Total power (+12V): 1300 W
- Maximum input current (@ 220V): 12 A
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Total power (-12V): 3.6 W
- Maximum output current (+3.3V): 25 A
- Total power: 1300 W
- Total power (+5V): 125 W
- Weight and dimensions
- Product depth: 160 mm
- Product height: 86 mm
- Product width: 150 mm
- Efficiency
- Noise level: 40 dB
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): ATX
- Intended use: PC
- Packaging data

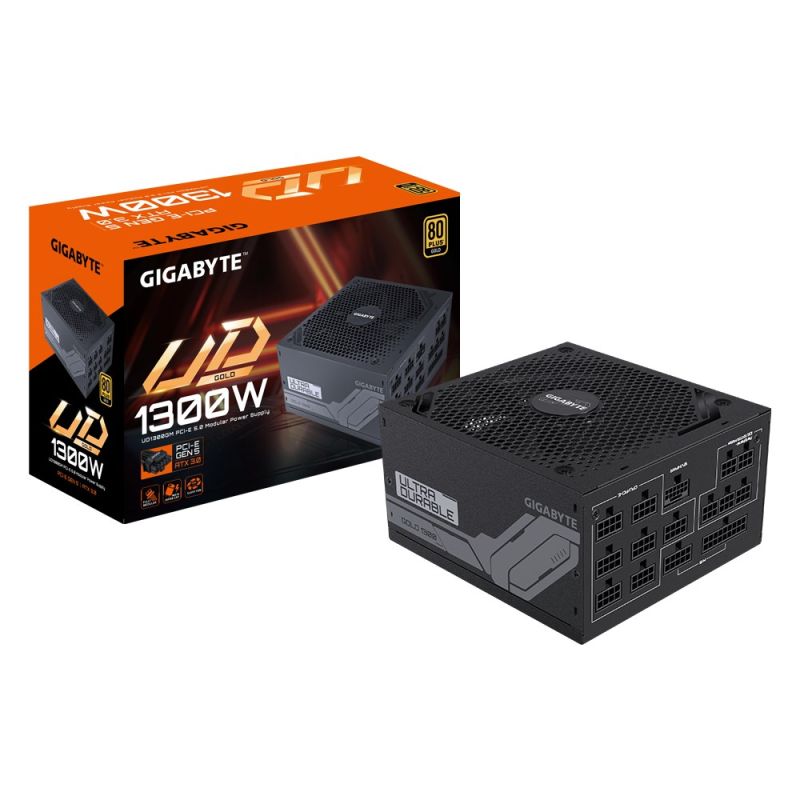

- Packaging type: Box
- Package contents
- Cables: Processor, PATA, Peripheral (Molex), SATA
- Cable clamps included: Yes
- Certificates
- Certificates of conformity
- CCC
- Federal Communications Commission (FCC)
- CE
- RoHS
- Certificates of conformity

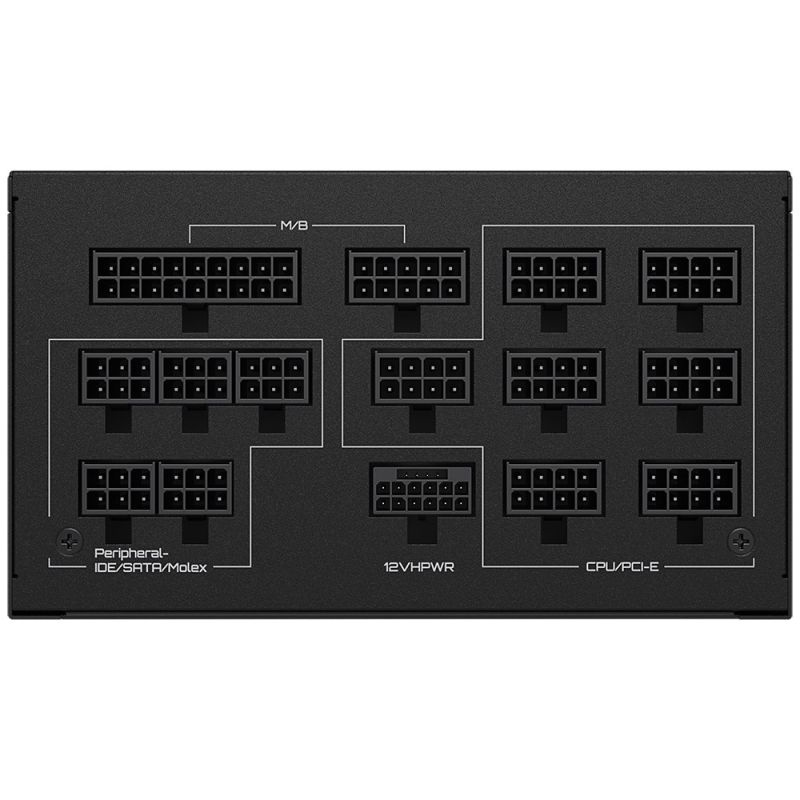

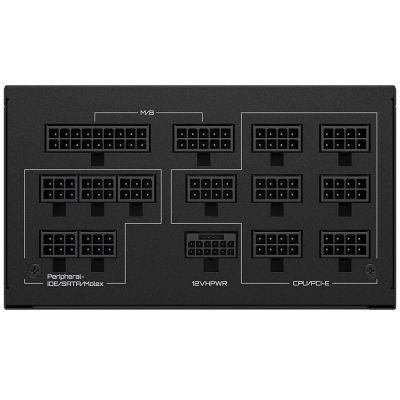

- Ports and interfaces
- PCI Express power connectors (16-pin): 1
- Peripheral (Molex) Power Connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 4
- Peripheral (Molex) Power Cable Length
- 600
- 200
- PCI Express power cable length: 70 cm
- Wiring Type: Fully Modular
- ATX power supply connector (20+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- SATA power cable length
- 600
- 150
- Number of PATA power connectors: 3
- PCI Express slot: Yes
- Number of SATA power connectors: 8
- Motherboard cable length: 61 cm
- CPU power supply connector (4+4 pin): Yes
- Logistics data
- Warranty period: 5 years
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
