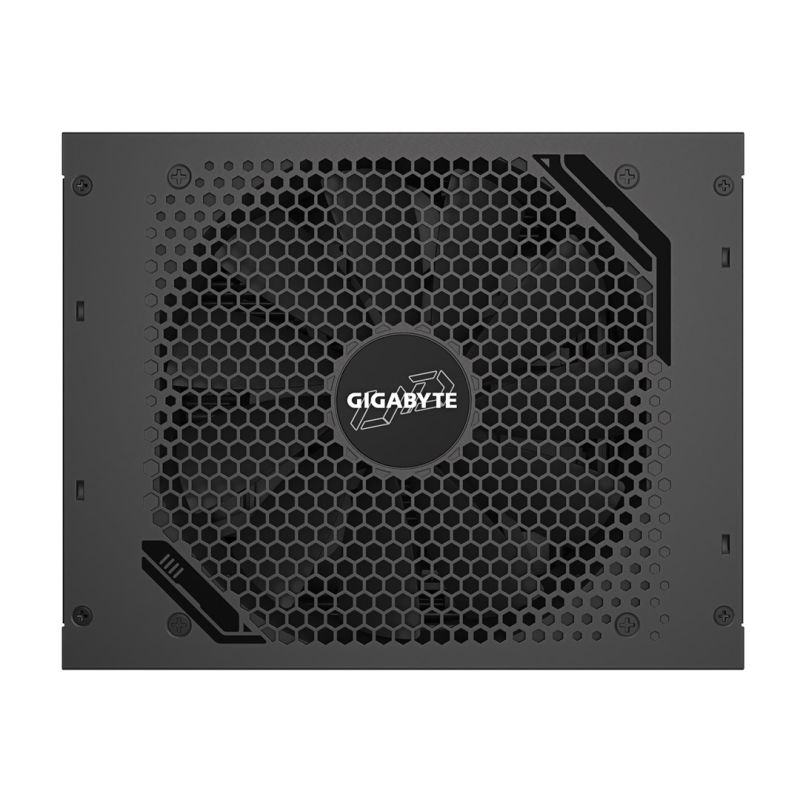

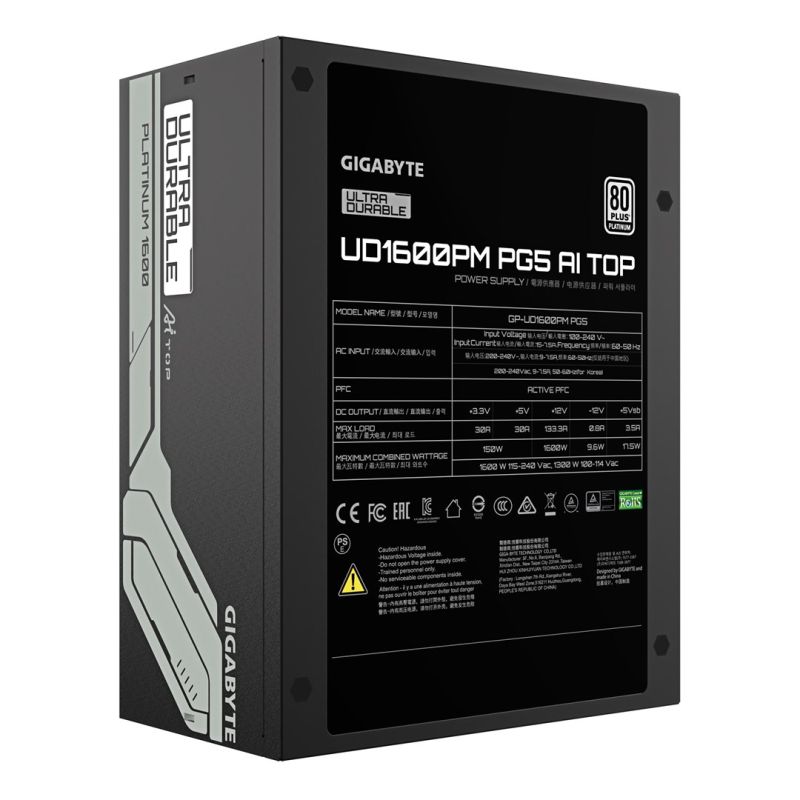

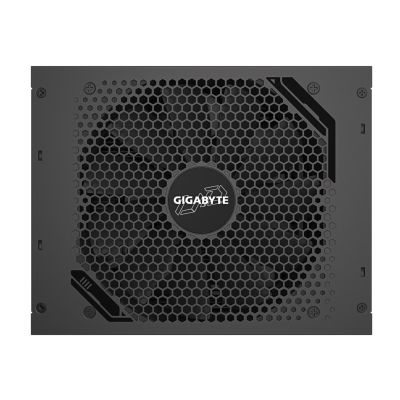

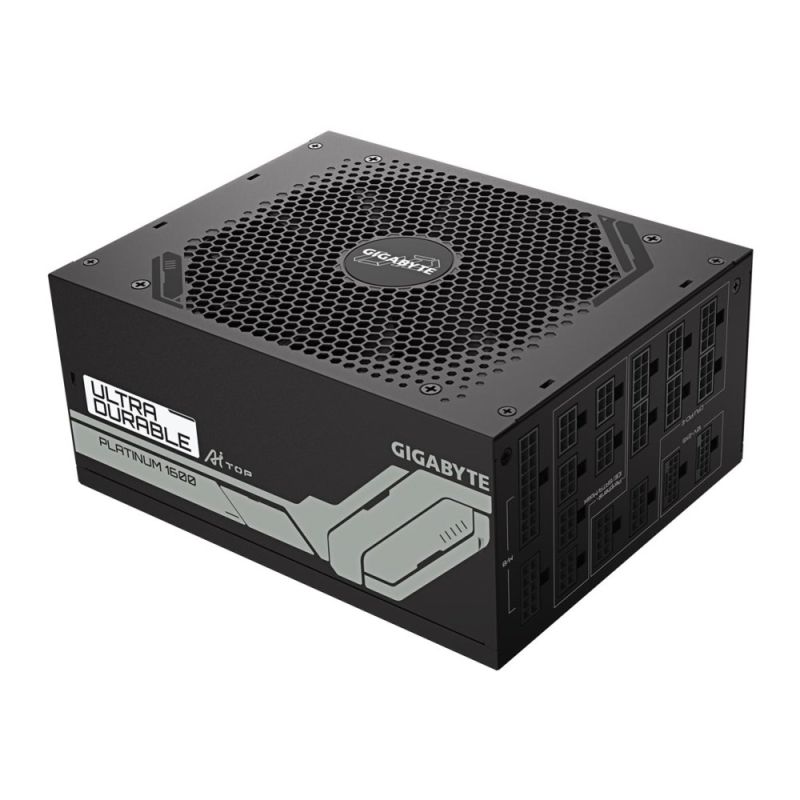

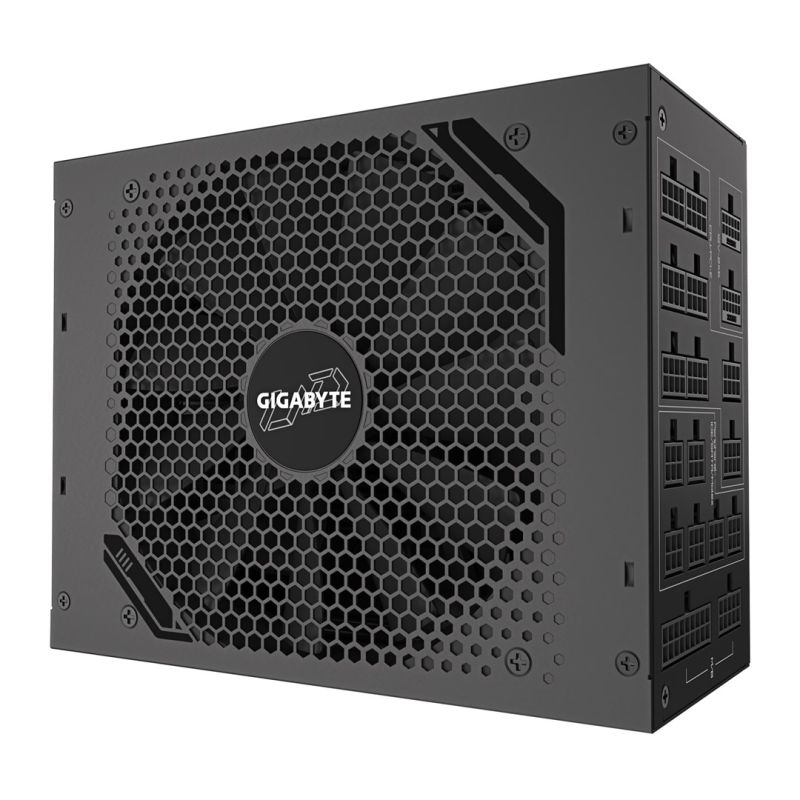

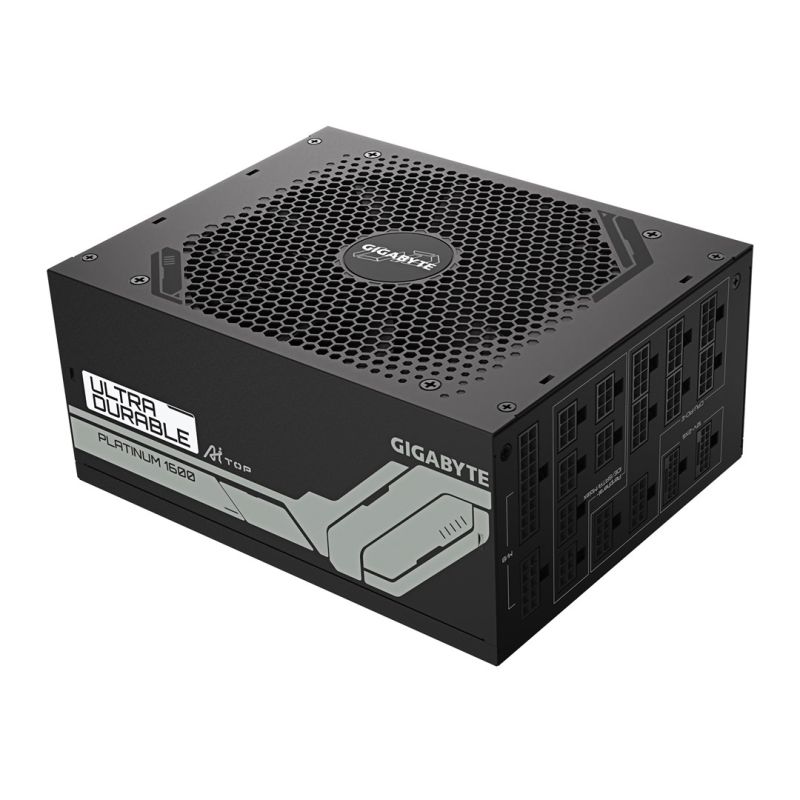

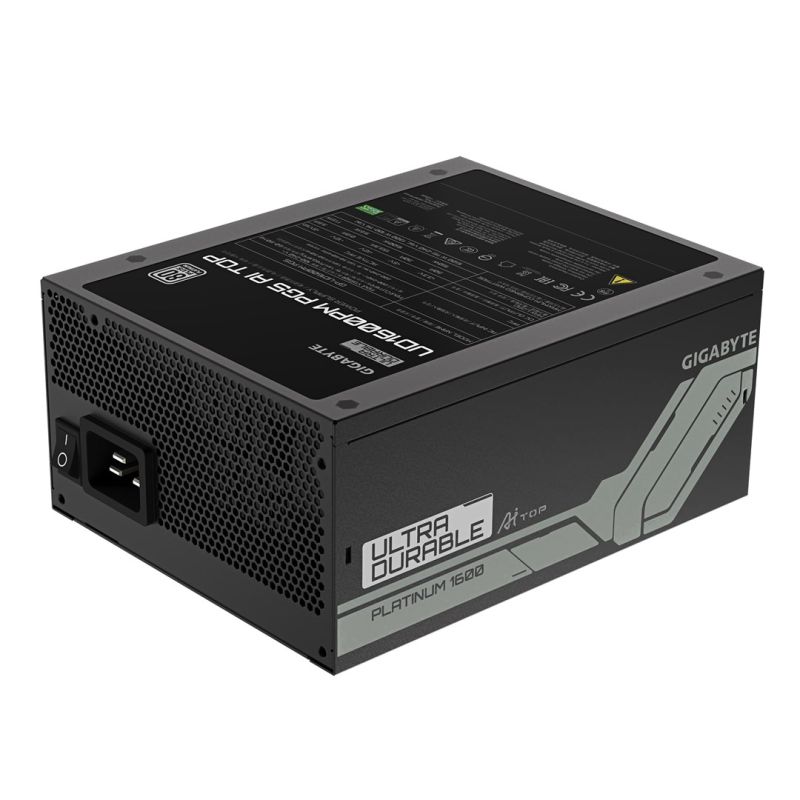

GIGABYTE UD1600PM PG5 AI TOP Power Supply Module 1600 W 20+4 pin ATX ATX Black
GIGABYTE UD1600PM PG5 AI TOP Power Supply Module 1600 W 20+4 pin ATX ATX Black
GIGABYTE UD1600PM PG5 AI TOP Power Supply Module 1600 W 20+4 pin ATX ATX Black
PRICE:
518,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Number of fans: 1 fan
- Product color: Black
- Built-in switch: Yes
- Cooling type: Active
- Fan Location: Top
- Fan bowl diameter: 12 cm
- Power
- Efficiency: 92%
- Power factor: 0.9
- AC input voltage: 100 - 240 V
- Power protection features
- Short circuit
- Overheating protection
- Overload protection
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- Total power (+5 Vsb): 17.5 W
- Total power (+5V): 150 W
- Maximum output current (+12V): 133.3A
- Maximum output current (+3.3V): 30 A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (-12V): 0.8A
- Total power: 1600 W
- AC input frequency: 50/60 Hz
- Maximum output current (+5 Vsb): 3.5 A
- Input current: 15 - 7.5 A
- Total power (-12V): 9.6 W
- Hold time: 16 ms
- Total power (+3.3V): 150 W
- Maximum output current (+5V): 30A
- Total power (+12V): 1600 W
- Good Signal Power Delay Range: 100 - 150 ms
- Weight and dimensions
- Product width: 150 mm
- Product height: 86 mm
- Product depth: 190 mm
- Product weight: 5.3 kg
- Efficiency
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS Platinum
- ATX version: 3.1
- Bearing Technology: DBB
- Power supply type (PSU): ATX

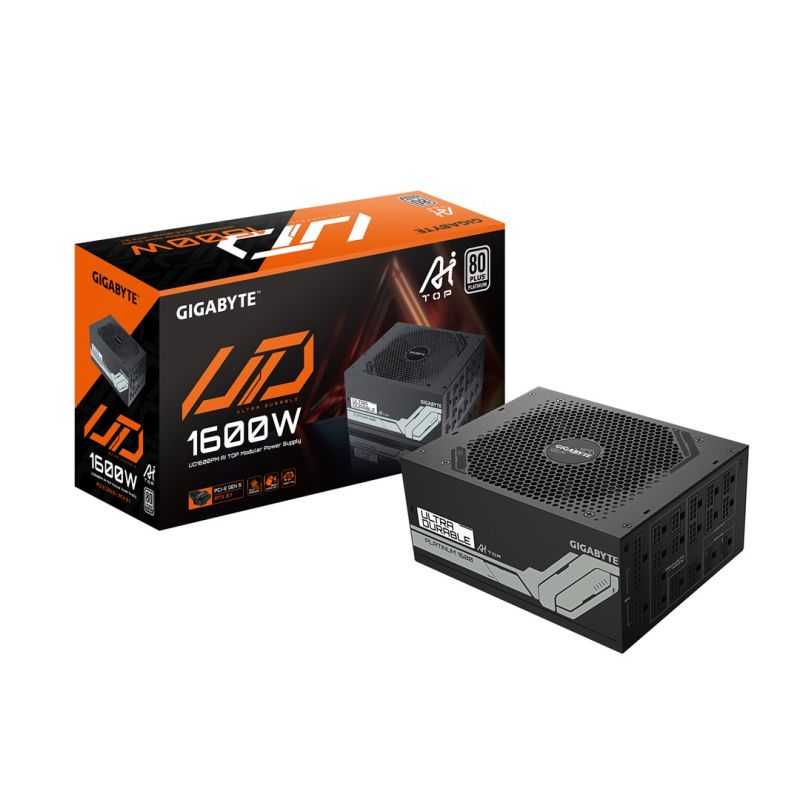

- Packaging data
- Packaging type: Box
- Package depth: 219 mm
- Package width: 410 mm
- Package height: 145 mm
- Weight with packaging: 5.58 kg

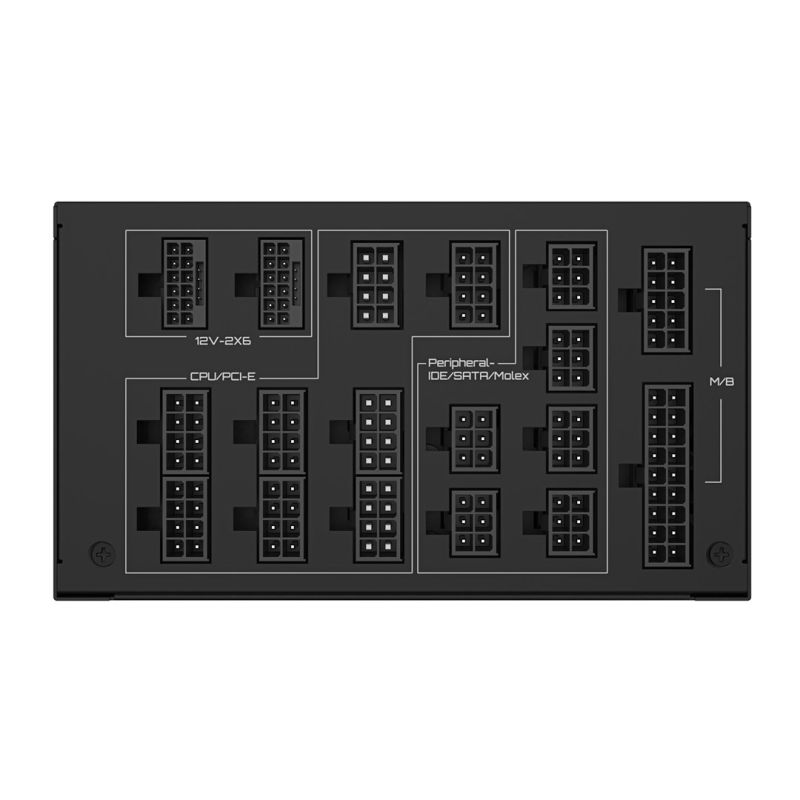

- Ports and interfaces
- Wiring Type: Fully Modular
- ATX power supply connector (20+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- PCI Express power connectors (6+2 pin): 8
- CPU power supply connector (4+4 pin): Yes
- Number of SATA power connectors: 16
- EPS power connector (4+4 pin): Yes
- SATA power cable length
- 150
- 650
- Peripheral (Molex) Power Connectors (4-pin): 6
- PCI Express slot: Yes
- Motherboard cable length: 61 cm
- Logistics data
- Warranty period: 10 years
| Name | Details |
|---|---|
| Producer | Gigabyte |
