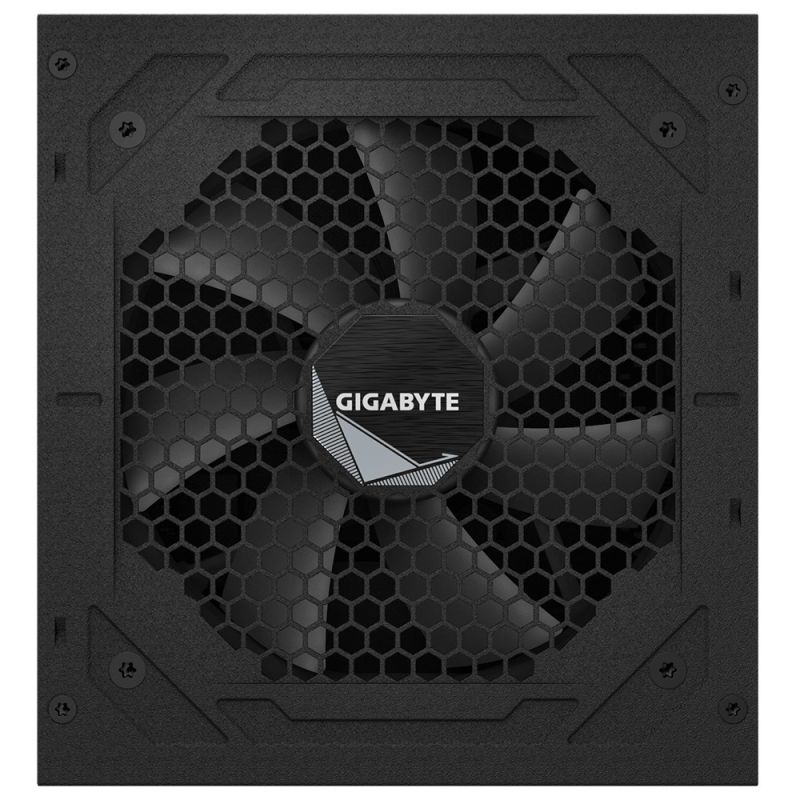

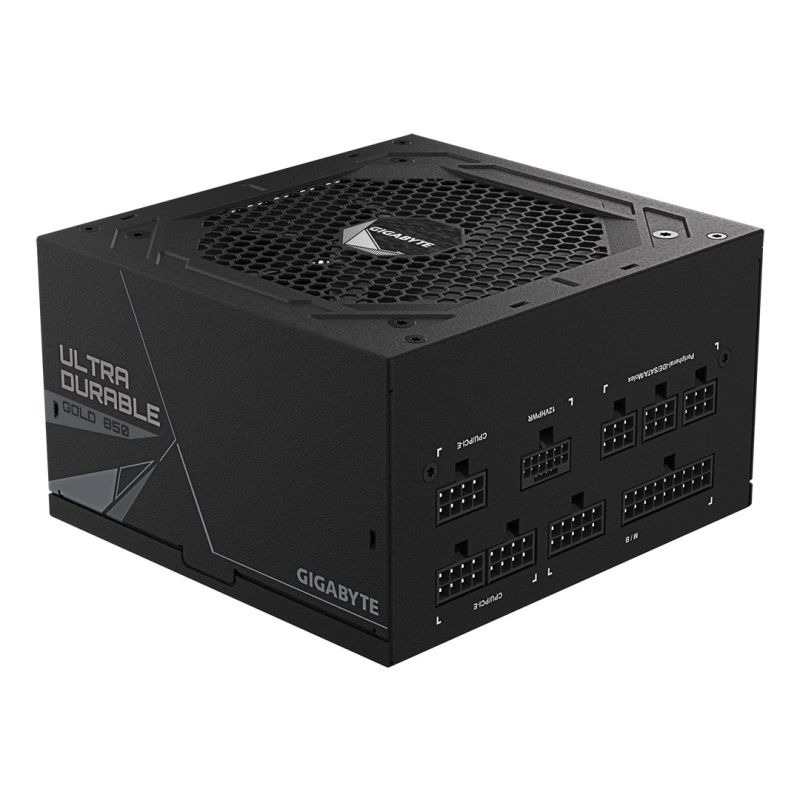

Gigabyte UD850GM 850W PG5 V2 Power Supply
Gigabyte UD850GM 850W PG5 V2 Power Supply
Gigabyte UD850GM 850W PG5 V2 Power Supply
PRICE:
148,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design

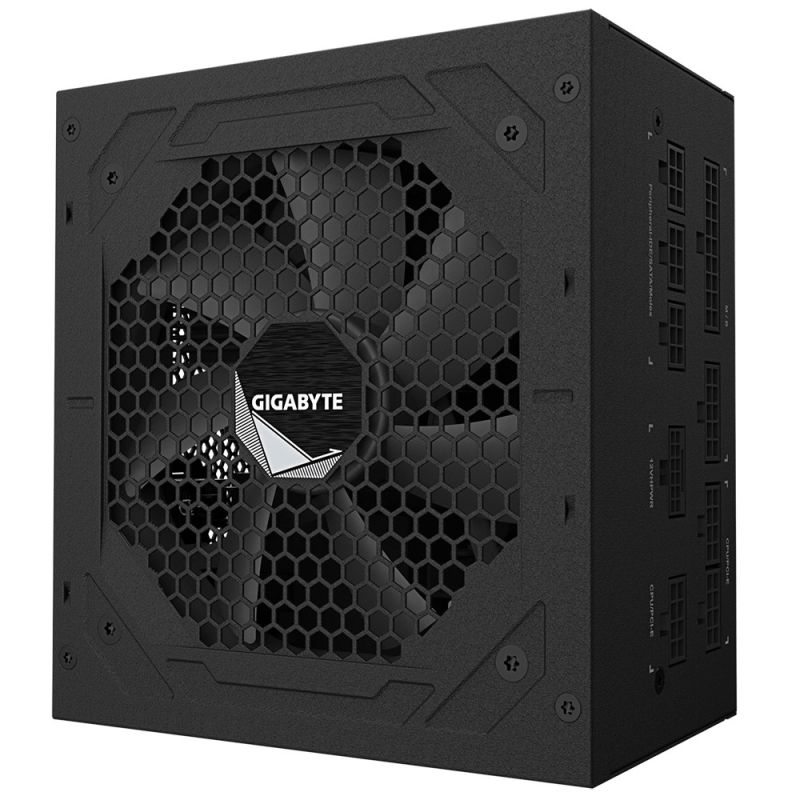

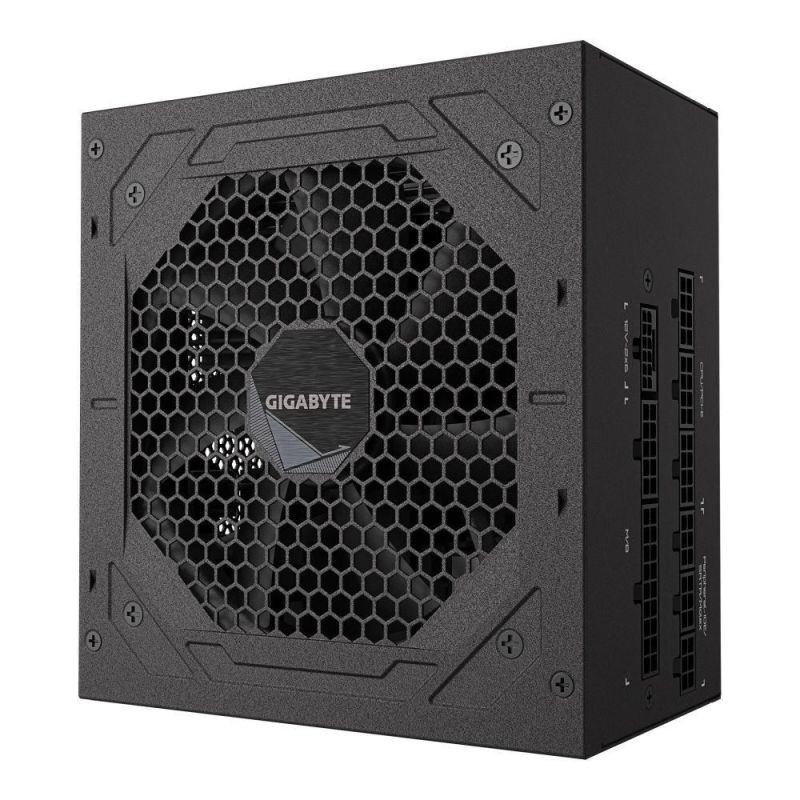

- Cooling type: Active
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Product color: Black
- Built-in switch: Yes

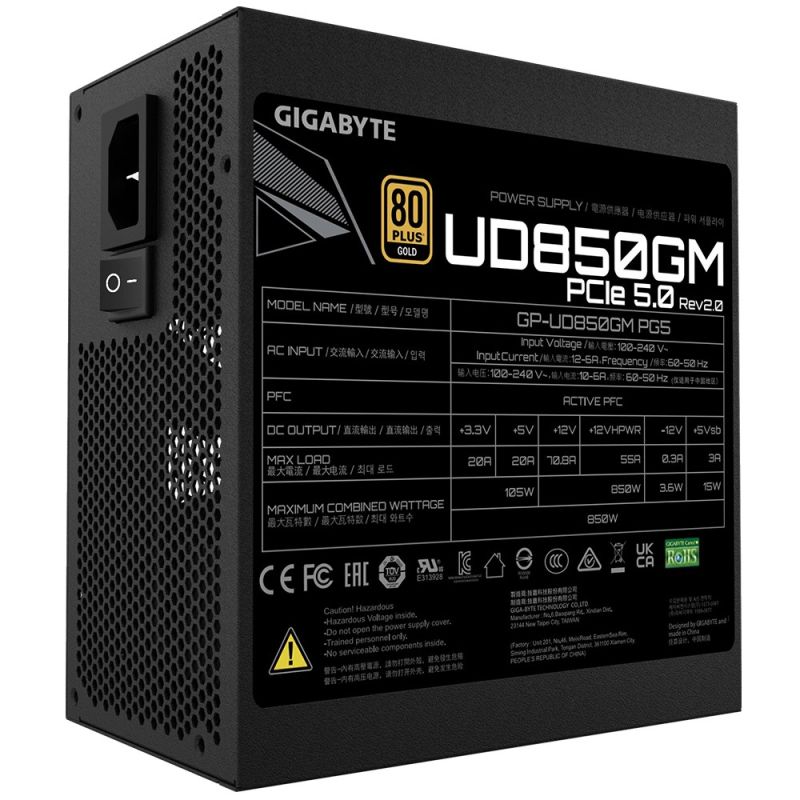

- Power
- AC input frequency: 50/60 Hz
- Power protection features
- Protection against overvoltage
- Overcurrent
- Overload protection
- Short circuit
- Overheating protection
- Low voltage protection
- Maximum output current (-12V): 0.3A
- Total power (+3.3V): 105 W
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 70.8 A
- Total power (+12V): 850 W
- AC input voltage: 100 - 240 V
- Total power (+5 Vsb): 15 W
- Total power (+5V): 105 W
- Maximum output current (+5 Vsb): 3 A
- Input current: 12 - 6 A
- Hold time: 16 ms
- Total power (-12V): 3.6 W
- Maximum output current (+3.3V): 20 A
- Total power: 850 W
- Power factor: 0.9
- Maximum output current (+5V): 20A
- Weight and dimensions
- Product weight: 2.4 kg
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Power supply type (PSU): ATX
- Bearing technology: HYB
- ATX version: 3.1

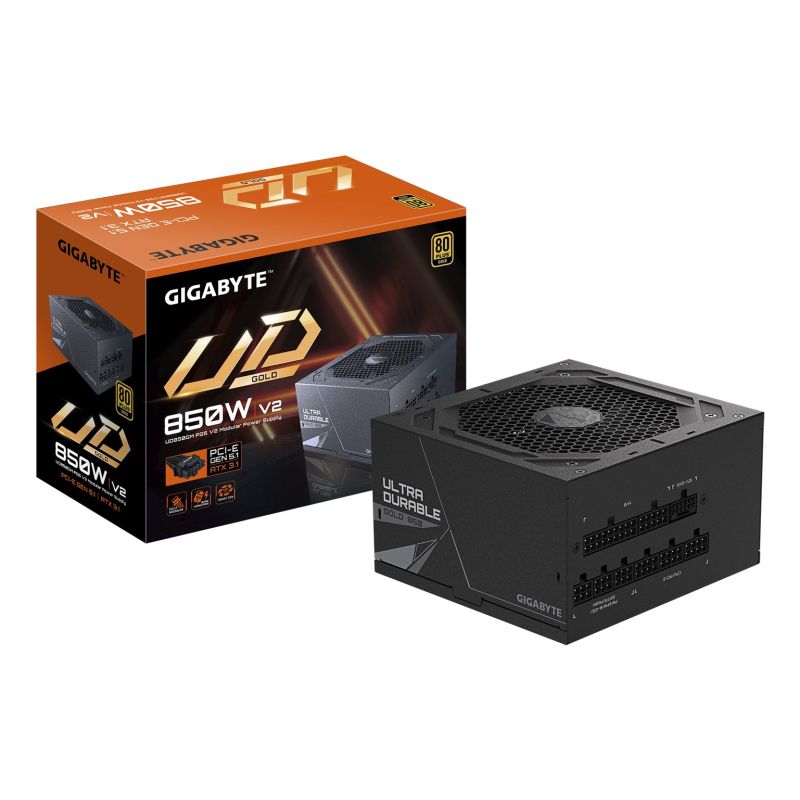

- Packaging data
- Package width: 618 mm
- Package depth: 269 mm
- Packaging type: Box
- Package height: 211 mm
- Weight with packaging: 2.56 kg

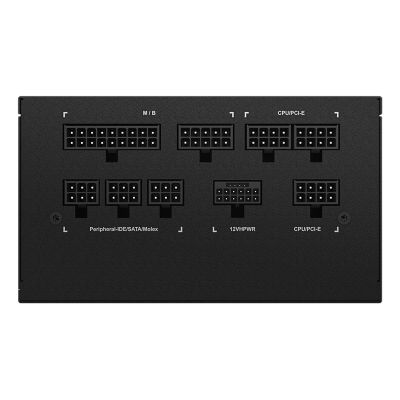

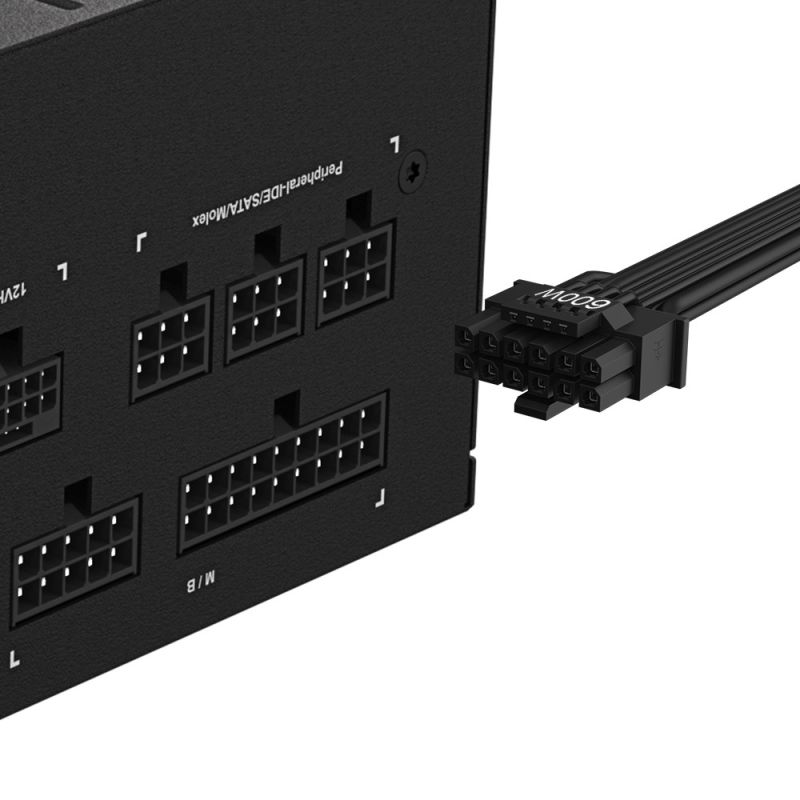

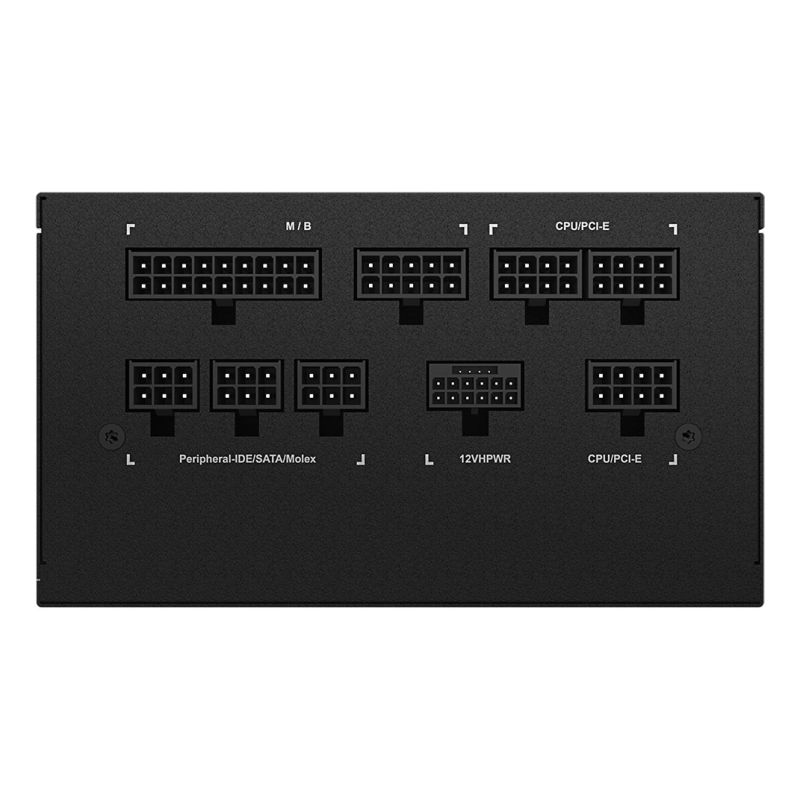

- Ports and interfaces
- PCI Express power connectors (16-pin): 1
- Peripheral (Molex) Power Connectors (4-pin): 3
- Number of SATA power connectors: 8
- Peripheral (Molex) Power Cable Length
- 500 mm
- 150
- PCI Express power cable length: 70 cm
- PCI Express power connectors (6+2 pin): 4
- CPU power cable length: 60 cm
- Motherboard power connector: 20+4 pin ATX
- Floppy drive connector: 1
- Wiring Type: Fully Modular
- SATA power cable length
- 600
- 150
- PCI Express slot: Yes
- CPU power supply connector (4+4 pin): Yes
- Motherboard cable length: 61 cm
- Number of EPS connectors: 2
- Logistics data
- Warranty period: 10 years
| Name | Details |
|---|---|
| Producer | Gigabyte |
