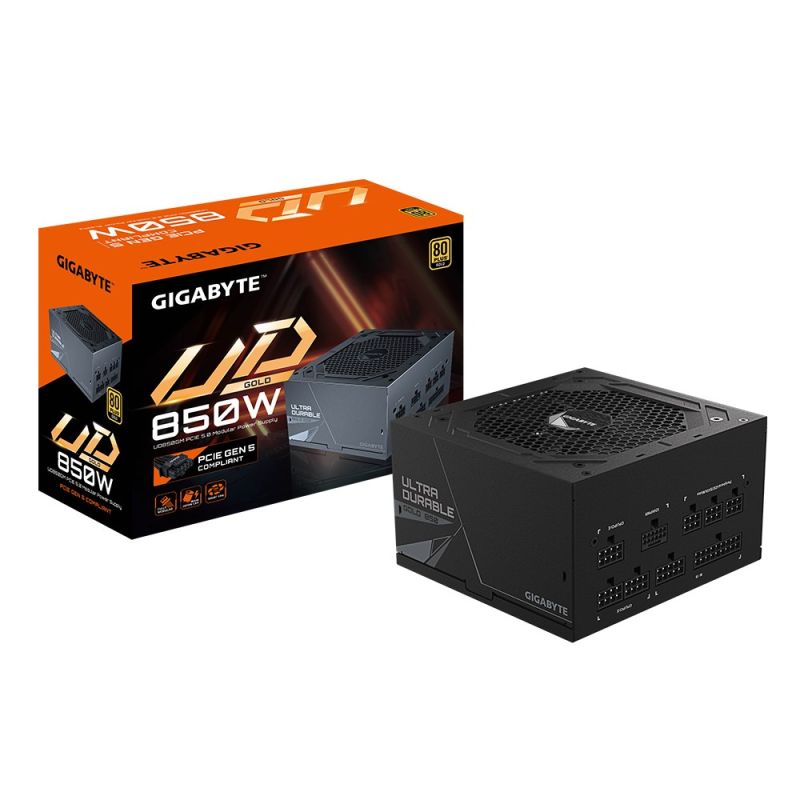

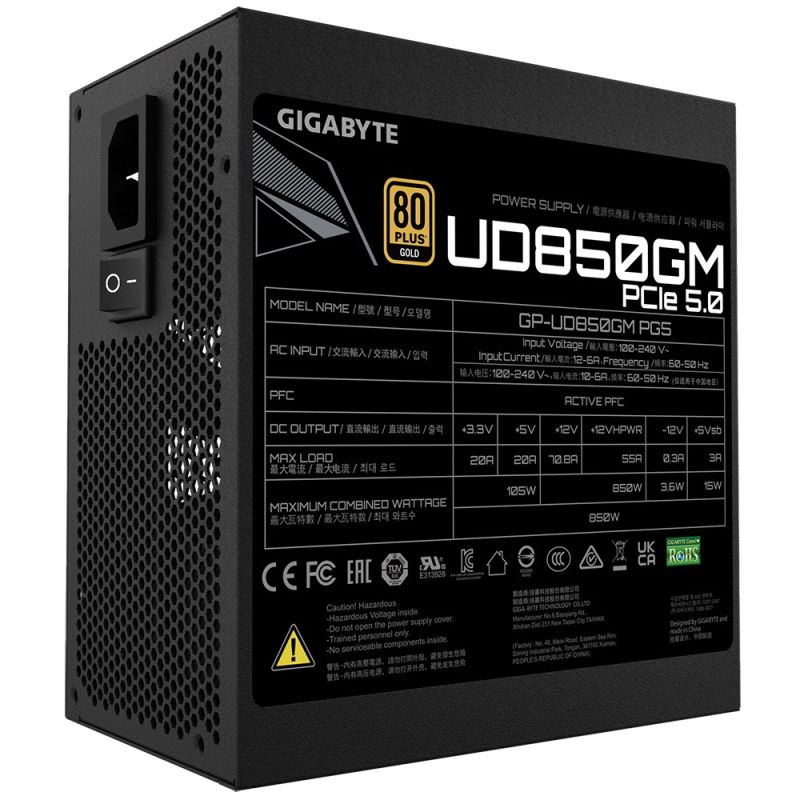

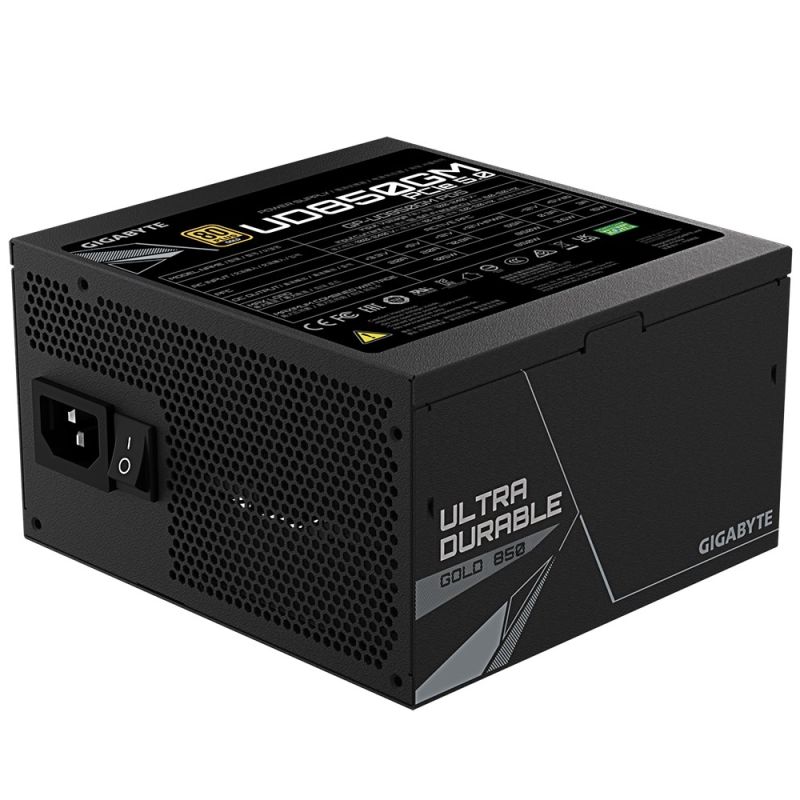

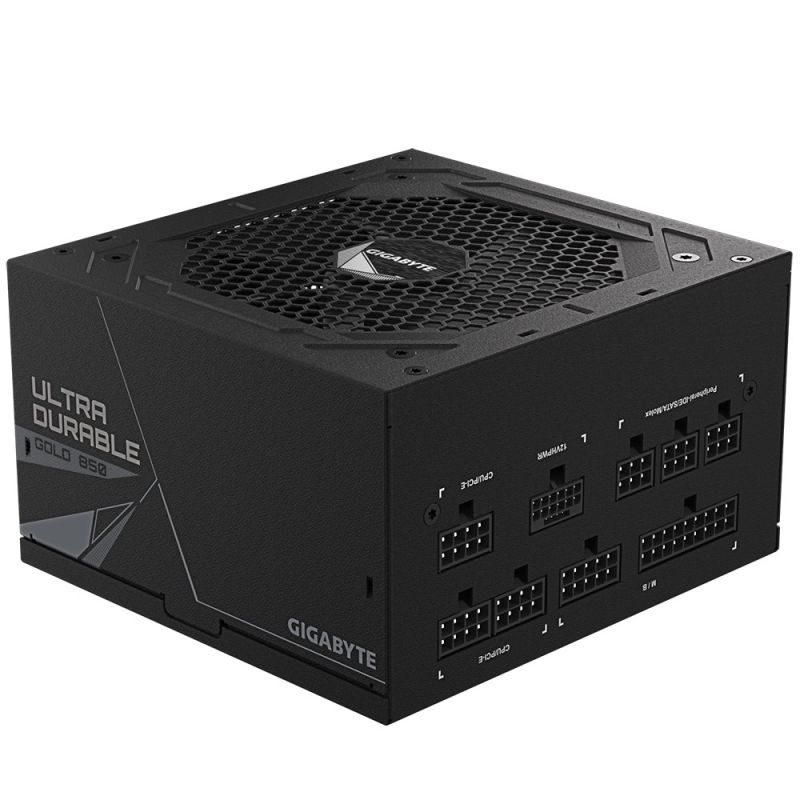

Gigabyte UD850GM PG5 850W 80+ Gold Power Supply
Gigabyte UD850GM PG5 850W 80+ Gold Power Supply
Gigabyte UD850GM PG5 850W 80+ Gold Power Supply
PRICE:
180,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black

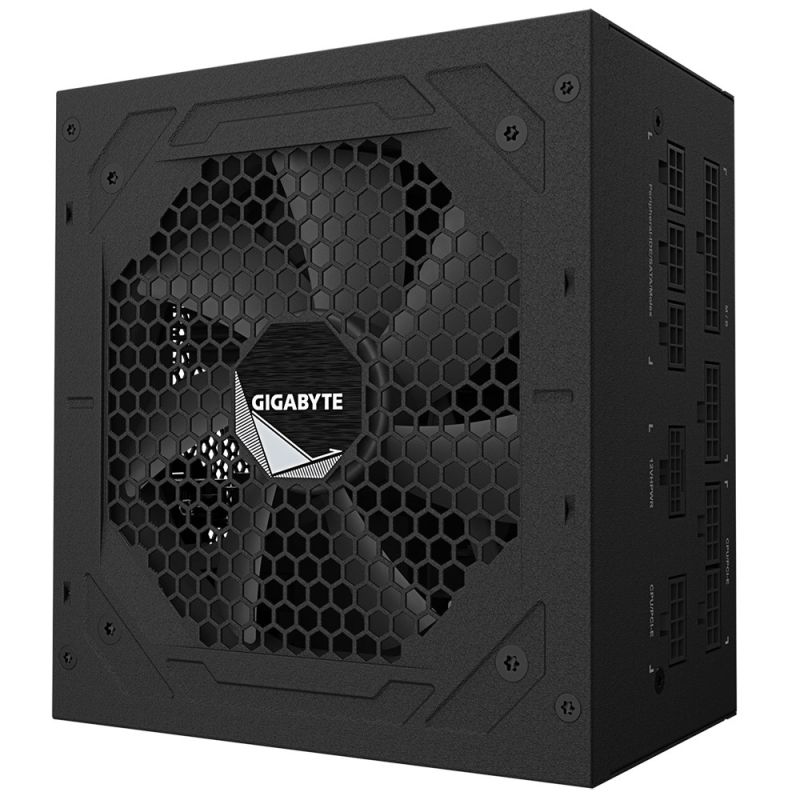

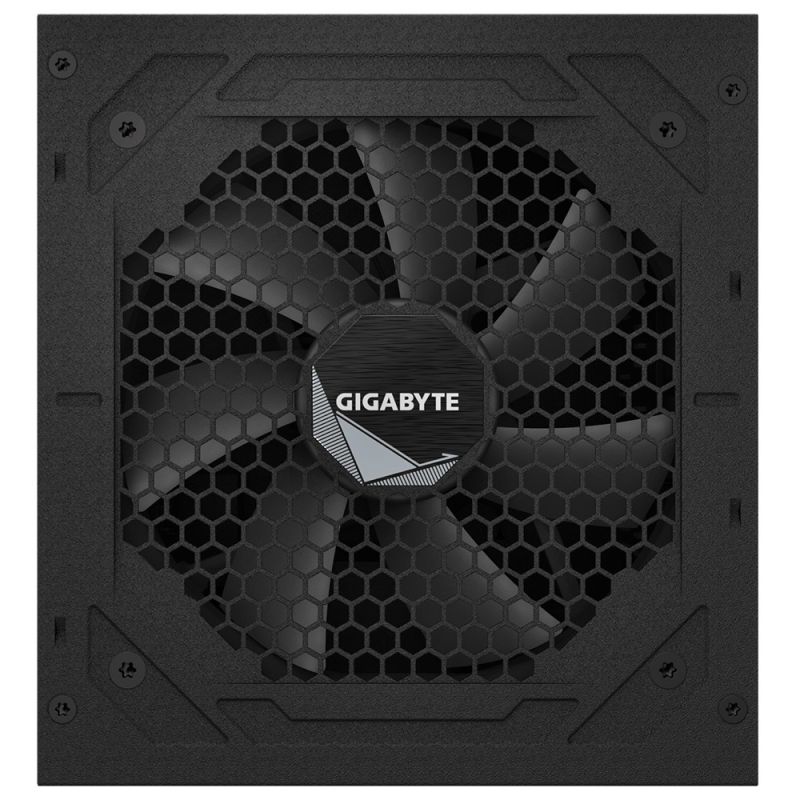

- Number of fans: 1 fan
- Backlight: No
- Cooling type: Active
- Fan bowl diameter: 12 cm
- Fan Location: Top
- Power
- Power protection features
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Overload protection
- Low voltage protection
- Total power (-12V): 3.6 W
- Total power (+3.3V): 105 W
- AC input voltage: 100 - 240 V
- Maximum output current (-12V): 0.3A
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 70.8 A
- Hold time: 16 ms
- Maximum output current (+3.3V): 20 A
- Maximum input current (@ 220V): 12 A
- Total power (+12V): 850 W
- Maximum output current (+5 Vsb): 3 A
- AC input frequency: 50 - 60 Hz
- Maximum input current (@ 110V): 6 A
- Input current: 12 - 6 A
- Maximum output current (+5V): 20A
- Total power: 850 W
- Total power (+5 Vsb): 15 W
- Total power (+5V): 105 W
- Power protection features
- Weight and dimensions
- Product width: 150 mm
- Product height: 85 mm
- Product depth: 140 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): ATX
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Noise level: 40 dB
- Packaging data
- Packaging type: Box
- Package contents
- Cables: Processor, PATA, Peripheral (Molex), SATA
- Cable clamps included: Yes
- Certificates
- Certificates of conformity
- RoHS
- CCC
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity

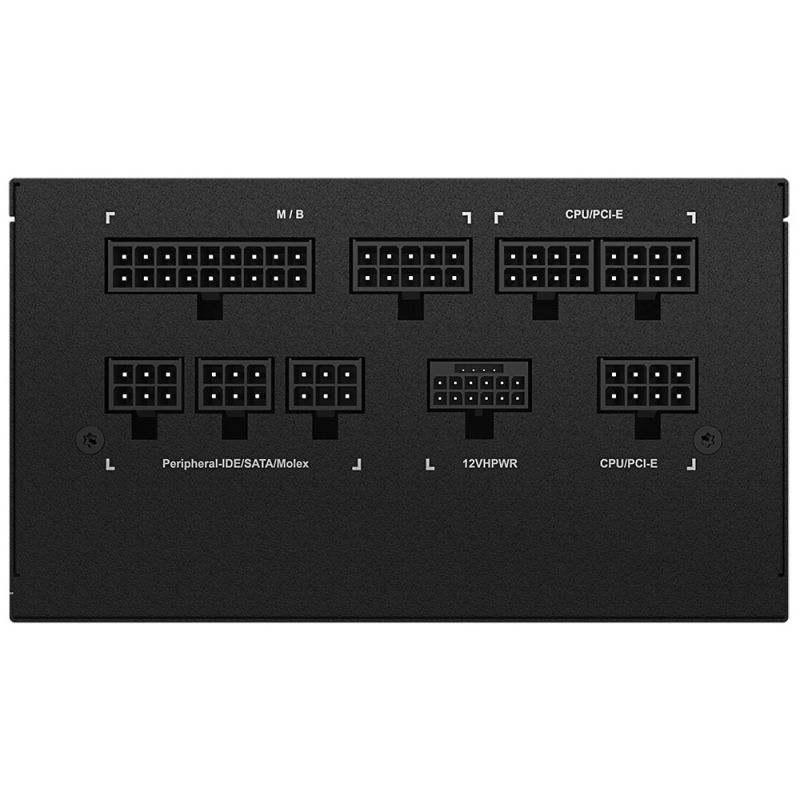

- Ports and interfaces
- Motherboard cable length: 61 cm
- PCI Express power cable length: 70 cm
- CPU power supply connector (4+4 pin): Yes
- Wiring Type: Fully Modular
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) Power Connectors (4-pin): 2
- ATX power supply connector (20+4 pin): Yes
- Number of PATA power connectors: 3
- Number of SATA power connectors: 8
- SATA power cable length
- 600 mm
- 150
- PCI Express power connectors (6+2 pin): 4
- Peripheral (Molex) Power Cable Length
- 600 mm
- 200
- PCI Express slot: Yes
- PCI Express power connectors (16-pin): 1
- Logistics data
- Warranty period: 5 years
| Name | Details |
|---|---|
| Producer | Gigabyte |
