GIGABYTE X870 AORUS ELITE X3D ICE AMD X870 Socket AM5 ATX
GIGABYTE X870 AORUS ELITE X3D ICE AMD X870 Socket AM5 ATX
GIGABYTE X870 AORUS ELITE X3D ICE AMD X870 Socket AM5 ATX
PRICE:
459,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- HDCP version: 2.3
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2304 px
- Memory
- Supported memory clock speeds
- 6600
- 6800 MHz
- 8800
- 6200 MHz
- 7800
- 4800 MHz
- 6000 MHz
- 8200
- 5600 MHz
- 6400 MHz
- 8400
- 7200
- 5200 MHz
- 9000
- 8000 MHz
- 8600
- 7000
- 7600
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Number of memory slots: 4
- ECC Compatibility: Non-ECC
- Supported memory types: DDR5-SDRAM
- Maximum internal memory per slot: 64 GB
- Supported memory clock speed (max): 9000 MHz
- Supported memory clock speeds
- Characteristics
- Product color: White
- Monitoring computer status
- Temperature
- Tension
- Processor
- Water cooling
- Fan
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC1220-VB
- Motherboard Layout: AMD X870
- Power supply type: ATX
- Chipset Board Family: AMD
- Cooling type: Passive
- Supported Windows operating systems: Windows 11 x64
- Intended use: PC
- Motherboard format: ATX
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Product height: 35 mm
- Internal I/O
- TPM Connector: Yes
- Number of EPS power connectors (8-pin): 2
- Number of CPU fan connectors: 2
- USB 3.2 Gen 2x2 ports: 1
- RGB LED: Yes
- Number of noise detection headers: 1
- Number of RGB LED connectors: 4
- Number of case fan connectors: 6
- Front panel audio connector: Yes
- Number of SATA III connectors: 2
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of water pump connections: 3
- Number of USB 2.0 ports: 2
- Number of temperature sensor headers: 2
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Network
- Bluetooth: Yes
- LAN controller: Realtek RTL8126
- Ethernet network interface type
- Fast Ethernet
- 5 Gigabit Ethernet
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Wi-Fi 4 (802.11n)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Wired LAN: Yes
- Bluetooth version: 5.4
- WLAN controller model: Qualcomm QCNCM865
- BIOS
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Button: Yes
- BIOS memory size: 512 Mbit
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package depth: 270 mm
- Package height: 80 mm
- Package width: 335 mm
- Weight with packaging: 2.71 kg
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Antenna Included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Number of supported HDDs: 2
- Number of supported storage drive sizes: 6
- RAID Service: Yes
- RAID levels
- 5
- 10
- 0
- 1

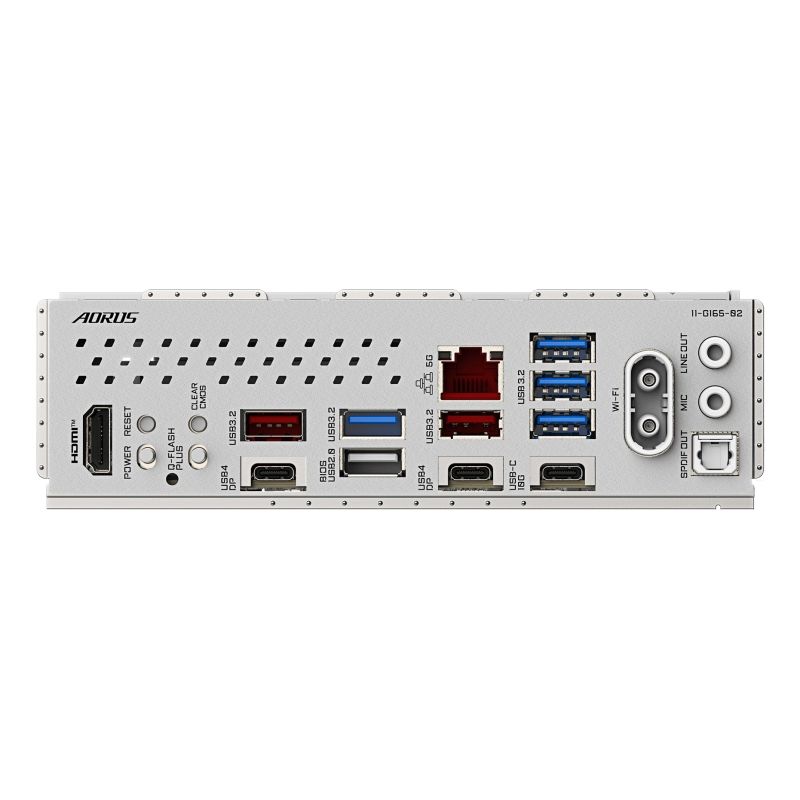

- Rear Panel I/O Ports
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- WiFi-AP Antenna Jack Plug: 2
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of HDMI ports: 1
- Headphone outputs: 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of USB4 Gen 2x2 ports: 2
- DisplayPort version: 1.4
- Number of USB 2.0 ports: 1
- Digital audio input: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- 2nd largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 5.0
- 2. M.2 highest generation PCI Express: 5.0
- 3. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 4.x) slots: 1
- 1. largest M.2 key size: 25110
- Number of M.2 (M) slots: 4
- 4. largest M.2 key size: 22110
- PCI Express x16 (Gen 5.x) slots: 1
- 4. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 22110
- Battery
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Number of battery compartments: 1
- Battery weight: 3 g
- Other functions
- Product weight: 2.42 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
